JH- / JHS-139
Quadrature Hybrid,
250 - 500 MHz
Features
•
•
•
•
•
Octave Bandwidth
Low VSWR: 1.1:1 Typical
High Isolation: 30 dB Typical
Impedance: 50 Ohms Nominal
Input Power: 4 Watts Max.@ 25°C, Derated to 1
Watt @ 85
o
C
•
MIL-STD-202 Screening Available
Rev. V3

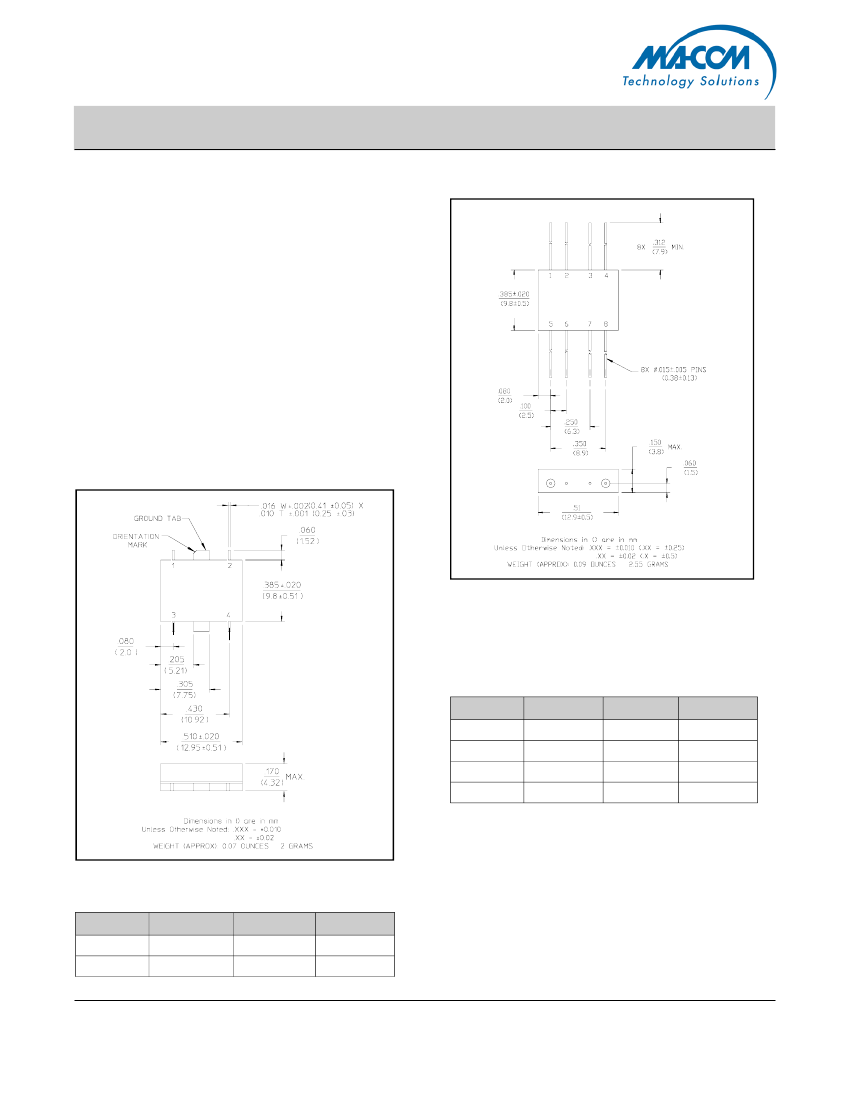

FP-2 (JH-139)
Description
3 dB Hybrids are ideal for dividing a signal into two
signals of equal amplitude and a constant 90
o
or
180
o
phase differential and for Quadrature
combining or performing summation/differential
combining.
SF-1 (JHS-139)
Pin Configuration (JH-139)
Pin No.
1
2
3
4
Function
A
GND
GND
B
Pin No.
5
6
7
8
Function
D
GND
GND
C
Pin Configuration (JHS-139)
Pin No.
1
2
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
Function
A
B
Pin No.
3
4
Function
D
C
JH- / JHS-139
Quadrature Hybrid,
250 - 500 MHz
Electrical Specifications
1
: T
A
= -55°C to +85°C
Parameter
Insertion Loss
2
Isolation
Amplitude Balance
VSWR
Deviation from
Quadrature
Test Conditions
Less Coupling
—
—
—
—
Frequency
250 - 500 MHz
250 - 500 MHz
250 - 500 MHz
250 - 500 MHz
250 - 500 MHz
Units
dB
dB
dB
Ratio
°
Min
—
15
—
—
—
Typ
—
—
—
—
—
Max
0.5
—
1.0
1.5:1
4
Rev. V3
1. All specifications apply with 50 ohm source and load impedance.
2. Average of coupled output less 3 dB.
This product contains elements protected by United States Patent Number 3,484,724
Phasing Diagram
OUT
IN
A
B
C
D
ISO
0°
-90°
90°
0°
ISO
ISO
0°
-90°
-90°
0°
ISO
A
B
C
D

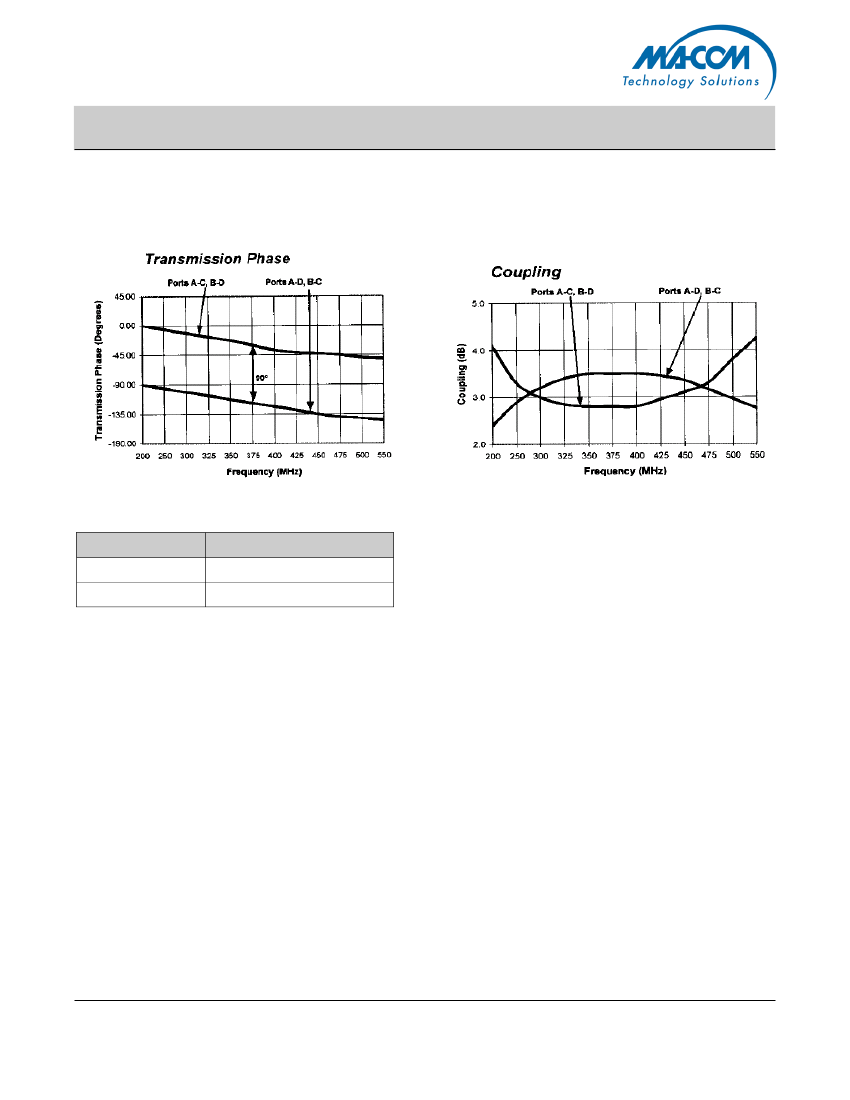

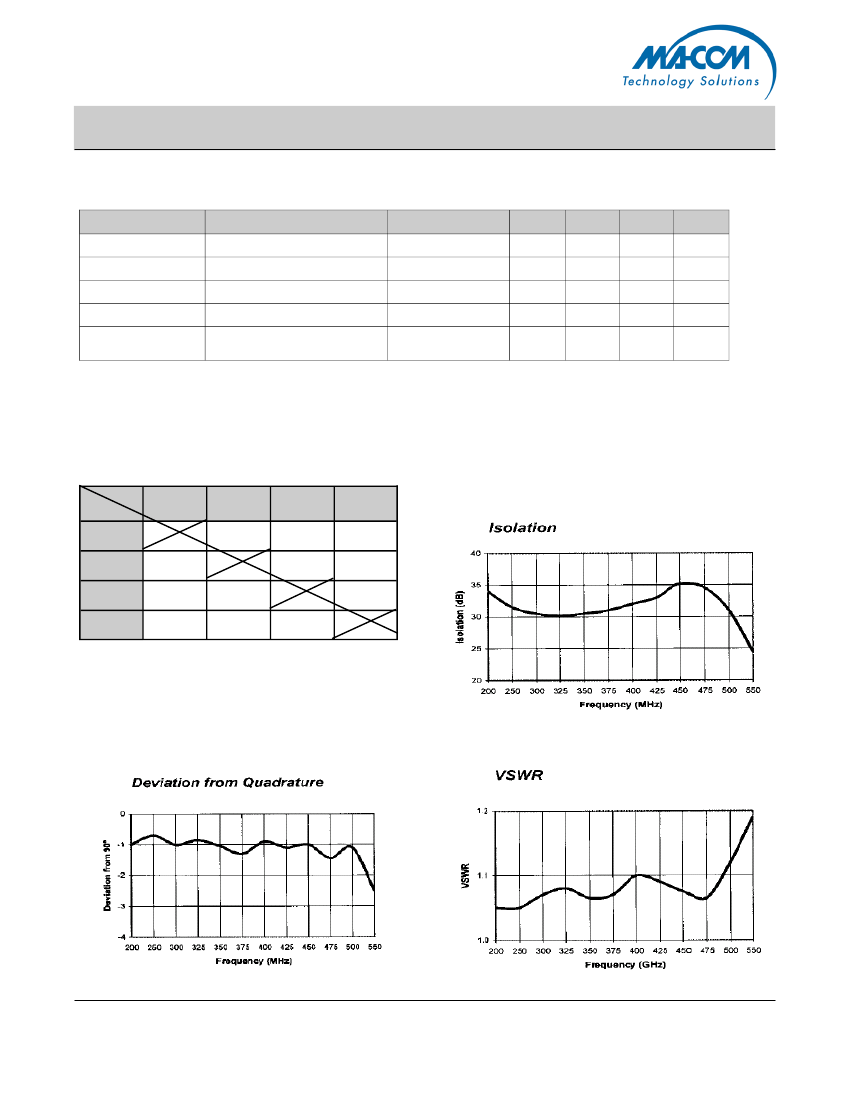

Typical Performance Curves
