BX80528KL150GD

Description
Microprocessor, 32-Bit, 1500MHz, CMOS, CPGA603, PGA-603
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size1MB,116 Pages
ManufacturerIntel
Websitehttp://www.intel.com/
Download Datasheet Parametric Compare View All

BX80528KL150GD Overview

Microprocessor, 32-Bit, 1500MHz, CMOS, CPGA603, PGA-603

BX80528KL150GD Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerIntel
Parts packaging codePGA
package instructionSPGA, PGA603,25X31,50
Contacts603
Reach Compliance Codeunknown
ECCN code3A001.A.3
Address bus width36
bit size32
boundary scanYES
maximum clock frequency100 MHz
External data bus width64
FormatFLOATING POINT
Integrated cacheYES
JESD-30 codeS-CPGA-P603
JESD-609 codee0
length53.34 mm
low power modeYES
Number of terminals603
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeSPGA
Encapsulate equivalent codePGA603,25X31,50
Package shapeSQUARE
Package formGRID ARRAY, SHRINK PITCH
power supply1.475 V
Certification statusNot Qualified
Maximum seat height5.53 mm
speed1500 MHz
Maximum supply voltage1.7 V
Minimum supply voltage1.545 V
Nominal supply voltage1.475 V
surface mountNO
technologyCMOS
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formPIN/PEG
Terminal pitch1.27 mm
Terminal locationPERPENDICULAR
width53.34 mm
uPs/uCs/peripheral integrated circuit typeMICROPROCESSOR

BX80528KL150GD Preview

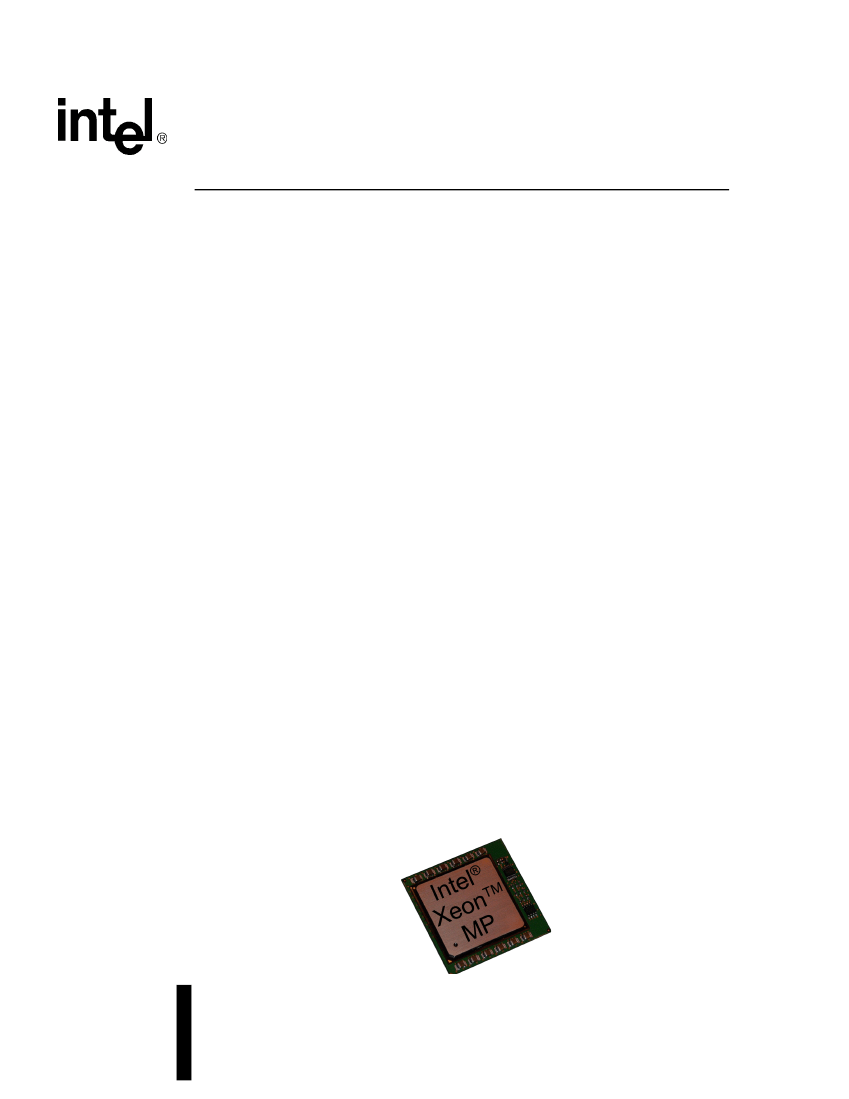

Intel
®
Xeon
Processor MP
at 1.40 GHz, 1.50 GHz and 1.60 GHz
Datasheet
Product Features
s
s
s
s
s
s
s
s
s
Available at 1.40, 1.50 and 1.60GHz
4-way and greater multi-processing server
support
Binary compatible with applications
running on Intel IA-32 architecture
processors
Hyper-Threading Technology enabling
multi-threading server software to execute
threads in parallel on each processor
400 MHz system bus
— Bandwidth up to 3.2 Gbytes/sec
Rapid Execution Engine: Arithmetic Logic
Units (ALUs) run at twice the processor
core frequency
Enables system support of up to 64 GB of
physical memory
Advance Dynamic Execution
— Very deep out-of-order execution
— Enhanced branch prediction
Level 1 Execution Trace Cache stores 12 K
micro-ops and removes decoder latency
from main execution loops
— Includes 8 KB Level 1 data cache
s
s
s
s
s
s
s
Intel
®
NetBurst™ micro-architecture
256 KB Advanced Transfer Cache (on-die,
full speed Level 2 (L2) cache) with 8-way
associativity and Error Correcting Code
(ECC)
512 KB or 1 MB of Integrated Level 3
Cache (on-die, full speed Level 3 Cache)
with Error Correcting Code (ECC) provides
faster access to large server instruction and
data sets
144 new Streaming SIMD Extensions 2
(SSE2) instructions
Enhanced floating point and multimedia
unit for enhanced video, audio, encryption,
and 3D performance
Power Management capabilities
— System Management mode
— Multiple low-power states
Advanced System Management Features
— Processor Information ROM (PIROM)
— System Management Bus (SMBus)
— OEM Scratch EEPROM
— Machine Check Architecture (MCA)
The Intel
®
Xeon™ processor MP is designed for high-performance enterprise and e-Business
server applications. Based on the Intel
®
NetBurst™ micro-architecture, it is binary compatible
with previous Intel IA-32 Architecture processors and introduces Hyper-Threading technology
to multi-processing server platforms. The Intel Xeon processor MP is scalable to four of more
processors in a multiprocessor system providing exceptional performance for enterprise server
applications running on advanced operating systems such as Windows 2000 Server*, Linux*,
Netware* and UNIX*. The Intel Xeon processor MP extends the power of the Intel
®
Pentium
®
III
Xeon™ processor with new features designed to make this processor the right choice for
powerful enterprise server, and mission-critical applications. Advanced features simplify system
management and meet the needs of a robust IT environment, resulting in maximized system up
time, convenient system management, and optimal configuration.
Order Number: 290740-002
March 2002
Information in this document is provided in connection with Intel
®
products. No license, express or implied, by estoppel or otherwise, to any intellectual
property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability
whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to
fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not
intended for use in medical, life saving, or life sustaining applications.
Intel may make changes to specifications and product descriptions at any time, without notice.
Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined." Intel reserves these for
future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them.
The Intel
®
Xeon processor may contain design defects or errors known as errata which may cause the product to deviate from published
specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an ordering number and are referenced in this document, or other Intel literature may be obtained by calling
1-800-548-4725 or by visiting Intel's website at http://www.intel.com.
Intel, Pentium, Pentium III Xeon, Intel Xeon and Intel NetBurst are trademark or registered trademarks of Intel Corporation or its subsidiaries in the
United States and other countries.
Copyright © Intel Corporation, 2002
* Other names and brands may be claimed as the property of others.
Datasheet
