EC2600SJET-FREQTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC2600SJET-FREQTR

EC2600SJET-FREQTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1MHz - 66.667MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size130KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC2600SJET-FREQTR Overview

CRYSTAL OSCILLATOR, CLOCK, 1MHz - 66.667MHz, HCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EC2600SJET-FREQTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	EC26
Installation features	SURFACE MOUNT
Maximum operating frequency	66.667 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

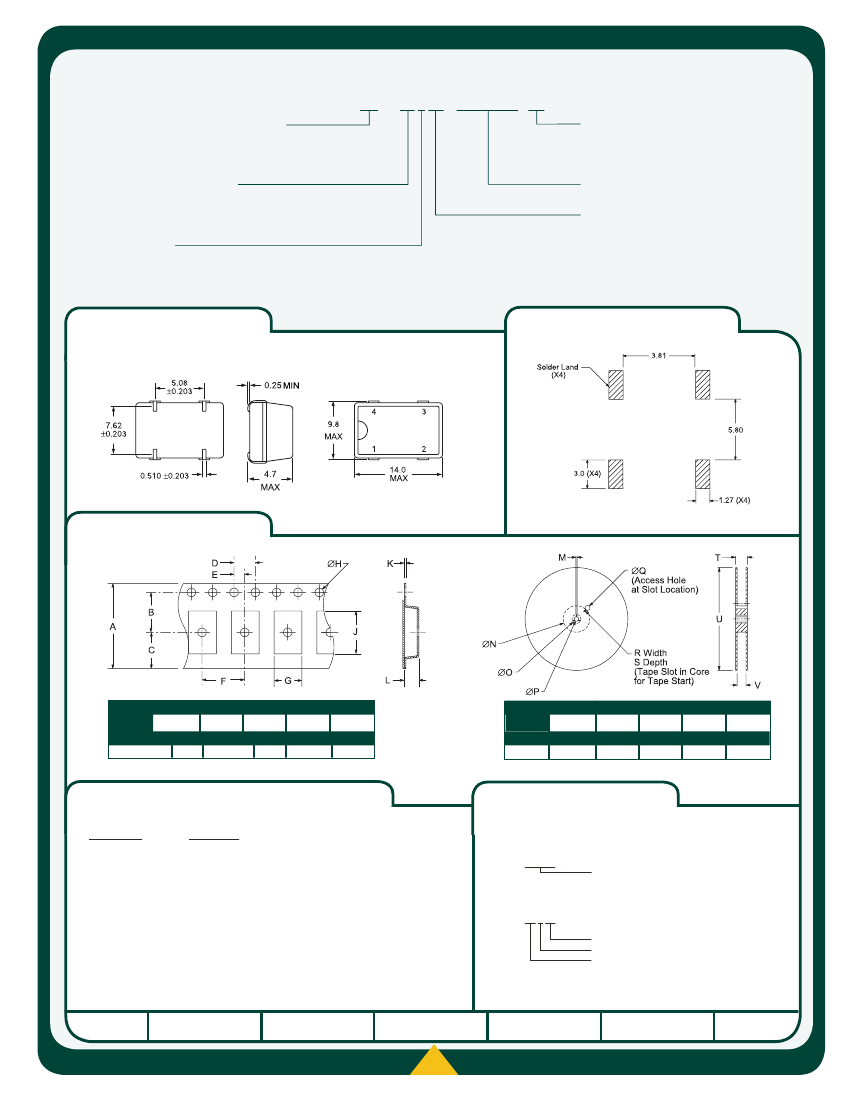

EC15

Series

• Plastic surface mount package

• 3.3V supply voltage

• HCMOS output

• Stability to 50ppm

• Available on tape and reel

NOTES

EC15

H 4.7

L 14.0

W 9.8

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Aging (at 25°C)

Input Current

1.000MHz to 66.667MHz

0°C to 70°C or -40°C to 85°C (≤30.000MHz)

-55°C to 125°C

3.3V

10%

±5ppm / year Maximum

10mA Maximum (Unloaded)

25mA Maximum (Unloaded)

35mA Maximum (Unloaded)

±100ppm Maximum or ±50ppm Maximum

(0°C to 70°C Only)

-0.4V

Minimum I

= -8mA

0.4 V

Maximum

= +8mA

5 nSec Maximum

50 ±10(%) (Standard) or 50 ±5(%) (Optional)

15pF HCMOS Load Maximum

Enables Output

Disables Output: High Impedance

4 mSeconds Maximum

10 mSeconds Maximum

±100pSeconds Maximum

±25pSeconds Maximum

Frequency Tolerance / Stability*

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Duty Cycle

Load Drive Capability

Tri-State Input Voltage

≤30.000MHz

30.001MHz to 50.000MHz

>50.000MHz

Inclusive of Operating Temperature Range,

Supply Voltage, and Load

10% to 90% of Waveform

at 50% of Waveform

No Connection

:≥2.0V

:≤0.8V

1.000MHz to 26.000MHz

26.001MHz to 50.000MHz

Start Up Time

Period Jitter: Absolute

Period Jitter: One Sigma
