2. Serial data is clocked in on the L to H transition of the CLK.
3. The switches go to a state retaining their present condition at the rising edge of LE. When LE is low the shift register data flow through the latch.
4. D
OUT
is high when data in the shift register 7 is high.
5. Shift register clocking has no effect on the switch states if LE is high.
6. The CLR clear input overrides all other inputs.
5
HV2203
Low Charge Injection, 8-Channel
High Voltage Analog Switch
Features
►
►
►
►
►
►
►
►
►
►
►
HVCMOS technology for high performance
3.3V or 5.0V CMOS input logic level
20MHz data shift clock frequency
Very low quiescent power dissipation - 10µA
Low parasitic capacitance
DC to 10MHz analog signal frequency
-60dB typical off-isolation at 5MHz
CMOS logic circuitry for low power
Excellent noise immunity
Cascadable serial data register with latches
Flexible operating supply voltages
General Description
The Supertex HV2203 is a low charge injection 8-channel high
voltage analog switch integrated circuit (IC) intended for use in
applications requiring high voltage switching controlled by low
voltage signals, such as medical ultrasound imaging, piezoelectric
transducer driver, and printers.
Data is input into an 8-bit shift register that can then be retained
in an 8-bit latch. To reduce any possible clock feed-through noise,
the latch enable bar should be left high until all bits are clocked in.
Data is clocked in during the rising edge of the clock.
Using HVCMOS technology, this device combines high voltage
bilateral DMOS switches and low power CMOS logic to provide
efficient control of high voltage analog signals.
The device is suitable for various combinations of high voltage
supplies, e.g., V
PP
/V
NN
: +40V/-120V, +80V/-80V, and +120V/-40V.
Applications
►
►
►
►
►
Medical ultrasound imaging
NDT metal flaw detection
Piezoelectric transducer drivers
Inkjet printer heads
Optical MEMS modules
Block Diagram
LEVEL
OUTPUT
SHIFTERS &
LATCHES
SWITCHES
CHARGE CONTROL
D
LE
CLR
SW0
CLK
D
LE
CLR
SW1
D
IN
8-BIT
SHIFT
REGISTER
D
LE
CLR
SW2
D
OUT
D
LE
CLR
SW6
D
LE
CLR
SW7
VDD GND
LE
CLR
VNN VPP
HV2203

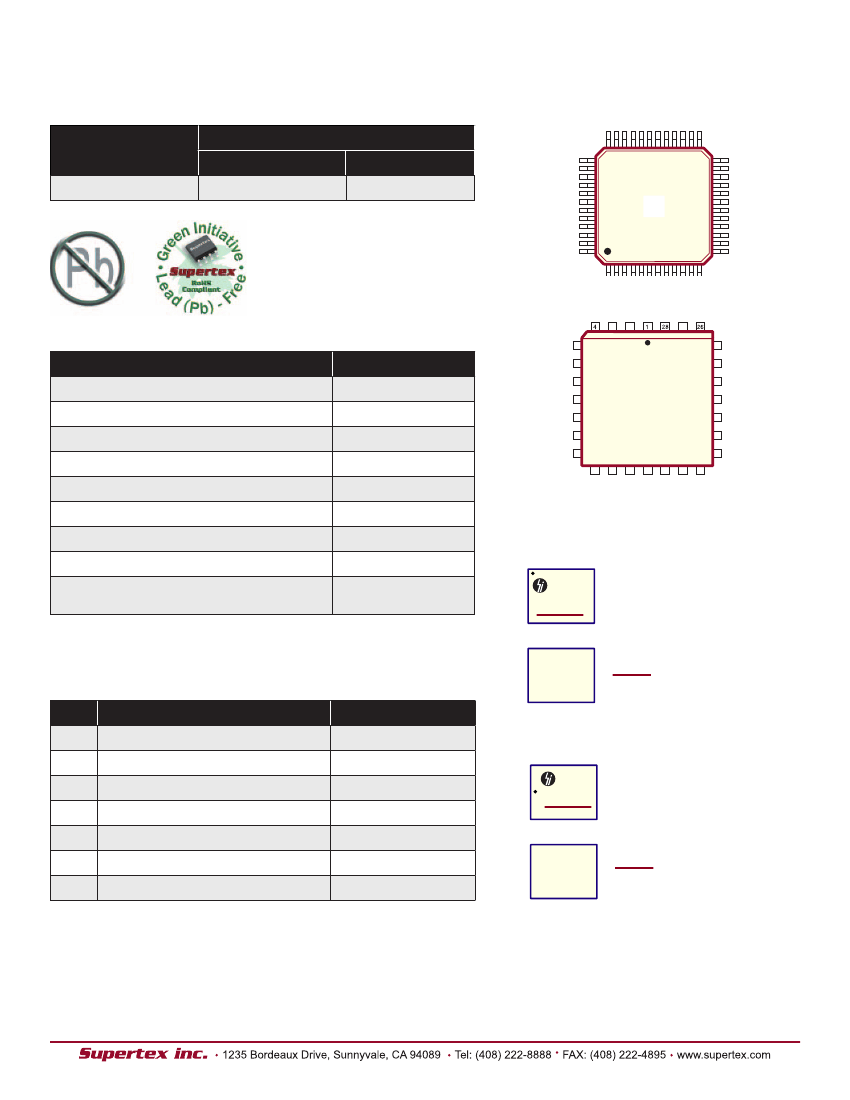

Ordering Information
Device
HV2203
Package Options
37
Pin Configurations
36
25
24
48-Lead LQFP
HV2203FG-G
28-Lead PLCC
HV2203PJ-G
-G indicates package is RoHS compliant (‘Green’)
48
1
12
13
48-Lead LQFP (FG)
Absolute Maximum Ratings
Parameter
V
DD
logic supply
V
PP
-V
NN
differential supply
V
PP
positive supply
V
NN
negative supply
Logic input voltage
Analog signal range
Peak analog signal current/channel
Storage temperature
Thermal resistance (θ
ja
):
48-Lead LQFP (FG)
Value
-0.5V to +6.5V
170V
-0.5V to V
NN
+170V
+0.5V to -170V
-0.5V to V
DD
+0.3V
V
NN
to V
PP
1.0A
-65°C to 150°C
61
O
C/W
28-Lead PLCC (PJ)
Product Marking
Top Marking
YYWW
HV2203FG
LLLLLLLLL
Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation under these conditions is not implied. Continuous operation of the device at
the absolute rating level may affect device reliability. All voltages are referenced to device ground.
Bottom Marking
CCCCCCCC
AAA
YY = Year Sealed
WW = Week Sealed
L = Lot Number
C = Country of Origin*
A = Assembler ID*
= “Green” Packaging
*May be part of top marking
Operating Conditions
Sym
V
DD
V
PP
V
NN
V
IH
V
IL
V
SIG
T
A
Parameter
Logic power supply voltage
Positive high voltage supply
Negative high voltage supply
High level input voltage
Low-level input voltage
Analog signal voltage peak-to-peak
Operating free air temperature
Value
3.0V to 5.5V
40V to V
NN
+160V
-40V to -120V
0.9V
DD
to V
DD
0V to 0.1V
DD
V
NN
+10V to V
PP
-10V
0
O
C to 70
O
C
48-Lead LQFP (FG)
Top Marking
YY W W
HV2203PJ
LLLLLLLLLL
Bottom Marking
CCCCCCCCCCC
AAA
YY = Year Sealed
WW = Week Sealed
L = Lot Number
C = Country of Origin
A = Assembler ID*
= “Green” Packaging
*May be part of top marking
Notes:
1. Power up/down sequence is arbitrary except GND must be powered-up first and powered-
2. Serial data is clocked in on the L to H transition of the CLK.
3. The switches go to a state retaining their present condition at the rising edge of LE. When LE is low the shift register data flow through the latch.
4. D
OUT
is high when data in the shift register 7 is high.
5. Shift register clocking has no effect on the switch states if LE is high.
6. The CLR clear input overrides all other inputs.
