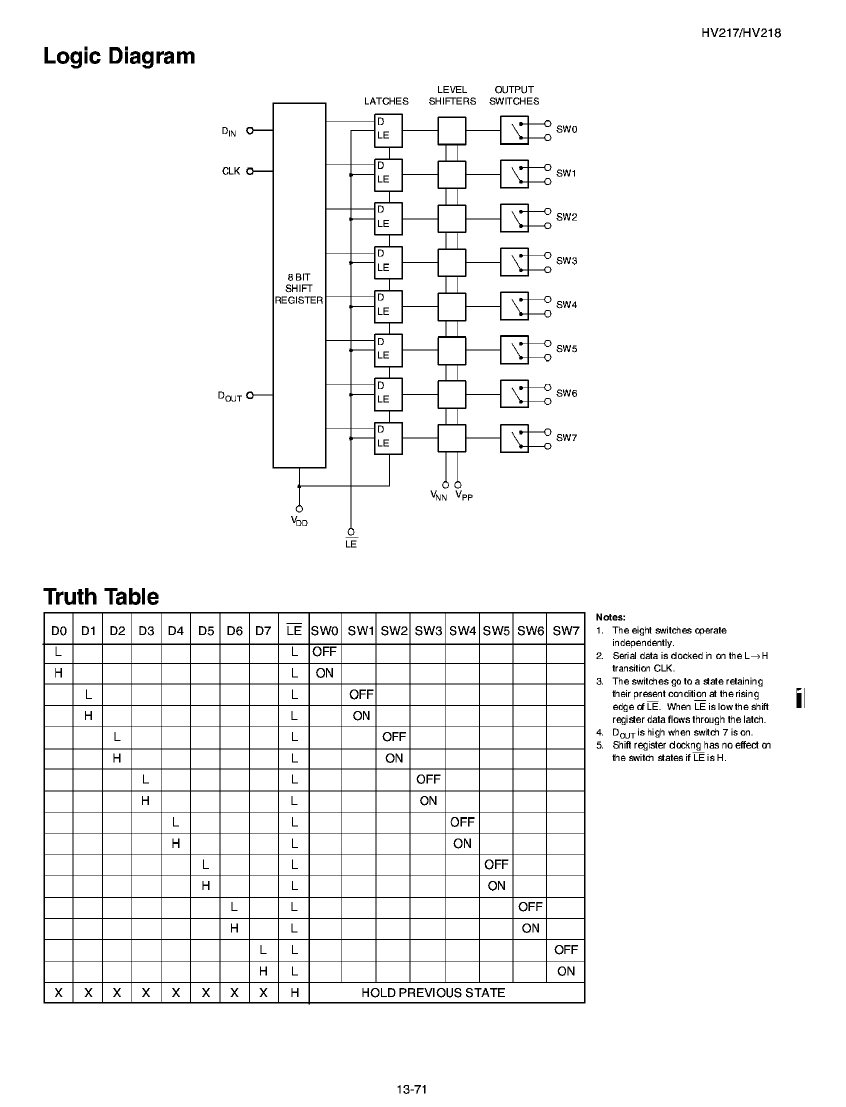

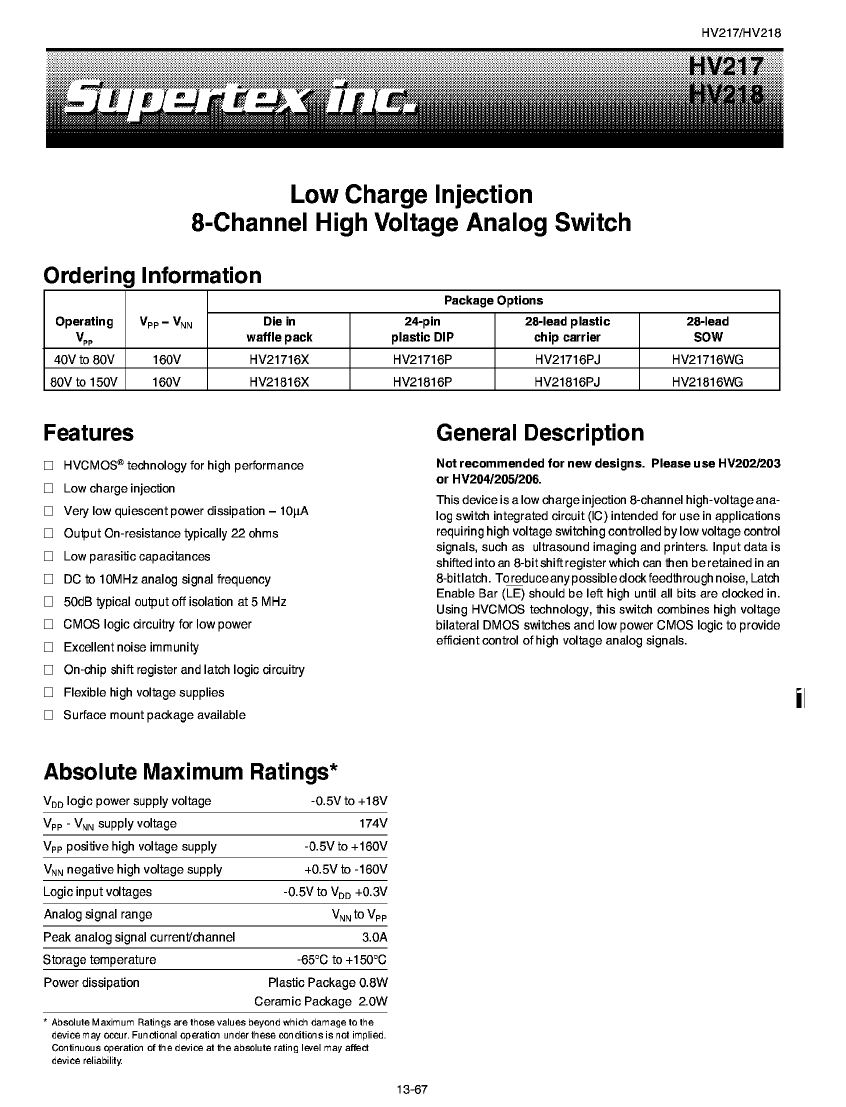

Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDSO28, SOW-28

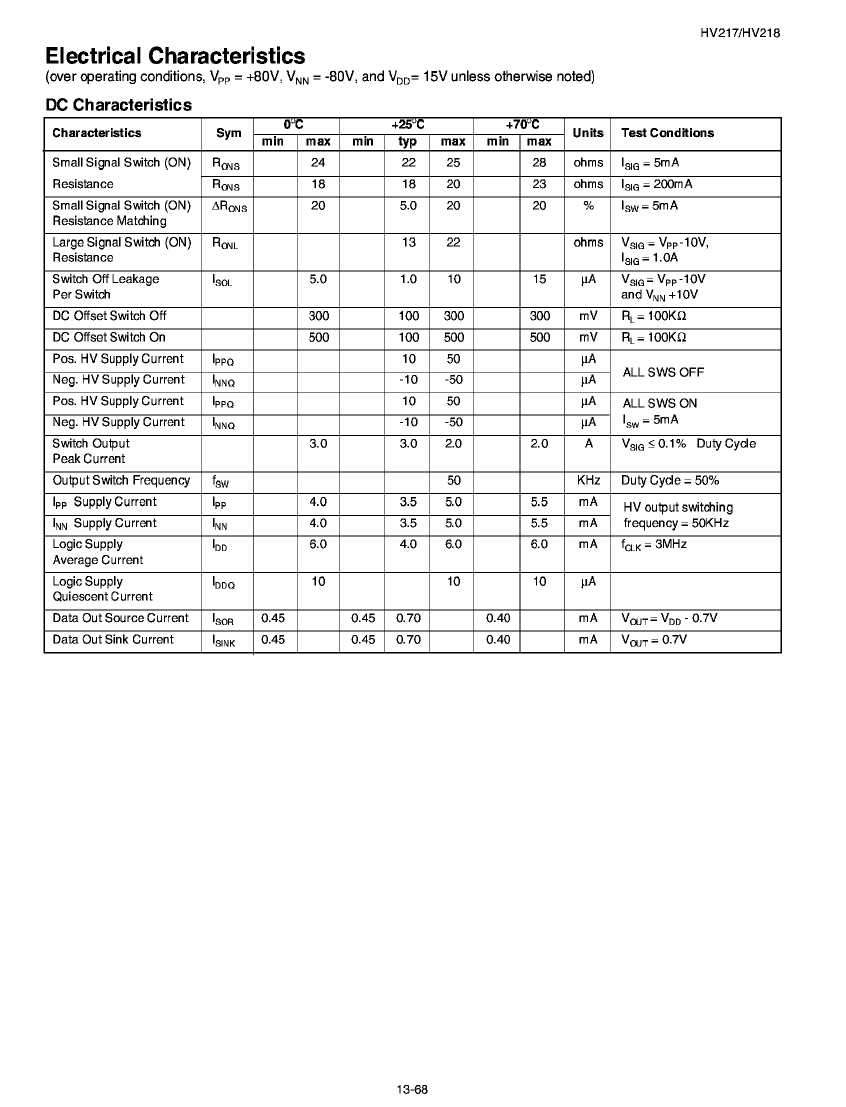

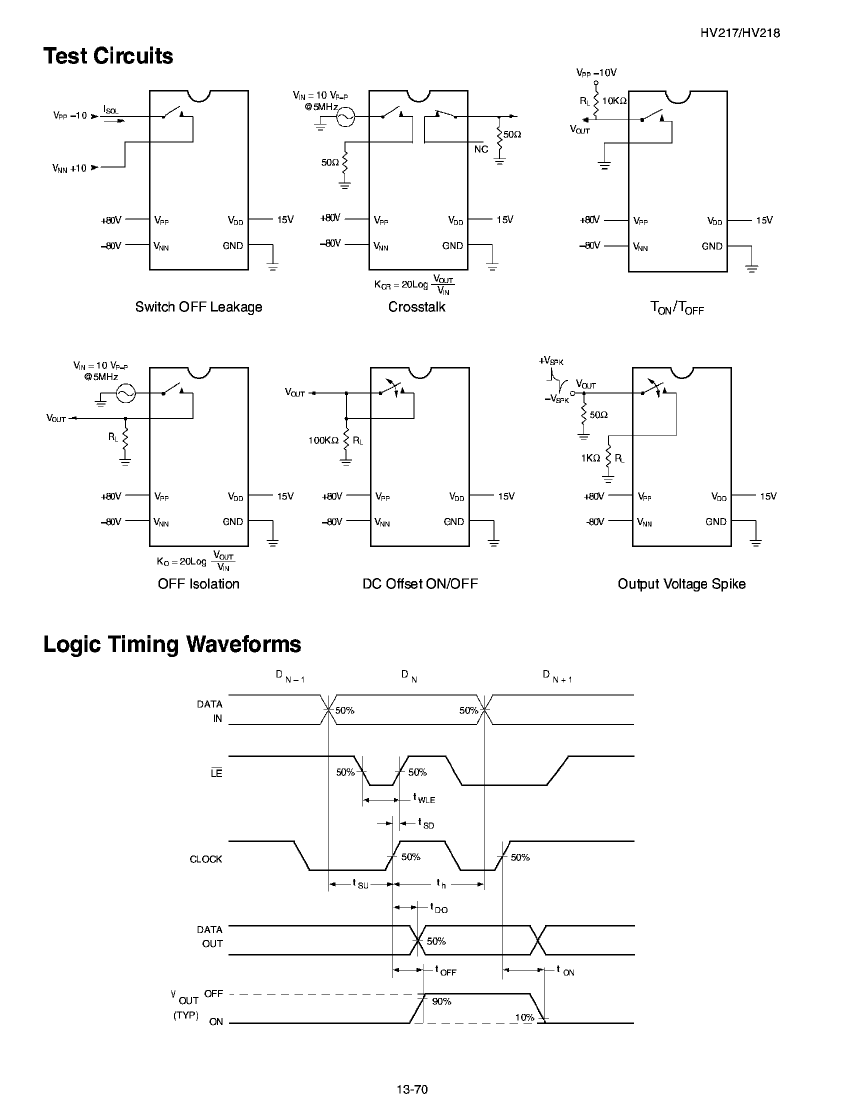

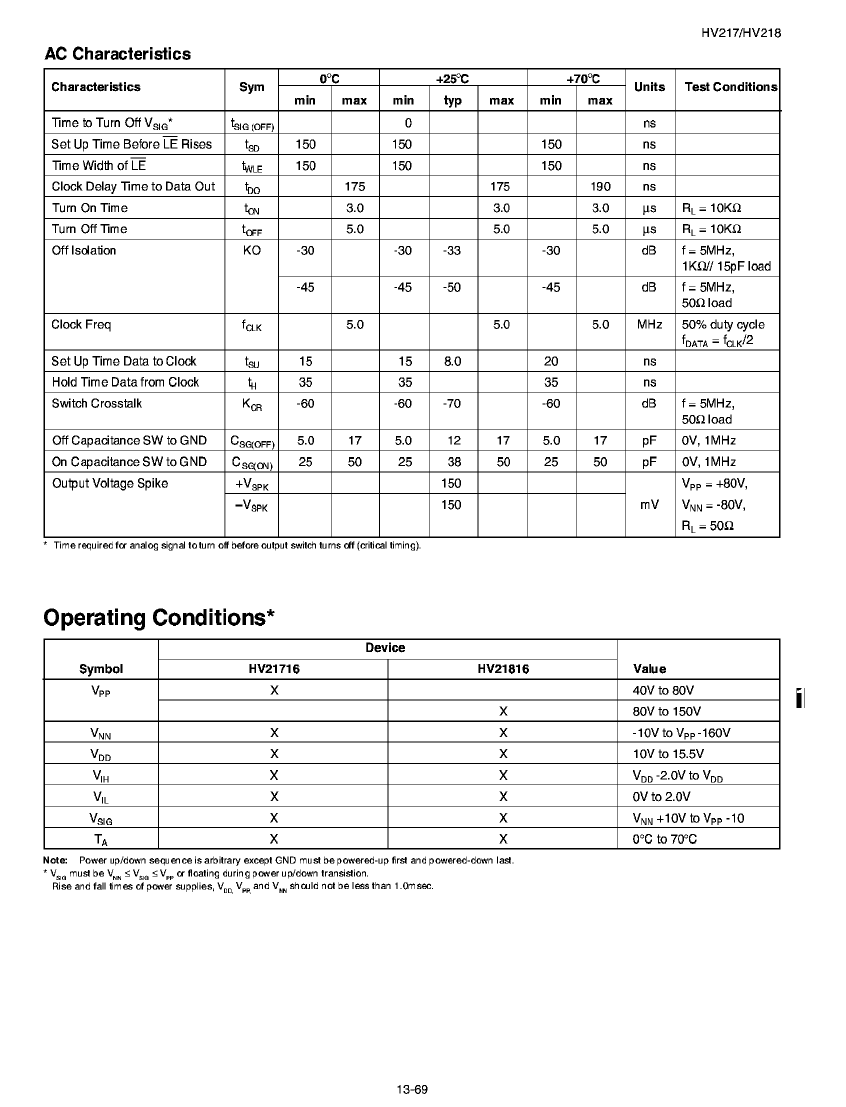

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Supertex |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 28 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-PDSO-G28 |
| length | 17.9 mm |
| Humidity sensitivity level | 1 |
| Nominal Negative Supply Voltage (Vsup) | -80 V |
| Number of channels | 8 |
| Number of functions | 1 |
| Number of terminals | 28 |
| Nominal off-state isolation | 33 dB |
| On-state resistance matching specifications | 1.1 Ω |
| Maximum on-state resistance (Ron) | 25 Ω |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 225 |
| Certification status | Not Qualified |
| Maximum seat height | 2.65 mm |
| Nominal supply voltage (Vsup) | 80 V |
| surface mount | YES |
| Maximum disconnect time | 5000 ns |
| Maximum connection time | 3000 ns |
| technology | NMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.5 mm |
| HV21716WG | HV21816P | HV21716P | HV21816WG | |
|---|---|---|---|---|
| Description | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDSO28, SOW-28 | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDIP24, PLASTIC, DIP-24 | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDIP24, PLASTIC, DIP-24 | Single-Ended Multiplexer, 1 Func, 8 Channel, NMOS, PDSO28, SOW-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | SOIC | DIP | DIP | SOIC |
| package instruction | SOP, | DIP, | DIP, | SOP, |
| Contacts | 28 | 24 | 24 | 28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-PDSO-G28 | R-PDIP-T24 | R-PDIP-T24 | R-PDSO-G28 |
| length | 17.9 mm | 31.75 mm | 31.75 mm | 17.9 mm |
| Humidity sensitivity level | 1 | 1 | 1 | 1 |
| Nominal Negative Supply Voltage (Vsup) | -80 V | -80 V | -80 V | -80 V |
| Number of channels | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 24 | 24 | 28 |
| Nominal off-state isolation | 33 dB | 33 dB | 33 dB | 33 dB |
| On-state resistance matching specifications | 1.1 Ω | 1.1 Ω | 1.1 Ω | 1.1 Ω |
| Maximum on-state resistance (Ron) | 25 Ω | 25 Ω | 25 Ω | 25 Ω |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 225 | 225 | 225 | 225 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.65 mm | 4.826 mm | 4.826 mm | 2.65 mm |
| Nominal supply voltage (Vsup) | 80 V | 80 V | 80 V | 80 V |
| surface mount | YES | NO | NO | YES |
| Maximum disconnect time | 5000 ns | 5000 ns | 5000 ns | 5000 ns |
| Maximum connection time | 3000 ns | 3000 ns | 3000 ns | 3000 ns |
| technology | NMOS | NMOS | NMOS | NMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 7.5 mm | 15.24 mm | 15.24 mm | 7.5 mm |
| Maker | Supertex | - | Supertex | Supertex |
