IDT74LVC04APG8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> IDT74LVC04APG8

IDT74LVC04APG8: DescriptionInverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, TSSOP-14; Categorylogic logic; File Size137KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74LVC04APG8 Overview

Inverter, LVC/LCX/Z Series, 6-Func, 1-Input, CMOS, PDSO14, TSSOP-14

IDT74LVC04APG8 Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	14
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	5 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5.5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm

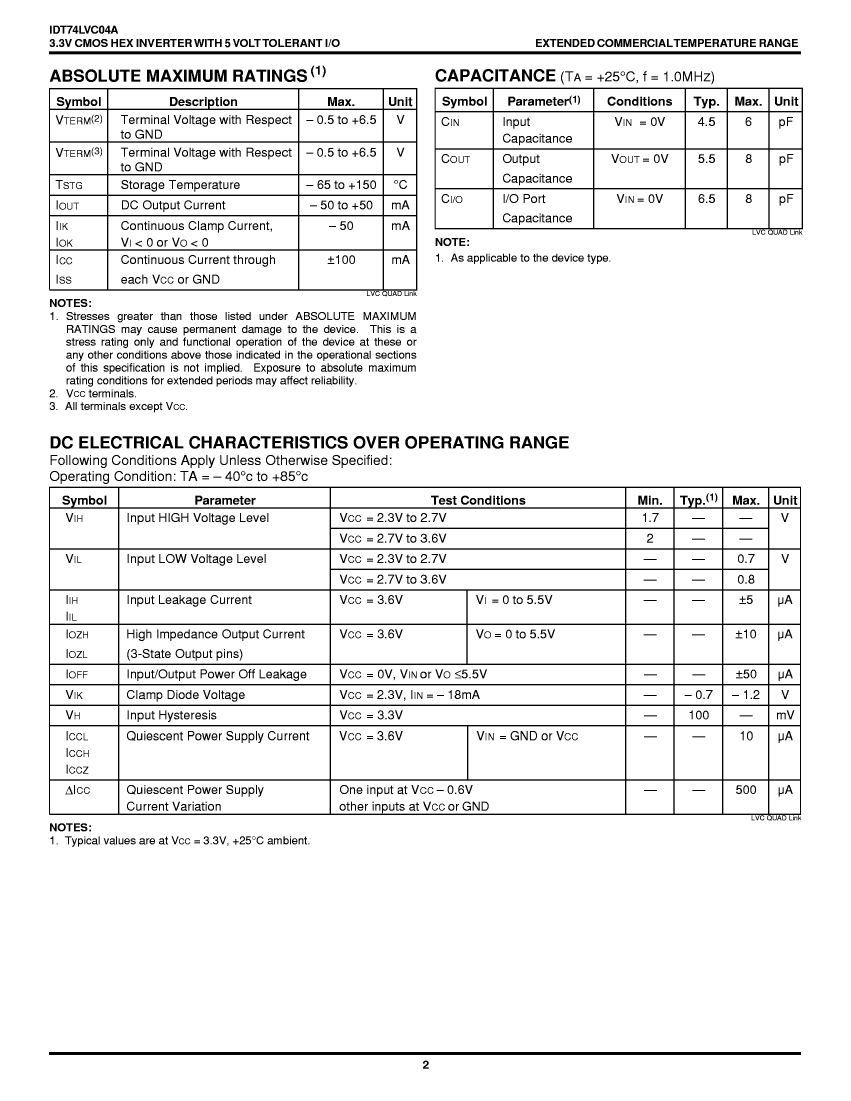

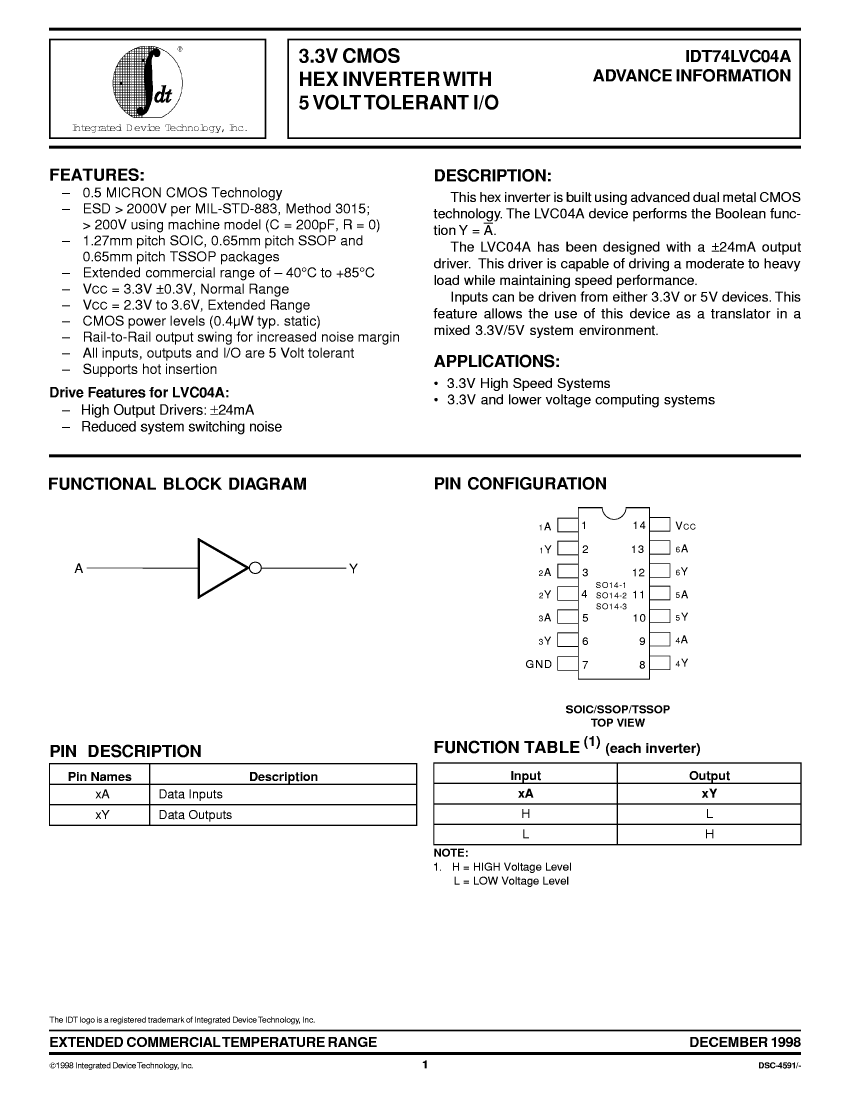

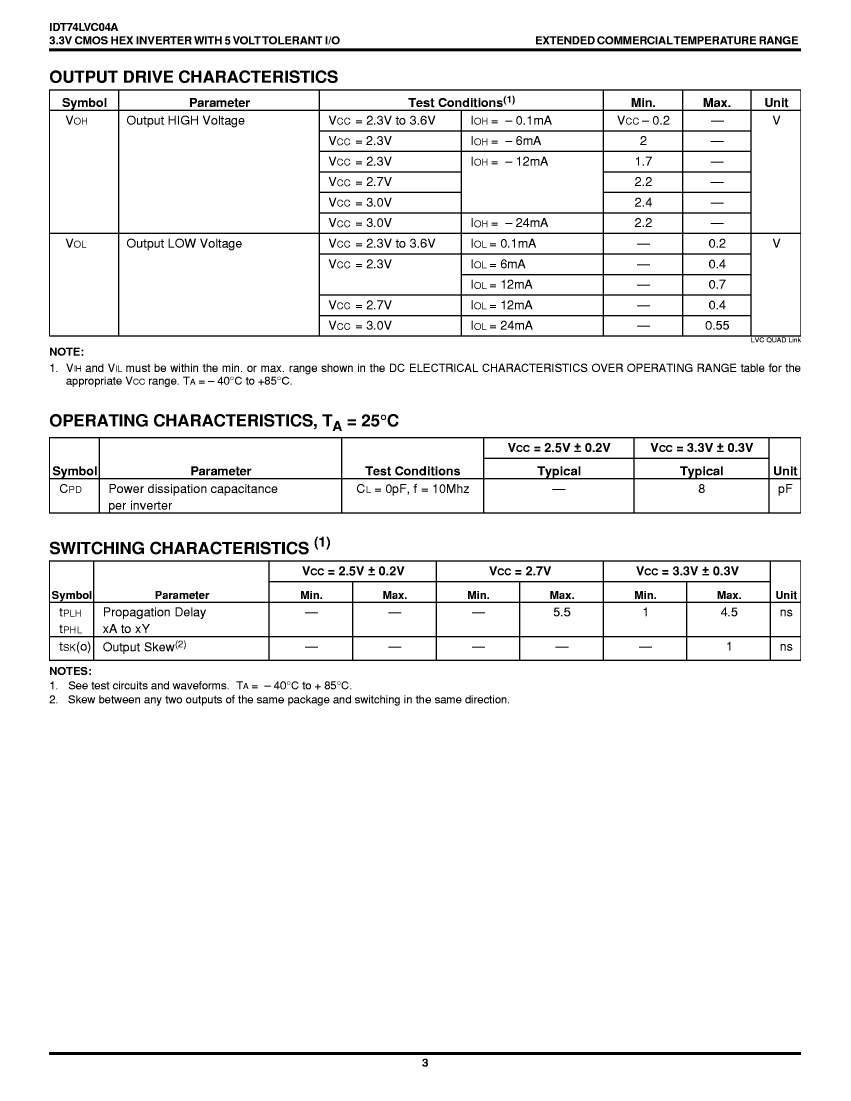

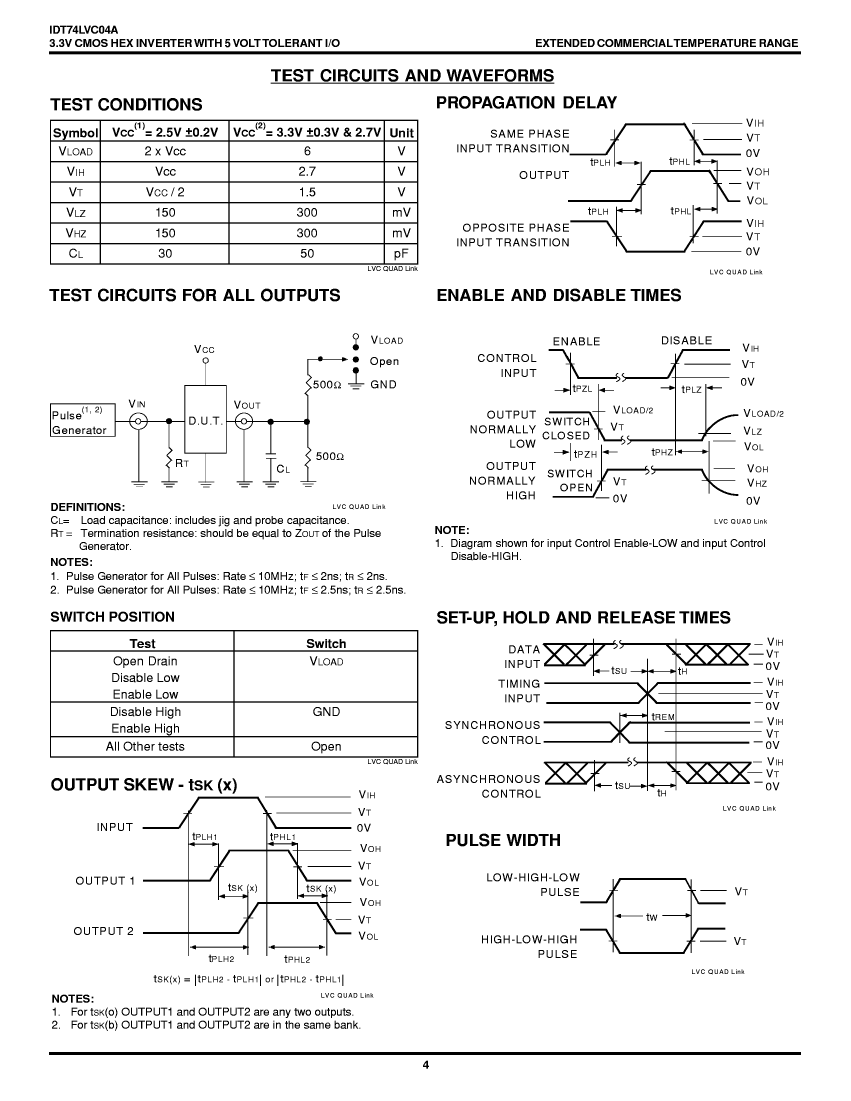

IDT74LVC04APG8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
