MN74HC367 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MN74HC367

MN74HC367: DescriptionBus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size82KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

MN74HC367 Overview

Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDIP16, PLASTIC, DIP-16

MN74HC367 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Panasonic
Parts packaging code	DIP
package instruction	PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
Control type	ENABLE LOW
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.006 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
Prop。Delay @ Nom-Sup	25 ns
propagation delay (tpd)	95 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	1.4 V
Nominal supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

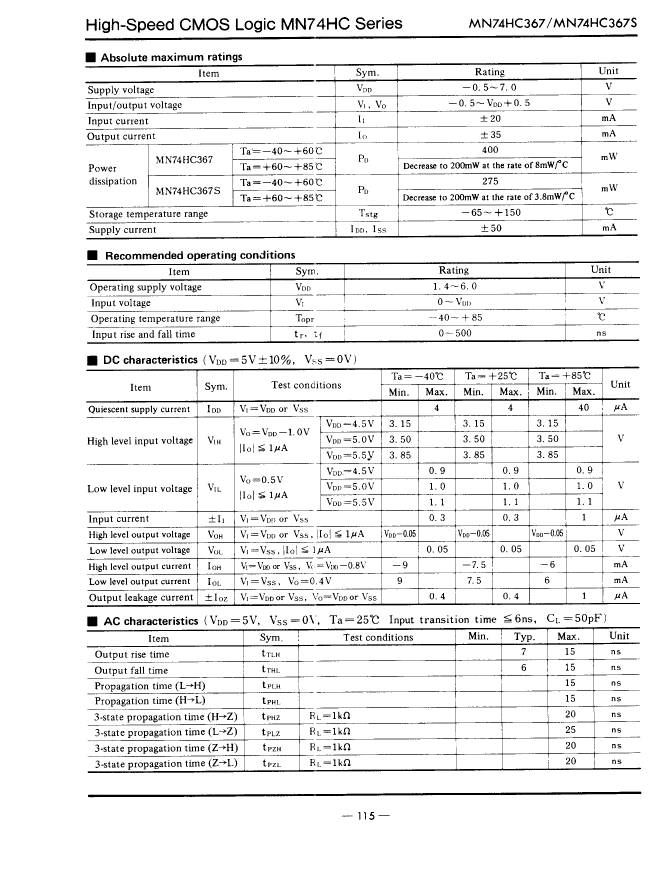

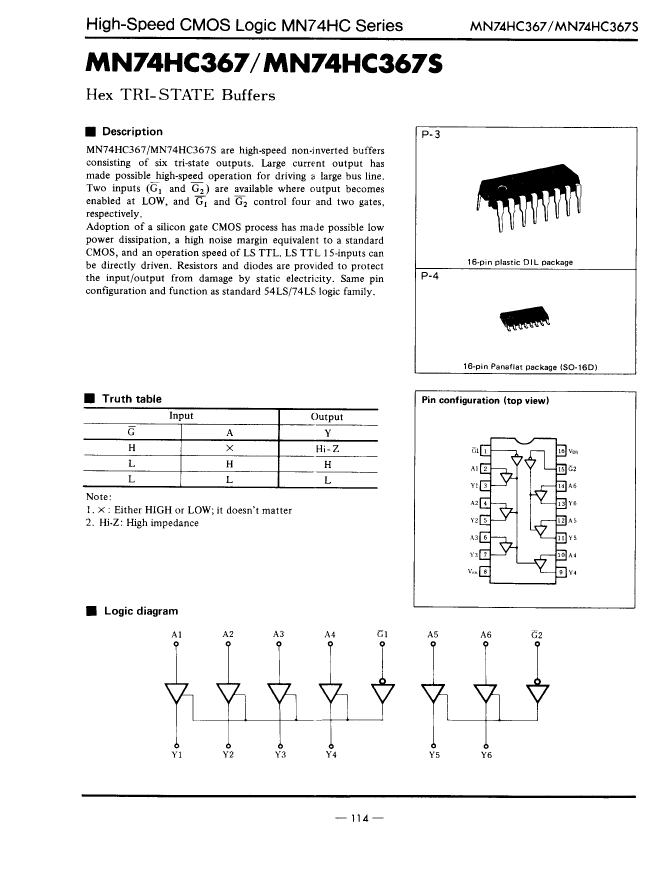

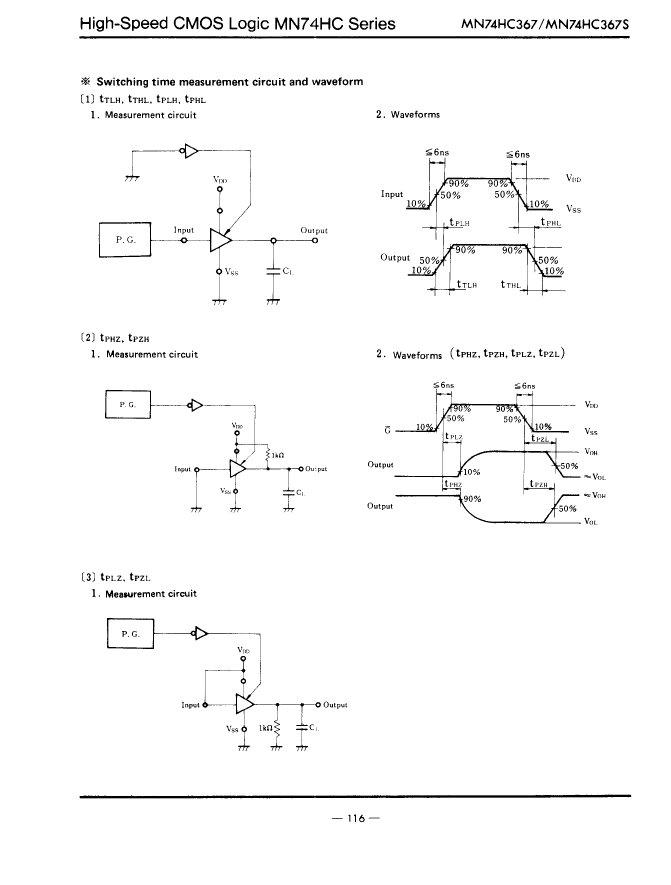

MN74HC367 Preview

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
