54S20/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S20/B2A

54S20/B2A: DescriptionNAND Gate, S Series, 2-Func, 4-Input, TTL, CQCC20; Categorylogic logic; File Size113KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54S20/B2A Overview

NAND Gate, S Series, 2-Func, 4-Input, TTL, CQCC20

54S20/B2A Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	2
Number of entries	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	18 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD

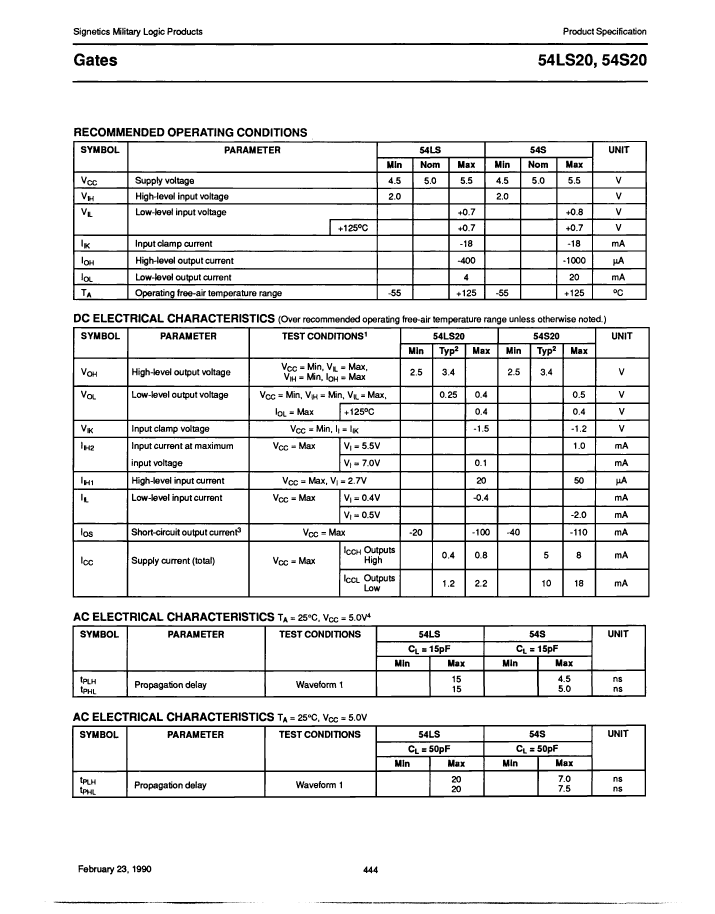

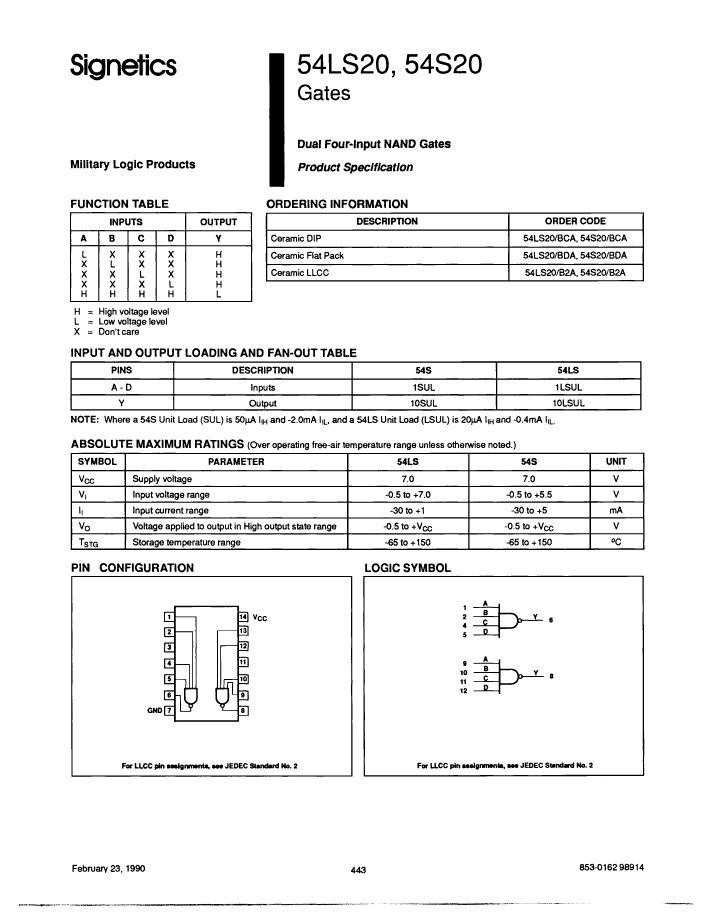

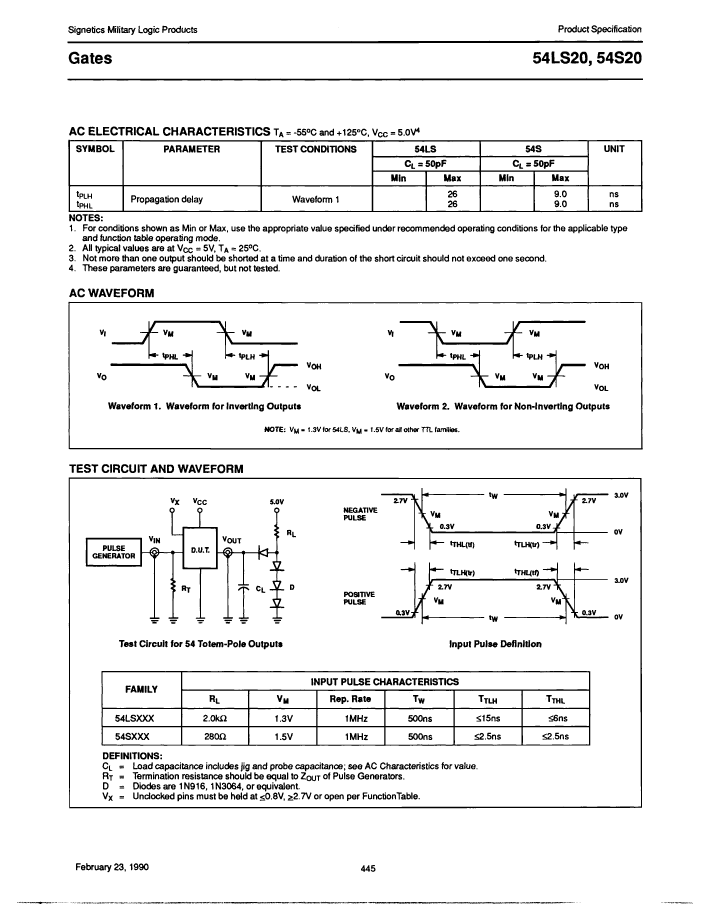

Preview

Download Datasheet

View All

54S20/B2A Related Products

	54S20/B2A	54LS20/BCA	54LS20/B2A	54LS20/BDA	54S20/BCX	54S20/BCA	54S20/BDA
Description	NAND Gate, S Series, 2-Func, 4-Input, TTL, CQCC20	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CQCC20	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDFP14	NAND Gate, S Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NAND Gate, S Series, 2-Func, 4-Input, TTL, CDIP14	NAND Gate, S Series, 2-Func, 4-Input, TTL, CDFP14
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
series	S	LS	LS	LS	S	S	S
JESD-30 code	S-CQCC-N20	R-CDIP-T14	S-CQCC-N20	R-CDFP-F14	R-CDIP-T14	R-CDIP-T14	R-CDFP-F14
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of functions	2	2	2	2	2	2	2
Number of entries	4	4	4	4	4	4	4
Number of terminals	20	14	20	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	9 ns	26 ns	26 ns	26 ns	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Maker	YAGEO	-	-	-	YAGEO	YAGEO	YAGEO
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF	50 pF
Maximum supply current (ICC)	18 mA	2.2 mA	2.2 mA	2.2 mA	-	18 mA	18 mA
Base Number Matches	-	1	1	1	1	1	1
