DCRHTC4.19LL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> DCRHTC4.19LL

DCRHTC4.19LL: DescriptionCeramic Resonator, 4.19MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3; CategoryPassive components Crystal/resonator; File Size150KB，1 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

DCRHTC4.19LL Overview

Ceramic Resonator, 4.19MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3

DCRHTC4.19LL Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-3
Reach Compliance Code	unknown
Other features	BUILT IN CAPACITOR; TAPE
Crystal/Resonator Type	CERAMIC RESONATOR
frequency stability	0.3%
frequency tolerance	5000 ppm
Manufacturer's serial number	DCRHTC4.19LL
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	4.19 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
physical size	L9.0XB3.0XH5.0 (mm)/L0.354XB0.118XH0.197 (inch)
surface mount	NO

Preview

Download Datasheet

View All

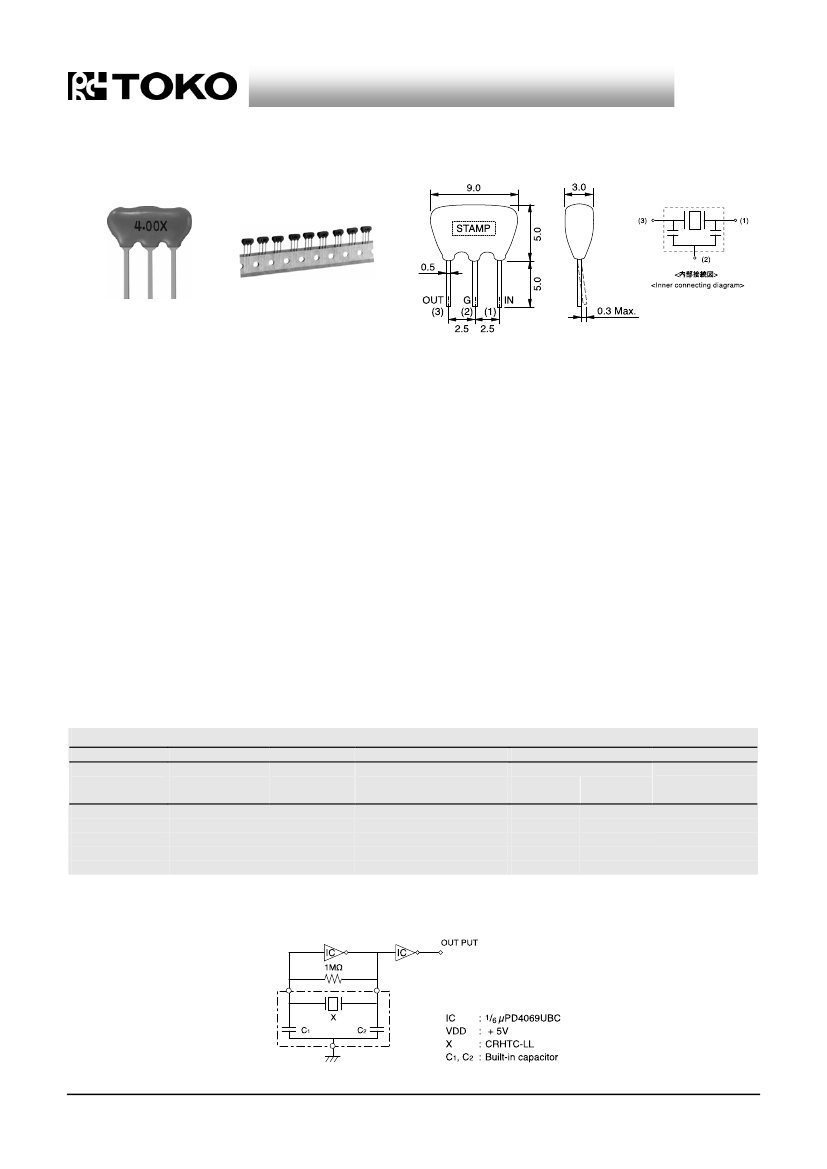

Ceramic Resonators

セラミック発振子

TYPE

CRHTC-LL

CRHTCP_LL

TYPE CRHTC-LL

(CERASONATOR

) MHz Band with built-in capacitors

CRHTCP_LL for taping

CRHTC-LL

CRHTCP_LL

(Unit: mm)

Description

•

Ceramic resonators with built-in capacitors usable in the

MHz band for microprocessors and infrared remote

controls, telephone dual tone multi-frequency, etc.,

reference signal oscillations.

•

Applicable oscillation frequency range: 2.0 to 6.0MHz.

概

要

•

各種マイクロプロセッサや赤外線リモコン、電話D.T.M.F等

の信号発生用C内蔵のMHz帯セラミック発振子

•

対応発振周波数範囲：2.0∼6.0MHz

Features

•

Precise oscillating frequency without adjustment.

Load capacitors (C1, C2) not required.

May be used with a variety of ICs.

Suitable for taping.

RoHS compliant

特

•

長

無調整で高精度の発振周波数が得られる

負荷容量（C1、C2）が不要

各種ICとの組合せが容易

テーピング対応品

RoHS

指令対応

Applications

•

Reference signal oscillators for — Microcomputers

(household electronics, OA equipment)

•

Remote controlling — TVs, VTRs, air-conditioners, CD

players, lighting apparatus.

•

Digital applications equipment including measuring

instruments, communications equipment, toys, etc.

用

途

•

各種マイコン用基準信号発生器（各種家電機器、OA機器）

•

各種リモコン用基準信号発生器（TV、VTR、エアコン、

CDプレーヤ、照明器具）

•

計測器、通信機器、玩具などのデジタル応用機器

SELECTION GUIDE FOR STANDARD RESONATORS

TYPE CRHTC

東光品番

TOKO

Part

Number

DCRHTC3.58LL

DCRHTC4.00LL

DCRHTC4.19LL

DCRHTC5.00LL

DCRHTC6.00LL

•

発振周波数

Oscillation

Frequency

(MHz)

3.58±0.5%

4.00±0.5%

4.19±0.5%

5.00±0.5%

6.00±0.5%

共振抵抗

Resonant

Impedance

(Ω)Max.

発振周波数の温度特性

Oscillation Frequency

Temperature Stability

(-20°C~+80°C)

±0.3%

負荷容量

Loaded Capacitor

(pF)

Built-in

備考

Note

Oscillation frequency tolerance can be designed to a desired level.

TOKO performs matching evaluation for all types of ICs.

Please contact us regarding applicable products.

● 発振周波数は、任意の周波数とすることが可½です。

● 各種ICとのマッチング評価を行っていますので、対応品番をお問い合わせ

下さい。

Oscillation frequency test circuit

発振周波数

測定回路

DCRHTC4.19LL Related Products

	DCRHTC4.19LL	DCRHTC6.00LL	DCRHTC5.00LL	DCRHTC4.00LL	DCRHTC3.58LL
Description	Ceramic Resonator, 4.19MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3	Ceramic Resonator, 6MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3	Ceramic Resonator, 5MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3	Ceramic Resonator, 4MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3	Ceramic Resonator, 3.58MHz Nom, ROHS COMPLIANT, CERAMIC PACKAGE-3
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-3	ROHS COMPLIANT, CERAMIC PACKAGE-3	ROHS COMPLIANT, CERAMIC PACKAGE-3	ROHS COMPLIANT, CERAMIC PACKAGE-3	ROHS COMPLIANT, CERAMIC PACKAGE-3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	BUILT IN CAPACITOR; TAPE	BUILT IN CAPACITOR; TAPE	BUILT IN CAPACITOR; TAPE	BUILT IN CAPACITOR; TAPE	BUILT IN CAPACITOR; TAPE
Crystal/Resonator Type	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR
frequency stability	0.3%	0.3%	0.3%	0.3%	0.3%
frequency tolerance	5000 ppm	5000 ppm	5000 ppm	5000 ppm	5000 ppm
Manufacturer's serial number	DCRHTC4.19LL	DCRHTC6.00LL	DCRHTC5.00LL	DCRHTC4.00LL	DCRHTC3.58LL
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	4.19 MHz	6 MHz	5 MHz	4 MHz	3.58 MHz
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
physical size	L9.0XB3.0XH5.0 (mm)/L0.354XB0.118XH0.197 (inch)	L9.0XB3.0XH5.0 (mm)/L0.354XB0.118XH0.197 (inch)	L9.0XB3.0XH5.0 (mm)/L0.354XB0.118XH0.197 (inch)	L9.0XB3.0XH5.0 (mm)/L0.354XB0.118XH0.197 (inch)	L9.0XB3.0XH5.0 (mm)/L0.354XB0.118XH0.197 (inch)
surface mount	NO	NO	NO	NO	NO
Maker	TOKO, INC.	-	TOKO, INC.	TOKO, INC.	TOKO, INC.
