NJM2903V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> NJM2903V

Preview

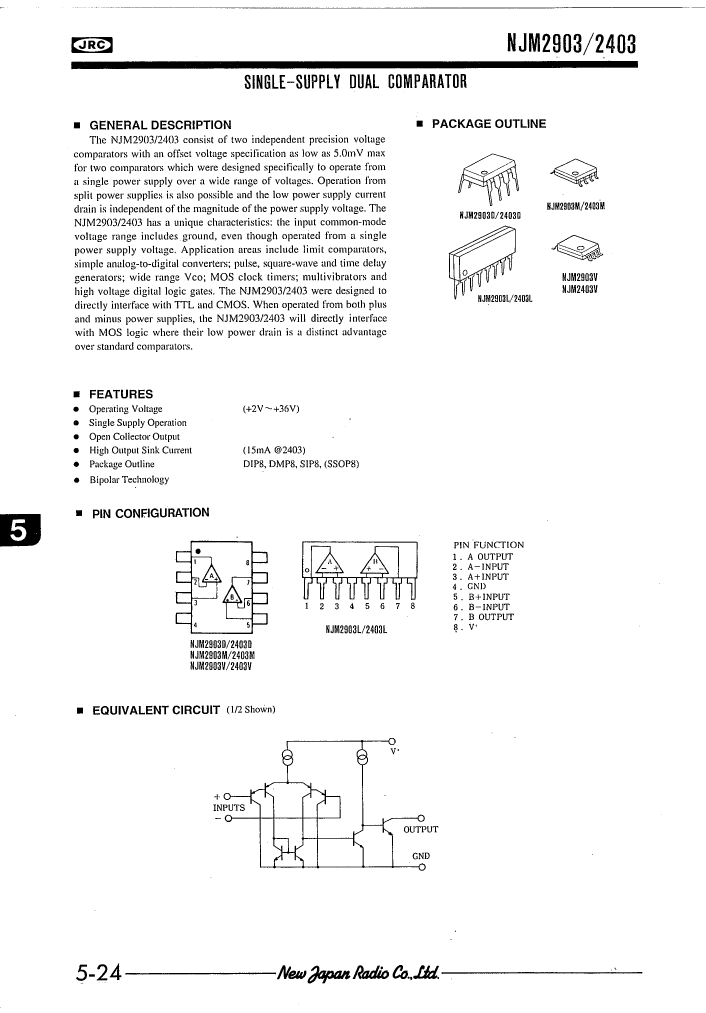

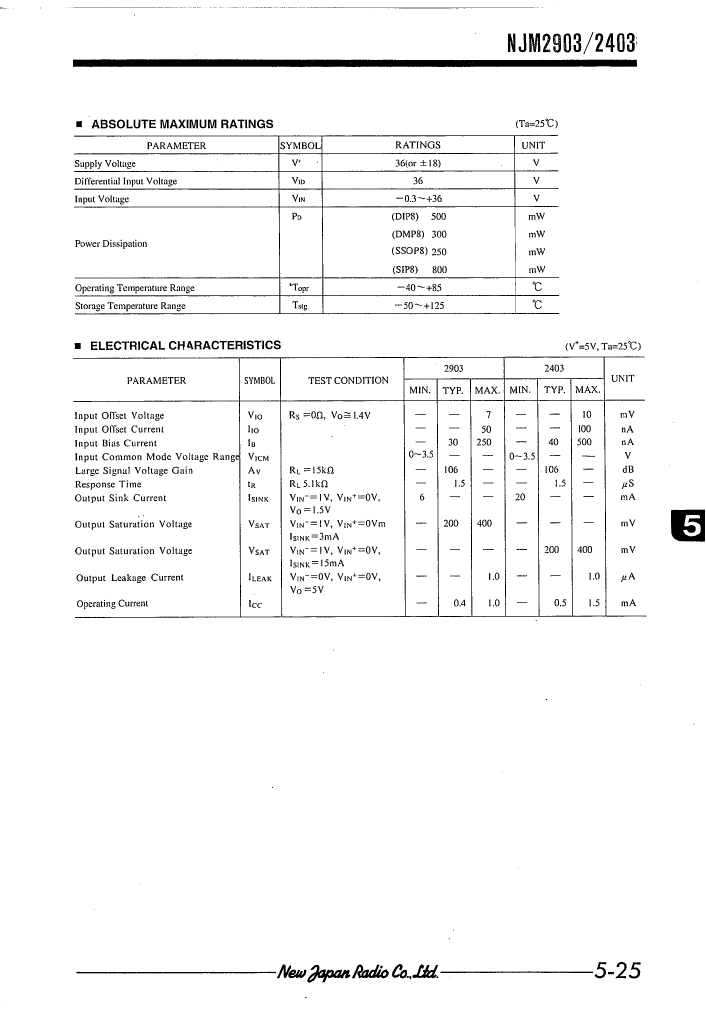

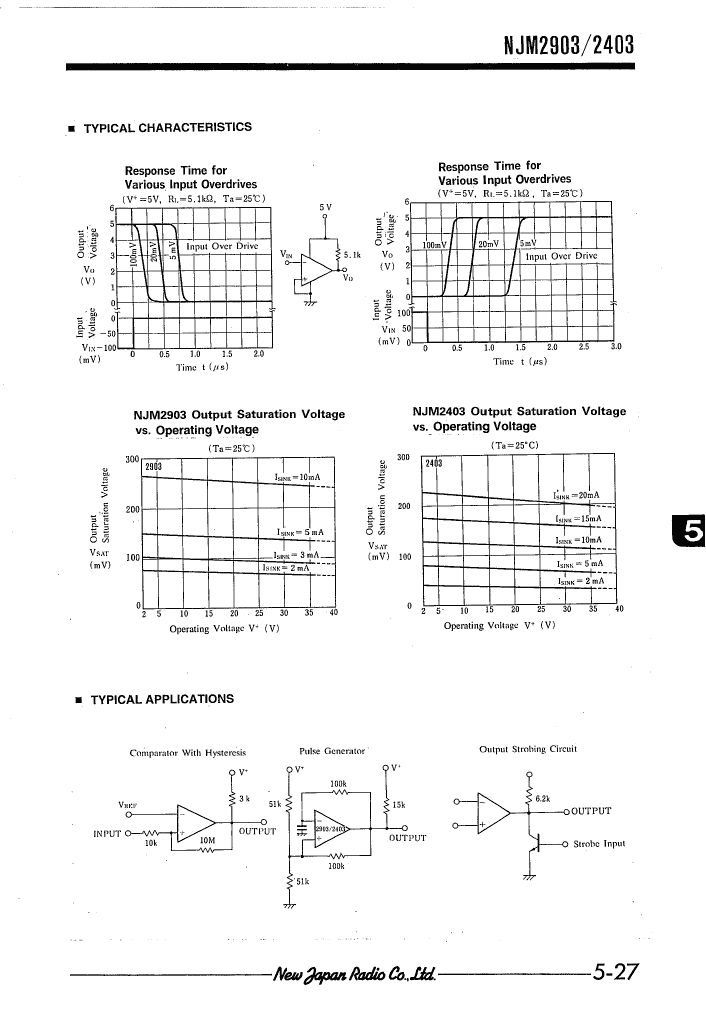

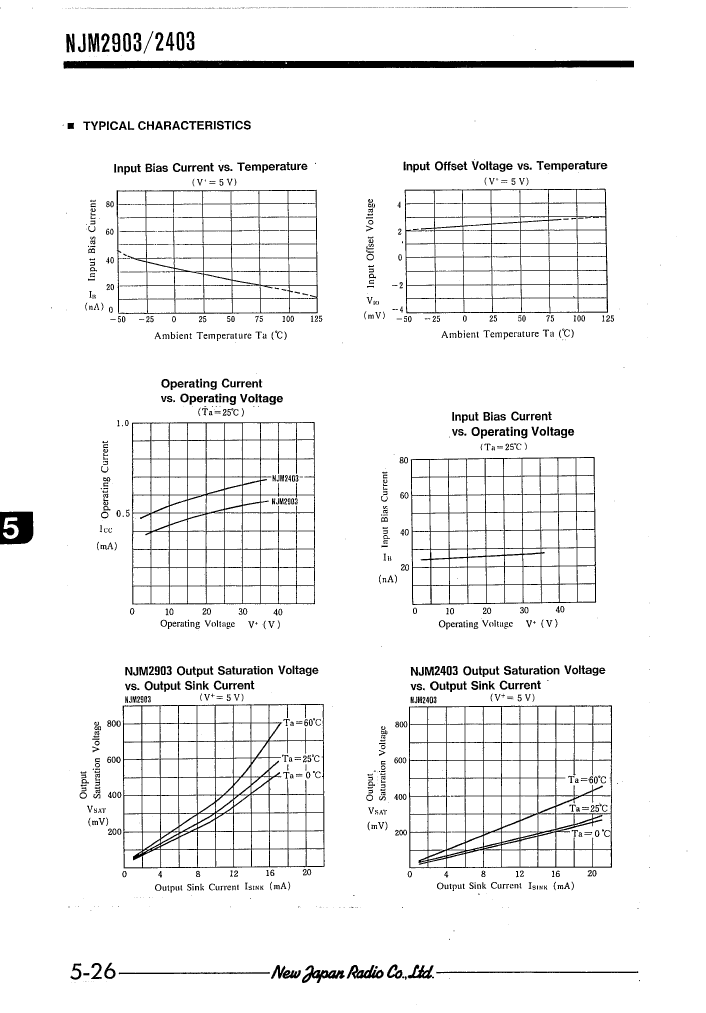

NJM2903V: DescriptionComparator, 2 Func, 7000uV Offset-Max, 1500ns Response Time, BIPolar, PDSO8, SSOP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size240KB，5 Pages; ManufacturerNew Japan Radio Co., Ltd..; Environmental Compliance

Download Datasheet Parametric Compare View All

NJM2903V Overview

Comparator, 2 Func, 7000uV Offset-Max, 1500ns Response Time, BIPolar, PDSO8, SSOP-8

NJM2903V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	New Japan Radio Co., Ltd..
Parts packaging code	SOIC
package instruction	LSSOP, TSSOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.25 µA
Maximum bias current (IIB) at 25C	0.25 µA
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e6
length	4.4 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output type	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Nominal response time	1500 ns
Maximum seat height	1.45 mm
Maximum slew rate	1 mA
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.5 mm

Preview

Download Datasheet

View All

NJM2903V Related Products

	NJM2903V	NJM2403M	NJM2403V	NJM2403L
Description	Comparator, 2 Func, 7000uV Offset-Max, 1500ns Response Time, BIPolar, PDSO8, SSOP-8	Comparator, 2 Func, 10000uV Offset-Max, 1500ns Response Time, BIPolar, PDSO8, DMP-8	Comparator, 2 Func, 10000uV Offset-Max, 1500ns Response Time, BIPolar, PDSO8, SSOP-8	Comparator, 2 Func, 10000uV Offset-Max, 1500ns Response Time, BIPolar, PSIP8, SIP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	SOIC	SOIC	SOIC	SIP
package instruction	LSSOP, TSSOP8,.25	SOP, SOP8,.3	SSOP-8	SIP-8
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.25 µA	0.5 µA	0.5 µA	0.5 µA
Maximum bias current (IIB) at 25C	0.25 µA	0.5 µA	0.5 µA	0.5 µA
Maximum input offset voltage	7000 µV	10000 µV	10000 µV	10000 µV
JESD-30 code	R-PDSO-G8	S-PDSO-G8	R-PDSO-G8	R-PSIP-T8
JESD-609 code	e6	e6	e6	e6
length	4.4 mm	5 mm	4.4 mm	19 mm
Number of functions	2	2	2	2
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	SOP	LSSOP	SIP
Encapsulate equivalent code	TSSOP8,.25	SOP8,.3	SSOP8,.25	SIP8,.06
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1500 ns	1500 ns	1500 ns	1500 ns
Maximum seat height	1.45 mm	2 mm	1.45 mm	8.3 mm
Maximum slew rate	1 mA	1.5 mA	1.5 mA	1.5 mA
Supply voltage upper limit	36 V	36 V	36 V	36 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.5 mm	5 mm	3.5 mm	3 mm
