BHFT-R-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BHFT-R-W

BHFT-R-W: DescriptionPANEL MOUNT, MALE-FEMALE, RF STRAIGHT ADAPTER; CategoryThe connector The connector; File Size467KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BHFT-R-W Overview

PANEL MOUNT, MALE-FEMALE, RF STRAIGHT ADAPTER

BHFT-R-W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Adapter type	BNC-BNC
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	BAYONET-BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE
Panel mounting	YES

Preview

Download Datasheet

View All

75 Ohm BNC Connectors

Recessed BNC Panels and Connectors

Ordering Information

Description

16-position empty, 1 RU, black - for BHFT-R-X

16-position empty, 1 RU, gray - for BHFT-R-X

BNC Recessed, 75 Ohm feedthrough

Recessed RCA connector

Recessed S-video connector

Catalog Number

BHFT-PNL-16-BK

BHFT-PNL-16-G

BHFT-R-X*

RCA-R-X*

SV-R-X*

Broadcast Products

* Replace X in catalog number with desired color. (G=green, R=red, B=black, BL=blue, W=white, Y=yellow)

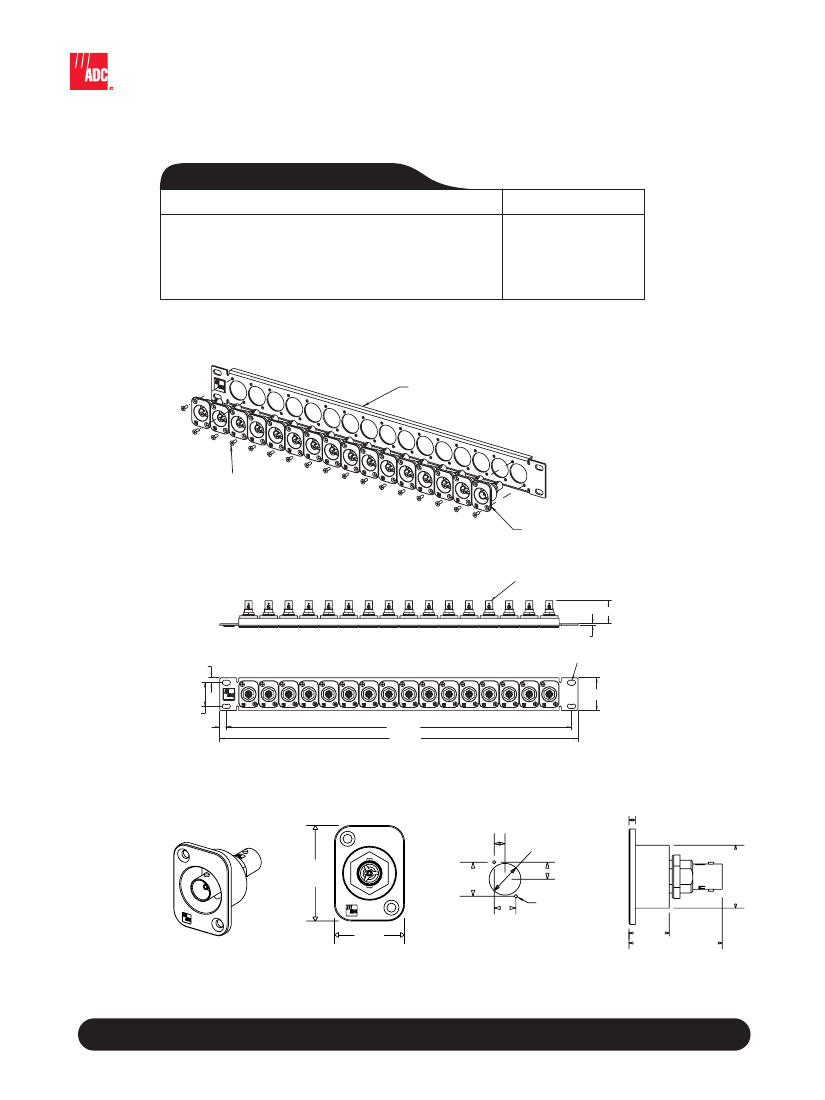

PANEL 1RU

16 POS.

SCREW 4-40 FLATHEAD

SCALE 0.600

RECESSED

BNC-BNC

RECESSED

BNC-BNC (16)

1180270

1.228"

.075"

.44" X .25" SLOT

(4)

1.74"

1.25"

.344"

18.31"

19.00"

.256"

6/02

•

BHFT-PNL-16-BK

.094"

.328"

1.43"

.515"

1.03"

#4 PILOT (2)

.656"

1.050"

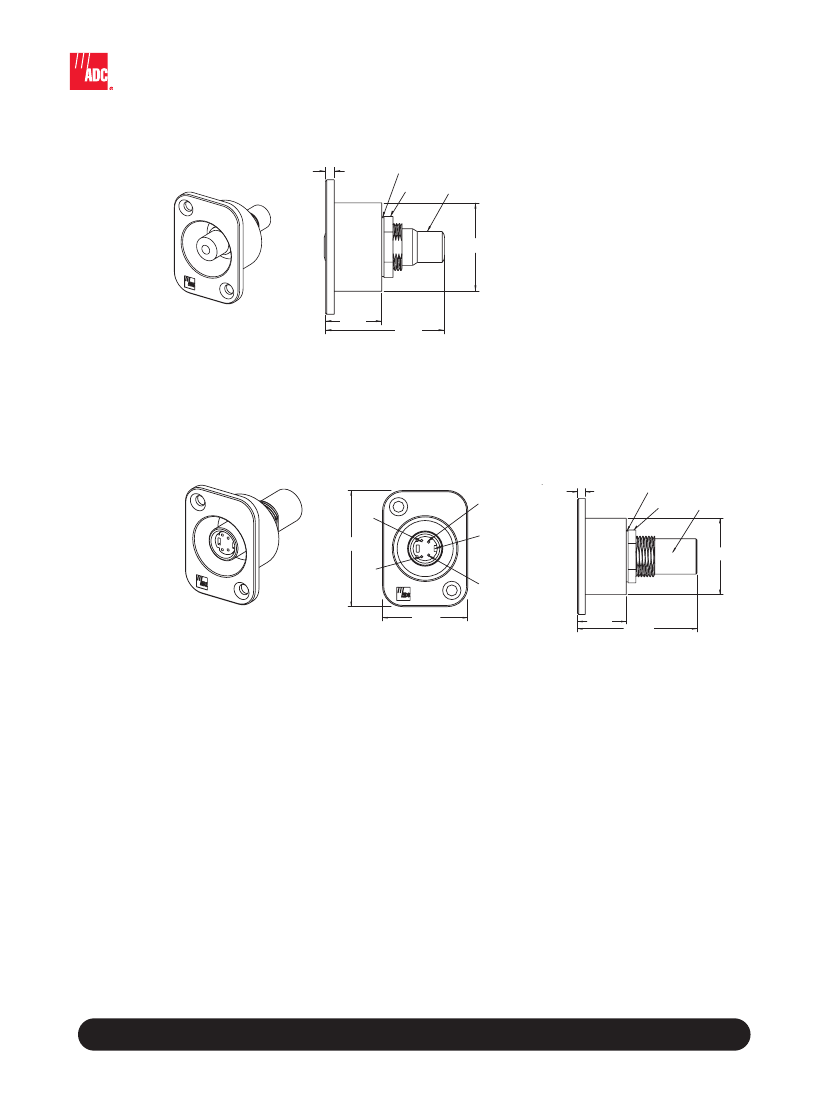

PANEL MOUNTING

.600"

1.397"

BHFT-RX

w w w. a d c . c o m

•

+ 1 - 9 5 2 - 9 3 8 - 8 0 8 0

•

1 - 8 0 0 - 7 2 6 - 4 2 6 6

.940"

BHFT-R-W Related Products

	BHFT-R-W	BHFT-PNL-16-G	RCA-R-BL	RCA-R-B	RCA-R-G	RCA-R-R	RCA-R-W	RCA-R-Y	BHFT-PNL-16-BK	BHFT-R-Y
Description	PANEL MOUNT, MALE-FEMALE, RF STRAIGHT ADAPTER	INTERCONNECTION DEVICE	RCA CONNECTOR	RCA CONNECTOR	RCA CONNECTOR	RCA CONNECTOR	RCA CONNECTOR	RCA CONNECTOR	INTERCONNECTION DEVICE	PANEL MOUNT, MALE-FEMALE, RF STRAIGHT ADAPTER
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant
Connector type	RF CONNECTOR ADAPTER	INTERCONNECTION DEVICE	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	INTERCONNECTION DEVICE	RF CONNECTOR ADAPTER
DIN compliance	NO	-	NO	NO	NO	NO	NO	NO	-	NO
IEC compliance	NO	-	NO	NO	NO	NO	NO	NO	-	NO
MIL compliance	NO	-	NO	NO	NO	NO	NO	NO	-	NO
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Other features	-	NO. OF CONTACTS: 16, FEMALE-FEMALE, PANEL MOUNT	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	NO. OF CONTACTS: 16, FEMALE-FEMALE, PANEL MOUNT	-
Base Number Matches	-	1	1	1	1	1	1	1	1	-
Configuration	-	-	1X1 VERTICAL	1X1 VERTICAL	1X1 VERTICAL	1X1 VERTICAL	1X1 VERTICAL	1X1 VERTICAL	-	-
Manufacturer's serial number	-	-	RCA	RCA	RCA	RCA	RCA	RCA	-	-
Installation type	-	-	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-	-
Number of poles	-	-	1	1	1	1	1	1	-	-
Number of ports	-	-	1	1	1	1	1	1	-	-
