Oscilent Corporation RF SAW Filter | 803-RF411.25M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF411.25M-A
.
TYPE :
3.8 x 3.8 SMD
CDMA450 Tx
Jan. 01, 2007
CDMA450, RF-Tx SAW Filter
PART NUMBER :
803-RF411.25M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Maximum Insertion Loss
Stop Band Attenuation:
Condition
-
410.0 ~ 412.5 MHz
0.3 ~ 400.0 MHz
420.0 ~ 422.5 MHz
422.5 ~ 1700.0MHz
1700.0~ 2000.0 MHz
Source Impedence (single ended)*
Load Impendance (single ended)*
VSWR
Maximum Input Power
Operating Temperature
* No Matching Network
-
-
410.0 ~ 412.5 MHz
-
-
Minimum
-
-
25
30
18
13
-
-
-
-
-30
Typical
411.25
1.7
28
50
21
17
50
50
1.5
-
-
Maximum
-
2.8
-
-
-
-
-
-
2.0
30
+80
ohm
ohm
-
dBm
ºC
dB
Units
MHz
dB
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
Ground
In
Ground
Ground
Out
Ground

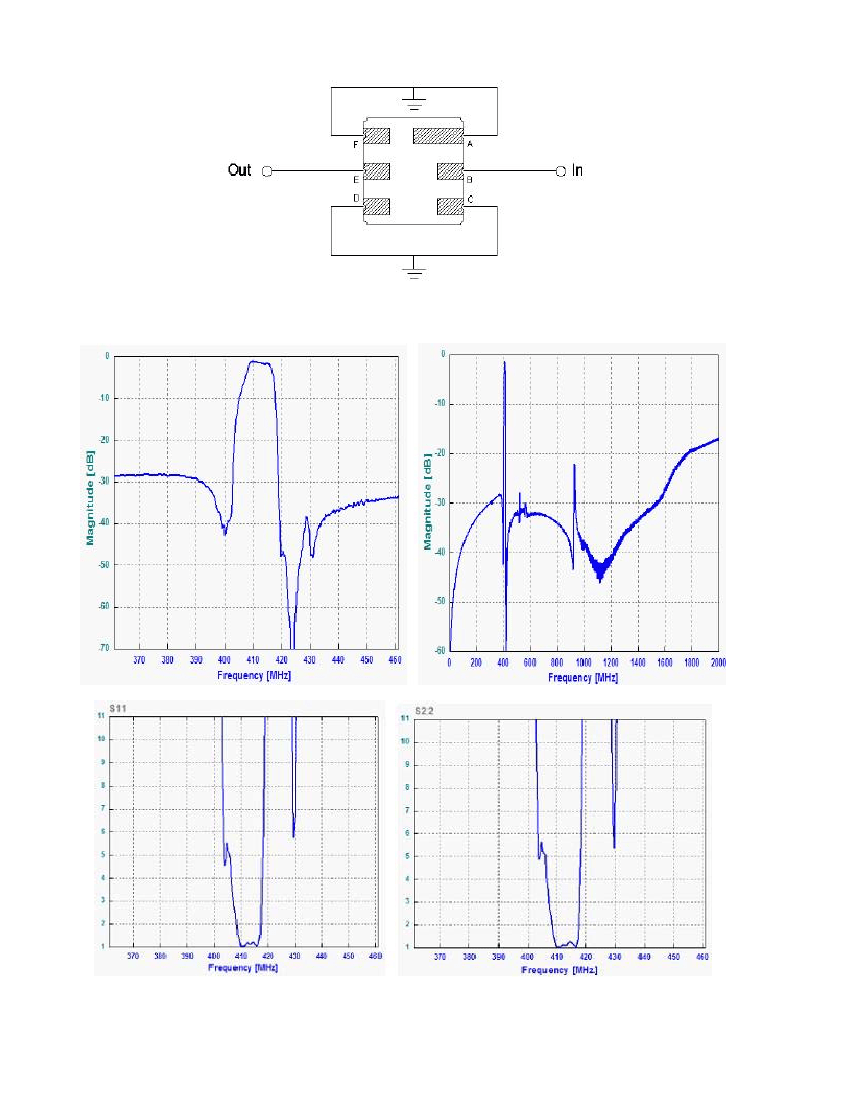

TEST FIXTURE
