Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
803-RF425.0M-C
Wireless, RF SAW Filter
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Performance
VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
803-RF425.0M-C
January 2010 Rev A
Wireless, RF SAW Filter

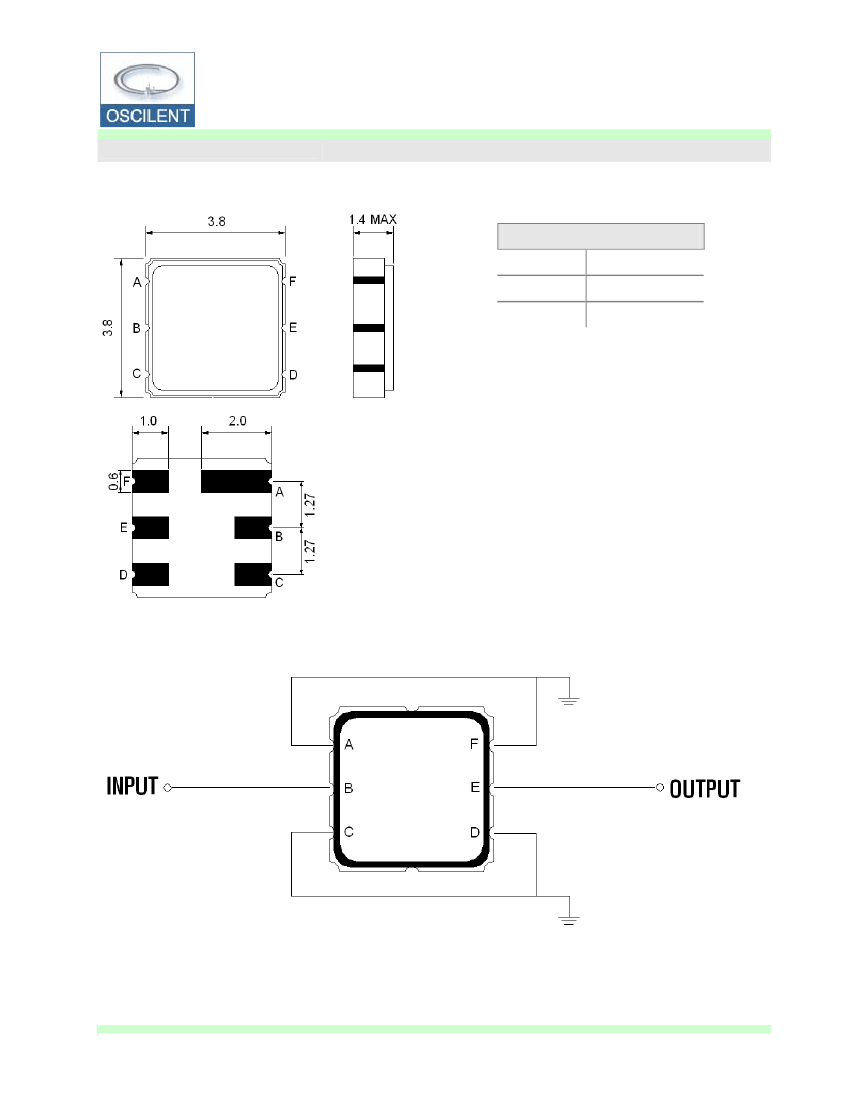

Mechanical Dimensions
(mm)
Pin Description
A, C, D, F
Ground
B
In
E
Out
Test Circuit
Source and Load Impedance: 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
803-RF425.0M-C
January 2010 Rev A
Wireless, RF SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-10
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
+50
+85
10
0
-
-
Notes: No Matching Network (Ref. Testing Environment Circuit as shown above).
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss within 420.0 ~ 430.0 MHz
Amplitude Ripple within 420.0 ~ 430.0 MHz
Attenuation:
Fo-47.8 ~ Fo-37.8 MHz
Fo+37.8 ~ Fo+47.8 MHz
VSWR within 420.0 ~ 430.0 MHz
dB
dB
-
55
40
-
59
43
1.8
-
-
2.5
Unit
MHz
dB
dB
p-p
Minimum
-
-
-
Typical
425.0
2.5
0.6
Maximum
-
3.5
1.5
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
803-RF425.0M-C
January 2010 Rev A
Wireless, RF SAW Filter

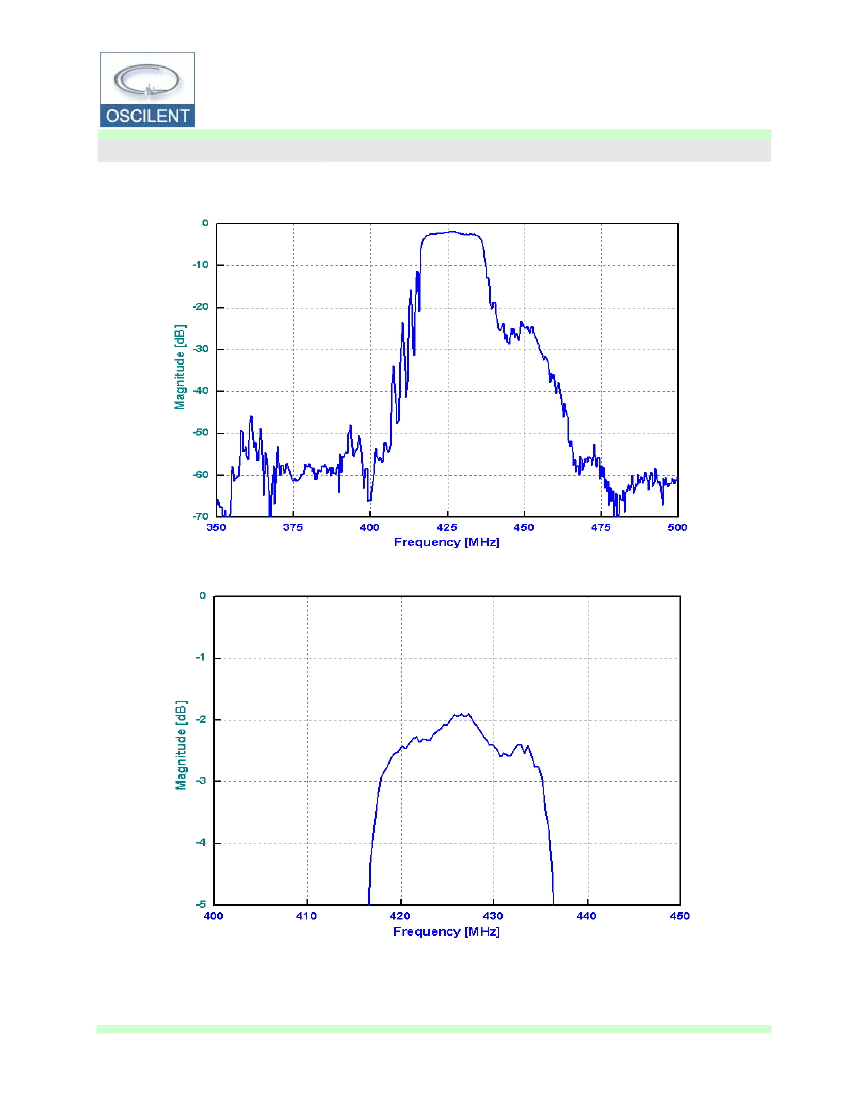

Frequency Performance
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
803-RF425.0M-C
January 2010 Rev A
Wireless, RF SAW Filter

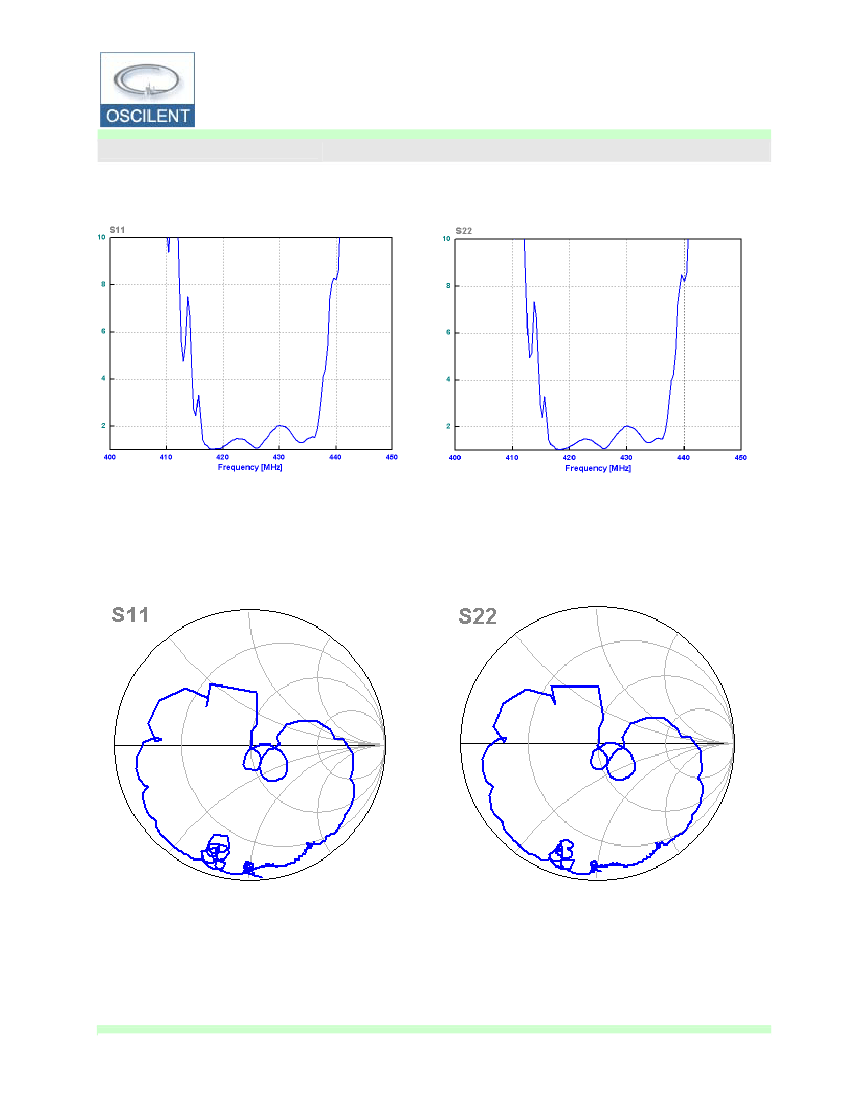

VSWR
Smith Chart
Product Specification
P. 4
www.oscilent.com
