CD74ACT245MX datasheet, PDF - EEWORLD Datasheet

CD74ACT245MX: DescriptionBus Transceiver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20,; Categorylogic logic; File Size158KB，6 Pages; ManufacturerGE Solid State

Download Datasheet Parametric View All

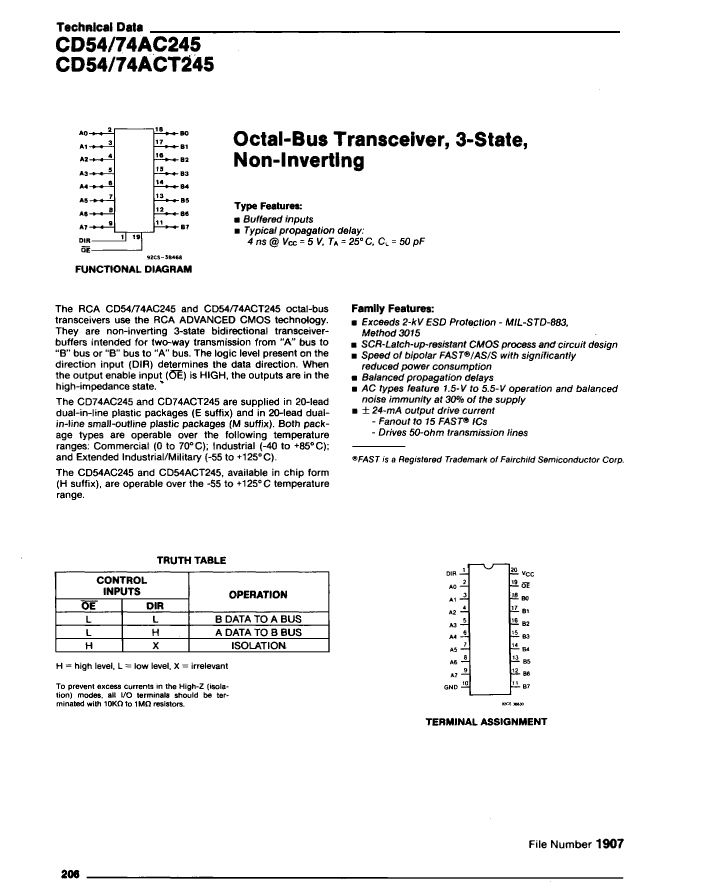

CD74ACT245MX Overview

Bus Transceiver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20,

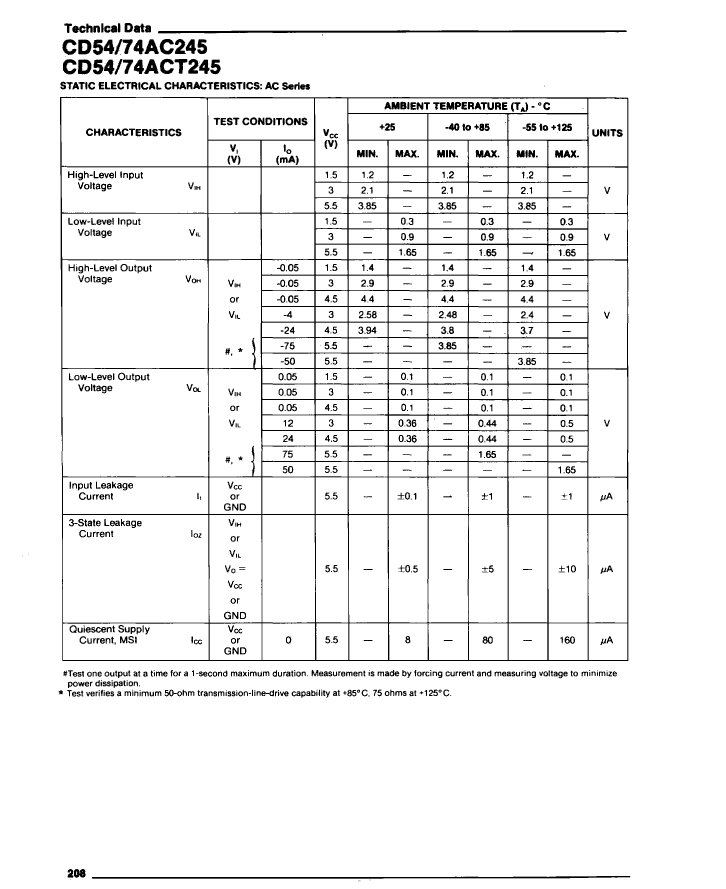

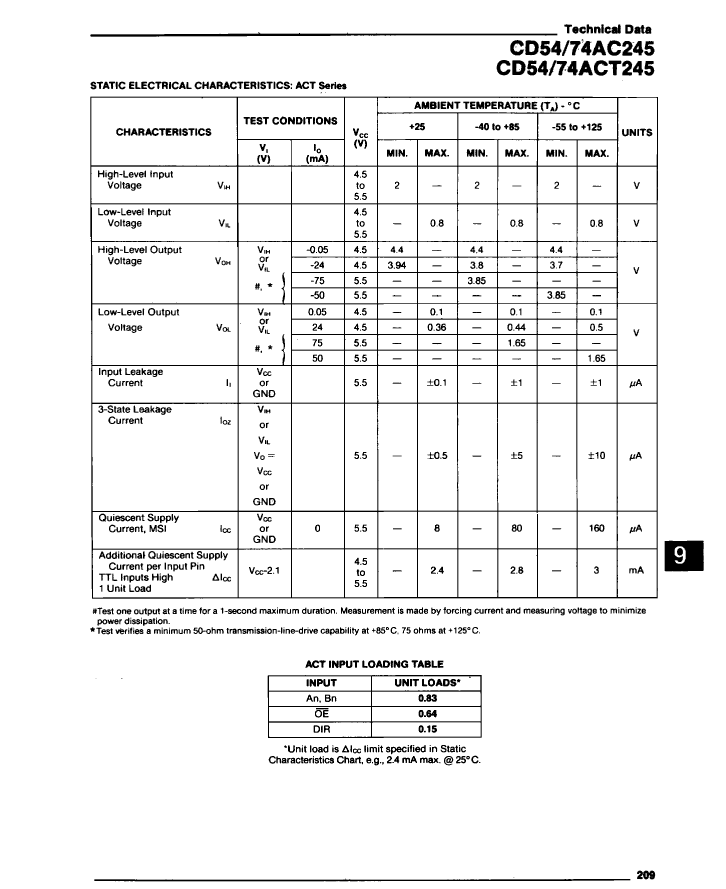

Parameter Name	Attribute value
Maker	GE Solid State
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	ACT
JESD-30 code	R-PDSO-G20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

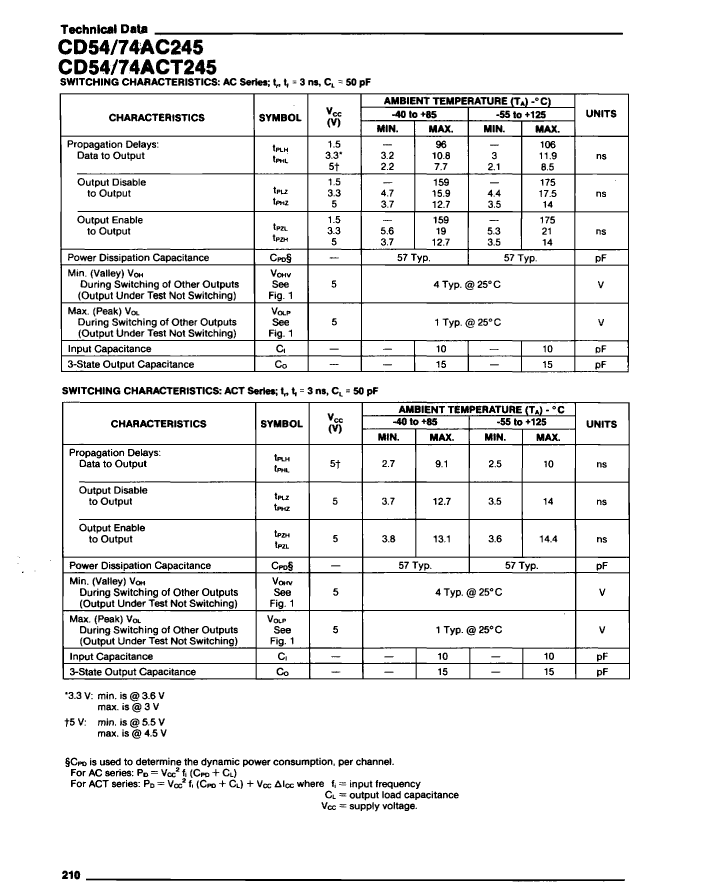

propagation delay (tpd)	10 ns
Certification status	Not Qualified

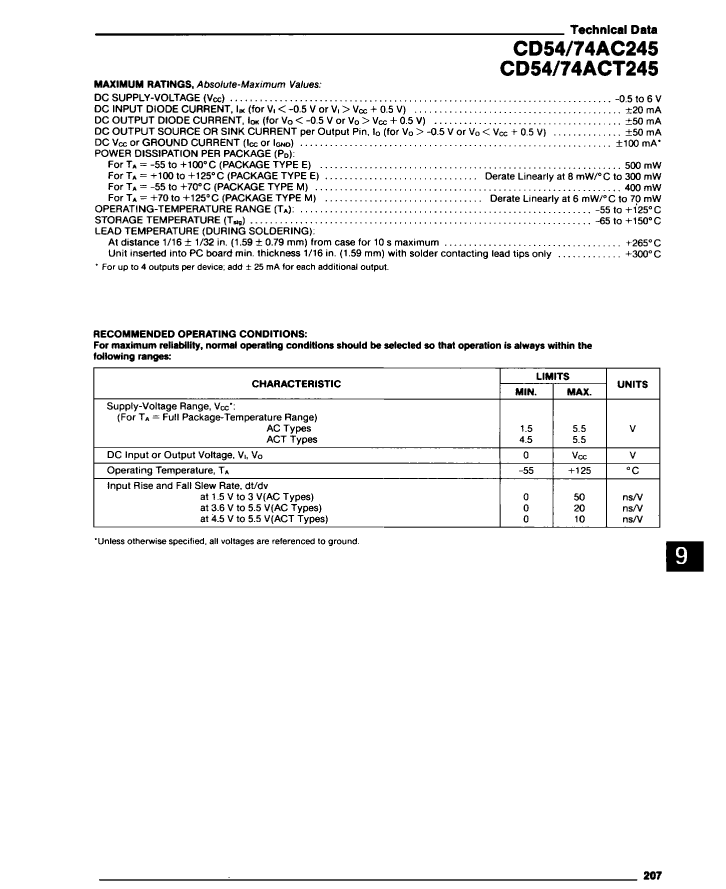

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal location	DUAL
