CD4017BMJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD4017BMJ

CD4017BMJ: DescriptionDecade Counter, Synchronous, Up Direction, CMOS, CDIP16,; Categorylogic logic; File Size363KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

CD4017BMJ Overview

Decade Counter, Synchronous, Up Direction, CMOS, CDIP16,

CD4017BMJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Load/preset input	NO
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	1000000 Hz
Operating mode	SYNCHRONOUS
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/15 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

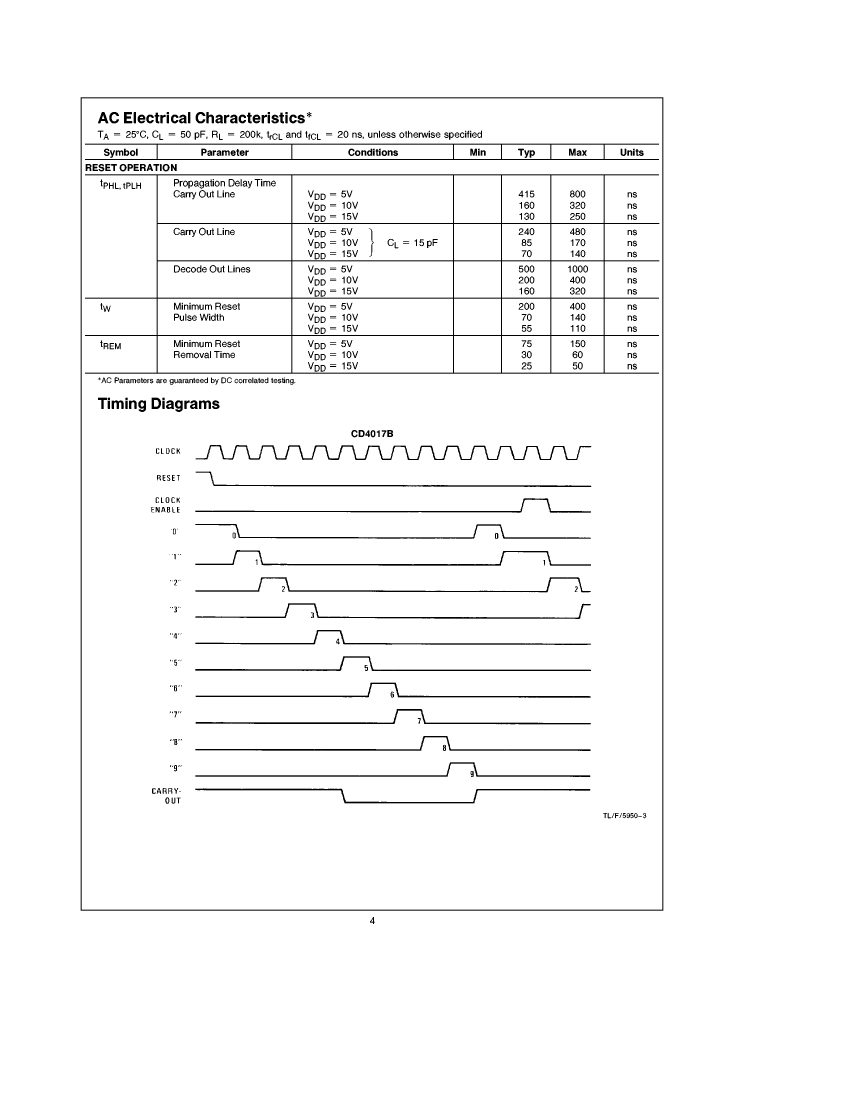

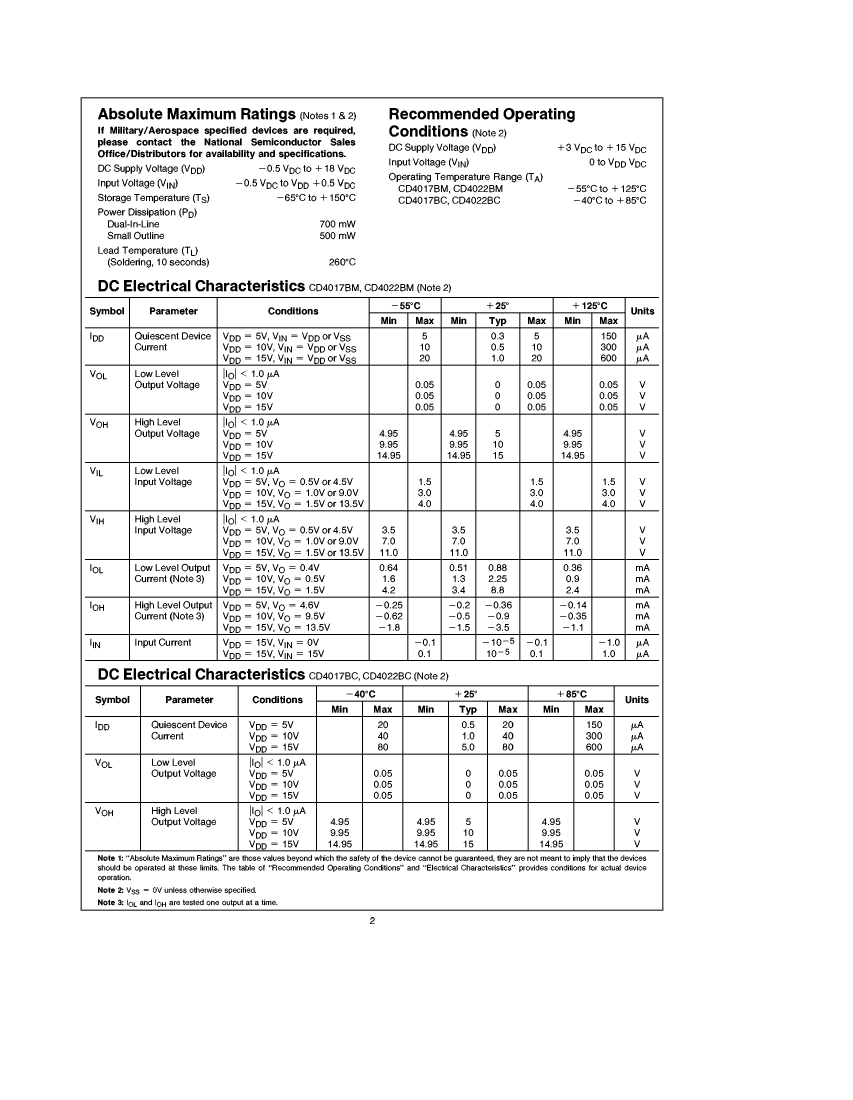

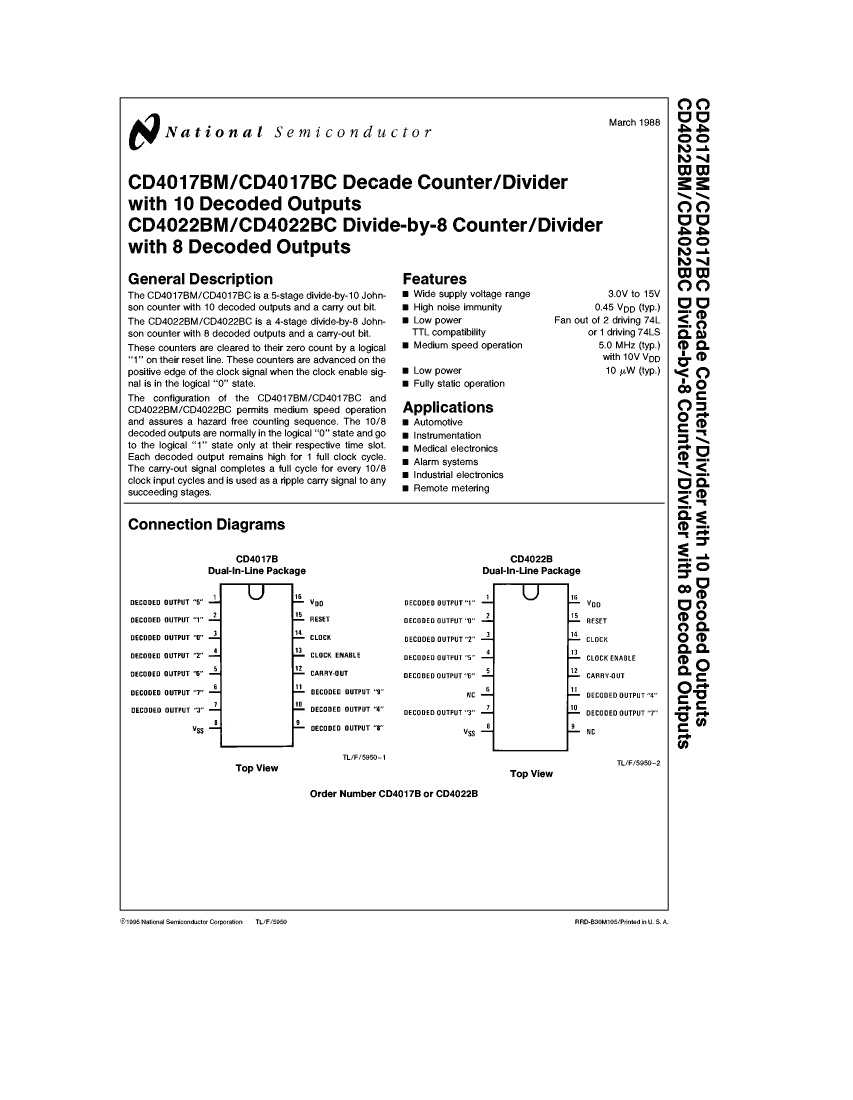

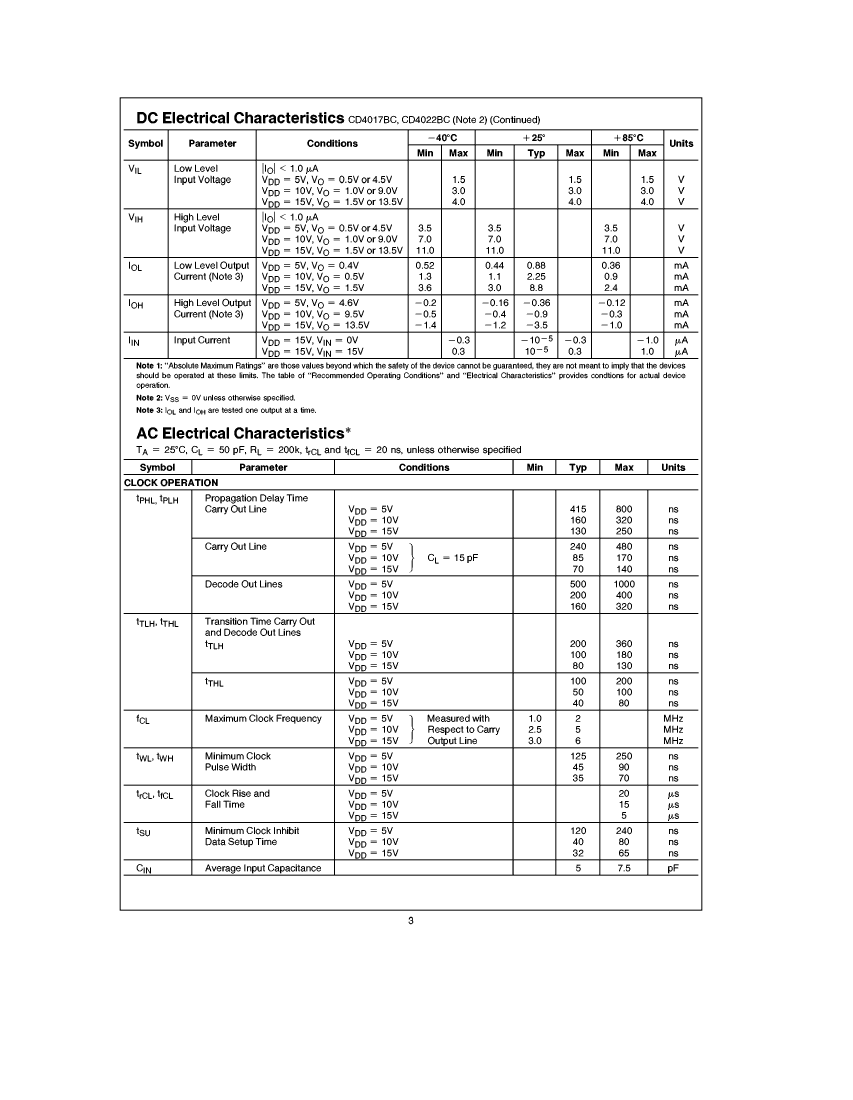

Preview

Download Datasheet

View All

CD4017BMJ Related Products

	CD4017BMJ	CD4017BCJ	CD4017BMN	CD4022BCJ
Description	Decade Counter, Synchronous, Up Direction, CMOS, CDIP16,	Decade Counter, Synchronous, Up Direction, CMOS, CDIP16,	Decade Counter, Synchronous, Up Direction, CMOS, PDIP16,	Divide By 8 Counter, Synchronous, Up Direction, CMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Load/preset input	NO	NO	NO	NO
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER	DIVIDE BY 8 COUNTER
Maximum Frequency@Nom-Sup	1000000 Hz	1000000 Hz	1000000 Hz	1000000 Hz
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	85 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-55 °C	-40 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	3/15 V	3/15 V	3/15 V	3/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
