UPD424100LB-10 datasheet, PDF - EEWORLD Datasheet

UPD424100LB-10: DescriptionIC,DRAM,FAST PAGE,4MX1,CMOS,SOJ,20PIN,PLASTIC; Categorystorage storage; File Size312KB，16 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

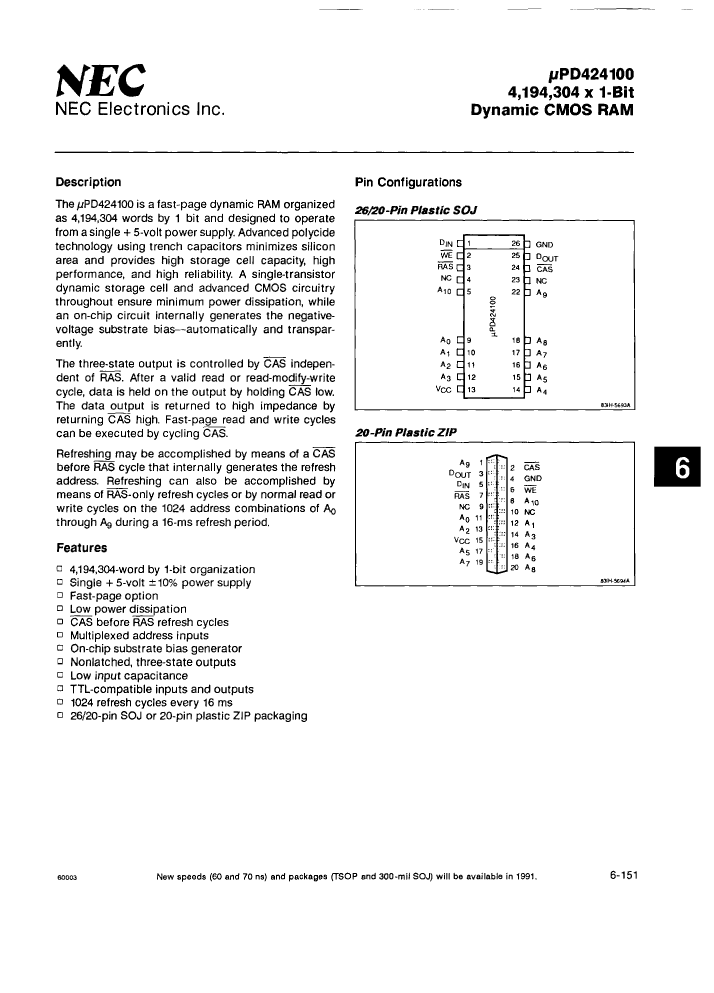

UPD424100LB-10 Overview

IC,DRAM,FAST PAGE,4MX1,CMOS,SOJ,20PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE

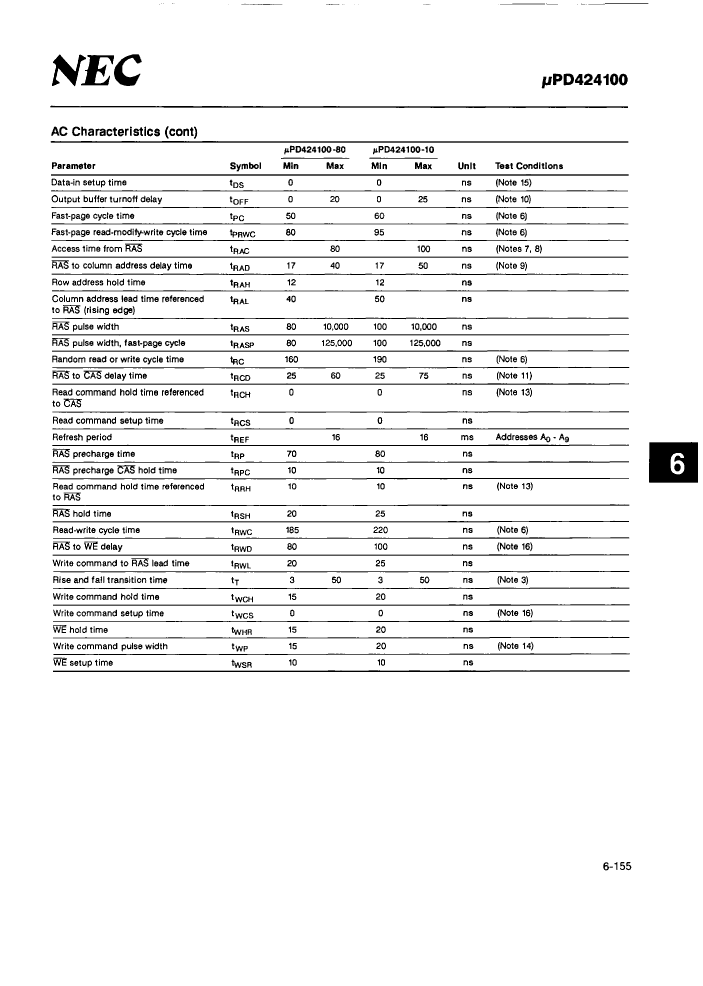

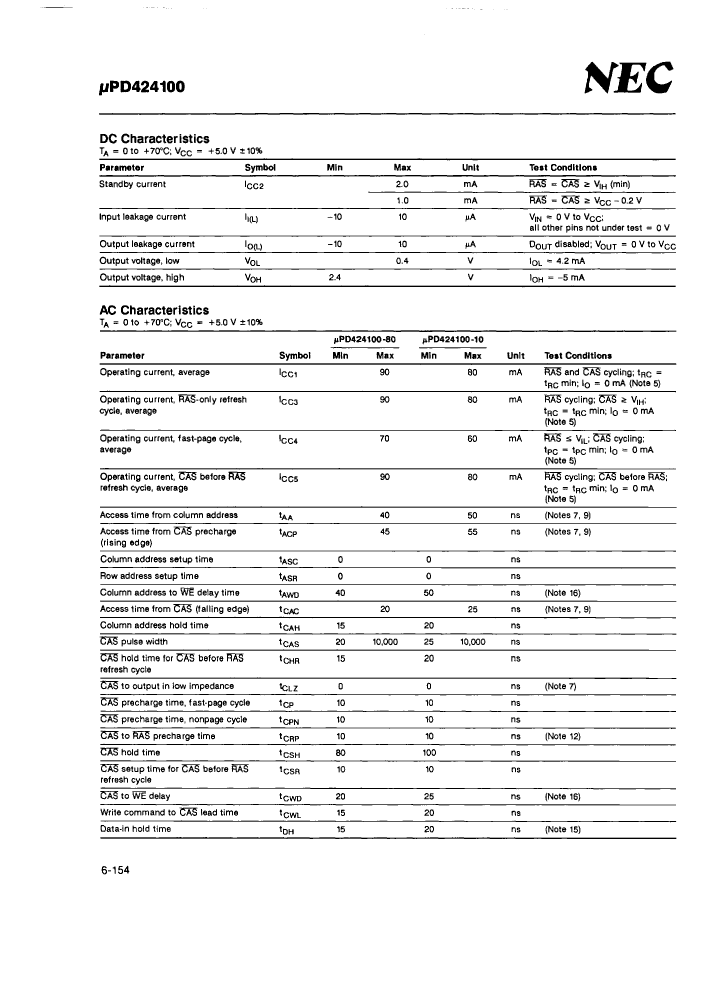

Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J20
length	17.4 mm
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.8 mm

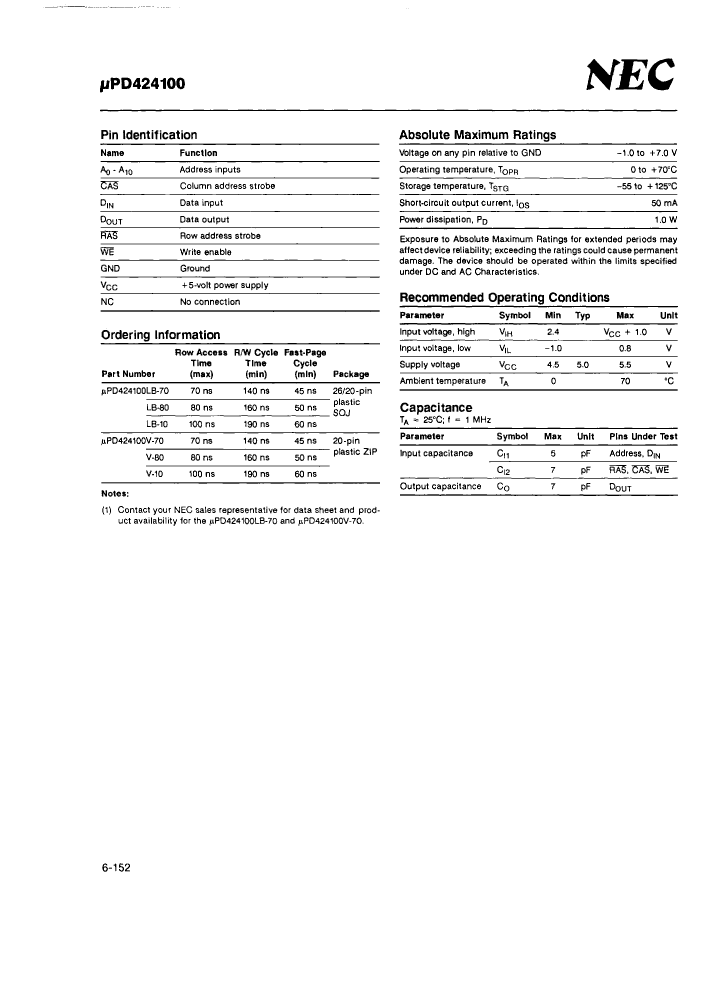

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.89 mm

	UPD424100LB-10
Description	IC,DRAM,FAST PAGE,4MX1,CMOS,SOJ,20PIN,PLASTIC
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-J20
length	17.4 mm
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
organize	4MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	3.8 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	8.89 mm
