SP239AER datasheet, PDF - EEWORLD Datasheet

SP239AER: DescriptionLine Transceiver, 1 Func, 3 Driver, 5 Rcvr, CMOS, CDIP24, CERDIP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，19 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric View All

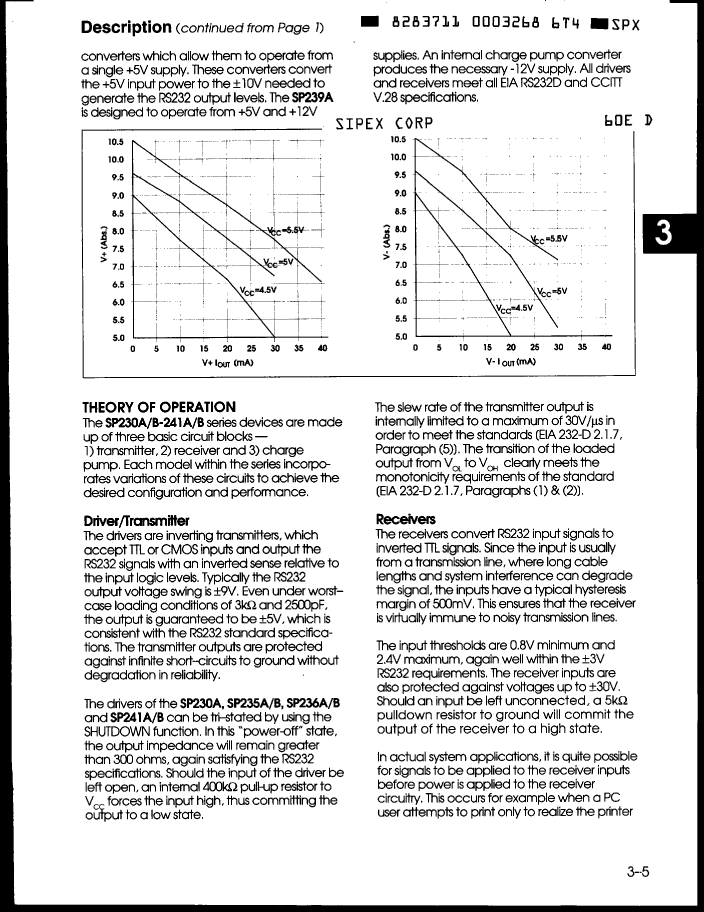

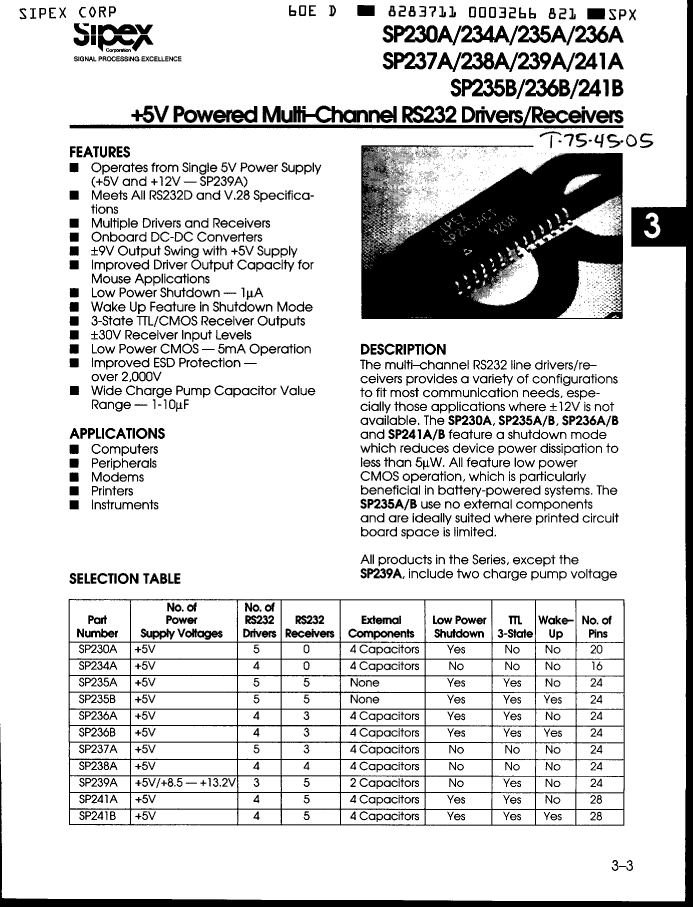

SP239AER Overview

Line Transceiver, 1 Func, 3 Driver, 5 Rcvr, CMOS, CDIP24, CERDIP-24

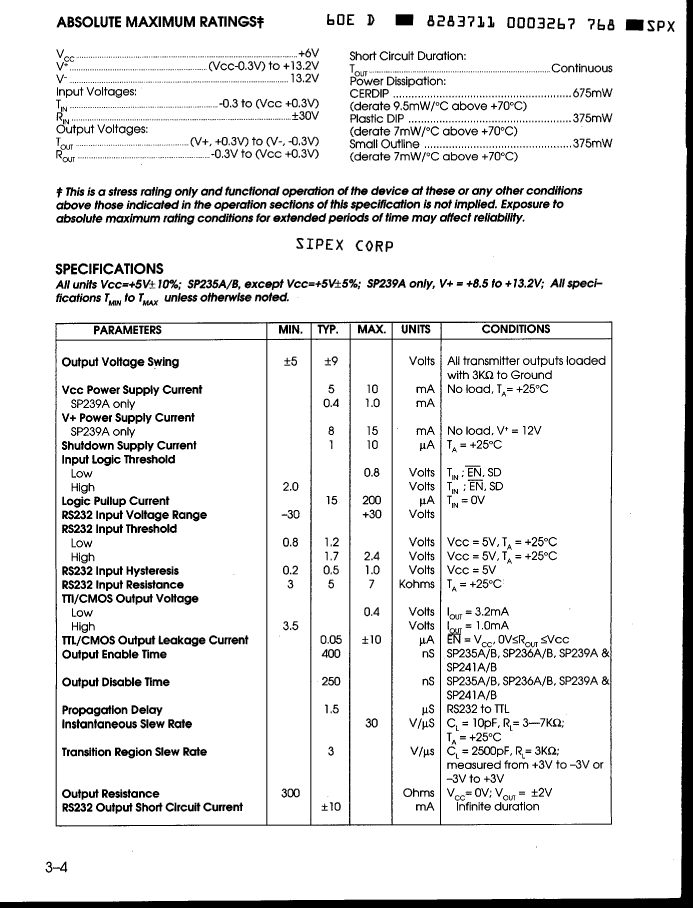

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	CERDIP-24
Reach Compliance Code	unknown

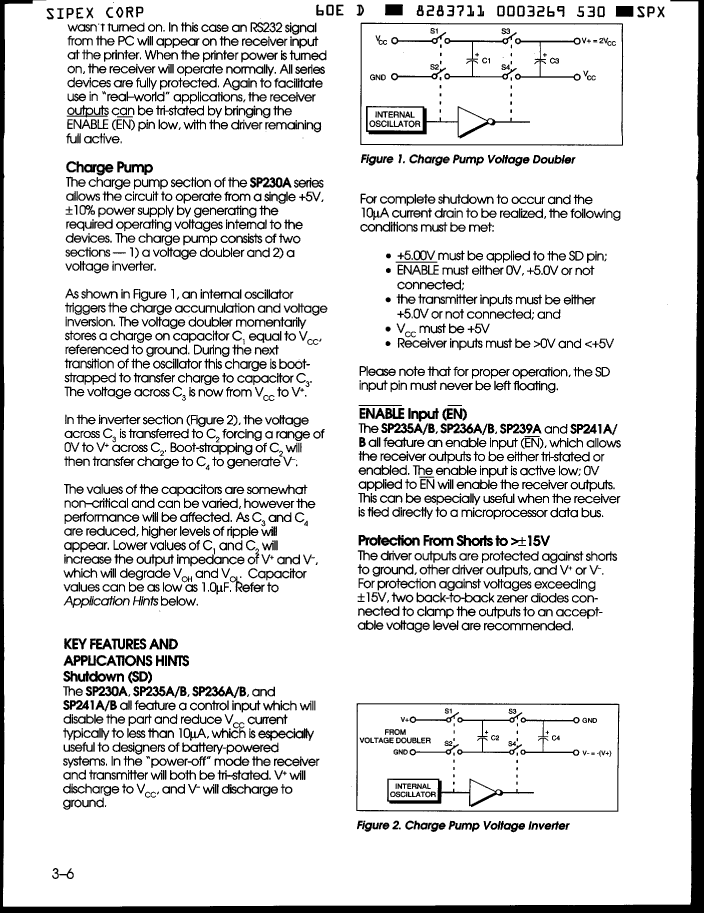

Other features	EXTERNAL CHARGE PUMP; TRISTATABLE RECEIVERS
Differential output	NO

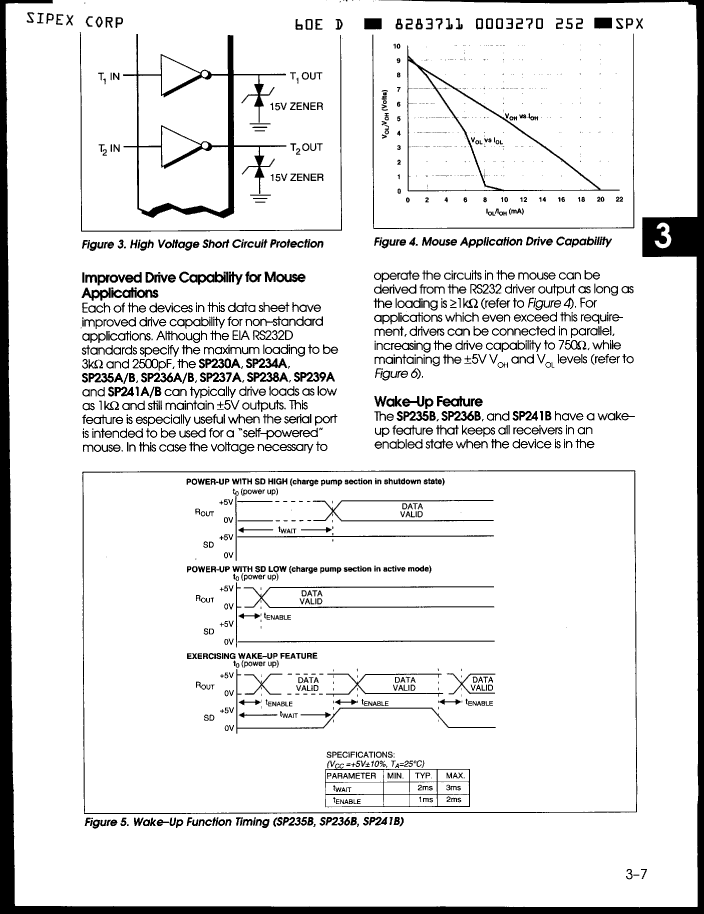

Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-D; V.28
JESD-30 code	R-GDIP-T24
length	32.512 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	5
Maximum seat height	5.715 mm
Maximum slew rate	1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	8.5 V
Supply voltage1-Nom	12 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
