87427-0413: DescriptionRectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size129KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87427-0413 Overview

Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE

87427-0413 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MINI-FIT JR
Board mount options	MOUNTING FLANGE
body width	0.449 inch
subject depth	0.72 inch
body length	0.772 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	9 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	POLYAMIDE46
Terminal length	0.13 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	3.0024 N

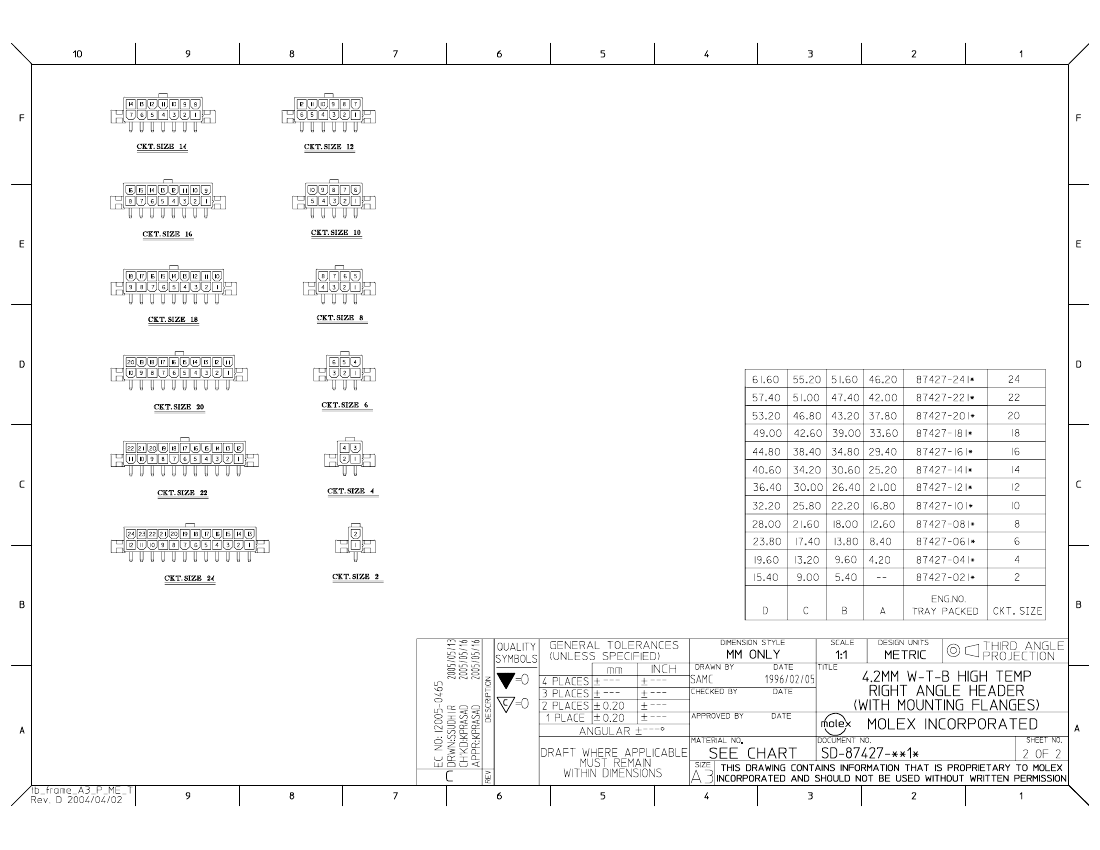

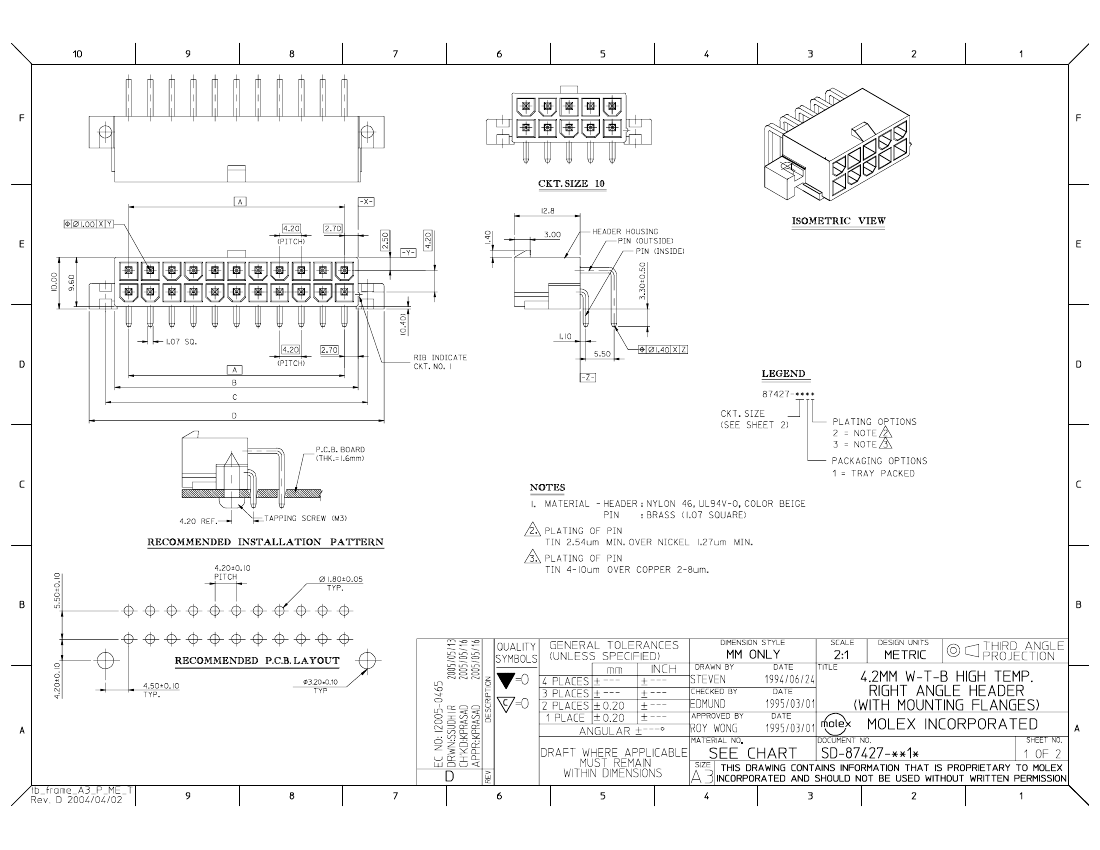

Preview

Download Datasheet

View All

87427-0413 Related Products

	87427-0413	87427-0813	87427-1213	87427-1413	87427-1612	87427-2213	87427-0213	87427-1613	87427-2413	87427-0613
Description	Rectangular Power Connector, 4 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 14 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 22 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 16 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 24 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE	Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Receptacle, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	compliant	unknown	unknown	unknown
Other features	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR	MINI-FIT JR
Board mount options	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
body width	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch
subject depth	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch
body length	0.772 inch	1.102 inch	1.433 inch	1.598 inch	1.764 inch	2.26 inch	0.606 inch	1.764 inch	2.425 inch	0.937 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER NICKEL	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER NICKEL	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Match contact row spacing	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	9 A	9 A	9 A	9 A	9 A	9 A	9 A	9 A	9 A	9 A
Guideline	CSA,UL,VDE	CSA,UL,VDE	UL,VDE,CSA	UL,VDE,CSA	UL,VDE,CSA	CSA,UL,VDE	CSA,UL,VDE	CSA,UL,VDE	CSA,UL,VDE	CSA,UL,VDE
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46	POLYAMIDE46
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	8	12	14	16	22	2	16	24	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
