MULTI-ISSUE
64-BIT MICROPROCESSOR
79RC5000
Features
x
x
Dual issue super-scalar execution core
300 MHz frequency
Dual issue floating-point ALU operations with other
instruction classes
-
Traditional 5-stage pipeline, minimizes load and branch
latencies
x
Single-cycle repeat rate for most floating point ALU oper-
ations
x
High level of performance for a variety of applications
-
High-performance 64-bit integer unit achieves 400 dhry-
stone MIPS (dhrystone 2.1)
-
Ultra high-performance floating-point accelerator,
directly implementing single- and double-precision oper-
ations achieves 600mflops
-
Extremely large on-chip primary cache
-
On-chip secondary cache controller
x
MIPS-IV 64-bit ISA for improved computation
-
Compound floating-point operations for 3D graphics and
floating-point DSP
-
Conditional move operations
-
-
Large, efficient on-chip caches
32KB Instruction Cache, 32KB Data Cache
2-set associative in each cach
Virtually indexed and physically tagged to minimize cache
flushes
-
Write-back and write-through selectable on a per page
basis
-
Critical word first cache miss processing
-
Supports back-to-back loads and stores in any combination
at full pipeline rate
x
High-performance memory system
-
Large primary caches integrated on-chip
-
Secondary cache control interface on-chip
-
High-frequency 64-bit bus interface runs up to 125MHz
-
Aggregate bandwidth of on-chip caches, system interface
of 5.6GB/s
-
High-performance write protocols for graphics and data
communications
x
Compatible with a variety of operating systems
-
Windows™ CE
-
Numerous MIPS-compatible real-time operating systems
x
Uses input system clock, with processor pipeline clock multi-
plied by a factor of 2-8
x
Large on-chip TLB
x
Active power management, including use of WAIT operation
-
-
-

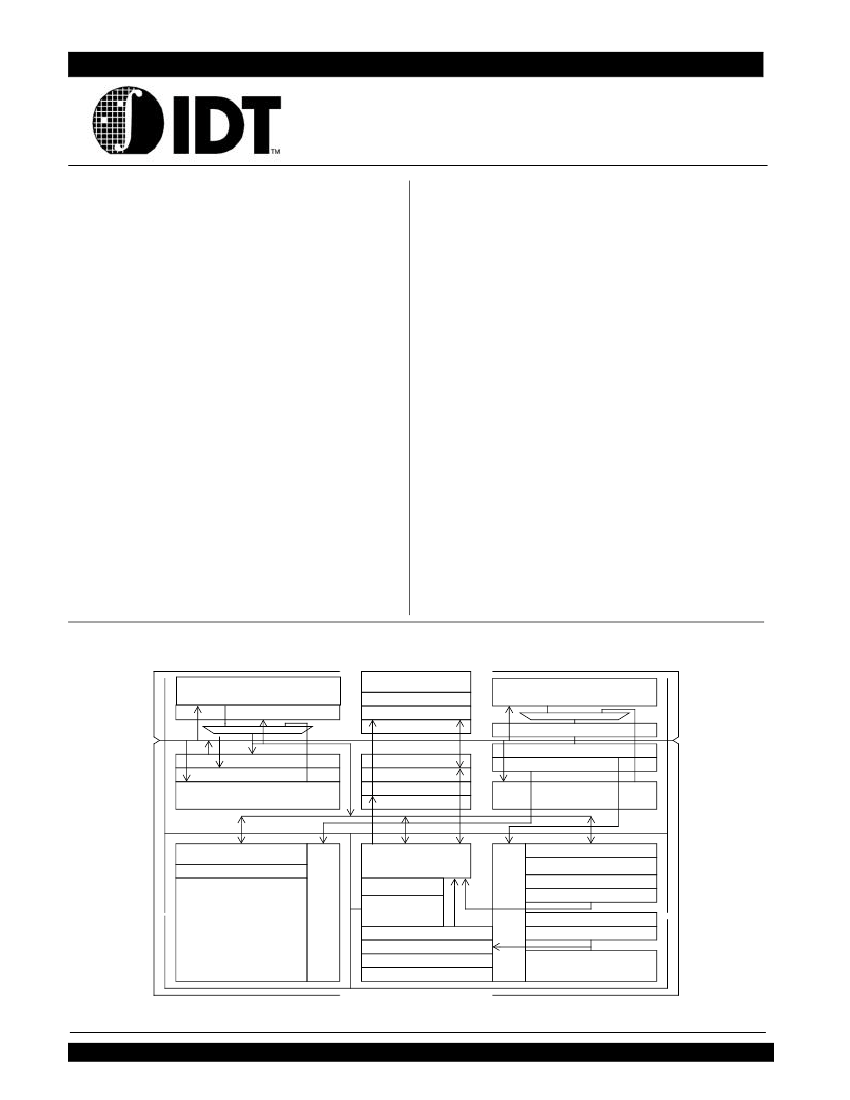

Block diagram
Phase Lock Loop
Data Set A
Store Buffer
SysAD
Write Buffer
Read Buffer
Data Set B
DBus
Control
Tag
Floating Point Register File
Unpacker/Packer
Floating-point Control
Joint TLB
Coprocessor 0
System/Memory
Control
PC Incrementer
Branch Adder
Instruction TLB Virtual
Program Counter
DVA
IVA
Integer Control
AuxTag
Load Aligner
Integer Register File
Integer/Address Adder
Data TLB Virtual
Shifter/Store Aligner
Logic Unit
ABus
Integer Multiply, Divide
FPIBus
Address Buffer
Instruction Tag A
ITLB Physical
Instruction Tag B
Instruction Set B
IntIBus
Data Tag A
DTLB Physical
Instruction Select
Integer Instruction Register
FP Instruction Register
Instruction Set A
Floating Point
MAdd,Add,Sub, Cvt
Div, SqRt
The IDT logo is a registered trademark and RC4600, RC4640, RC4650, RC4700, RC5000, RV5000, and RISController are trademarks of Integrated Device Technology, Inc.
MIPS is a registered trademark of MIPS Computer Systems, Inc.
1 of 16
©
1999 Integrated Device Technology, Inc.
June 21, 1999
79RC5000
MULTI-ISSUE 64-BIT MICROPROCESSOR
DESCRIPTION
Integer pipeline
The RC5000 is a limited dual-issue machine that utilizes a tradi-
The RC5000 serves many performance critical embedded
applications, such as high-end internetworking systems, color tional 5-stage integer pipeline. This basic integer pipeline of the
RC5000 is illustrated in Figure 1. The integer instruction execution
printers, and graphics terminals.
The RC5000 is optimized for high-performance applications, speed is tabulated (in number of pipeline clocks) as follows:
with special emphasis on system bandwidth and floating point
Operation
Latency
Repeat
operations, through integration of high-performance computational
units and a high-performance memory hierarchy. For this class of
Load
2
1
application, the result is a relatively low-cost CPU capable of
Store
2
1
approximately 400 Dhrystone MIPS.
IDT’s objectives in offering the RC5000 include:
MULT/MULTU
8
8
x
Offering a high performance upgrade path to existing
DMULT/DMULTU
12
12
embedded customers in the internetworking, office auto-
DIV/DIVU
36
36
mation and visualization markets.
x
DDIV/DDIVU
68
68
Providing a significant improvement in the floating- point
performance currently available in a moderately priced
Other Integer ALU
1
1
MIPS CPU.
Branch
2
2
x
Providing improvements in the memory hierarchy of desk-
Jump
2
2
top systems by using large primary caches and integrat-
ing a secondary cache controller.
Table 1: Integer Instruction Execution Speed
x
Enabling improvements in performance through the use of
The RC5000’s short pipeline keeps the load and branch latencies
the MIPS-IV ISA.
very low. The caches contain special logic that allows any combina-
tion of loads and stores to execute in back-to-back cycles without
requiring pipeline slips or stalls. (This assumes that the operation
Instruction issue mechanism
The RC5000 recognizes two general classes of instructions for does not miss in the cache.)
multi-issue:
x
Floating-point ALU
x
All others
These instruction classes are pre-decoded by the RC5000, as
they are brought on-chip. The pre-decoded information is stored in
the instruction cache.
Assuming that there are no pending resource conflicts, the
RC5000 can issue one instruction per class per pipeline clock
cycle. Note that this broad separation of classes insures that there
are no data dependencies to restrict multi-issue.
However, long-latency resources in either the floating-point ALU
(e.g. DIV or SQRT instructions) or instructions in the integer unit
(such as multiply) can restrict the issue of instructions. Note that
the R5000 does not perform out-of-order or speculative execution;
instead, the pipeline slips until the required resource becomes
available.
There are no alignment restrictions on dual-issue instruction
pairs. The RC5000 fetches two instructions from the cache per
cycle. Thus, for optimal performance, compilers should attempt to
align branch targets to allow dual-issue on the first target cycle,
since the instruction cache only performs aligned fetches.
Instruction set architecture
The RC5000 implements the MIPS-IV 64-bit ISA, including CP1
and CP1X functional units (and their instruction set).
2 of 16
79RC5000
MULTI-ISSUE 64-BIT MICROPROCESSOR
I0
1I
2I
1R
2R
1A
2A
1D
2D
1W
2W
I1
1I
2I
1R
2R
1A
2A
1D
2D
1W
2W
I2
1I
2I
1R
2R
1A
2A
1D
2D
W
1
I3
1I
2I
1R
2R
1A
2A
1D
I4
1I
2I
1R
2R
1A
one cycle
Figure 1
R5000 Integer Pipeline Stages
Key to Figure
1I-1R
2I
2A-
2D
1D
1D-
2D
2R
2R
2R
2R
1A
1A-
2A
1A
2A
1A
2W
Instruction cache access
Instruction virtual to physical address translation
Data cache access and load align
Data virtual to physical address translation
Virtual to physical address translation
Register file read
Bypass calculation
Instruction decode
Branch address calculation
Issue or slip decision
Integer add, logical, shift
Data virtual address calculation
Store align
Branch decision
Register file write
3 of 16
79RC5000
MULTI-ISSUE 64-BIT MICROPROCESSOR
RC5000 Computational Units
The RC5000 contains the following computational units:
Integer ALU. The RC5000 implements a full, single-cycle 64-bit
ALU for all integer ALU functions other than multiply and divide.
Bypassing is used to support back-to-back ALU operations at the
full pipeline rate, without requiring stalls for data dependencies.
Integer Multiply/Divide Unit. This unit is separated from the
primary ALU, to allow these longer latency operations to run in
parallel with other operations. The pipeline stalls only if an attempt
to access the HI or LO registers is made before the operation
completes.
Floating-point ALU. This unit is responsible for all CP1/CP1X
ALU operations other than DIV/SQRT. The unit is pipelined to allow
a single-cycle repeat rate for single-precision operations
Floating-point DIV/SQRT unit. This unit is separated from the
other floating-point ALU, so that these long latency operations do
not prevent the issue of other floating point operations.
In addition, the RC5000 implements separate logical units to
implement loads, stores, and branches.
The following equation relates ambient and case temperatures:
T
A
= T
C
- P *
∅
CA
where P is the maximum power consumption at hot temperature,
calculated by using the maximum I
CC
specification for the device.
Typical values for
∅
CA
at various airflows are shown in Table 1.
∅
CA
Airflow (ft/min)
PGA
0
16
200
7
400
5
600
3
800
2.5
1000
2
BGA
14
6
4
3
2.5
2
Table 2:
Thermal Resistance (
∅
CA) at Various Airflows
Note:
The RC5000 implements advanced power management to
substantially reduce the average power dissipation of the device. This
operation is described in the
IDT79RV5000 RISC Microprocessor
Reference Manual.
Operating frequency
The input clock operates in a frequency range of 33MHz to
Note:
Per the RC5000 Documentation errata, Revicion 1.0, dated
100MHz. The pipeline frequency for the RC5000 is 2 to 8 times the
February 1999 and per the RC5000 Device errata, dated February
input clock (up to the maximum for the speed grade of CPU).
1999, mode bits 20, 33 and 37 must be set to 1.
Thermal considerations
The RC5000 utilizes special packaging techniques, to improve
the thermal properties of high-speed processors. The RC5000 is
packaged using cavity down packaging in a 223-pin PGA package
with integral thermal slug, and a 272-pin BGA package. These
packages effectively dissipate the power of the CPU, increasing
device reliability.
The RC5000 utilizes an all-aluminum package with the die
attached to a normal copper lead frame mounted to the aluminum
casing. Due to the heat-spreading effect of the aluminum, the
package allows for an efficient thermal transfer between the die
and the case. The aluminum offers less internal resistance from
one end of the package to the other, reducing the temperature
gradient across the package and therefore presenting a greater
area for convection and conduction to the PCB for a given temper-
ature. Even nominal amounts of airflow will dramatically reduce the
junction temperature of the die, resulting in cooler operation.
The RC5000 is guaranteed in a case temperature range of 0° to
+85° C. The type of package, speed (power) of the device, and
airflow conditions affect the equivalent ambient temperature condi-
tions that will meet this specification.
The equivalent allowable ambient temperature, T
A
, can be
calculated using the thermal resistance from case to ambient
(∅
CA
) of the given package.
Revision history
Changes to version dated January 1996:
Pin Description section:
-
Corrected pin list for Clock/Control, Initialization, and
Secondary Cache interfaces.
Advance Pin-Out section:
-
Changed pins AA19 and AA21 from Vcc to Vss.
Changes to version dated March 1997:
-
Upgraded data sheet status from “Preliminary” to Final.
-
Added section on thermal considerations
-
Added section on absolute maximum ratings
Changes to version dated June 1997:
-
Revised Power Consumption and System Interface Param-
eters
Changes to version dated September 1997:
-
Added user notation on Boot Mode Bits 20 and 33 for 200
MHz frequency
Changes to version dated June 1998:
-
Added 250 MHz
-
Changed naming conventions
Changes to version dated June 1999:
-
Added 267 MHz and 300 MHz
4 of 16
79RC5000
MULTI-ISSUE 64-BIT MICROPROCESSOR
Logic diagram
SysAD(63:0)
SysADC(7:0)
SysCmd(8:0)
SysCmdP
System Interface
ValidIn*
ValidOut*
ExtRqst*
Release*
RdRdy*
WrRdy*
64
8
9
2
ScWord (1:0)
ScTCE*
ScTDE*
ScTOE*
ScCLR*
ScDCE*
ScDOE*
ScCWE*
ScLine (15:0)
ScMATCH
ScVALID
Secondary Cache Interface
JTAG
Interface
Initialization
Interface
Interrupt
Interface
16
SysClock
Clock Interface
VccP
VssP
Vcc
Vss
34
34
RC5000
Logic
Symbol
6
Int (5:0)*
NMI*
BigEndian
ModeClock
ModeIN
VccOk
ColdReset*
Reset*
JTDI
JTDO
JTMS
JTCK
Table 3: RC5000 Logic Symbol Diagram
5 of 16
京公网安备 11010802033920号
EEWORLD
