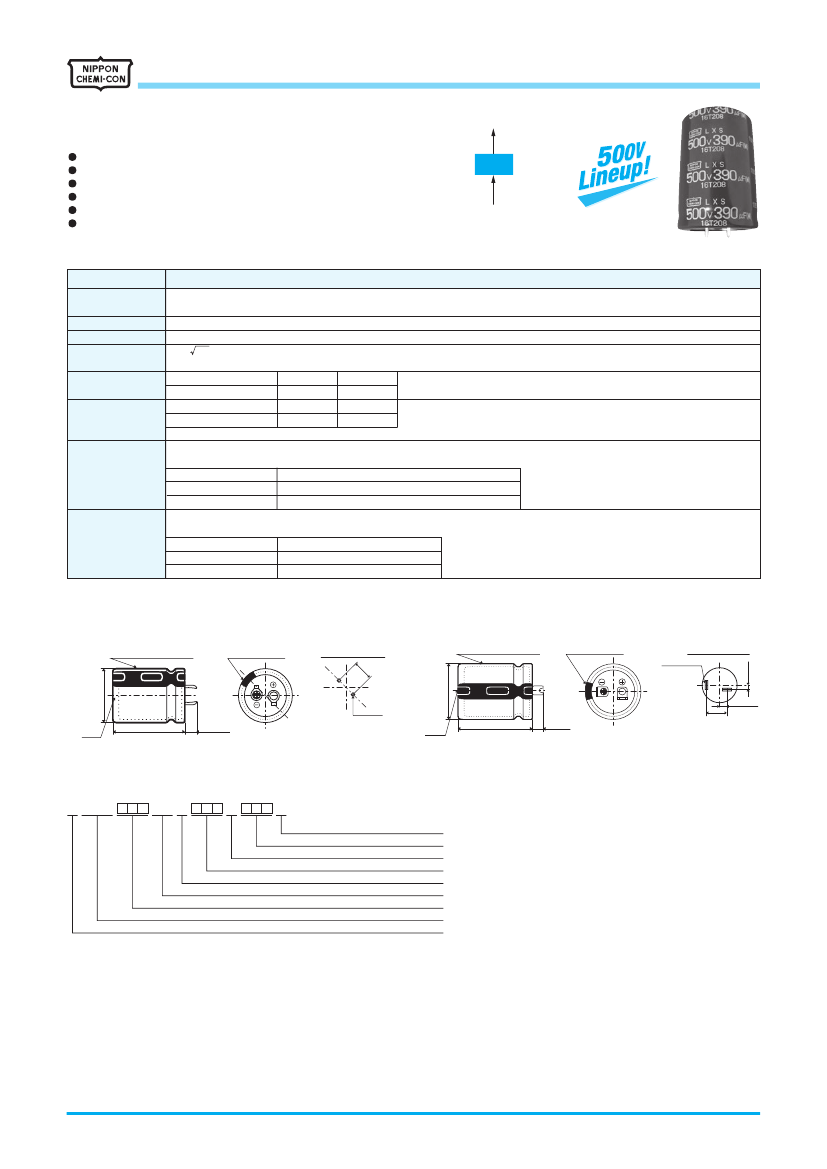

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Long life snap-ins, 105℃
LXS
Series
LXM P243
Longer life
・For
solar power generation
・Endurance
with ripple current : 5,000 hours at 105℃
・Rated
voltage range : 160 to 500V
・Downsized
from LXQ series
・Non
solvent resistant type
・RoHS
Compliant
LXS
Downsized
Higher ripple
LXQ P249
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tan
δ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-25 to +105℃
160 to 500V
dc
±20%
(M)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
160 to 400V 420 to 500V
Rated voltage (V
dc
)
0.15
0.20
tanδ(Max.)
160 to 400V 420 to 500V
Rated voltage (V
dc
)
4
8
Z(-25℃)/Z(+20℃)
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Characteristics
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 105℃.
≦
±20%
of the initial value
Capacitance change
≦200%
of the initial specified value (500V
dc
:
≦
250%)
D.F. (tan )
δ
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦
±15%
of the initial value
D.F. (tanδ
)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
●
Terminal
Code : VS (φ22 to
φ35)
: Standard
Negative mark
PC board pin-out
10
●
Terminal
Code : LI (φ30,φ35)
Negative mark
4.2±0.5
PC board pin-out
2-1.2×6
Sleeve (PET : Brown)
φD+1max.
Sleeve (PET : Brown)
φD+1max.
2-
φ2
L±2.5
4.0±0.5
5±0.5
L±2.5
4.5±1
14.2±1
Vent
Vent
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E LXS
1
2
3
4
5
6
7
VS N
8
9
10
11
12
13
M
14
15
16
17
S
18
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 330µF:331, 2,200µF:222)
Dummy terminal code
Terminal code
Voltage code (ex. 160V:161, 315V:3B1, 450V:451)
Series code
Category
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
246
CAT. No. E1001N
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Long life snap-ins, 105℃
LXS
Series
◆STANDARD
RATINGS
WV
(V
dc
)
Cap
(µF)
390
390
390
470
470
560
560
560
680
820
100
120
120
150
180
180
180
220
220
220
270
270
270
270
330
330
330
390
390
390
470
470
560
680
Case size
φ
D×L(mm)
25.4×50
30×35
35×30
30×40
35×35
30×45
30×50
35×40
35×45
35×50
22×25
22×30
25.4×25
22×35
22×40
25.4×30
30×25
22×45
22×50
25.4×35
25.4×40
25.4×45
30×30
35×25
25.4×50
30×35
35×30
30×40
30×45
35×35
30×50
35×40
35×45
35×50
Rated ripple
current
tanδ
(Arms/
105℃,120Hz)
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
1.66
1.61
1.68
1.82
1.88
2.04
2.07
2.13
2.40
2.69
0.70
0.81
0.81
0.93
1.04
1.02
1.06
1.17
1.20
1.18
1.33
1.36
1.31
1.38
1.52
1.48
1.55
1.66
1.70
1.71
1.90
1.95
2.17
2.45
Part No.
ELXS401VSN391MQ50S
ELXS401VSN391MR35S
ELXS401VSN391MA30S
ELXS401VSN471MR40S
ELXS401VSN471MA35S
ELXS401VSN561MR45S
ELXS401VSN561MR50S
ELXS401VSN561MA40S
ELXS401VSN681MA45S
ELXS401VSN821MA50S
ELXS421VSN101MP25S
ELXS421VSN121MP30S
ELXS421VSN121MQ25S
ELXS421VSN151MP35S
ELXS421VSN181MP40S
ELXS421VSN181MQ30S
ELXS421VSN181MR25S
ELXS421VSN221MP45S
ELXS421VSN221MP50S
ELXS421VSN221MQ35S
ELXS421VSN271MQ40S
ELXS421VSN271MQ45S
ELXS421VSN271MR30S
ELXS421VSN271MA25S
ELXS421VSN331MQ50S
ELXS421VSN331MR35S
ELXS421VSN331MA30S
ELXS421VSN391MR40S
ELXS421VSN391MR45S
ELXS421VSN391MA35S
ELXS421VSN471MR50S
ELXS421VSN471MA40S
ELXS421VSN561MA45S
ELXS421VSN681MA50S
WV
(V
dc
)
Cap
(µF)
82
120
120
120
150
150
180
180
180
220
220
220
220
270
270
270
270
330
390
390
390
470
470
560
100
120
120
150
180
180
220
220
270
270
330
390
470
Case size
φ
D×L(mm)
22×25
22×30
22×35
25.4×25
22×40
25.4×30
22×45
25.4×35
30×25
22×50
25.4×40
30×30
35×25
25.4×45
25.4×50
30×35
35×30
30×40
30×45
30×50
35×35
35×40
35×45
35×50
30×25
30×30
35×25
30×35
30×40
35×30
30×45
35×35
30×50
35×40
35×45
35×50
35×60
Rated ripple
current
tanδ
(Arms/
105℃,120Hz)
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.64
0.81
0.83
0.81
0.94
0.93
1.06
1.06
1.06
1.20
1.20
1.18
1.24
1.36
1.38
1.34
1.40
1.52
1.70
1.73
1.71
1.95
1.99
2.22
0.82
0.91
0.88
1.04
1.17
1.10
1.33
1.23
1.50
1.42
1.60
1.78
2.03
Part No.
ELXS451VSN820MP25S
ELXS451VSN121MP30S
ELXS451VSN121MP35S
ELXS451VSN121MQ25S
ELXS451VSN151MP40S
ELXS451VSN151MQ30S
ELXS451VSN181MP45S
ELXS451VSN181MQ35S
ELXS451VSN181MR25S
ELXS451VSN221MP50S
ELXS451VSN221MQ40S
ELXS451VSN221MR30S
ELXS451VSN221MA25S
ELXS451VSN271MQ45S
ELXS451VSN271MQ50S
ELXS451VSN271MR35S
ELXS451VSN271MA30S
ELXS451VSN331MR40S
ELXS451VSN391MR45S
ELXS451VSN391MR50S
ELXS451VSN391MA35S
ELXS451VSN471MA40S
ELXS451VSN471MA45S
ELXS451VSN561MA50S
ELXS501VSN101MR25S
ELXS501VSN121MR30S
ELXS501VSN121MA25S
ELXS501VSN151MR35S
ELXS501VSN181MR40S
ELXS501VSN181MA30S
ELXS501VSN221MR45S
ELXS501VSN221MA35S
ELXS501VSN271MR50S
ELXS501VSN271MA40S
ELXS501VSN331MA45S
ELXS501VSN391MA50S
ELXS501VSN471MA60S
400
450
420
500
◆RATED
RIPPLE CURRENT MULTIPLIERS
●
Frequency
Multipliers
50
0.81
0.77
0.70
120
1.00
1.00
1.00
300
1.17
1.16
1.16
1k
1.32
1.30
1.30
10k
1.45
1.41
1.41
50k
1.50
1.43
1.43
Frequency (Hz)
160 to 250V
dc
315 to 450V
dc
500V
dc
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
248
CAT. No. E1001N
