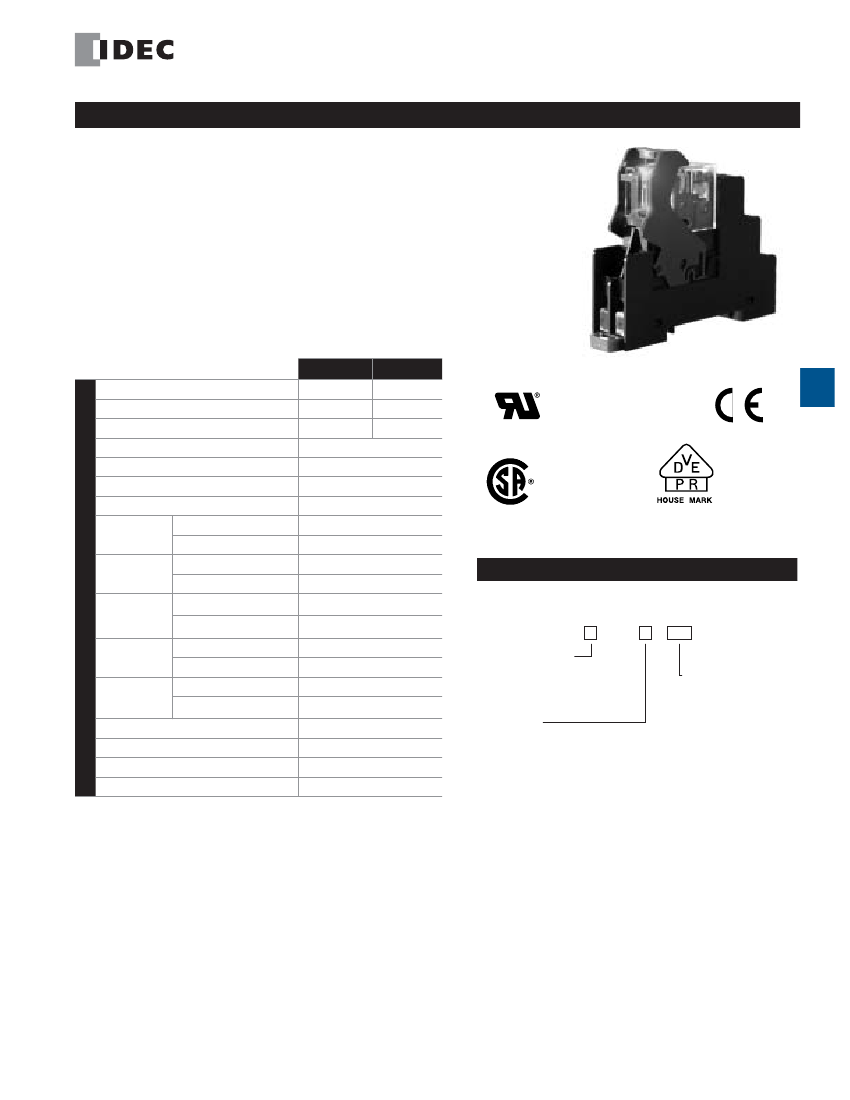

RJ Series — General Purpose Relays
RJ relays, the newest addition to our relay family, were designed with
the same attention-to-detail IDEC is known for. One feature that exem-
plifies this is an optional LED. It uses a unique light guide to give you a
brighter and more noticeable status indicator from multiple directions.
Key features of the RJ series include:
• Compact size: 12.7 x 27 x 28.8 mm
• Contact rating: 8A (DPDT), 12A (SPDT)
• Operational life:
200K cycles at full resistive load
50 million cycles, no load
• Optional, green, non-polarized LED
• RoHS compliant
RJ1S
No. of poles
Contact Configuration
Contact Rating
Contact Material
Contact Resistance
Operating Time
Release Time
Dielectric
Strength
Between contact and coil
Between contacts
Damage limits
Operating extremes
Damage limits
Operating extremes
AC
DC
AC
DC
1
SPDT
12A
2
DPDT
8A
RJ Series
RJ2S
UL Recognized
File No. E555996, Vol 1, sec. 11
E
Relays
Silver-Nickel alloy
50 milliohms max
15 ms max
10 ms max
5,000VAC, 1 minute
1,000VAC, 1 minute
10-55Hz, amplitude 0.75mm
10-55Hz, amplitude 0.75mm
100m/s
2
min (10G)
1,000m/s
2
min (100G)
30,000,000 operations
50,000,000 operations
200,000 operations
100,000 operations
-40 to 70º C
5 to 85% RH
12.7 x 27 x 28.8
19g
CSA Certified
File No. LR35144
Specifications
Vibration
Resistance
Shock
Resistance
Mechanical
Life
Electrical Life
@ Full Rated
Load
Ordering Information
Consult factory for other voltages.
Basic Part No.
Coil Voltage:
RJ
# of Contacts
1 = SPDT
2 = DPDT
Option
(Blank) = Standard
L = LED
S –C
–
Operating Temperature
Operating Humidity
Dimensions (H x W x D mm)
Weight (Approx.)
Coil Voltage Code
D12 = 12V DC
D24 = 24V DC
D100 = 100-110V DC
A24 = 24V AC
A120 = 120V AC
A240 = 240V AC
www.idec.com
USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
E-3
RJ Series
Relays

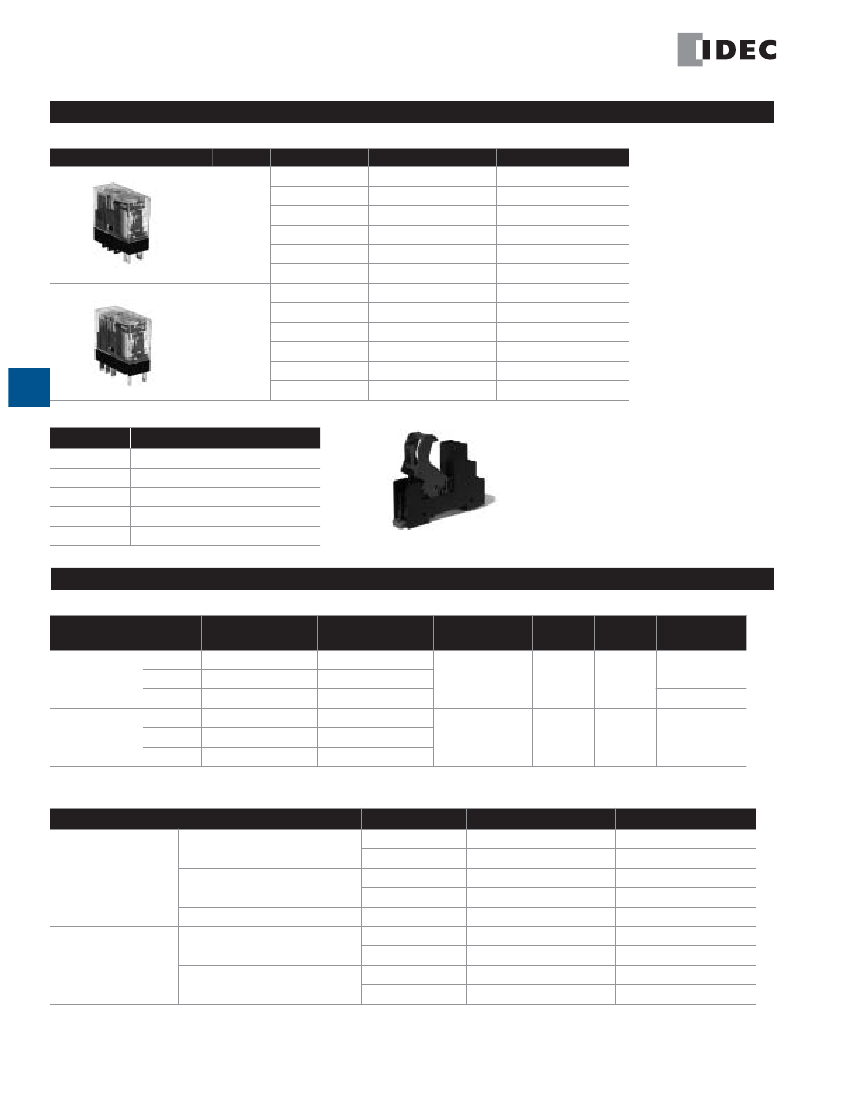

Part Numbers
Type
Contacts
Coil Voltage
12V DC
24V DC
Standard
RJ1S-C-D12
RJ1S-C-D24
RJ1S-C-D100
RJ1S-C-A24
RJ1S-C-A120
RJ1S-C-A240
RJ2S-C-D12
RJ2S-C-D24
RJ2S-C-D100
RJ2S-C-A24
RJ2S-C-A120
RJ2S-C-A240
with Indicator Light
RJ1S-CL-D12
RJ1S-CL-D24
RJ1S-CL-D100
RJ1S-CL-A24
RJ1S-CL-A120
RJ1S-CL-A240
RJ2S-CL-D12
RJ2S-CL-D24
RJ2S-CL-D100
RJ2S-CL-A24
RJ2S-CL-A120
RJ2S-CL-A240
SPDT
100-110V DC
24V AC
120V AC
240V AC
12V DC
24V DC
DPDT
100-110V DC
24V AC
120V AC
E
Relays
SJ1S-05B
SJ1S-07L
SJ2S-05B
SJ2S-07L
SJ9Z-C
SPDT Standard Screw Terminal
240V AC
Socket Part Numbers (DIN Rail or Panel Mount):
Part Numbers
Description
SPDT Finger-safe Screw Terminal
DPDT Standard Screw Terminal
DPDT Finger-safe Screw Terminal
Replacement Locking Lever
Ratings
Coil Ratings at 20ºC (relays with LED indicator)
Nominal
Nominal
Coil
Coil Resistance
Voltage
Current
Sensitivity
12V
DC Coil
24V
100-110V
24V
AC Coil
(60Hz)
120V
240V
48mA
25.7mA
5.2-5.7mA
41.1mA
8.1mA
4.1mA
271
Ω
1,080
Ω
18,870
Ω
243
Ω
5270
Ω
21,530
Ω
0.9VA
80% Max
30% Min
140%
0.53W
70% Max
10% Min
Power
Consumption
Pull-in
Voltage
Drop-Out
Voltage
Max Allowable
Voltage
170%
160%

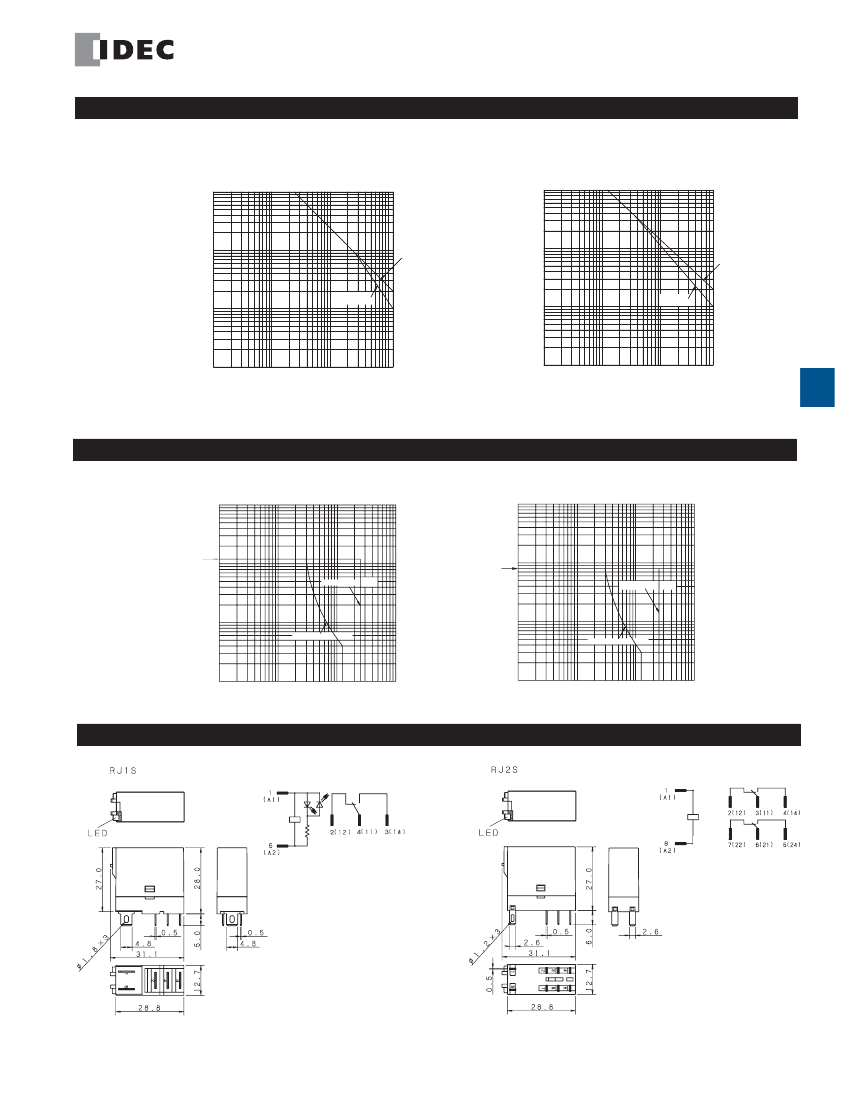

Contact Ratings
Contact
Resistive Load (Max)
Contact Load Ratings
NO Contact
NC Contact
NO Contact
NC Contact
RJ1S
12A @ 250VAC/30VDC
12A @ 250VAC; 6A @ 30VDC
7.5A @ 250VAC; 6A @ 30VDC
7.5A @ 250VAC; 3A @ 30VDC
100mA @ 5VDC
RJ2S
8A @ 250VAC/30VDC
8A @ 250VAC; 4A @ 30VDC
4A @ 250VAC; 4A @ 30VDC
4A @250VAC; 2A @ 30VDC
10mA @ 5VDC
AC: 2,000VA; DC: 240W
AC: 2,000VA; DC: 120W
AC: 1,000VA; DC: 120W
AC: 1,000VA; DC: 60W
Inductive Load (Max)
Min Applicable Load (reference value)
Resistive Load (Max)
NO Contact
NC Contact
NO Contact
NC Contact
AC: 3,000VA; DC: 360W
AC: 3,000VA; DC: 180W
AC: 1,875VA; DC: 180W
AC: 1,875VA; DC: 90W
Contacts Max Power
Allowed
Inductive Load (Max)
E-4
www.idec.com
USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
