SFG10SD600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SFG10SD600

SFG10SD600: Description10 Amp Super Fast Rectifier; CategoryDiscrete semiconductor diode; File Size271KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric Compare View All

SFG10SD600 Overview

10 Amp Super Fast Rectifier

SFG10SD600 Parametric

Parameter Name	Attribute value
Maker	SECOS
package instruction	R-PSFM-T3
Reach Compliance Code	compli
ECCN code	EAR99
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	100 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

SFG10SD200 ~ SFG10SD600

Elektronische Bauelemente

RoHS Compliant Product

A suffix of “-C” specifies halogen free

Voltage 200 to 600 V

10 Amp Super Fast Rectifier

FEATURES



Fast switching for high efficiency



Low forward voltage drop



High current capability



Low reverse leakage current



High surge current capability

MECHANICAL DATA



Case：Molded plastic TO-220Y



Epoxy：UL 94V-0 rate flame retardant



Terminals：Solderable per MIL-STD-202

method 208 guaranteed



Mounting position：Any



Polarity：Color band denotes cathode



Weight：2.07 grams

TO-220Y

1 2 3

Dimensions in millimeters

REF.







Millimeter

Min.

Max.

10.5

1.58

1.82

1.33

1.45

15.3

16.2

3.50

3.91

2.90

3.25

1.22

1.43

0.68

0.94

REF.

Millimeter

Min.

Max.

12.90

13.35

4.44

4.70

1.14

1.40

5.84

6.86

2.25

2.60

0.35

0.64

2.41

2.67

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load,

derate current by 20%.

Parameters

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified

Current T

=100°C

Peak Forward Surge Current,

8.3ms single Half sine-wave superimposed

on rated load (JEDEC method)

Max. Instantaneous Forward Voltage

@ 5.0A

Max. DC Reverse Current

At Rated DC Blocking

Voltage

@ T

=125°C

@ T

=25°C

Symbol

SFG10SD200

RRM

RMS

F(AV)

200

140

200

Part Number

SFG10SD300

300

210

300

SFG10SD400

400

280

400

SFG10SD600

600

420

600

Unit

FSM

100

0.95

1.3

1.7

250

JC

2.2

-55 ~ +150

A

Max. Reverse Recovery Time (Note 1)

Typical Junction Capacitance (Note 2)

Typical Thermal Resistance (Note 3)

Operating Junction and Storage Temperature

°C

/ W

°C

, T

STG

Range

NOTES：

(1)Reverse recovery test conditions I

= 0.5A, I

= 1.0A, I

= 0.25A.

(2)Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts DC.

(3)Thermal Resistance junction to Case.

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

05-Jan-2011 Rev. A

Page 1 of 2

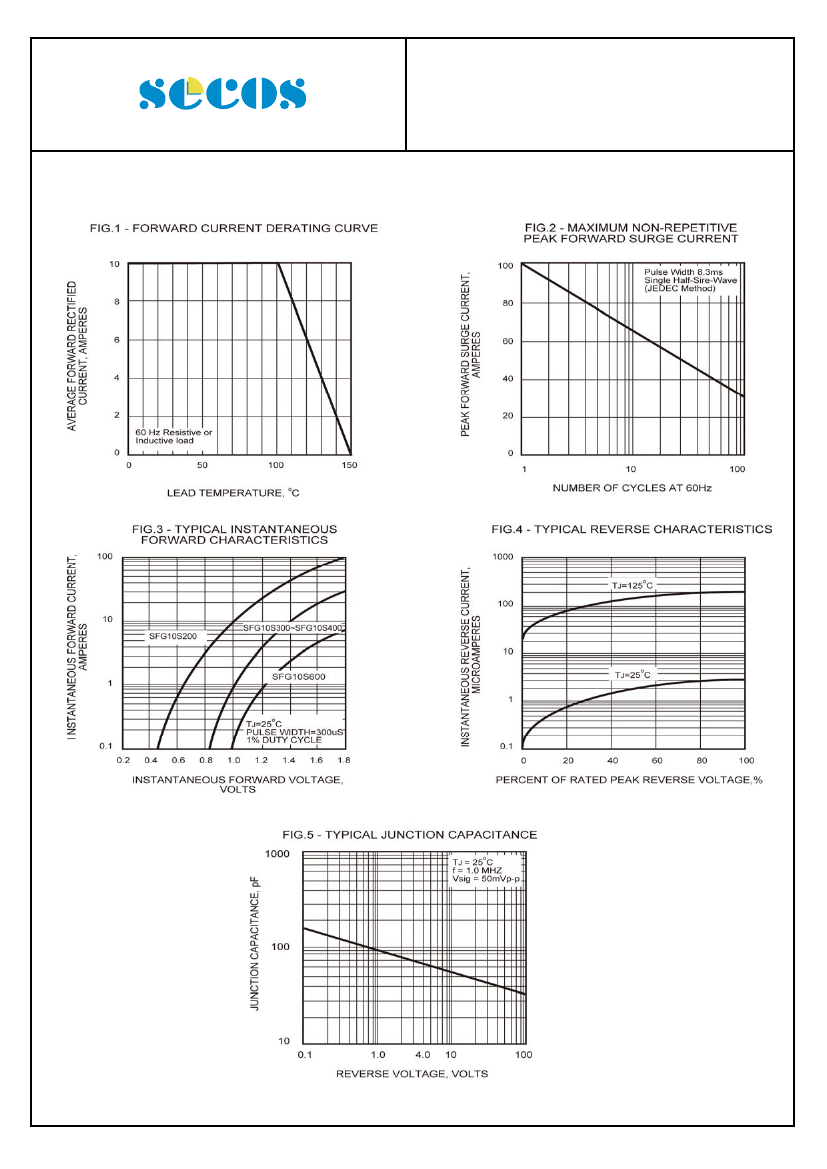

SFG10SD600 Related Products

	SFG10SD600	SFG10SD200	SFG10SD300	SFG10SD400
Description	10 Amp Super Fast Rectifier	10 Amp Super Fast Rectifier	10 Amp Super Fast Rectifier	10 Amp Super Fast Rectifier
Maker	SECOS	SECOS	SECOS	SECOS
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	0.95 V	0.95 V	1.3 V
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	600 V	200 V	300 V	400 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
