SM8150C Overview

Voltage 150V 8 Amp Schottky Barrier Rectifiers

SM8150C
Elektronische Bauelemente
Voltage 150V
8.0 Amp Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Low forward voltage drop
High current capability
High reliability
High surge current capability
Epitaxial construction
SMC
B
A
C
MECHANICAL DATA
Case: Molded plastic
Epoxy: UL94V-1 rate flame retardant
Lead: Lead solderable per MIL-STD-202
method 208 guaranteed
Polarity: As Marked
Mounting position: Any
Weight: 1.10 grams (Approximately)
D
G
E
F
H
REF.
A
B
C
D
PACKAGE INFORMATION
Package
SMC
MPQ
3K
Leader Size
13 inch
Millimeter
Min.
Max.
2.750
3.250
6.520
7.110
5.590
6.220
2.000
2.620
REF.
E
F
G
H
Millimeter
Min.
Max.
-
0.203
7.750
8.130
0.760
1.520
0.150
0.305
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25° ambient temperature unless otherwise s pecified. Single phase half wave, 60Hz, resistive or inductive load.
C
For capacitive load, de-rate current by 20%.)
Parameter
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current

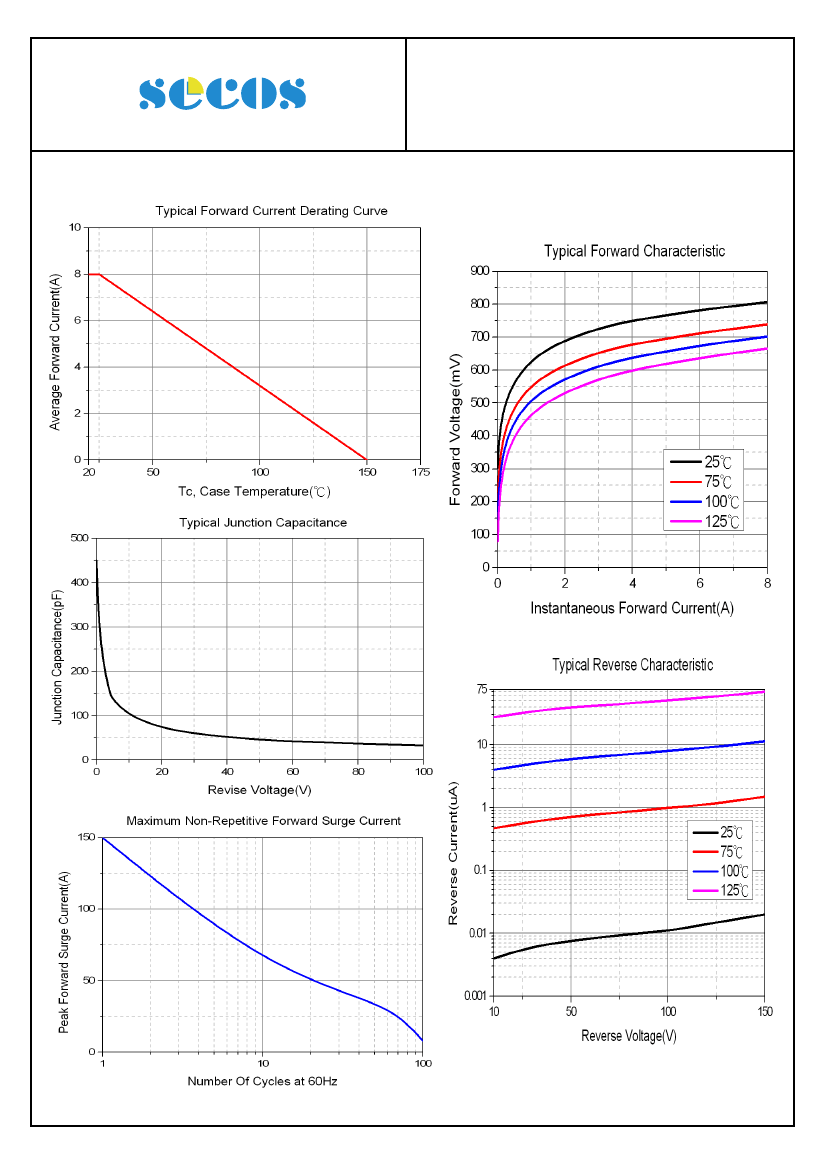

See Fig. 1
Peak Forward Surge Current, 8.3 ms single half sine-wave
Superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward
Voltage
Maximum DC Reverse Current at
4
Rated DC Blocking Voltage
Typical Junction Capacitance
3
2
1
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
V
F
Rating
150
150
150
8
150
0.87
0.73
0.1
8
200
10000
25
20
-50 ~ 150, -65 ~ 175
Unit
V
V
V
A
A
V
T
A
=25°
C
T
A
=125°
C
T
A
=25°
C
T
A
=125°
C
I
R
C
J
dv/dt
R
θJC
R
θJL
T
J
,T
STG
mA
pF
V /
µS
° /W
C
° /W
C
°C
Voltage Rate of Chance (Rated VR)
Typical Thermal Resistance
Typical Thermal Resistance
Operating & Storage Temperature
Note:
1. Measured at 1MHz and applied reverse voltage of 5.0 V D.C.
2. Thermal Resistance Junction to Lead.
3. Thermal Resistance Junction to Case.
4. Pulse test: 300µs pulse width, 1% duty cycle.
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
23-Jan-2013 Rev.A
Page 1 of 2
