862-RF422.5M-D

Description
CDMA 450 L-Band, Balanced RF/Rx SAW Filter
CategoryAnalog mixed-signal IC    filter
File Size131KB,5 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet Parametric View All

862-RF422.5M-D Overview

CDMA 450 L-Band, Balanced RF/Rx SAW Filter

862-RF422.5M-D Parametric

Parameter NameAttribute value
MakerOscilent
Reach Compliance Codecompli
Center frequency or cutoff frequency (fo/fc)422.5 MHz
filter typeSAW FILTER
high1.3 mm
input resistance50 OHM
Maximum insertion loss4 dB
length3 mm
Manufacturer's serial number862-RF422.5M-D
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
Output impedance100 OHM Ω
physical sizeL3.0XB3.0XH1.3 (mm)/L0.118XB0.118XH0.051 (inch)
Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
862-RF422.5M-D
CDMA 450 L-Band, Balanced RF/Rx SAW Filter
Specification Contents
o
o
o
o
o
o
o

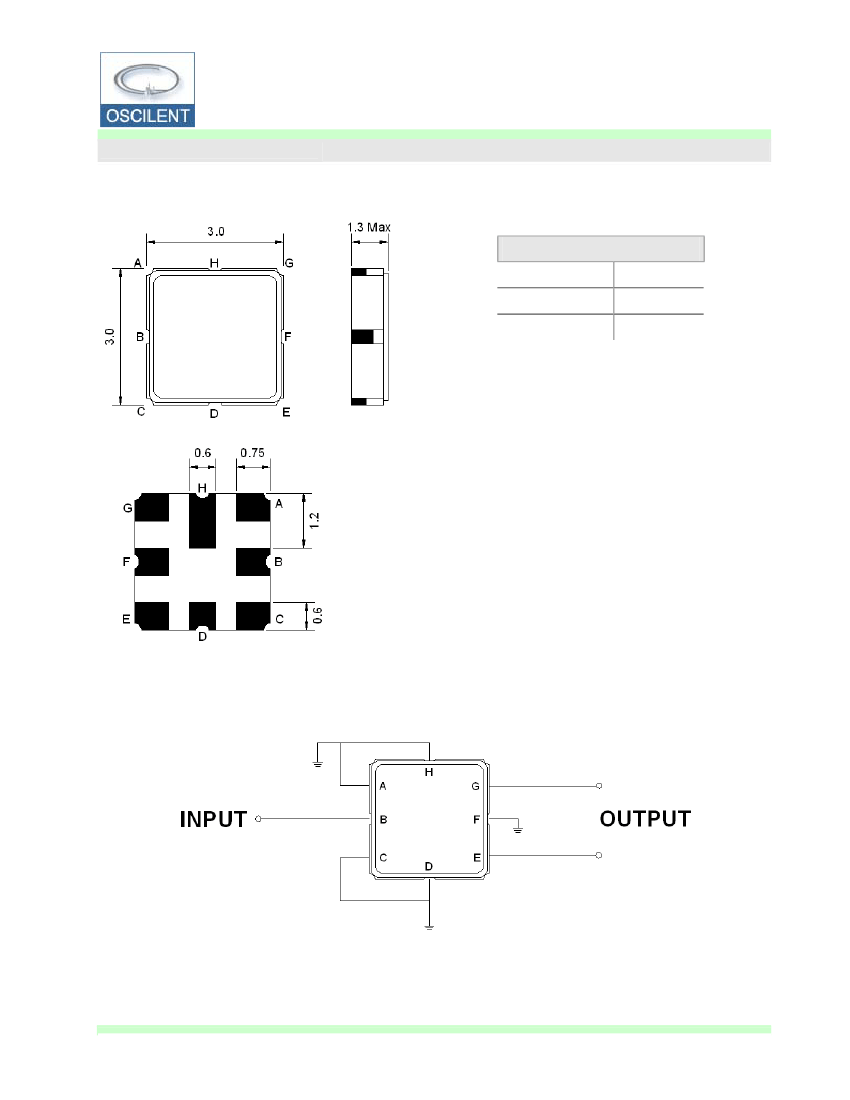

Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification

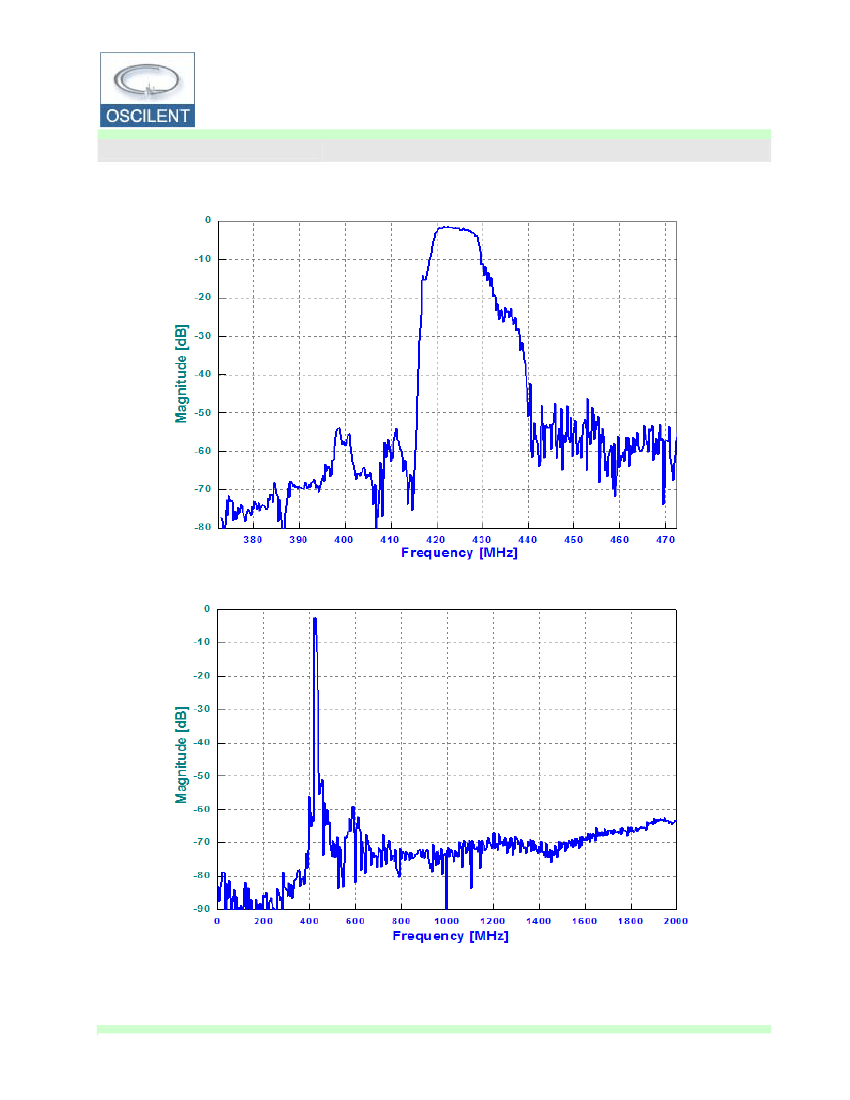

Frequency Performance

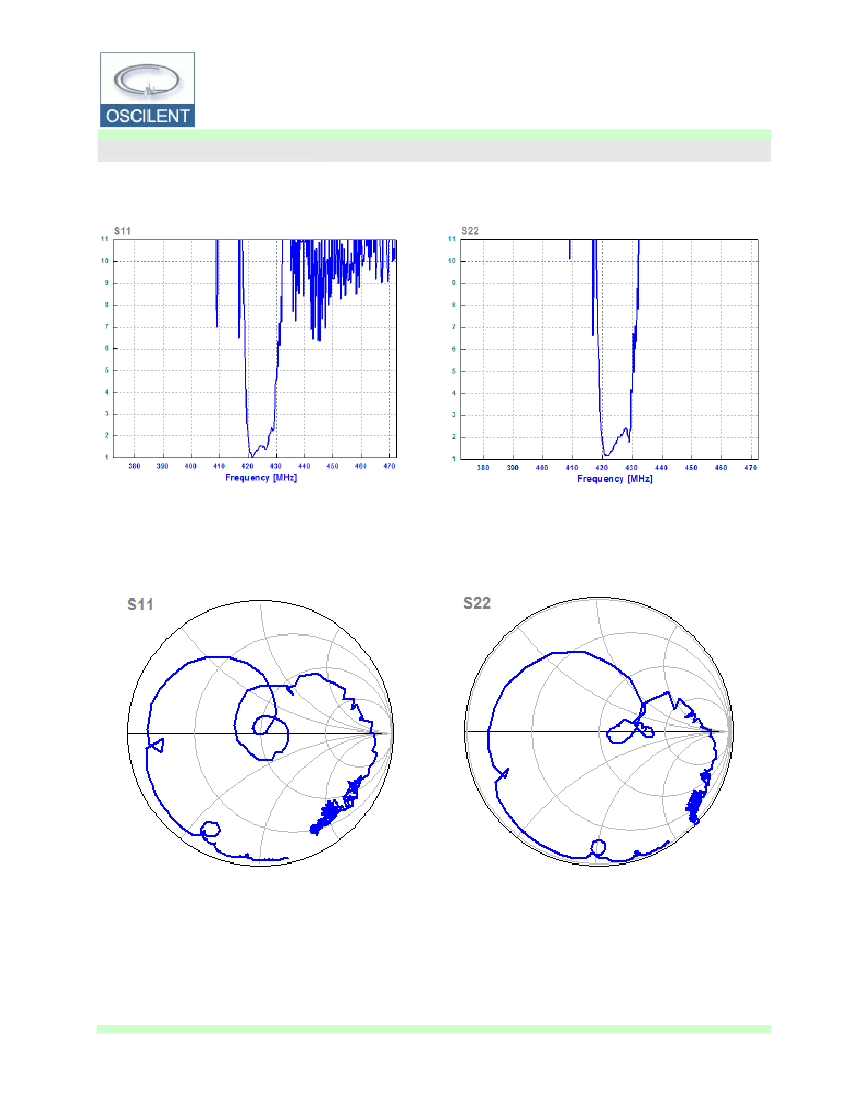

VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
