Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
862-RF422.75M-C
CDMA 450 L-Band, Balanced RF/Rx SAW Filter
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Performance
VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
862-RF422.75M-C
January 2010 Rev A
CDMA 450 L-Band, Balanced RF/Rx SAW Filter

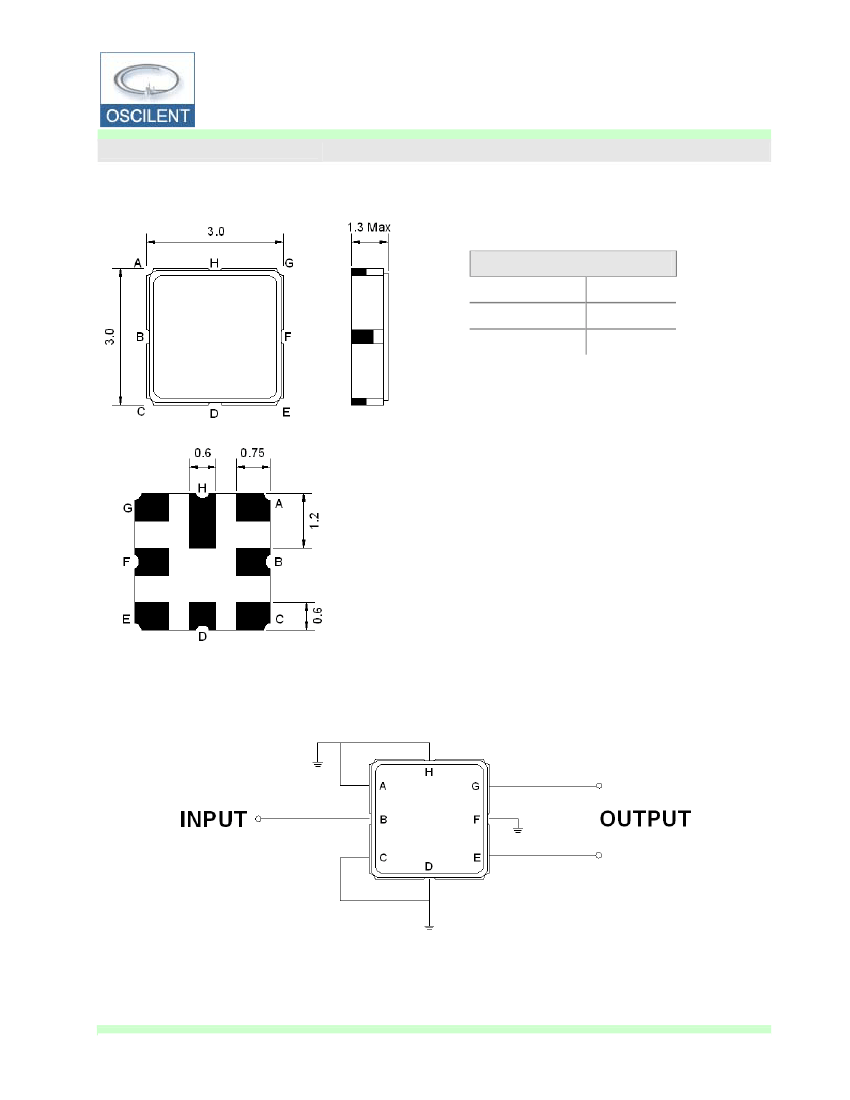

Mechanical Dimensions
(mm)
Pin Description
A, C, D, F, H
Ground
B
In
E, G
Out
Test Circuit
Source Impedance: 50
Ω
Load Impedance: 100
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
862-RF422.75M-C
January 2010 Rev A
CDMA 450 L-Band, Balanced RF/Rx SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (balanced ended)
(1)
Notes: No Matching Network
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-30
-40
-
-
Typical
-
-
-
-
50
Maximum
+80
+85
0
27
-
-
-
100
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss in 420.5 ~ 425.0 MHz
Stop Band Attenuation:
0.3 ~ 410.5 MHz
410.5 ~ 415.0 MHz
445.0 ~ 600.0 MHz
600.0 ~ 1200.0 MHz
1200.0 ~ 2000.0 MHz
VSWR in 420.5 ~ 425.0 MHz
dB
dB
dB
dB
dB
-
40
35
40
40
35
-
50
48
48
55
50
1.9
-
-
-
-
-
2.5
Unit
MHz
dB
Minimum
-
-
Typical
422.75
2.6
Maximum
-
4.0
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
862-RF422.75M-C
January 2010 Rev A
CDMA 450 L-Band, Balanced RF/Rx SAW Filter

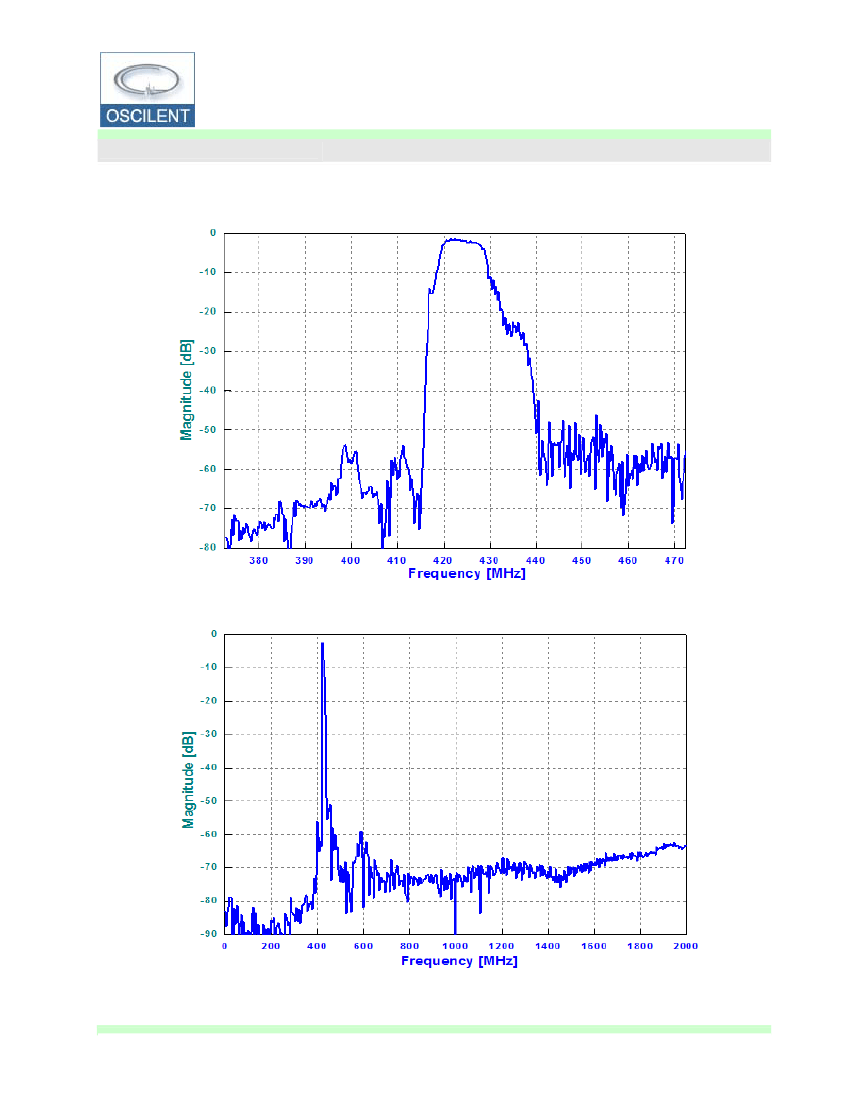

Frequency Performance
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
862-RF422.75M-C
January 2010 Rev A
CDMA 450 L-Band, Balanced RF/Rx SAW Filter

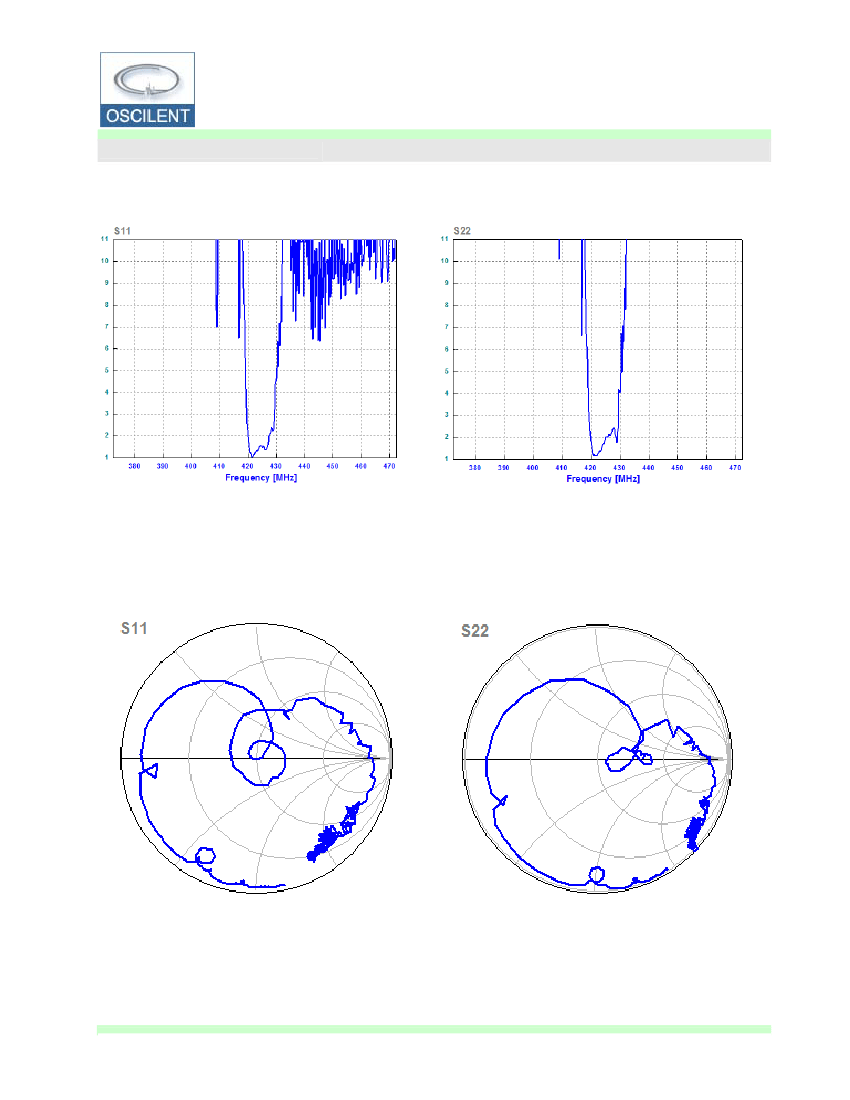

VSWR
Smith Chart
Product Specification
P. 4
www.oscilent.com
