Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
862-RF463.75M-D
CDMA 450 A+C-Band, RF/Rx SAW Filter
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Performance
VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
862-RF463.75M-D
January 2010 Rev A
CDMA 450 A+C-Band, RF/Rx SAW Filter

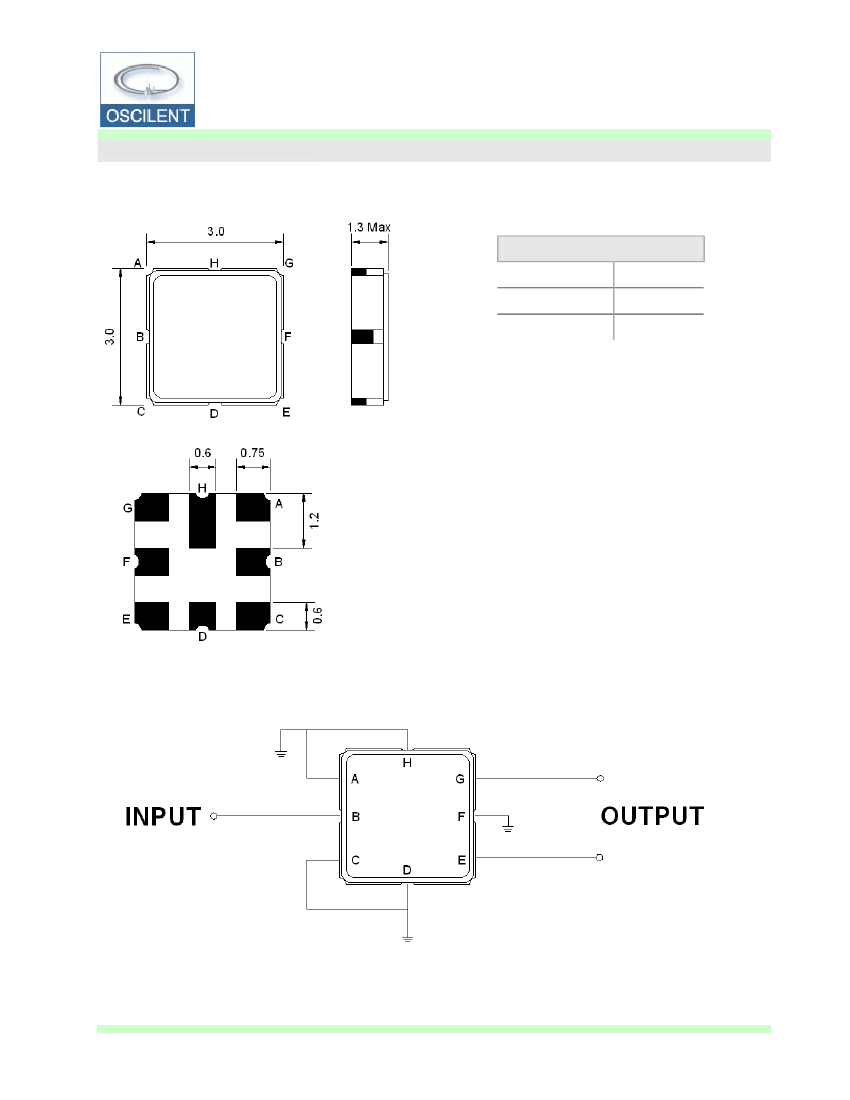

Mechanical Dimensions
(mm)
Pin Description
A, C, D, F, H
Ground
B
In
E, G
Out
Test Circuit
Source Impedance : 50
Ω
Load Impedance : 100
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
862-RF463.75M-D
January 2010 Rev A
CDMA 450 A+C-Band, RF/Rx SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (balanced ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-30
-40
-
-
-
-
Typical
-
-
-
-
50
100
Maximum
+85
+85
0
25
-
-
Notes: No Matching Network (Ref. Testing Environment Circuit as shown above)
.
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss in 460.0 ~467.5 MHz
Stop Band Attenuation:
D.C ~ 450.0 MHz
450.0 ~ 453.0 MHz
453.0 ~ 457.5 MHz
485.5 ~ 510.0 MHz
510.0 ~ 1000.0 MHz
1000.0 ~ 2000.0 MHz
VSWR in 460.0 ~ 467.5 MHz
dB
dB
dB
dB
dB
dB
-
40
35
2
35
35
35
-
45
50
7
42
50
45
2.4
-
-
-
-
-
-
2.8
Unit
MHz
dB
Minimum
-
-
Typical
463.75
2.4
Maximum
-
3.5
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
862-RF463.75M-D
January 2010 Rev A
CDMA 450 A+C-Band, RF/Rx SAW Filter

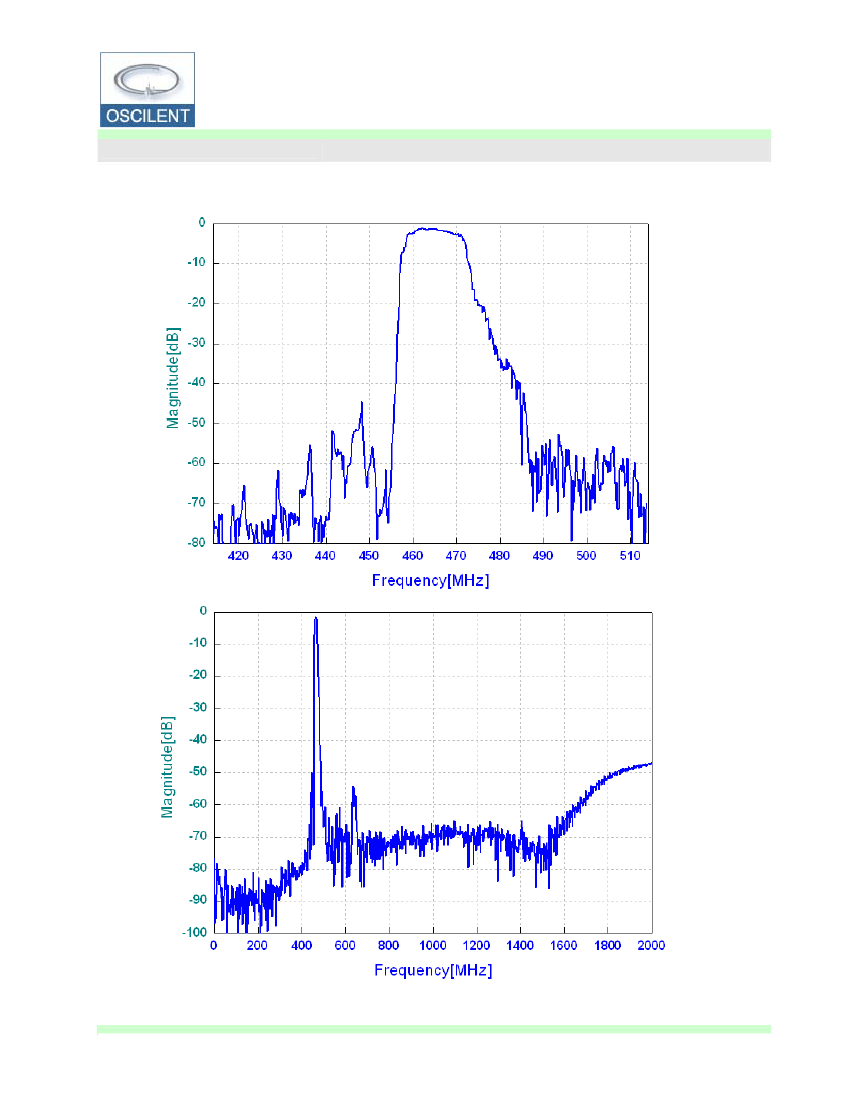

Frequency Performance
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
862-RF463.75M-D
January 2010 Rev A
CDMA 450 A+C-Band, RF/Rx SAW Filter

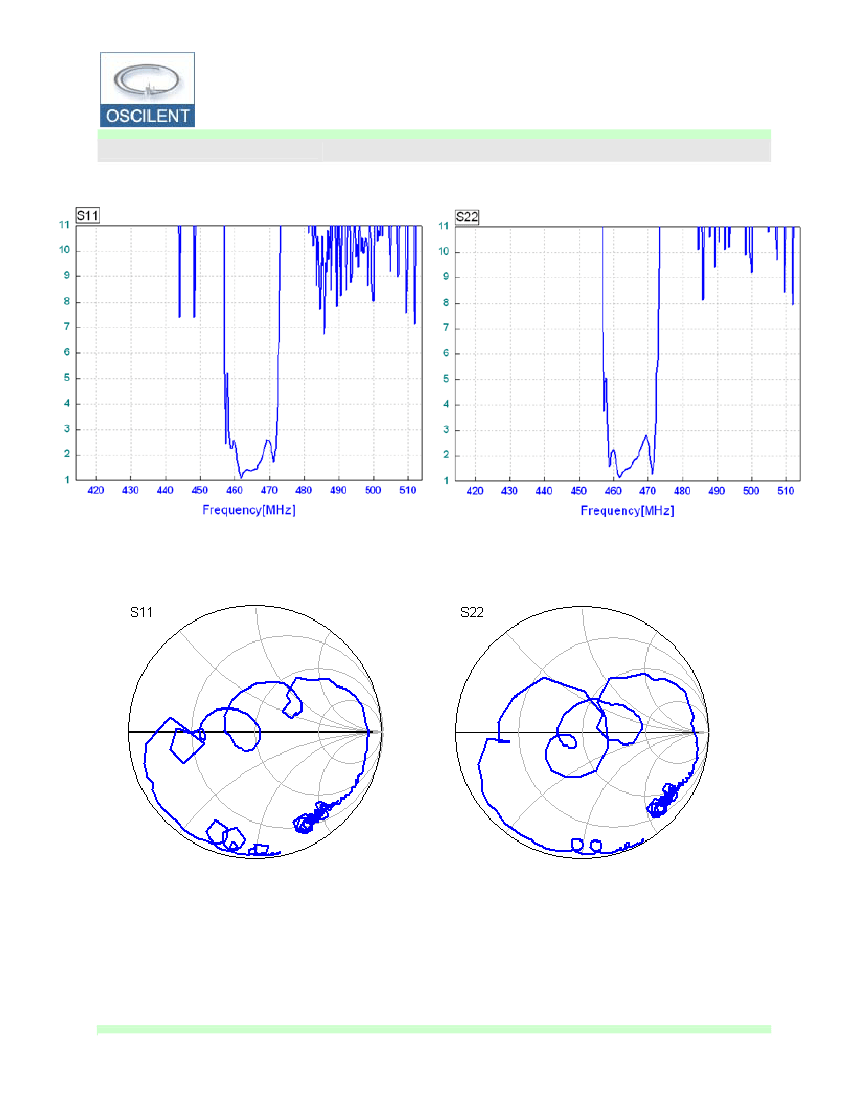

VSWR
Smith Chart
Product Specification
P. 4
www.oscilent.com
