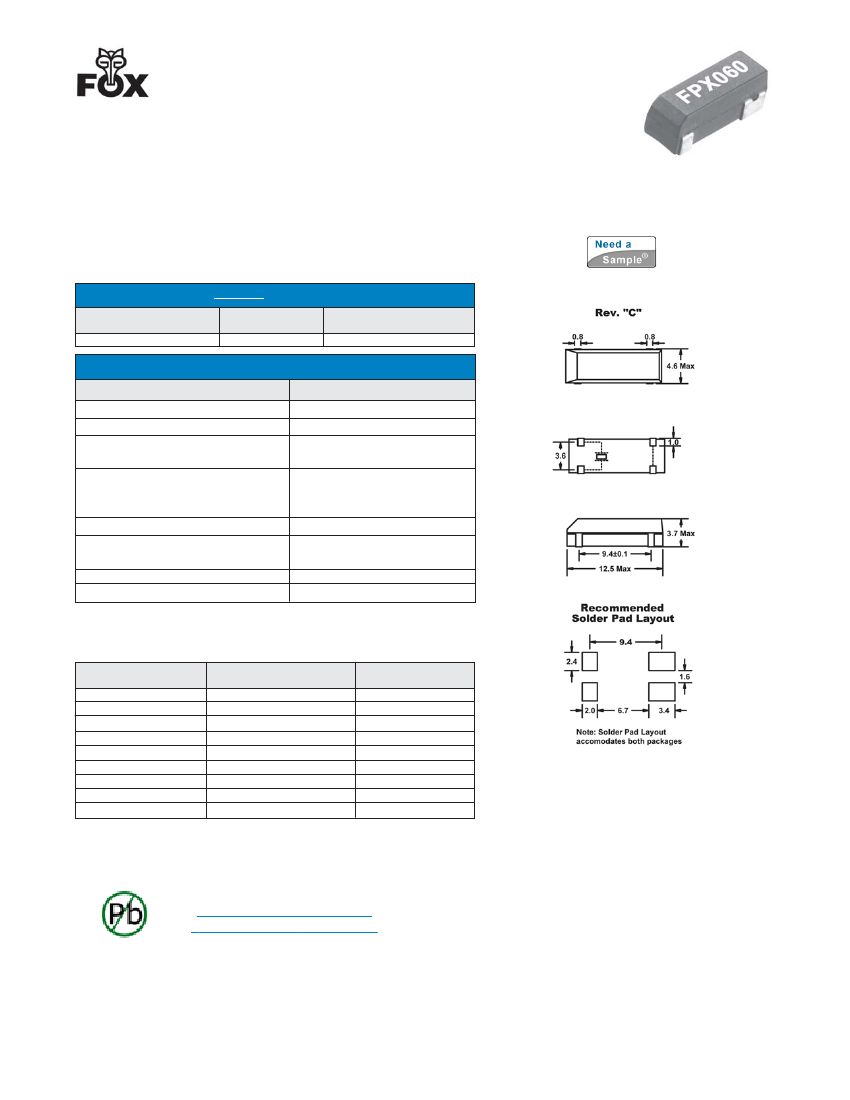

PLASTIC ENCASED SMD CRYSTAL
MODEL: FPXLF
FEATURES
•
•
•
•
Low Cost
Stocking Standard
Plastic Encapsulated
Tape and Reel (1,000 pcs. STD)
OPTIONS
• Tolerances to < 20 PPM
• Stabilities to < 20 PPM
• Temperatures to -40ºC ~ +85ºC
• Alternate Metal Can Package
(HC49SPX)
• PART NUMBER
Learn More - Internet Required
Part Number
256LF-Frequency-xxxxx
Model Number
FPXLF
Frequency Range (MHz)
3.579545 ~ 90.000
• STANDARD SPECIFICATIONS
1
PARAMETERS
Frequency Range
Frequency Tolerance @ 25ºC
Frequency Stability, ref @ 25ºC
Over Operating Temp Range
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (Co)
Load Capacitance (C
L
)
Drive Level
Aging per year
1
MAX
(unless otherwise noted)
3.579545 ~ 90.000MHz
±50 PPM
±50 PPM
-10ºC ~ +70ºC
-55ºC ~ +125ºC
7.0 pF
10 pF ~ Series
(Customer Specified)
0.1 mW
±5 PPM
Other tolerances, stabilities & operating temperature ranges available. Consult Fox
Customer Service for specific requirements and availability of Rev "A".
All specifications subject to change without notice.
Rev. 10/18/05
Frequency Range
(MHz)
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3rd OT
Max ESR
Ω
200
150
120
100
80
60
40
30
100
3.579545 ~ 4.000
4.000+ ~ 5.000
5.000+ ~ 6.000
6.000+ ~ 7.000
7.000+ ~ 9.000
9.000+ ~ 13.000
13.000+ ~ 20.000
20.000+ ~ 30.000
30.000+ ~ 90.000
All dimensions are in millimeters.
Learn more about:
Part Marking Identification
Tape and Reel Specification
Internet required
FOXElectronics
22
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1(239) 693.0099 FAX +1 (239) 693.1554
http://www.foxonline.com
