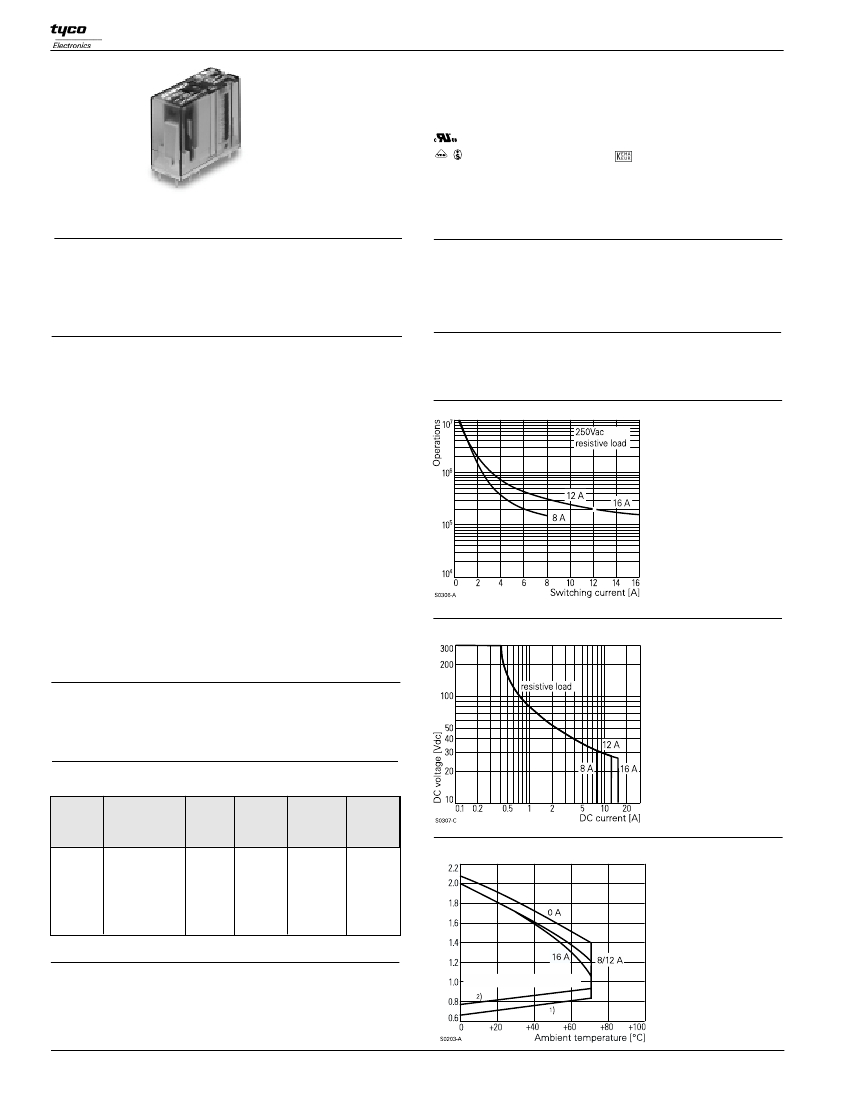

Catalog 1308242
Issued 3-03
SCHRACK
RP II/1
series
8-16 Amp, 1 Pole
PC Board Relay
File E214025
12A Version Only
Users should thoroughly review the technical data before selecting a product
part number. It is recommended that users also seek out the pertinent
approvals files of the agencies/laboratories and review them to ensure the
product meets the requirements for a given application.
Features
•
•
•
•
•
1 Form A (SPST-NO) or 1 Form C (SPDT).
8 and 12 amp models available with 3.5 or 5mm pin spacing.
16 amp models available with 5mm pin spacing.
4kV/8mm contact-to-coil.
Sockets available.
Environmental Data
Temperature Range:
Operating:
-40°C to +70°C.
Vibration (30-300 Hz.): N/O:
>10g;
N/C:
2g.
Shock (destructive):
100g.
Contact Data
Arrangements:
1 Form A (SPST-NO) and 1 Form C (SPDT), single contact.
Material:
Silver-cadmium oxide or silver-nickel 0.15.
Expected Mechanical Life:
30 million operations.
Ratings:
Current:
8A
12A
16A
Voltage:
250VAC
250VAC
250VAC
Power (breaking):
2,000VA
3,000VA
4,000VA
Voltage (breaking):
400VAC
400VAC
400VAC
Make Current:
16A
20A
25A
Material:
AgNi 0.15
AgCdO
AgCdO
Load/Life
Type
Load
Life (Ops.)
RP410 12A, 250VAC, cosϕ = 1, 1200/h, 40% duty cycle 110,000
RP410 9.1A, 220VAC, cosϕ = 1, 360/h, 15% duty cycle
200,000
RP418 3.4A ON, 0.42A OFF 220VAC, cosϕ = 0.6
,
> 1.1 million
RP411 8A, 250VAC, cosϕ = 1, 50% duty cycle
100,000
RP412 8A, 250VAC, cosϕ = 1, 50% duty cycle
100,000
RP330 18.2A, 250VAC, cosϕ = 1, 600/h, 15% duty cycle 110,000
RP330 96A ON, 16A OFF 250VAC, cosϕ = 0.6, 450/h
,
>30,000
Mechanical Data
Termination:
Printed circuit terminals.
Enclosure:
Flux-tight (RT II) plastic case or sealed (RT III) cover.
Weight:
.63 oz. (18 g) approximately.
Contact Life
Max. DC Load Breaking Capacity
Initial Dielectric Strength
Between Open Contacts:
1,000Vrms
Between Coil and Contacts:
4,000Vrms.
Creepage/Clearance:
8/8mm.
Coil Data DC @ 20°C
Nominal Coil Power:
500mW.
Nominal
Voltage
VDC
5
6
12
24
48
60
110
DC
Resistance
in
Ohms
54
68
270
1,100
4,400
6,540
23,100
±
±
±
±
±
±
±
10%
10%
10%
15%
15%
15%
15%
Must
Nominal
Operate Drop-out Maximum
Coil
Voltage Voltage
Voltage
Current
VDC
VDC
VDC
(mA)
3.5
4.2
8.4
16.8
33.6
42.0
77
.0
0.5
0.6
1.2
2.4
4.8
6.0
11.0
9.0
10.8
21.6
43.2
86.4
108.0
198.0
92.6
88.2
44.4
21.8
10.9
9.2
4.8
Coil Operating Range
Applied coil voltage (U/Un)
Operate Data
Must Operate Voltage:
See Coil Data table.
Operate Time (typical):
8 ms.
Release Time (typical):
2 ms.
Bounce Time (typical): N/O:
2 ms;
N/C:
4 ms.
Switching Rate:
6.000 ops./hr. max. at rated load.
Nominal coil voltage (Un)
484
reference purposes only.
Dimensions are shown for
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03
SCHRACK
Ordering Information
Typical Part Number
B
RP
4
1
0
012
1. Basic Series:
RP = Printed circuit board relay.
2. Version:
3 = 16A, flux tight.
4 = 8/12A, flux-tight.
7 = 16A, sealed.
8 = 8/12A, sealed.
3. Contact Arrangement:
1 = 1 Form C (SPDT).
3 = 1 Form A (SPST-NO).
4. Contact Material and Pin Spacing:
0 = Silver-cadmium oxide, 16A or 12A, 5 mm pin spacing.
2 = Silver-nickel 0.15, 8A, 3.5 mm pin spacing.
1 = Silver-nickel 0.15, 8A, 5 mm pin spacing.
8 = Silver-cadmium oxide, 12A, 3.5 mm pin spacing.
5. Coil Voltage:
005 = 5VDC
012 = 12VDC
048 = 48VDC
110 = 110VDC
006 = 6VDC
024 = 24VDC
060 = 60VDC
Our authorized distributors are more likely to maintain the following items in stock for immediate delivery.
None at present.
Outline Dimensions
1.14
(29.0)
.496
(12.6)
Wiring Diagrams (Bottom Views)
1.00
(25.5)
1 Form C, 8/12A, 3.5 mm
.130
(3.3)
1 Form A, 8/12A, 3.5 mm
PC Board Layouts (Bottom Views)
.051
+ .004
DIA.
(1.3
+ .1
)
.098 - .1 GRID
(2.5 - 2.54)
8/12A, 3.5 mm Pin Spacing
.094
(2.4)
.138
(3.5)
.138
(3.5)
1 Form C, 8/12A, 5 mm
.051
+ .004
DIA.
(1.3
+ .1
)
.098 - .1 GRID
(2.5 - 2.54)
8/12A, 5 mm Pin Spacing
.094
(2.4)
.138
(3.5)
.138
(3.5)
1 Form A, 8/12A, 5 mm
.051
+ .004
DIA.
(1.3
+ .1
)
.098 - .1 GRID
(2.5 - 2.54)
16A, 5 mm Pin Spacing
.094
(2.4)
.197
(5.0)
.197
(5.0)
1 Form C, 16A, 5 mm
1 Form A, 16A, 5 mm
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
485
Refer to inside back cover.
