RP732006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> RP732006

RP732006: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.088A (COIL), 6VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size511KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

RP732006 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.088A (COIL), 6VDC (COIL), 500mW (COIL), THROUGH HOLE-STRAIGHT MOUNT

RP732006 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
body width	12.6 mm
body height	25.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.088 A
Coil operating voltage (DC)	4.2 V
Coil power	500 mW
Coil release voltage (DC)	0.6 V
Coil resistance	68 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.6mm x 25.5mm
Guideline	SEV; UL; VDE
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	4 ms
seal	RT3
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

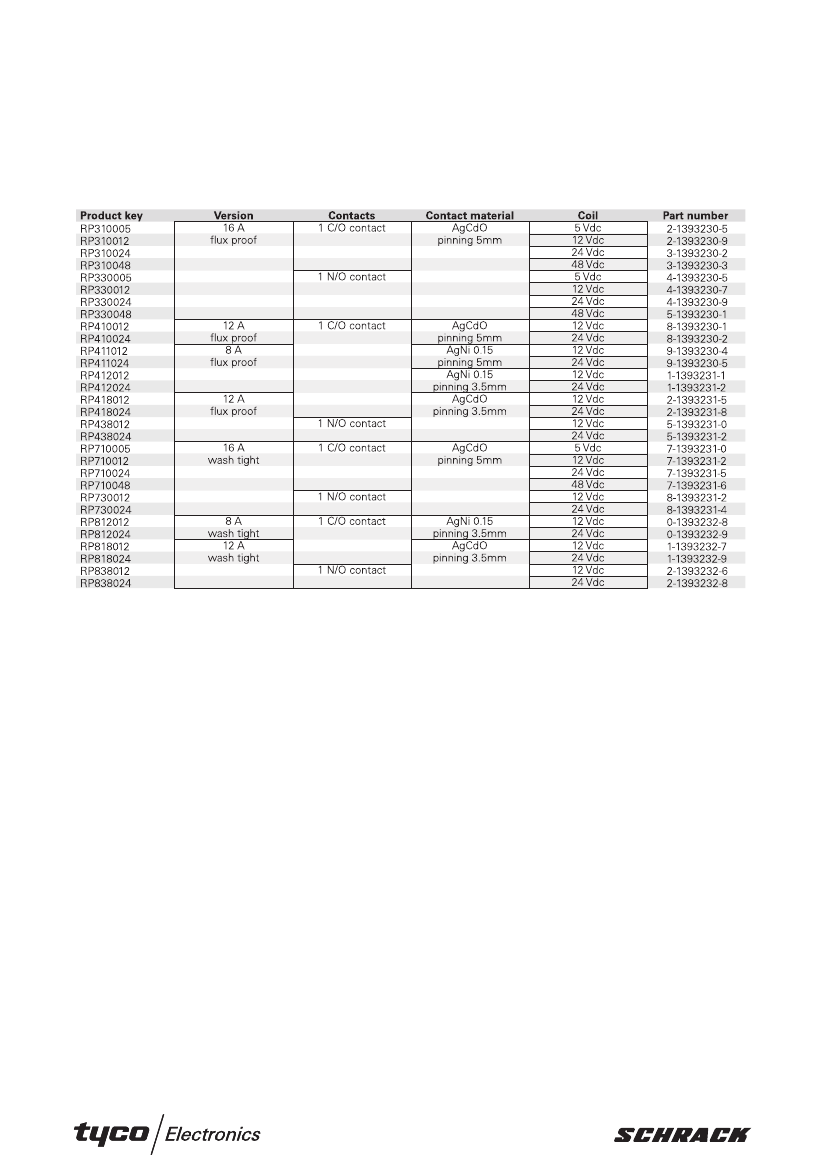

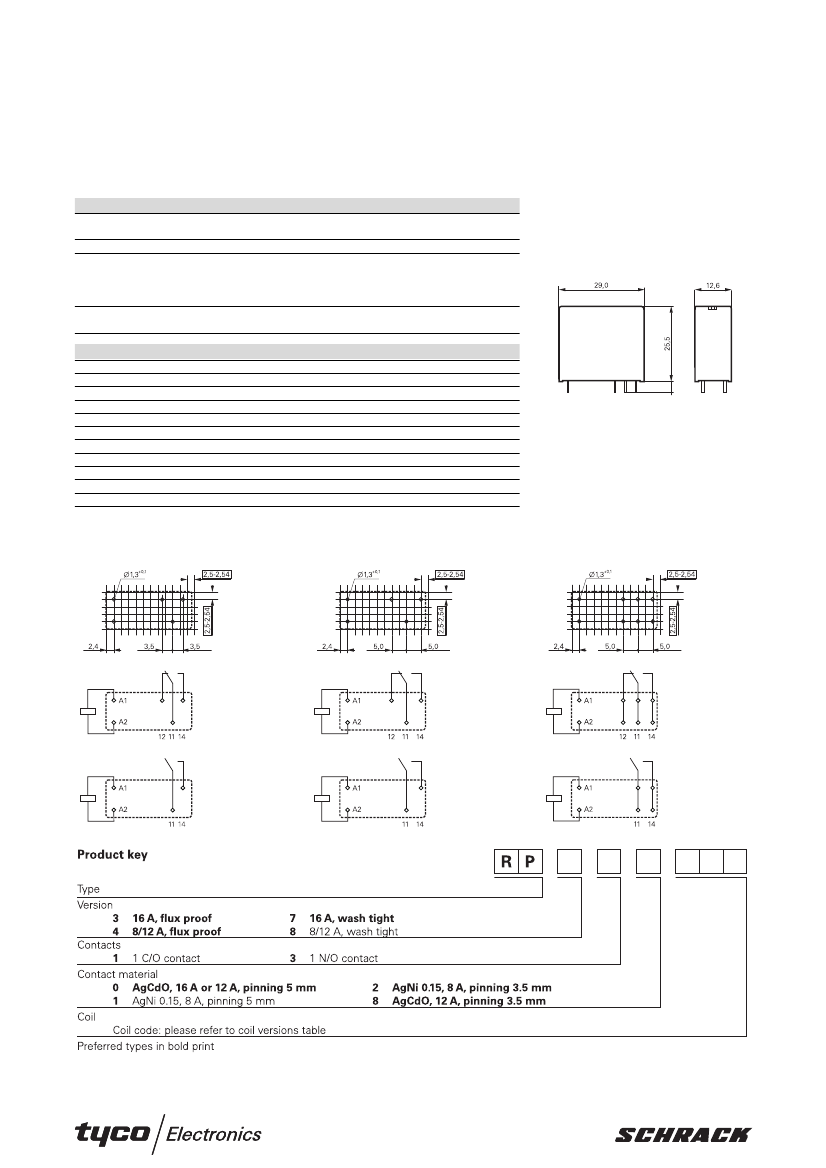

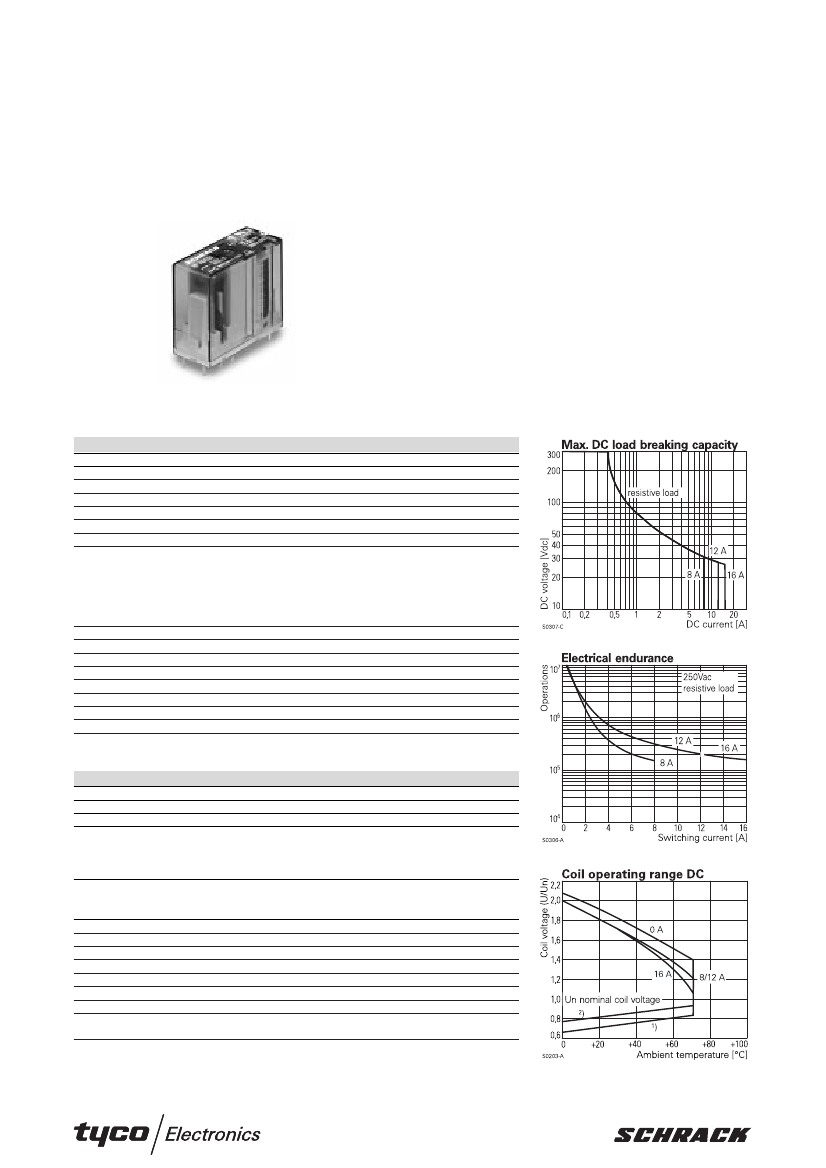

Power PCB Relay RP II/1

1 pole 8 / 12 / 16 A

Features

•

1 C/O or 1 N/O contact

4 kV / 8 mm coil-contact

Pinning 3.5 or 5 mm (8 / 12 A) and 5 mm (16 A)

PCB-sockets

Applications

Power supplies, domestic appliances, heating control, installation

F0146-B

Technical data of approved types on request

Contact data

Configuration

Type of contact

Rated current

Rated voltage / max.breaking voltage AC

Maximum breaking capacity AC

Make current

Contact material

1 C/O contact or 1 N/O contact

single contact

12 A

16 A

250 Vac / 440 Vac

2000 VA

3000 VA

4000 VA

16 A

20 A

25 A

AgNi 0.15

AgCdO

Contact ratings

Type

Load

RP410

12 A, 250 Vac, cosϕ=1, 1200/h, 40% duty cycle

RP410

9.1 A, 220 Vac, cosϕ=1, 360/h, 15% duty cycle

RP418

3.4 A ON, 0.42 A OFF, 220 Vac, cosϕ=0.6

RP411

8 A, 250 Vac, cosϕ=1, 50% duty cycle

RP412

8 A, 250 Vac, cosϕ=1, 50% duty cycle

RP330

18.2 A, 250 Vac, cosϕ=1, 600/h, 15% duty cycle

RP330

96 A ON, 16 A OFF, 250 Vac, cosϕ=0.6, 450/h

Operations

1.1x10

2x10

>1.1x10

1.1x10

> 3x10

Standard

AC 1

VDE 0630

Nominal voltage

Nominal coil power

Operate category

5...110 Vdc

500 mW

2/b

Coil versions, DC-coil

Coil

Nominal

Pull-in

Release

Maximum

Coil

code

voltage

resistance

Vdc

005

3.5

0.5

9.0

54+10%

006

4.2

0.6

10.8

68+10%

012

8.4

1.2

21.6

270+10%

024

16.8

2.4

43.2

1100+15%

048

33.6

4.8

86.4

4400+15%

060

42.0

6.0

108.0

6540+15%

110

77.0

11.0

198.0

23100+15%

All figures are given for coil without preenergization, at ambient temperature +20°C

Other coil voltages on request

Coil

current

92.6

88.2

44.4

21.8

10.9

9.2

4.8

Rights to change data / design reserved

Coil data

Edition: 07/2003
