DV74ALS11AD

Description
AND Gate, ALS Series, 3-Func, 3-Input, TTL, PDSO14, PLASTIC, SOP-14
Categorylogic    logic
File Size244KB,2 Pages
ManufacturerAVG [AVG Semiconductors(HITEK)]
Download Datasheet Parametric Compare View All

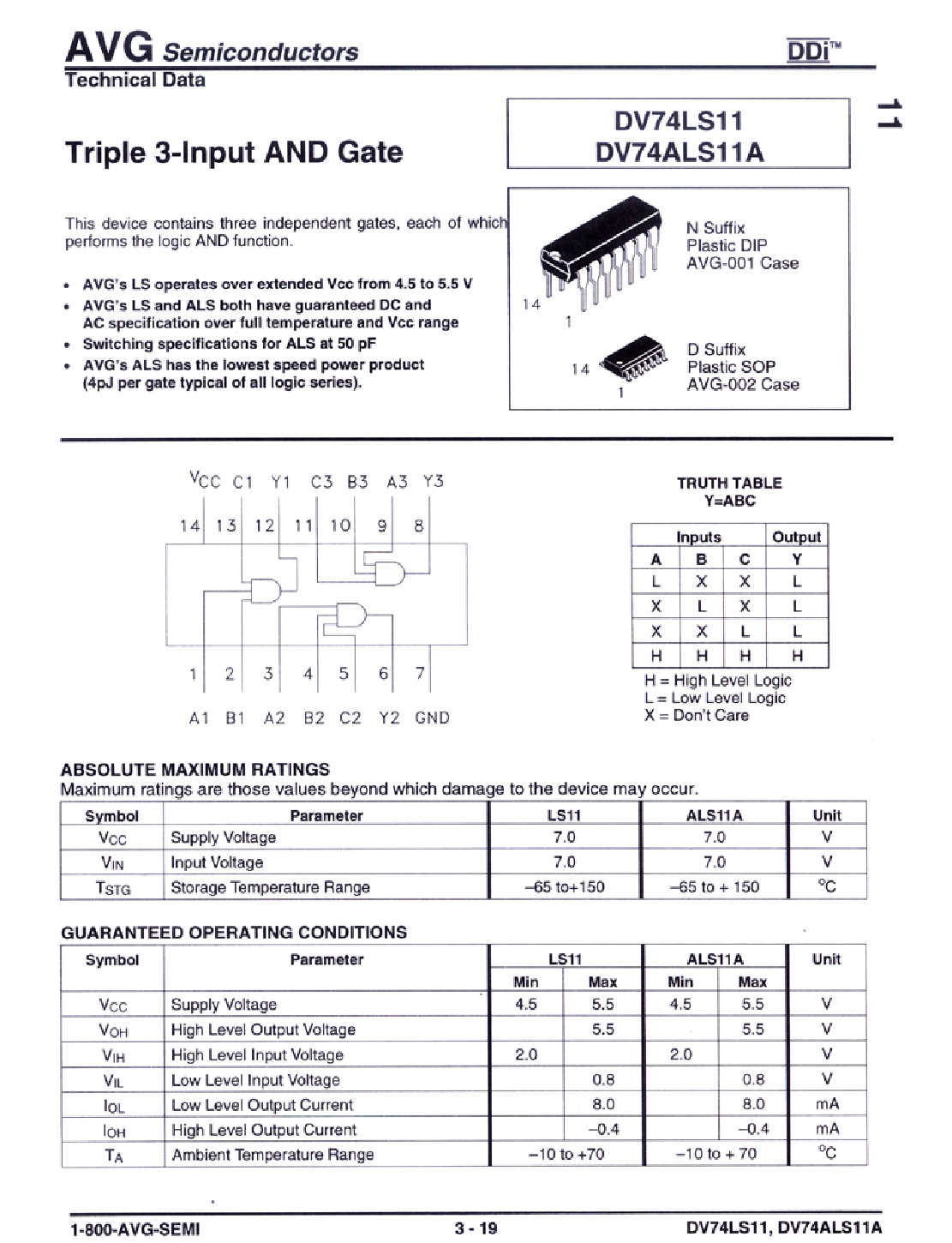

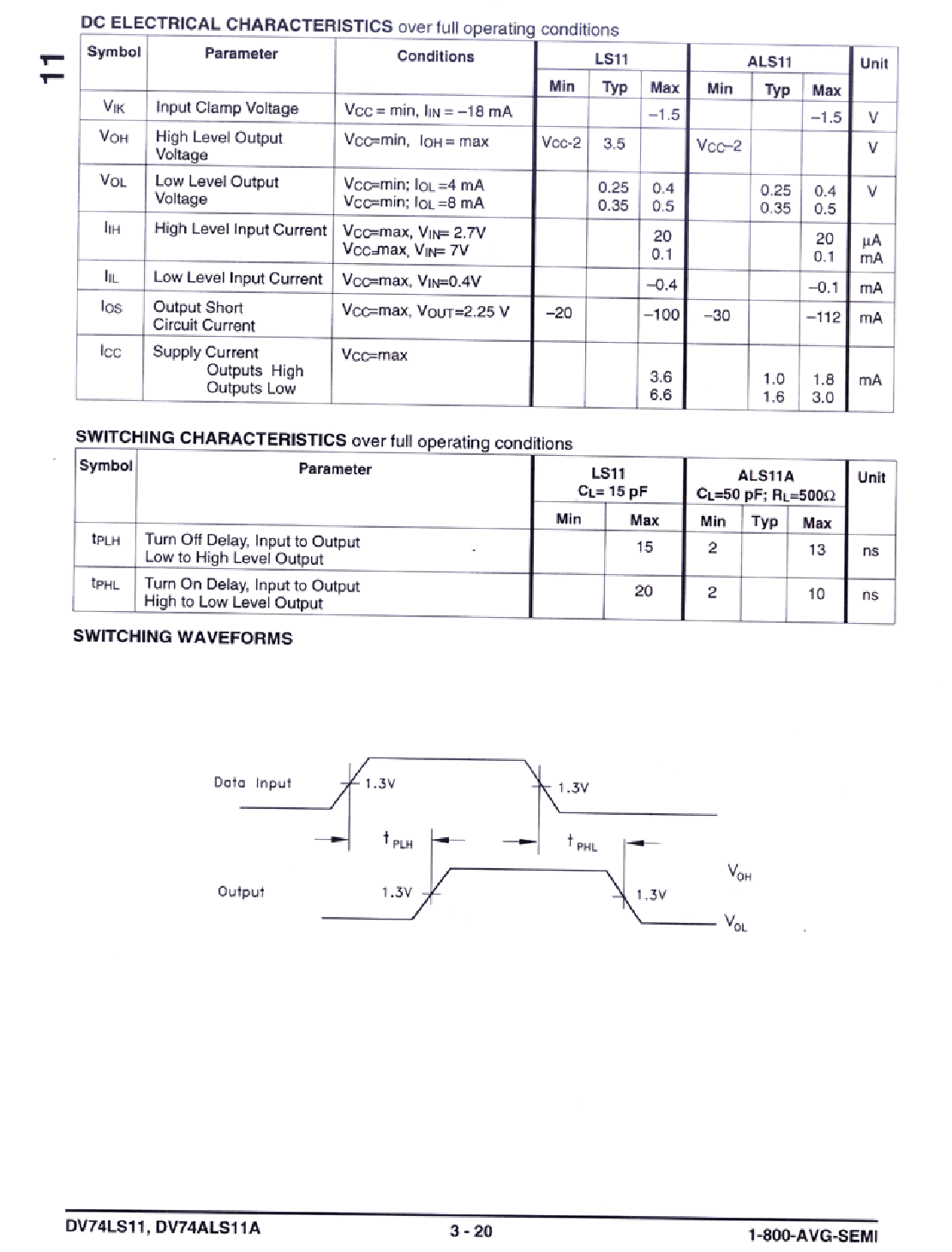

DV74ALS11AD Overview

AND Gate, ALS Series, 3-Func, 3-Input, TTL, PDSO14, PLASTIC, SOP-14

DV74ALS11AD Parametric

Parameter NameAttribute value
MakerAVG [AVG Semiconductors(HITEK)]
Parts packaging codeSOIC
package instructionPLASTIC, SOP-14
Contacts14
Reach Compliance Codeunknown
seriesALS
JESD-30 codeR-PDSO-G14
length8.65 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeAND GATE
MaximumI(ol)0.008 A
Number of functions3
Number of entries3
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature-10 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP14(UNSPEC)
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5 V
Maximum supply current (ICC)3 mA
Prop。Delay @ Nom-Sup13 ns
propagation delay (tpd)13 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height1.75 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width3.9 mm

DV74ALS11AD Related Products

DV74ALS11AD DV74LS11D DV74ALS11AN
Description AND Gate, ALS Series, 3-Func, 3-Input, TTL, PDSO14, PLASTIC, SOP-14 AND Gate, LS Series, 3-Func, 3-Input, TTL, PDSO14, PLASTIC, SOP-14 AND Gate, ALS Series, 3-Func, 3-Input, TTL, PDIP14, PLASTIC, DIP-14
Parts packaging code SOIC SOIC DIP
package instruction PLASTIC, SOP-14 SOP, SOP14(UNSPEC) DIP, DIP14(UNSPEC)
Contacts 14 14 14
Reach Compliance Code unknown unknown unknown
series ALS LS ALS
JESD-30 code R-PDSO-G14 R-PDSO-G14 R-PDIP-T14
length 8.65 mm 8.65 mm 18.86 mm
Load capacitance (CL) 50 pF 15 pF 50 pF
Logic integrated circuit type AND GATE AND GATE AND GATE
MaximumI(ol) 0.008 A 0.008 A 0.008 A
Number of functions 3 3 3
Number of entries 3 3 3
Number of terminals 14 14 14
Maximum operating temperature 70 °C 70 °C 70 °C
Minimum operating temperature -10 °C -10 °C -10 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP DIP
Encapsulate equivalent code SOP14(UNSPEC) SOP14(UNSPEC) DIP14(UNSPEC)
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE IN-LINE
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 3 mA 6.6 mA 3 mA
Prop。Delay @ Nom-Sup 13 ns 20 ns 13 ns
propagation delay (tpd) 13 ns 20 ns 13 ns
Certification status Not Qualified Not Qualified Not Qualified
Schmitt trigger NO NO NO
Maximum seat height 1.75 mm 1.75 mm 4.69 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES NO
technology TTL TTL TTL
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form GULL WING GULL WING THROUGH-HOLE
Terminal pitch 1.27 mm 1.27 mm 2.54 mm
Terminal location DUAL DUAL DUAL
width 3.9 mm 3.9 mm 7.62 mm
Maker AVG [AVG Semiconductors(HITEK)] AVG [AVG Semiconductors(HITEK)] -
Base Number Matches - 1 1
