MB2241BB datasheet, PDF - EEWORLD Datasheet

MB2241BB: DescriptionIC MB SERIES, QUAD 4-BIT DRIVER, TRUE OUTPUT, PQFP52, Bus Driver/Transceiver; Categorylogic logic; File Size230KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

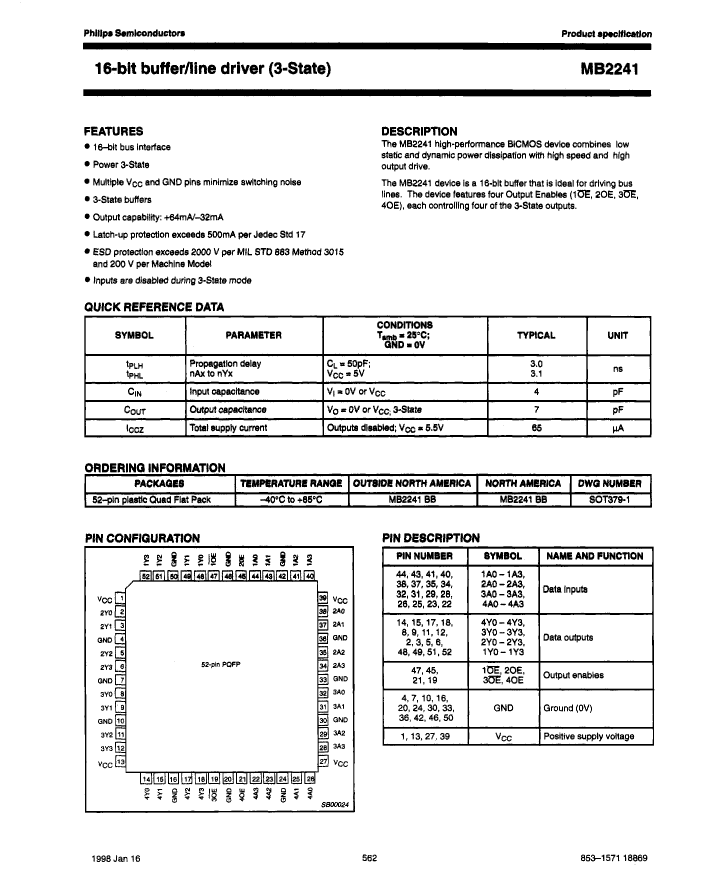

MB2241BB Overview

IC MB SERIES, QUAD 4-BIT DRIVER, TRUE OUTPUT, PQFP52, Bus Driver/Transceiver

Parameter Name	Attribute value
Maker	NXP
package instruction	QFP,
Reach Compliance Code	unknown
Other features	OUTPUT ENABLE ACTIVE HIGH FOR TWO FUNCTIONS
series	MB
JESD-30 code	S-PQFP-G52
length	10 mm
Load capacitance (CL)	50 pF

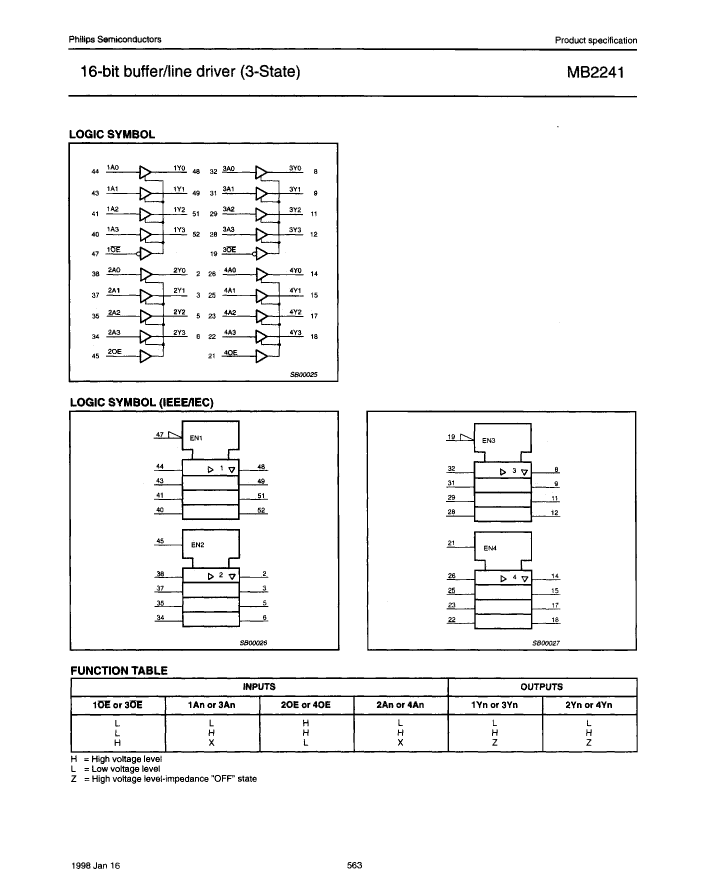

Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	52

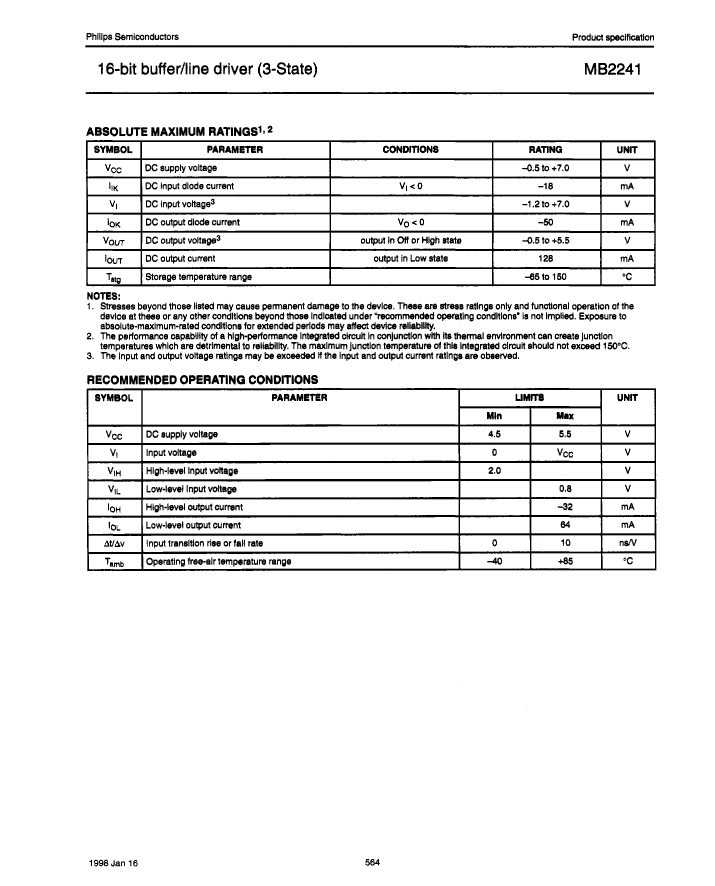

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK

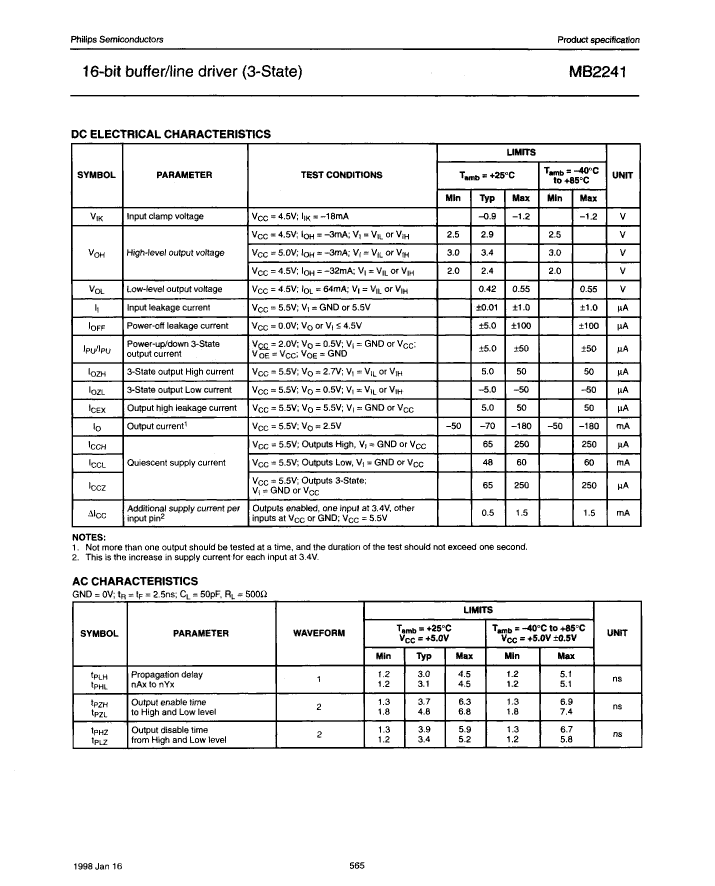

Maximum supply current (ICC)	60 mA

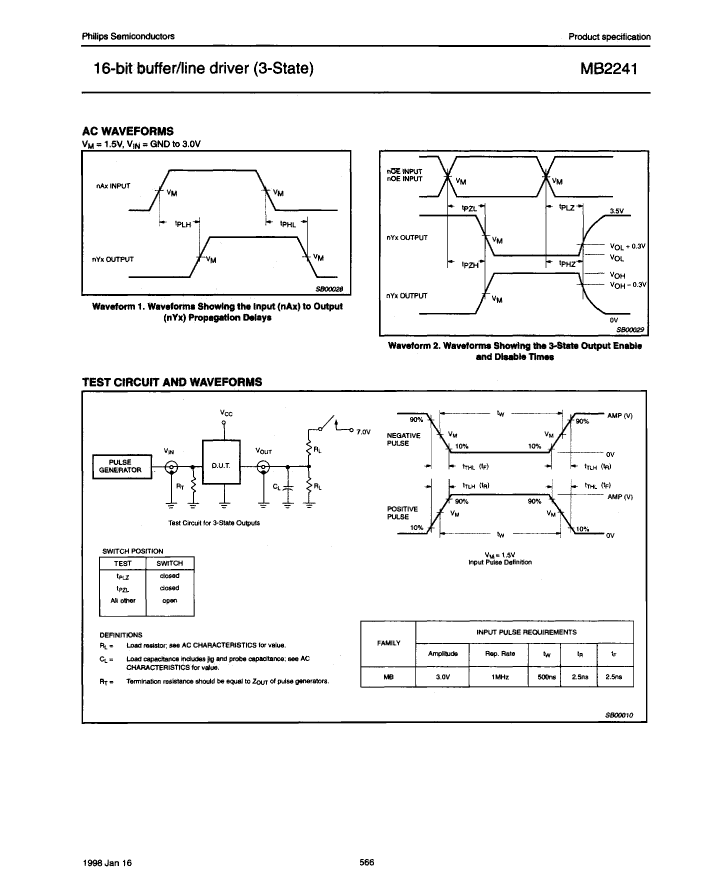

propagation delay (tpd)	5.1 ns
Certification status	Not Qualified
Maximum seat height	2.45 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	10 mm
