63YXF100MT810X12.5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 63YXF100MT810X12.5

63YXF100MT810X12.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size264KB，5 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

63YXF100MT810X12.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

63YXF100MT810X12.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.063 mA
length	12.5 mm
Manufacturer's serial number	YXF
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	210 mA
series	YXF
surface mount	NO
Delta tangent	0.09
Terminal pitch	5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

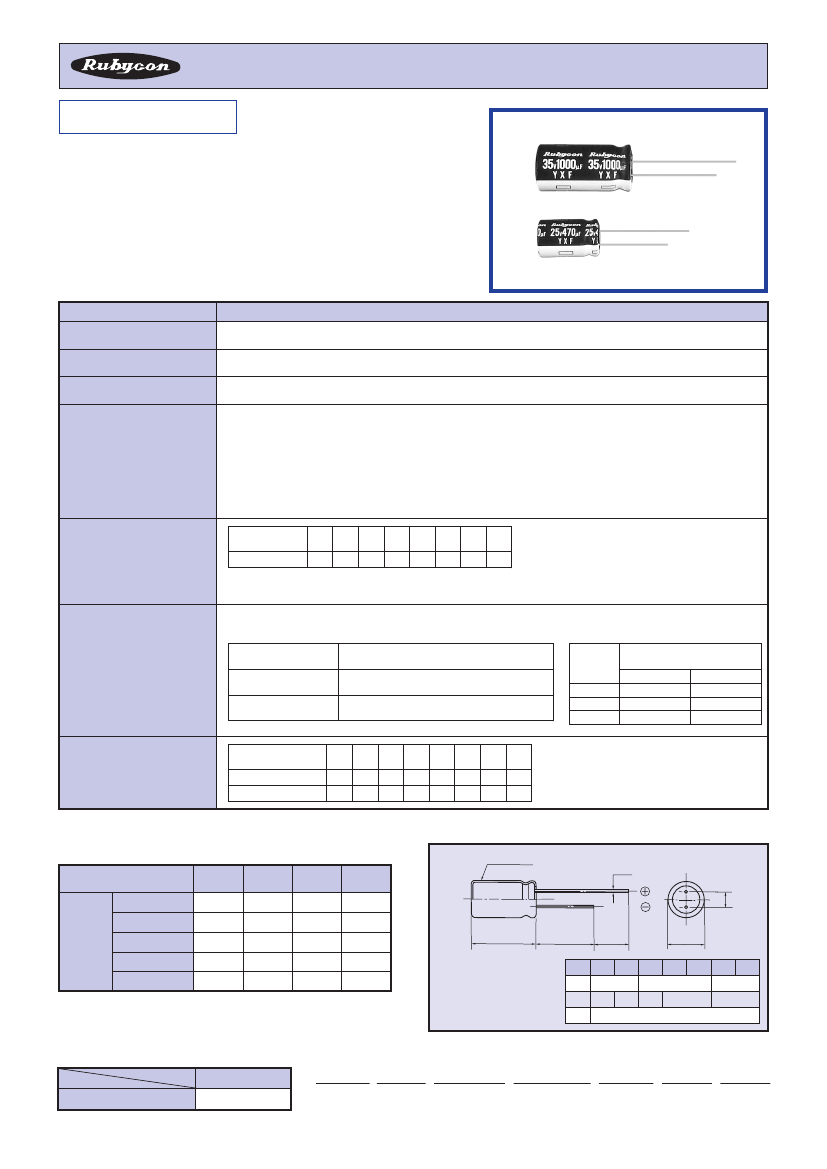

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXF

SERIES

105℃ Long Life. Low impedance.

◆FEATURES

・

Load Life : 105℃ 4000∼10000 hours.

・

Low impedance at 100kHz with selected materials.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−40∼＋105℃

6.3∼100V.DC

±20％

（20℃，

120Hz）

I＝0.01CV

or 3μA whichever is greater.

Leakage Current(MAX)

(After 2 minutes)

I＝(μA)

Leakage Current

C＝(μF)

Rated Capacitance

V＝(V)

Rated Voltage

Rated Voltage 6.3

120Hz）

63 100

（20℃，

(tanδ)

Dissipation Factor(MAX)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below,

the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Within ±25％ of the initial value.

(hrs)

Life Time

6.3∼10WV 16∼100WV

φD≦6.3

4000

5000

φD＝8,10

6000

7000

φD≧12.5

8000

10000

Case

Size

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

63 100

（120Hz）

（−25℃）（20℃） 4

（−40℃）（20℃） 8

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

（Hz）

◆DIMENSIONS

SLEEVE(PET)

（mm）

φd

Frequency

120

0.42

0.55

0.70

0.75

0.80

0.60

0.75

0.85

0.90

0.95

10k

0.80

0.90

0.95

0.98

1.00

100k≦

1.00

L＋ MAX

15MIN

0.47∼10μF

22∼33μF

Coeﬃcient

47∼330μF

470∼1000μF

2200∼15000μF

4MIN

φD＋0.5MAX

φD

φd

6.3

0.5

0.6

12.5

0.8

7.5

±0.5

2.0

2.5

3.5

5.0

L≦16 : α=1.5 L≧20 : α=2.0

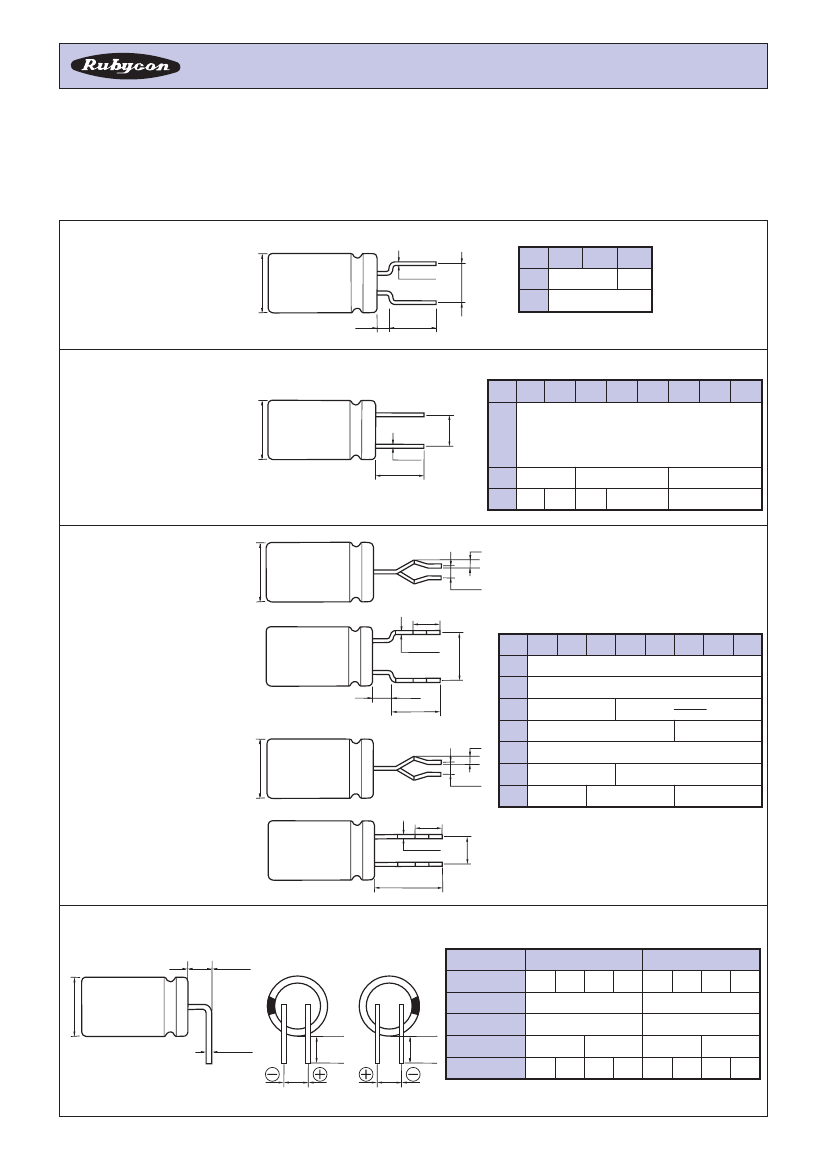

◆OPTION

Code

PET Sleeve

◆PART NUMBER

□□□

Rated Voltage

YXF

Series

□□□□□

Rated Capacitance

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

Ｅ

ＦC

63YXF100MT810X12.5 Related Products

	63YXF100MT810X12.5	25YXF1000M12.5X20	63YXF1000M16X31.5	25YXF100MTA6.3X11	50YXF10MT15X11	16YXF100MTA6.3X11	100YXF2R2MT15X11	50YXF220MT810X16	35YXF330MT810X16
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2.2uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	100 µF	1000 µF	1000 µF	100 µF	10 µF	100 µF	2.2 µF	220 µF	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm	12.5 mm	16 mm	6.3 mm	5 mm	6.3 mm	5 mm	10 mm	10 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	0.063 mA	0.25 mA	0.63 mA	0.025 mA	0.005 mA	0.016 mA	0.003 mA	0.11 mA	0.1155 mA
length	12.5 mm	20 mm	31.5 mm	11 mm	11 mm	11 mm	11 mm	16 mm	16 mm
Manufacturer's serial number	YXF	YXF	YXF	YXF	YXF	YXF	YXF	YXF	YXF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	63 V	25 V	63 V	25 V	50 V	16 V	100 V	50 V	35 V
ripple current	210 mA	975 mA	1042.5 mA	175 mA	42 mA	175 mA	12.6 mA	539 mA	539 mA
series	YXF	YXF	YXF	YXF	YXF	YXF	YXF	YXF	YXF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.09	0.14	0.09	0.14	0.1	0.16	0.08	0.1	0.12
Terminal pitch	5 mm	5 mm	7.5 mm	5 mm	2.5 mm	5 mm	2.5 mm	5 mm	5 mm
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	rubycon	-	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon
method of packing	TAPE	Bulk	-	TAPE	TAPE	TAPE	TAPE	TAPE	TAPE
JESD-609 code	-	e3	e3	e3	e3	e3	e3	-	e3
Terminal surface	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free	-	-	Lead free
