Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
802-RF433.92M-C
Wireless, RF SAW Filter
Specification Contents
o
o
o
o
o
o
o

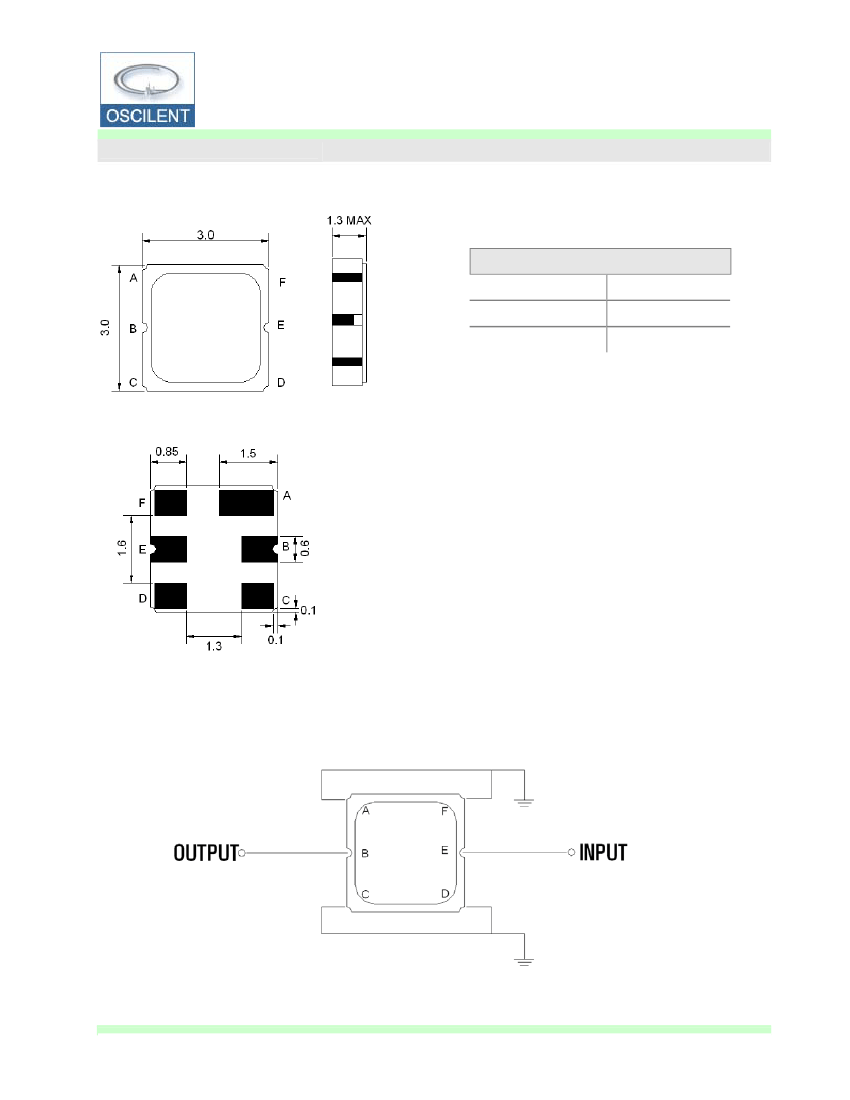

Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification

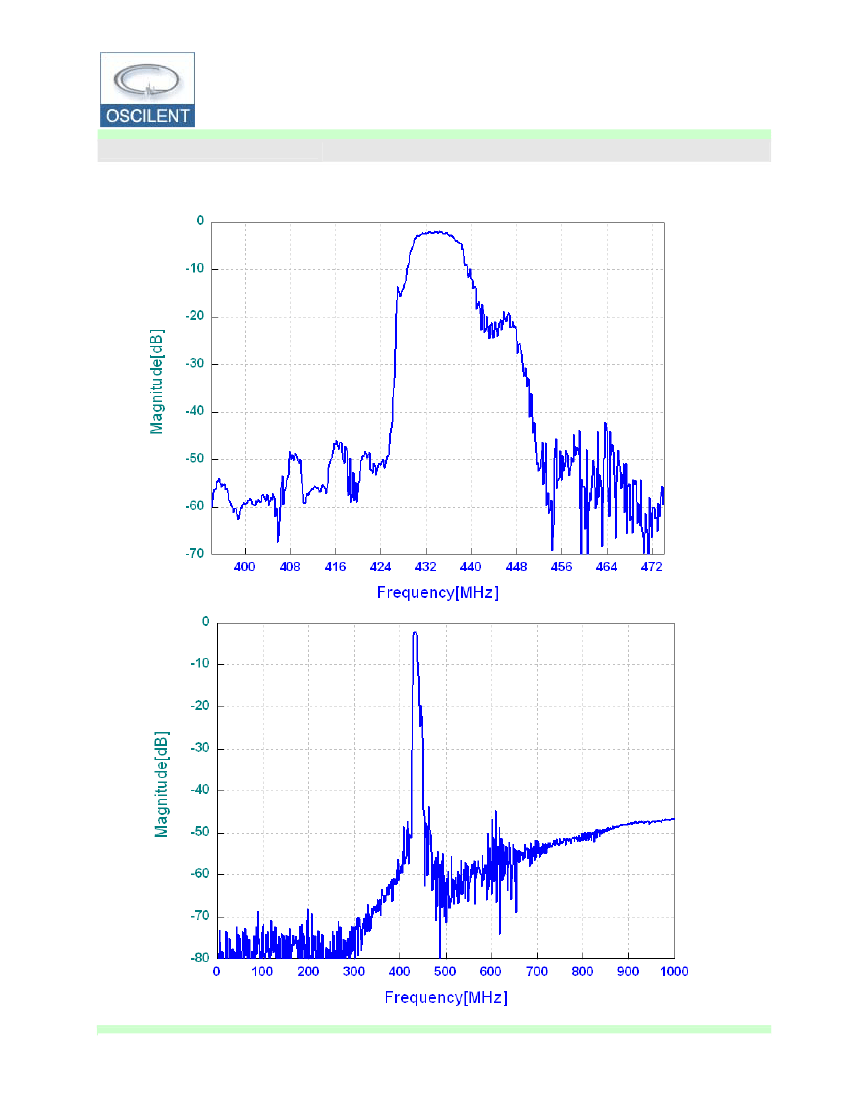

Frequency Performance

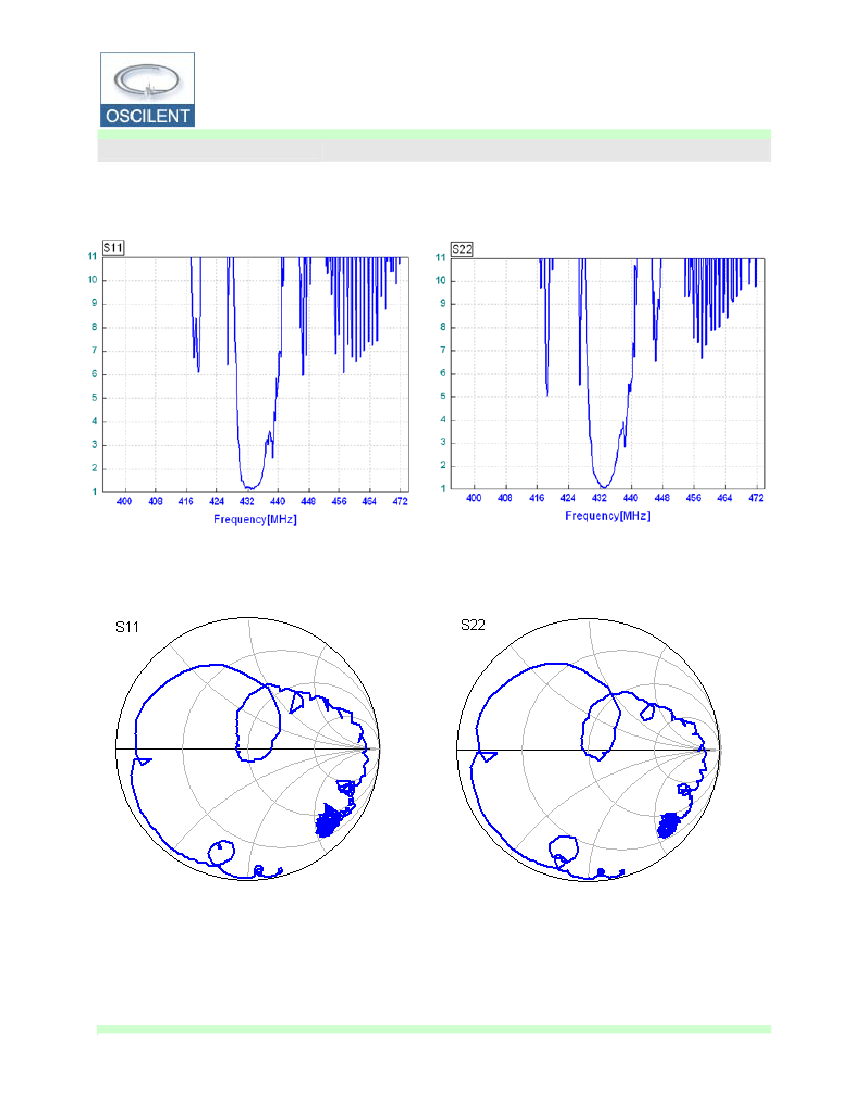

VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
802-RF433.92M-C
January 2010 Rev A
Wireless RF SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
(1) No Matching Network
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-40
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
+85
+85
0
15
-
-
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss within 433.05 ~ 434.79 MHz
Amplitude Ripple within 433.05 ~ 434.79MHz
Attenuation:
389.0 ~ 392.0 MHz
411.0 ~ 414.0 MHz
422.0 ~ 425.0 MHz
443.0 ~ 446.0 MHz
454.0 ~ 457.0 MHz
475.0 ~ 479.0 MHz
VSWR within 433.05 ~ 434.79 MHz
dB
dB
dB
dB
dB
dB
-
50
45
35
15
35
45
-
60
52
45
18
48
55
1.4
-
-
-
-
-
-
2.0
Unit
MHz
dB
dBp-p
Minimum
-
-
-
Typical
433.92
2.5
0.5
Maximum
-
3.0
1.0
Product Specification
P. 2
www.oscilent.com
