Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
802-RF797.5M-A
Wireless, RF SAW Filter
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Performance
VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
802-RF797.5M-A
January 2010 Rev A
Wireless, RF SAW Filter

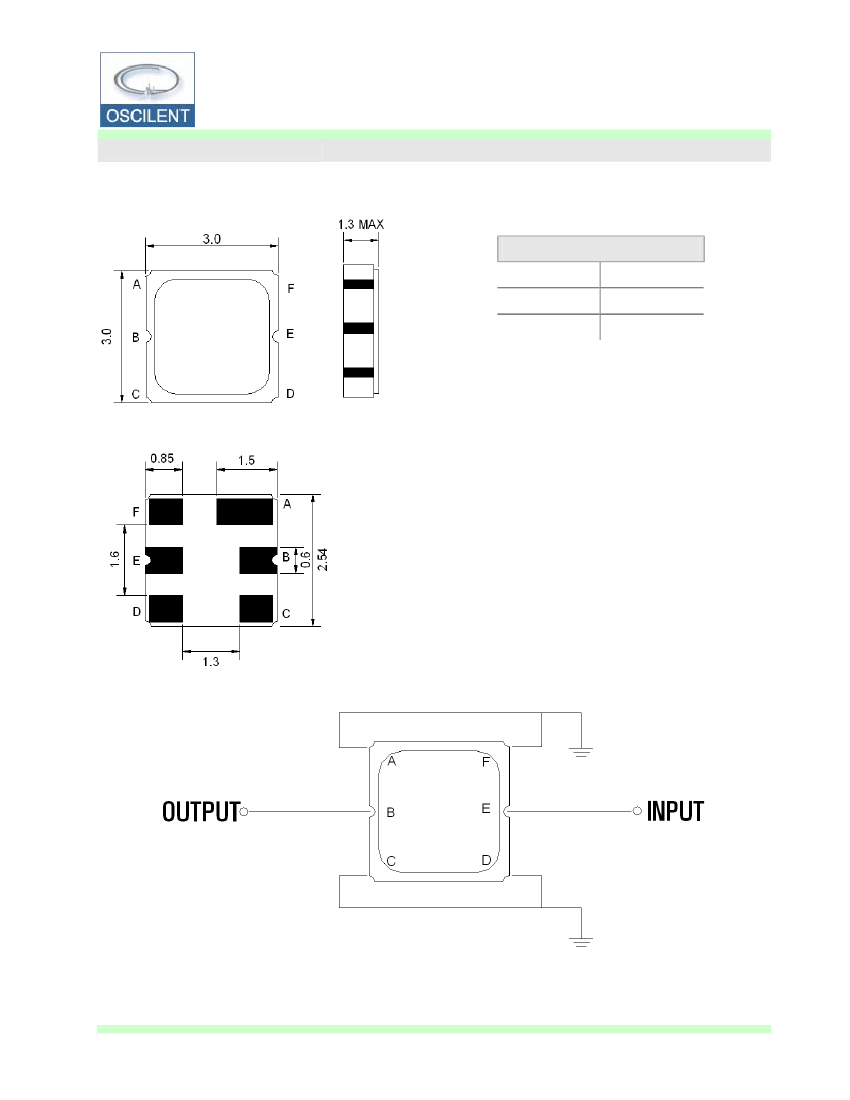

Mechanical Dimensions
(mm)
Pin Description
A, C, D, F
Ground
E
In
B
Out
Test Circuit
Source and Load Impedance: 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
802-RF797.5M-A
January 2010 Rev A
Wireless, RF SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-30
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
+85
+85
5
15
-
-
Notes: No Matching Network (Ref. Testing Environment Circuit as shown above).
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss within 780.5 ~ 806.5 MHz
Amplitude Ripple within 780.5 ~ 806.5 MHz
Attenuation:
697.5 ~ 760.0 MHz
860.0 ~ 897.5 MHz
VSWR within 780.5 ~ 806.5 MHz
dB
dB
-
40
40
-
50
55
1.4
-
-
2.0
Unit
MHz
dB
dB
p-p
Minimum
-
-
-
Typical
797.5
2.2
0.6
Maximum
-
3.5
2.0
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
802-RF797.5M-A
January 2010 Rev A
Wireless, RF SAW Filter

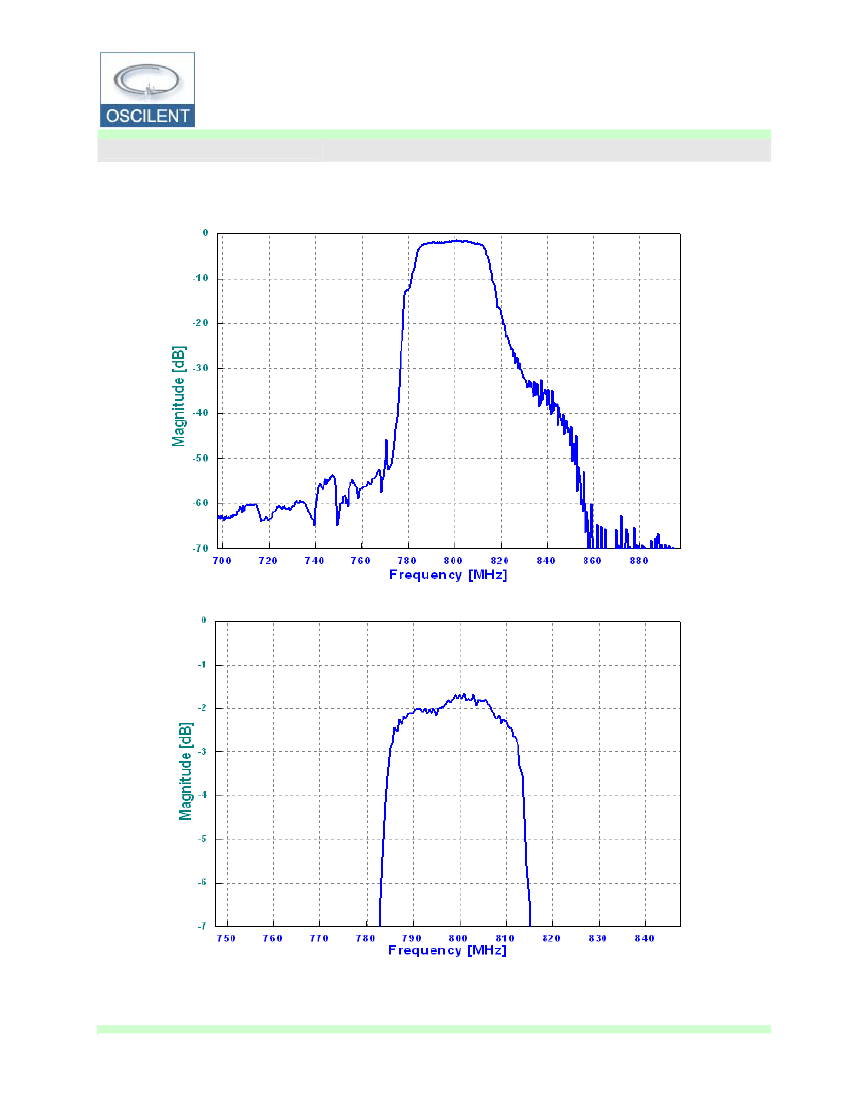

Frequency Performance
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
802-RF797.5M-A
January 2010 Rev A
Wireless, RF SAW Filter

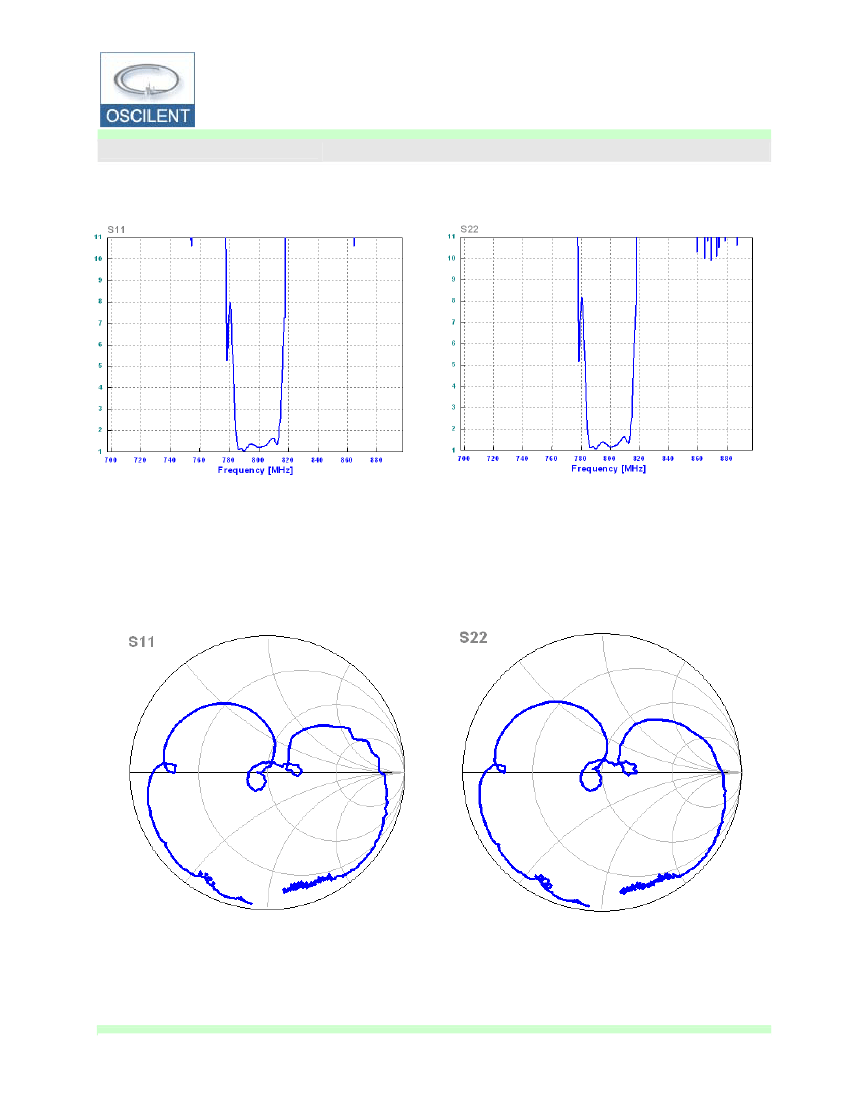

VSWR
Smith Chart
Product Specification
P. 4
www.oscilent.com
