Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
805-RF139.264M-A
Wireless, SAW Filter
Specification Contents
o
o
o
o
o

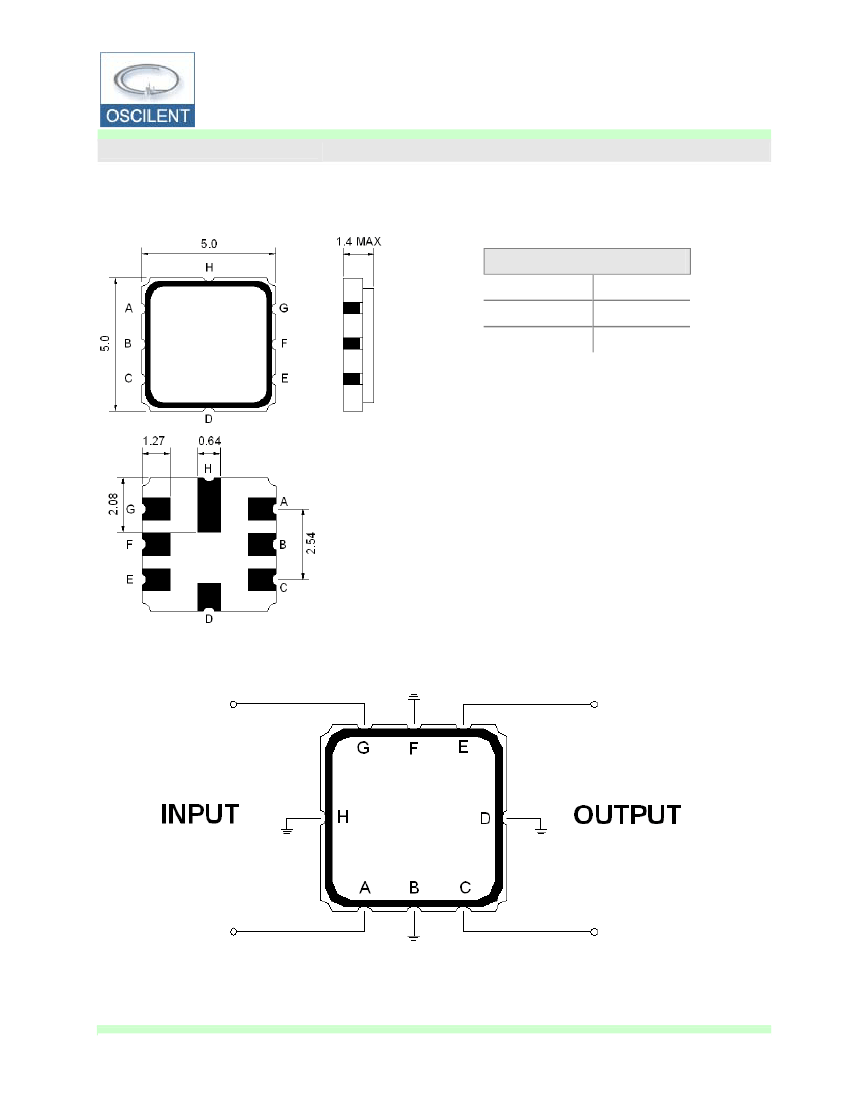

Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification

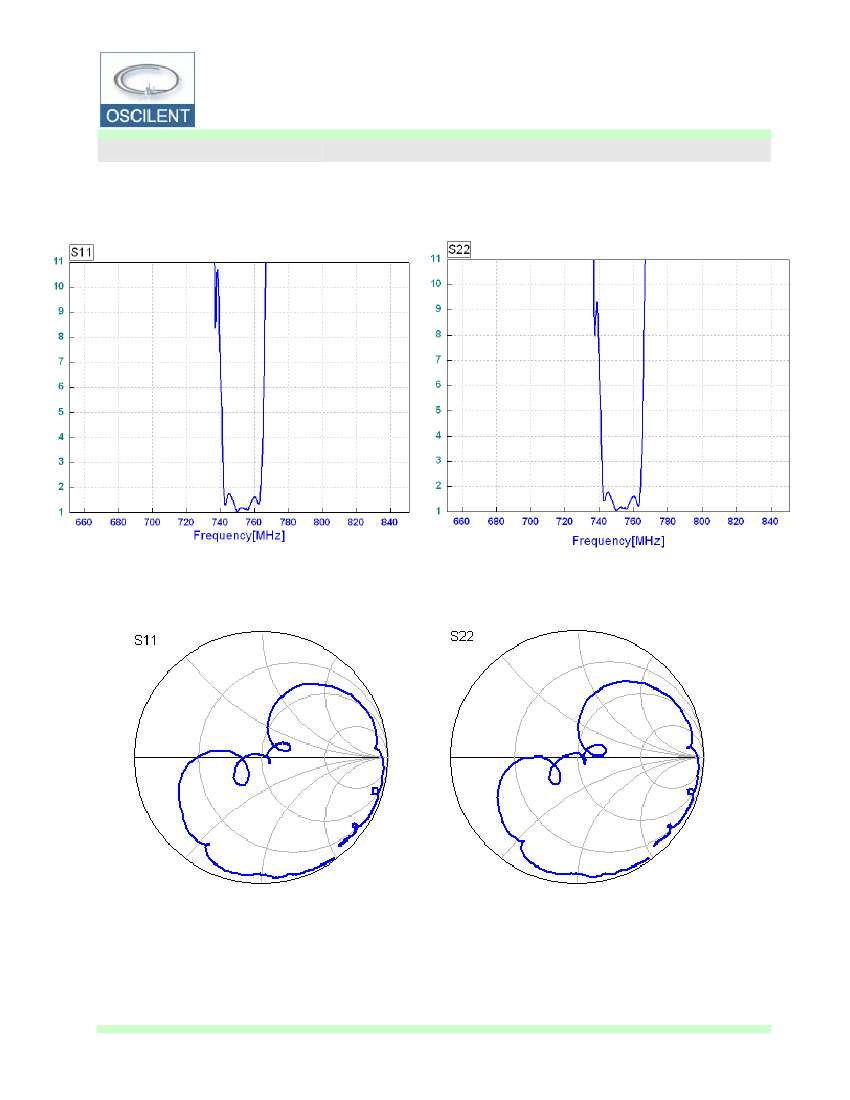

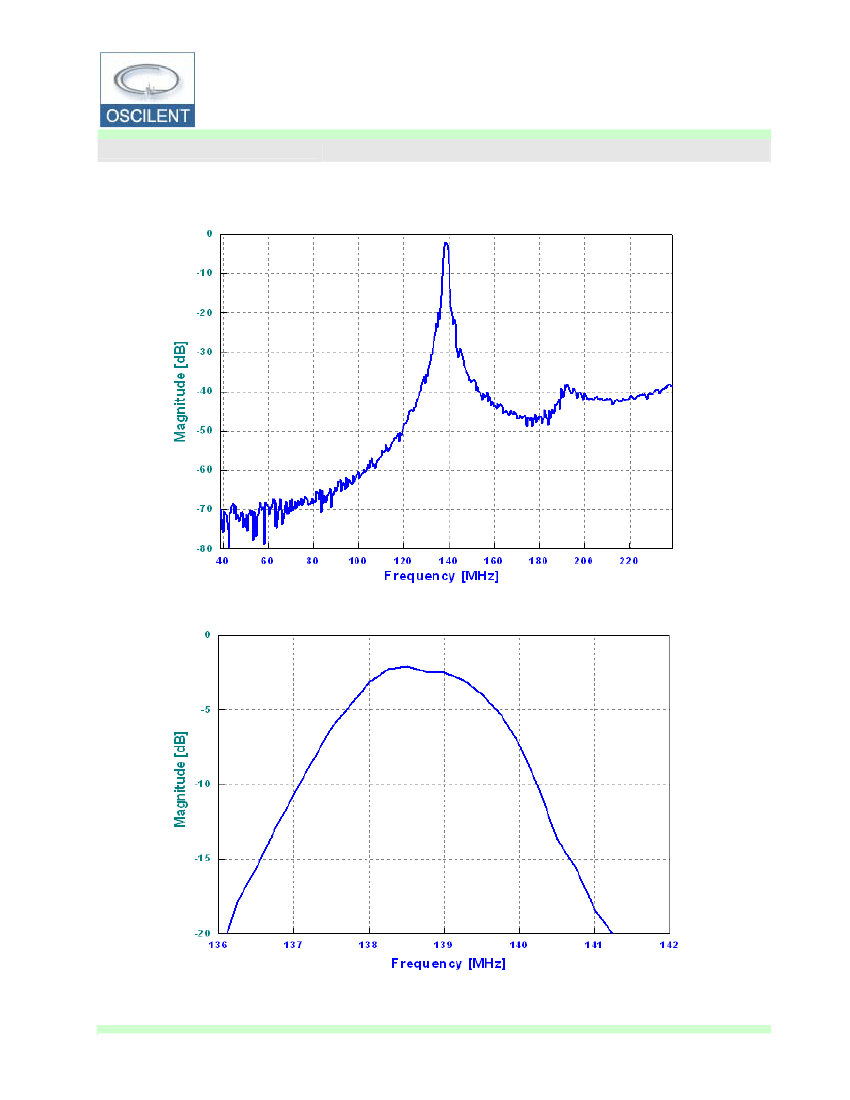

Frequency Performance
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
805-RF139.264M-A
January 2010 Rev A
Wireless, SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (balanced ended)
(1)
Load Impedance (balanced ended)
(1)
Notes: No Matching Network
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-5
-40
-
-
-
-
Typical
-
-
-
-
100
100
Maximum
+70
+85
0
0
-
-
Electrical Specification
Parameters Description
Center Frequency (F
N1
)
Maximum Insertion Loss
Phase variation at f
N
± 15ppm
Temperature coefficient of frequency
Band width
Absolute attenuation:
0.3 ~ 120.00 MHz
120.00 ~ 133.12 MHz
133.12 ~ 136.12 MHz
136.12 ~ 137.00 MHz
141.50 ~ 143.00 MHz
143.00 ~ 147.00 MHz
147.00 ~ 155.00 MHz
155.00 ~ 223.32 MHz
dB
dB
dB
dB
dB
dB
dB
dB
40
24
13
5
13
18
28
35
50
28
17
9
20
25
33
45
-
-
-
-
-
-
-
-
Unit
MHz
dB
deg
ppm/K
MHz
Minimum
-
-
-
-
-
Typical
139.264
4.0
±22
-32
1.5
Maximum
-
6.0
±30
-
-
Product Specification
P. 2
