805-RF173.15M-A

Description
Wireless, RF SAW Filter
CategoryAnalog mixed-signal IC    filter
File Size139KB,5 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Environmental Compliance
Download Datasheet Parametric View All

805-RF173.15M-A Overview

Wireless, RF SAW Filter

805-RF173.15M-A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerOscilent
Reach Compliance Codecompli
Center frequency or cutoff frequency (fo/fc)173.15 MHz
filter typeSAW FILTER
high1.4 mm
input resistance50 OHM
Maximum insertion loss2.5 dB
length5 mm
Manufacturer's serial number805-RF173.15M-A
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature80 °C
Minimum operating temperature-30 °C
Output impedance50 OHM Ω
physical sizeL5.0XB5.0XH1.4 (mm)/L0.197XB0.197XH0.055 (inch)
Base Number Matches1
Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
805-RF173.15M-A
Wireless, RF SAW Filter
Specification Contents
o
o
o
o
o
o
o

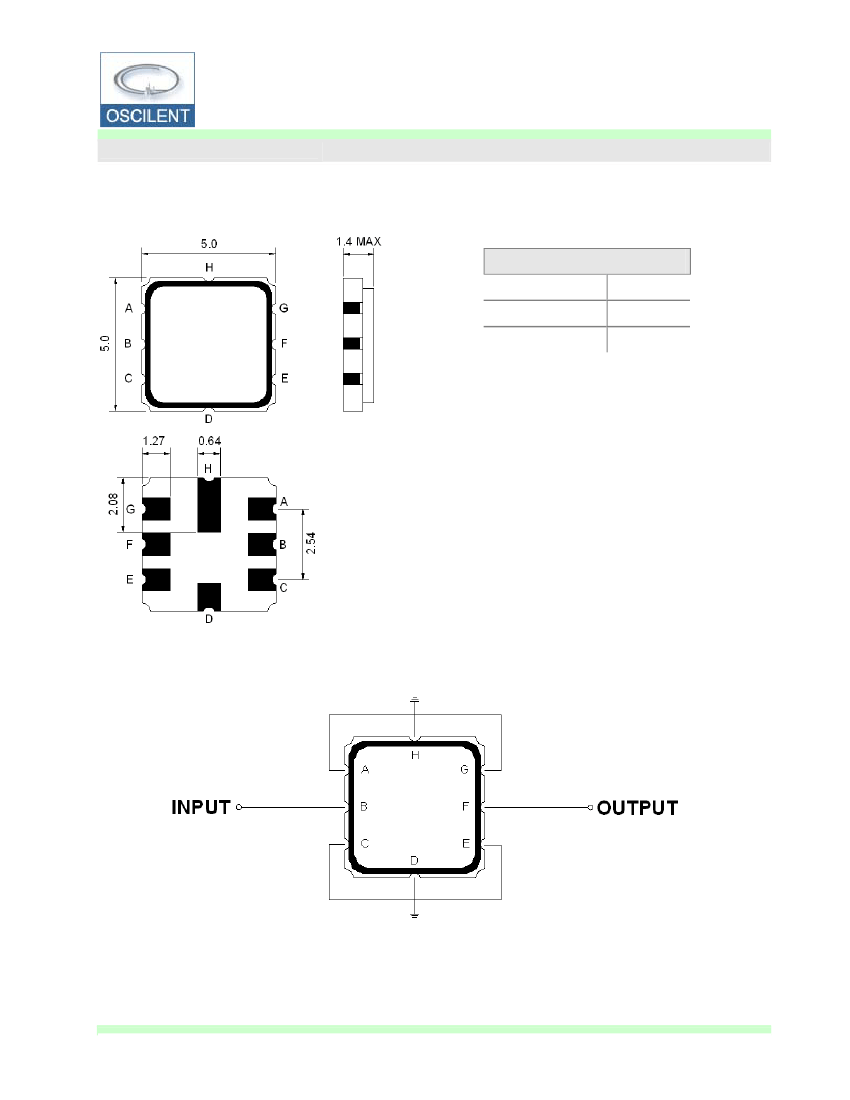

Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification

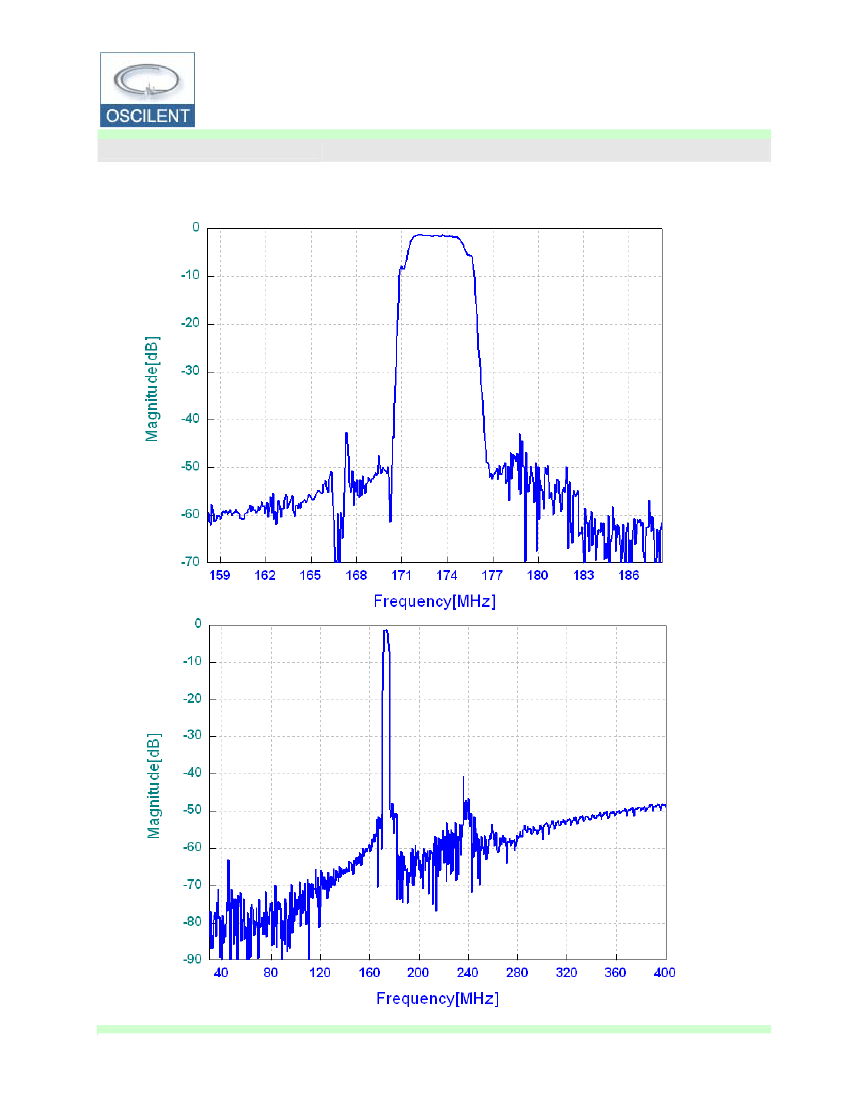

Frequency Performance

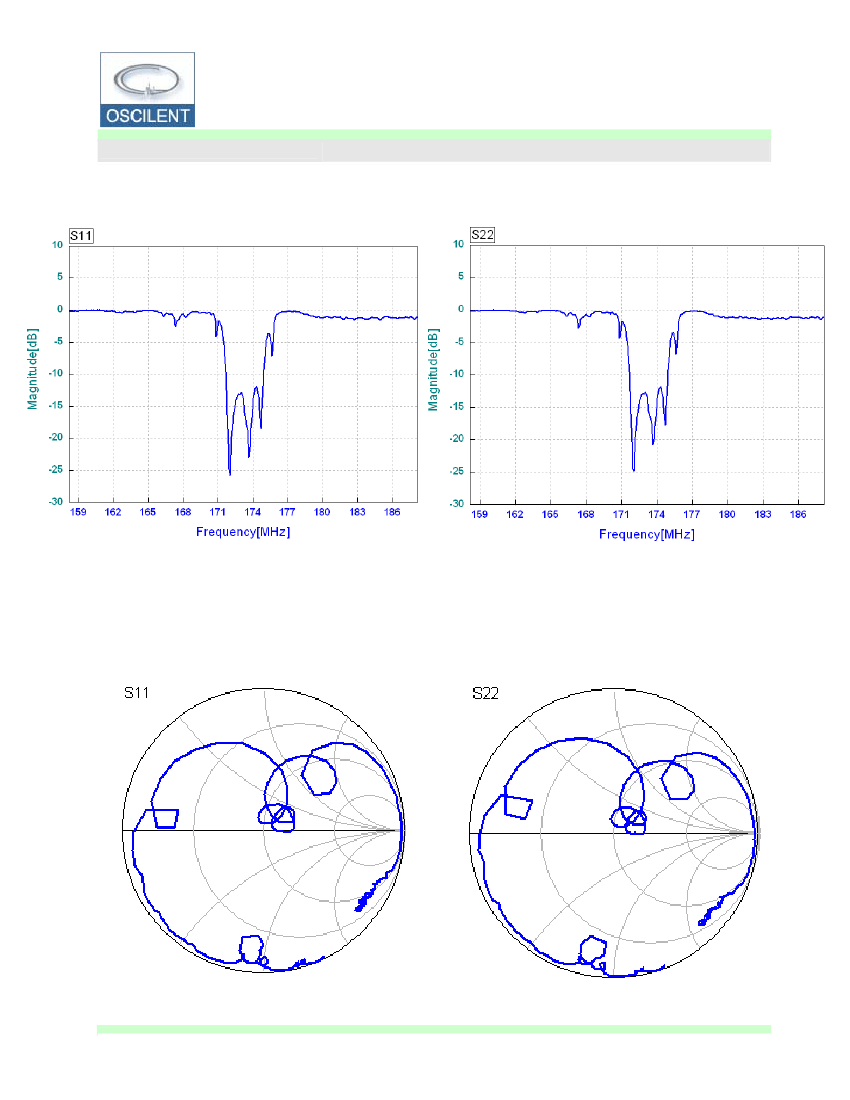

Return Loss
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
