BUCCANEER
Mini Buccaneer
BUCCANEER
Rear Nut
Panel Mounting Body
O Rings
Contact Carrier Insert
Insert Retaining Tab
O Ring
®
Main Body
Gland
Sealing Washer
Contact Carrier Insert
Locking Ring
Gland Cage
Sealing Cap
Gland Nut
Retaining Clip

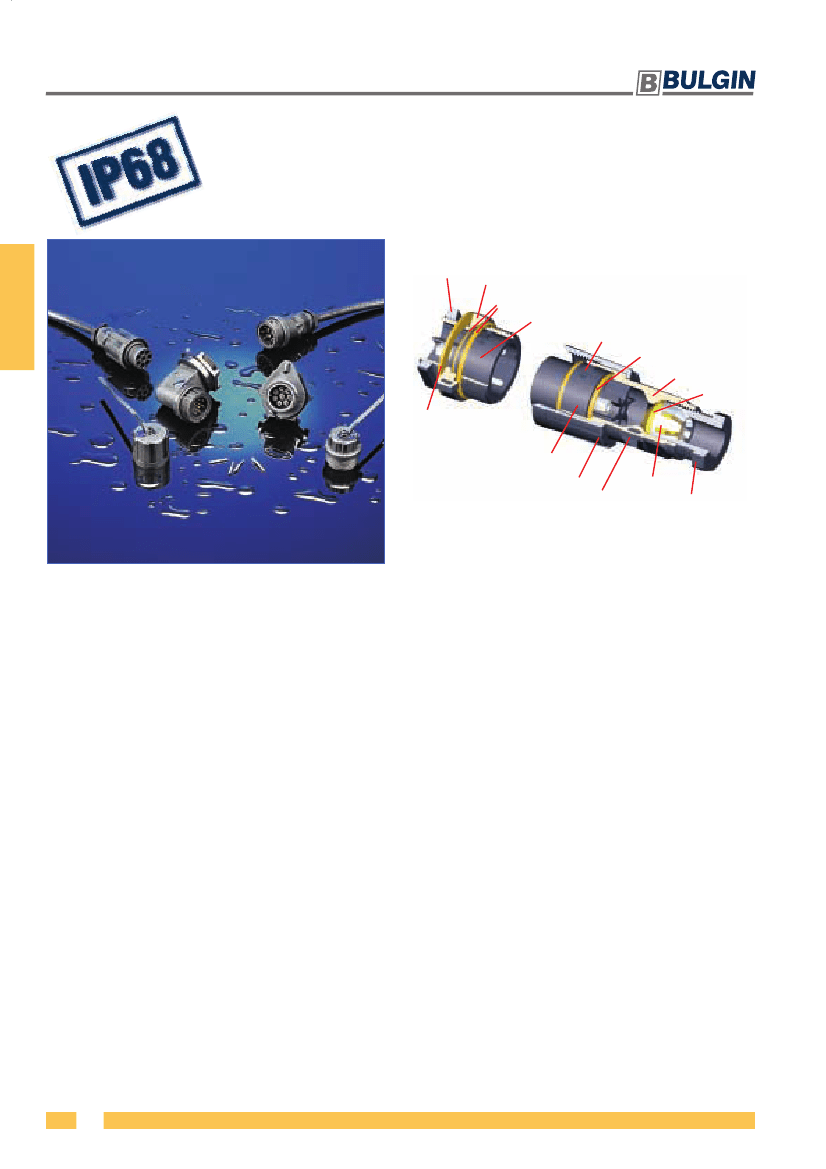

Water and dustproof to IP68 when mated
IP68 rating tested at 1.054Kg/sq cm (15lb/sq in)
10m depth for 2 weeks
2, 3, 4 or 6 pole screw terminal inserts
3 or 8 pole solder or crimp inserts
5 body styles, Flex, Flex In-Line, Panel (2 styles),
Panel Side Entry
50Ω or 75Ω BNC inserts
5A, 380V a.c. 3 & 8 way solder/crimp terminals
10A, 250V a.c. 2 & 3 way screw terminals
6A, 250V a.c. 4 way screw terminal
3A, 250V a.c. 6 way screw terminal
Plug or socket connection in each body style
Cable range from 3.5mm - 9mm
Diameter over coupling ring 26mm
Positive locating keyways - cannot be mis-mated
Sealing caps available to maintain IP68 rating of
unmated connectors
Flammability rating UL94V-0 material
Leading earth contact for 3 pole plug version
Compact design
Easy assembly - no special tools required on screw
terminal versions
UL approval
28
www.bulgin.co.uk
BUCCANEER
Mini Buccaneer
®
FLEX CABLE CONNECTOR

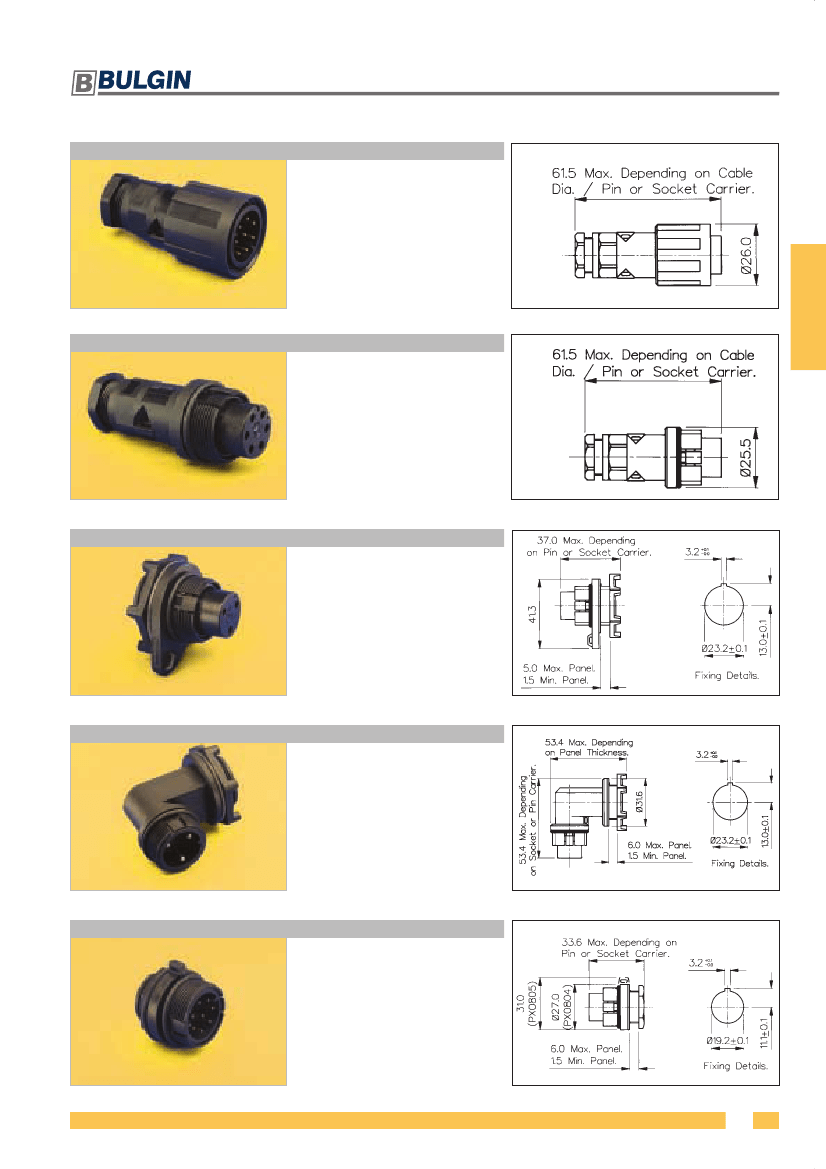

PX0800 Connector body
Mates with Flex In-line or Panel
Mounting versions
Screw locking ring
Suitable for Pin or Socket inserts
BUCCANEER
29
Cable Acceptance 3.5-9mm
(Standard 5-7mm)
PX0800 - shown with insert
Contact inserts supplied separately
IN-LINE FLEX CABLE CONNECTOR
PX0801 Connector body
Mates with PX0800
Suitable for Pin or Socket inserts
Cable Acceptance 3.5-9mm
(Standard 5-7mm)
Contact inserts supplied separately
PX0801 - shown with insert
PANEL MOUNTING
PX0802 Connector body
Mates with PX0800
Single hole fixing
Suitable for Pin or Socket inserts
Contact inserts supplied separately
PX0802 - shown with insert
PANEL MOUNTING
PX0803 Connector body
Mates with PX0800
Right angle cable entry
Single hole fixing
Suitable for Pin or Socket inserts
Contact inserts supplied separately
PX0803 - shown with insert
PANEL MOUNTING
PX0804 and PX0805 Connector
bodies
Mates with PX0800
PX0804 without sealing cap
retaining clip, PX0805
with sealing cap retaining clip
Single hole fixing
PX0805 - shown with insert
Suitable for Pin or Socket inserts
Contact inserts supplied separately
www.bulgin.co.uk
BUCCANEER
Mini Buccaneer
®

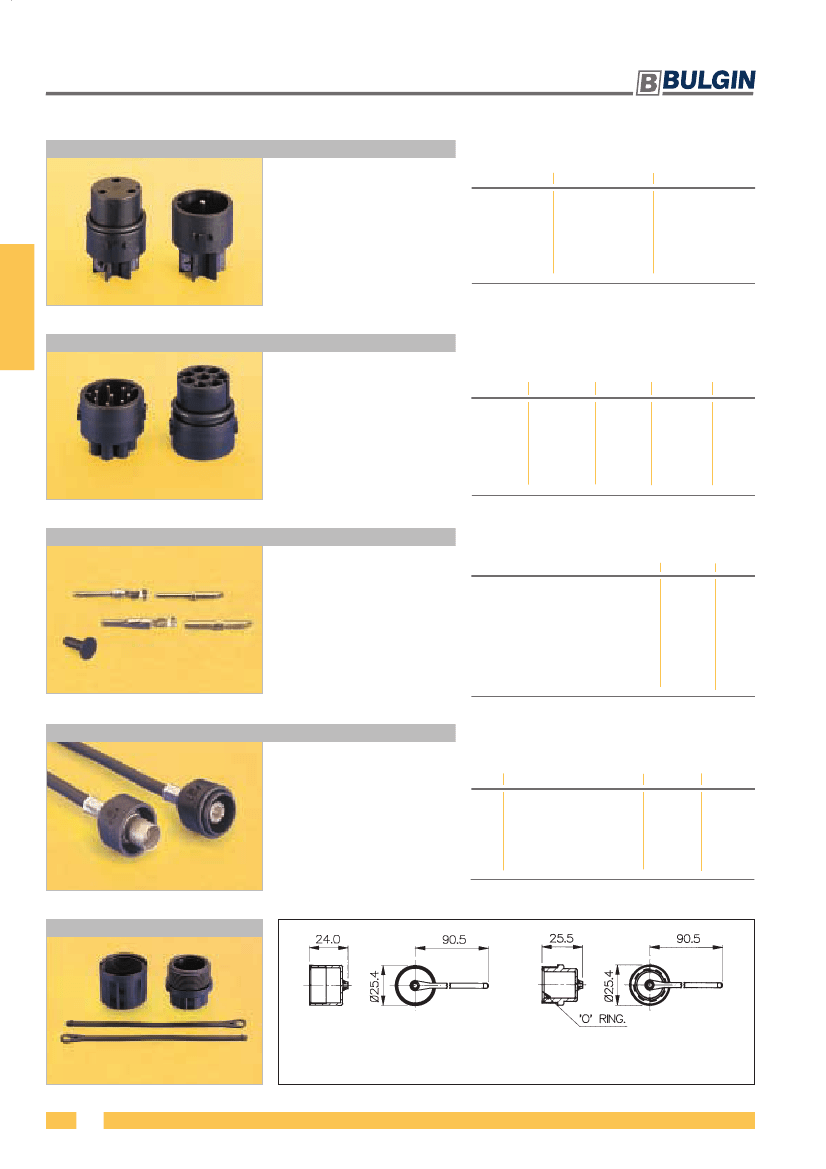

SCREW TERMINAL INSERTS
2, 3, 4 and 6 Poles
Fits all Body Styles
Leading Earth Pin on 3,
4 and 6 pole inserts
Nickel Plated contacts
BUCCANEER
Screw Terminal Inserts - fit all body styles
No. Poles
2
3
4
6
Socket
SA3319
SA3229
SA3242
SA3244
Pin
SA3320
SA3230
SA3241
SA3243
CONTACT CARRIER INSERTS
For Solder or Crimp Contacts
3 or 8 Pin
Fits all Body Styles
Contacts Supplied Separately
Solder & Crimp Contact Carrier Inserts - fit
all body styles.
No. Poles
8 pin
8 socket
3 pin
Solder
12734/1
12735/1
12734/3/1
12735/3/1
Colour
Black
Black
Black
Black
Crimp
12734
12735
12734/3
12735/3
Colour
Grey
Grey
Grey
Grey
Inserts shown with
contacts fitted
3 socket
CONTACTS, POLARISING/BLANKING PINS
Gold Plated contacts
Solder or Crimp
Polarising/Blanking pins
Contacts - Solder & Crimp
Contacts (Supplied in packs of 10) Solder
Pins
Sockets
Polarising/Blanking Pins
Contact Insertion Tool:
Must be used to load contacts into inserts.
Crimping Tool
Crimp
SA3148/1 SA3148
SA3149/1 SA3149
SA3147
SA3150
SA2800
BNC INSERTS
BNC inserts for 50Ω and
75Ω co-ax cables
Fits all Body Styles (except
PX0803)
BNC Inserts - fit all body styles except
PX0803
Imp.
50Ω
50Ω
75Ω
75Ω
Cable Type
RG58/CU, URM43, URM76
RG58/CU, URM43, URM76
URM70
URM70
Contacts Part No.
Plug
Socket
Plug
Socket
SA3159/1
SA3157/1
SA3159
SA3157
Inserts Shown assembled
SEALING CAPS
To maintain IP rating
PX0810
Fits PX0801, PX0802, PX0803, PX0804 &
PX0805. Ensure “O” Ring is in place on
main body.
PX0811
Fits PX0800. Ensure “O” Ring is in place
in cap.
30
www.bulgin.co.uk
BUCCANEER
Mini Buccaneer
®
Contact Inserts and Accessories
SPECIFICATION
Electrical
No Poles:
Current Rating:
Voltage Rating:
Contact Resistance:
Insulation Resistance:
Voltage Proof:
Operating Temp. Range:
Approvals:
Solder/Crimp Terminals
3, 8
5A
380V ac
<5mΩ
>10
6
MΩ @ 500V d.c.
2kV @ 50Hz
–20°C to +70°C
Screw Terminals
2, 3
10A
250V ac
4
6A
250V ac
6
3A
250V ac
BNC
Materials
Body Mouldings:
Inserts:
Contacts:
O Rings:
Solder/Crimp Terminals
Polyamide UL94V-0
Polyamide UL94V-0
Copper Alloy, Gold Plated (0.1µm) on Nickel
Nitrile
Screw Terminals
BNC
Brass, Nickel Plated
Brass, Silver Plated.
Mechanical
Sealing:
Cable Acceptance
Contact Accommodation:
Solder/Crimp Terminals
Screw Terminals
BNC
Protection Classification IP68, BS EN60529:1992. Tested @ 1.054Kg/sq.in. (15lb/sq.in.) 10m depth for 2 weeks.
5-7mm dia - standard gland
3.5-9mm dia - alternative glands
0.2 - 0.5mm
2
(20 - 24 AWG)
1mm
2
max (18 AWG)
50Ω: RG58/CU,
URM43, URM76
75Ω: URM70
Insertion Force (typical):
3 way:
8 way:
3 way:
8 way:
5N (1.1lbf)
14N (3.1lbf)
3N (0.66lbf)
12N (2.6lbf)
3 way: 45N (10lbf)
4 way: 50N (11lbf)
6 way: 140N (31lbf)
3 way: 32N (7lbf)
4 way: 40N (9lbf)
6 way: 150N (34lbf)
Withdrawal Force (typical):
Tightening Torques
Gland Nut, PX0800, 801:
Rear Nut, PX0802, 803, 804, 805:
Sealing Cap, PX0810, 811:
1.13Nm (10lbf in)
0.7Nm min, 1.7Nm max (6.2lbf in min, 15lbf in max)
0.23Nm min, 1.13Nm max (2lbf in min, 10lbf in max)
HOW TO ORDER
Choose body type, check cable diameter and sealing gland size.
Determine contact carrier inserts. Choose number of poles, and type of
contacts (solder, crimp, screw terminal or BNC).
Choose pins or sockets. Solder and crimp contacts are supplied
separately in packs of ten.
Choose polarising/blanking pins. If required for solder/crimp contact
inserts. Supplied in packs of ten.
Is an insertion tool required (for solder or crimp contacts)?
Is a crimp tool required?
Is a sealing cap required?
CABLE ACCEPTANCE
Cable gland for 5-7mm fitted as standard.
Cable
Diameter
5-7mm
3.5-5mm
6-8mm
7-9mm
Gland Pack
Gland
Part No.
12023/1
12023/5
12023
12023/2
PX0812
Gland
Colour
White
Grey
Black
Yellow
Additional
Suffix
Fitted as standard
Suffix /04
Suffix /06
Suffix /07
Pack of 3 glands to suit cables
3.5-5mm, 6-8mm, 7-9mm dia
To order body with alternative cable gland add suffix to part no. e.g.
PX0800/06 = PX0800 body with cable gland to suit 6-8mm dia. cable.
www.bulgin.co.uk
31
BUCCANEER
