SB5100

Description
5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201
Categorysemiconductor    Discrete semiconductor
File Size137KB,3 Pages
ManufacturerCYSTEKEC
Websitehttp://www.cystekec.com/
Download Datasheet Parametric View All

SB5100 Online Shopping

Suppliers Part Number Price MOQ In stock
SB5100 - - View Buy Now

SB5100 Overview

5 A, 100 V, SILICON, RECTIFIER DIODE, DO-201

SB5100 Parametric

Parameter NameAttribute value
Number of terminals2
Number of components1
Processing package descriptionROHS COMPLIANT, PLASTIC PACKAGE-2
stateACTIVE
packaging shaperound
Package SizeLONG FORM
Terminal formWire
Terminal locationAXIAL
Packaging MaterialsPlastic/Epoxy
CraftsmanshipSCHOTTKY
structuresingle
Shell connectionisolation
Diode component materialssilicon
Diode typerectifier diode
applicationGENERAL PURPOSE
Phase1
Maximum repetitive peak reverse voltage100 V
Maximum average forward current5 A
Maximum non-repetitive peak forward current250 A
CYStech Electronics Corp.
5.0Amp Schottky Barrier Rectifiers
Reverse Voltage 100V
Forward Current 5A
Spec. No. : C763LD
Issued Date : 2009.05.15
Revised Date :
Page No. : 1/3
SB5100
Features
Guard ring for over voltage protection.
Plastic package has UL flammability classification 94V-0
Low power loss, high efficiency
For use in low voltage, high frequency inverters, free wheeling,
and polarity protection applications
Outline
DO-201AD
Mechanical Data
Case : JEDEC DO-201AD molded plastic body
Epoxy : UL94V-0 rate flame retardant
Terminals: Plated axial leads, solderable per MIL-STD-750 method
2026. High temperature soldering guaranteed: 250°C/10seconds, 0.375”(9.5mm) lead length, 5lbs(2.3kg)
tension
Polarity: Color band denotes cathode end.
Mounting Position : Any.
Weight: 0.041 oz., 1.15 gram
Maximum Ratings and Electrical Characteristics
(Rating
at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%)
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
1
Maximum instantaneous forward voltage at 5A
Maximum average forward rectified current @ 0.375”(9.5mm)
lead length

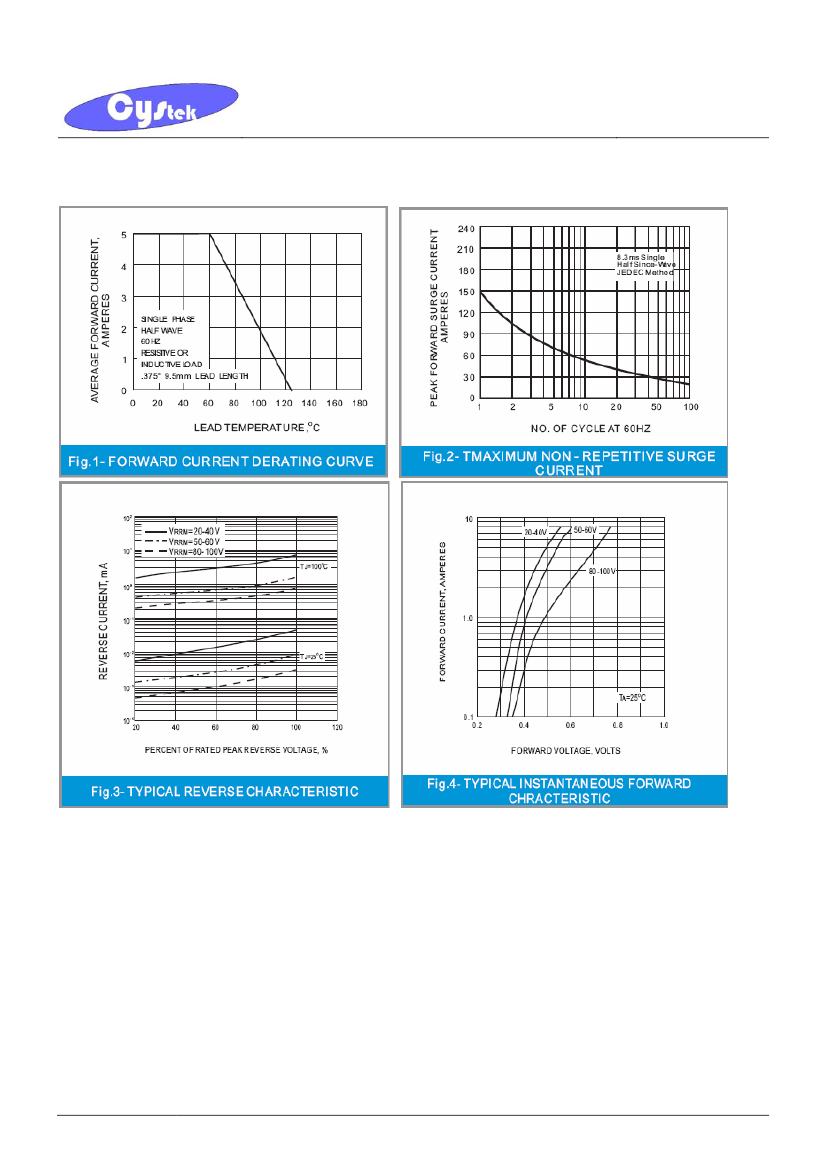

(see Fig 1)
Peak forward surge current @8.3ms single half sine wave
superimposed on rated load (JEDEC method) at rated T
L
T
A
=25°C
Maximum DC reverse current at
1
rated DC blocking voltage
T
A
=100°C
Typical thermal resistance
2
Symbol
V
RRM
V
RMS
V
DC
V
F
I
F(AV)
I
FSM
I
R
R
θJL
T
J
T
STG
Type
SB5100
100
70
100
0.85
5
150
0.5
50
10
-55 ~ +125
-55 ~ +150
Units
V
V
V
V
A
A
mA
/W
Operating junction temperature range
Storage temperature range
Note: 1.Pulse test: pulse width≤300μs, duty cycle≤1%
2.Thermal resistance, junction to lead, vertical PCB mounted, 0.375”(9.5mm) lead length
SB5100
CYStek Product Specification
