• Two contact mating levels for early-mate and late-
break allows “blind mating” or “hot swap”
applications
• Capable of accepting HDD fitted with SAS or Serial
Advanced Technology Attachment (SATA) Header
• Compatible with drives compliant to SFF-8223,
SFF-8323, and SFF-8523
• Designed in compliance with SFF-8482 Rev 2.2
• See Regulatory Information Appendix (RIA) in the
“RoHS compliance” section www.3Mconnector.com
for compliance information (RIA E1 & C1 apply)
Date Modified: March 3, 2011
TS-2180-C
Sheet 1 of 3
Physical
Insulation:
Material:
Flammability:
Color:
Contact:
Material:
Plating:
Underplating:
Wiping Area:
Solder Tails:
Marking:
High Temperature Thermoplastic
UL94V-0
Black
Copper Alloy
50 μ” [ 1.27 μm ] Min. Nickel
30 μ” [ 0.76 μm ] Min. Gold
100 μ” [ 2.54 μm ] Min Matte Tin
3M Logo
Electrical
Signal Pin: 500 mA
Insulation Resistance:
10
3
MΩ min.
Withstanding Voltage:
500 V
AC
at sea level
Current Rating:
Power Pin: 1.5 A
Environmental
Operating Temperature:
-0°C to +55°C
Non-OperatingTemperature:
-40°C to +85°C
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

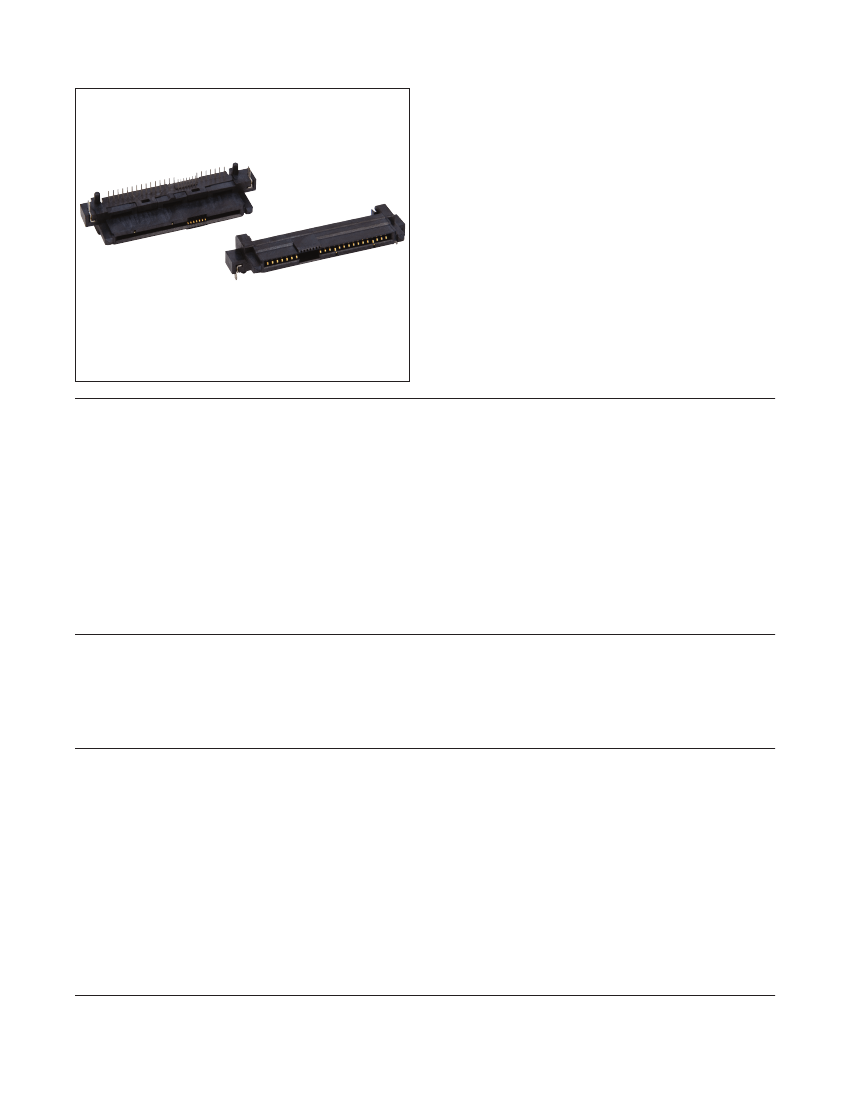

Serial Attached SCSI (SAS) Connector
Boardmount Right Angle, Through-Hole Receptacle
SBR Series

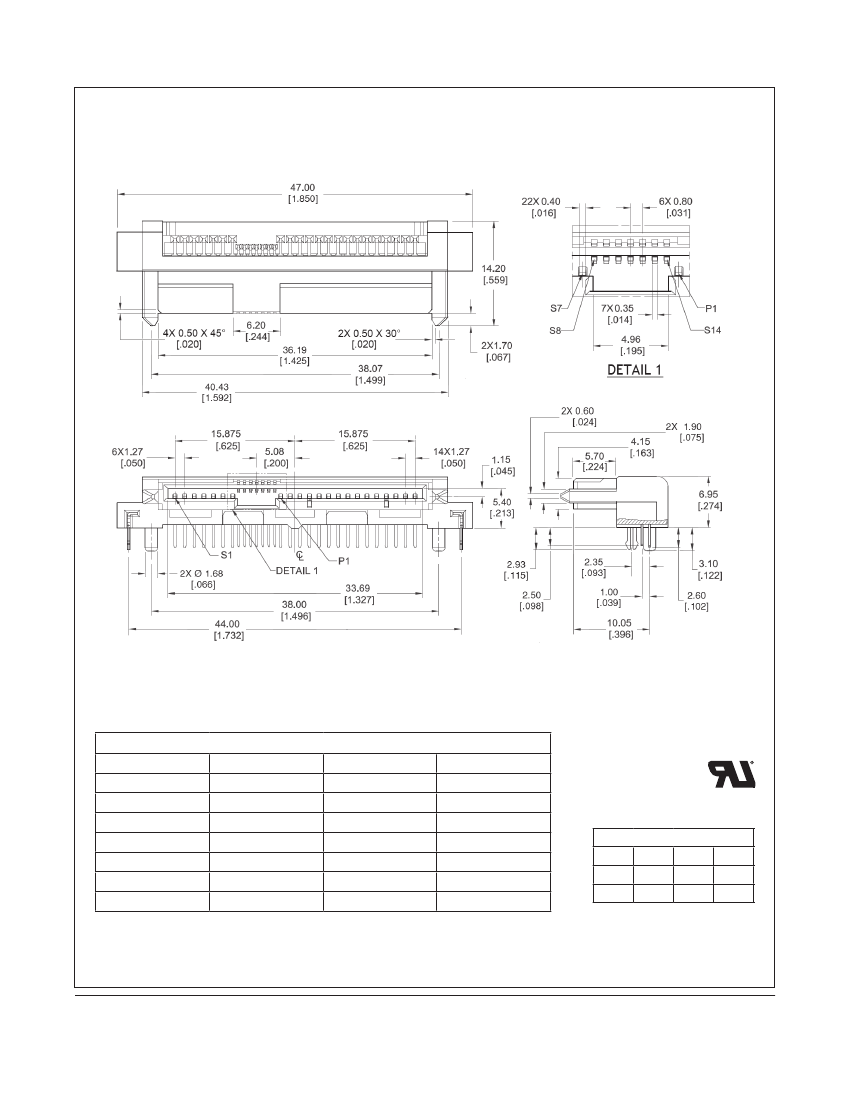

CONNECTOR PIN ASSIGNMENT
S1 - GROUND
S2 - A+
S3 - A-
S4 - GROUND
S5 - B-
S6 - B+
S7 - GROUND
S8 - GROUND
S9 - A+
S10 - A-
S11 - GROUND
S12 - B-
S13 - B+
S14 - GROUND
P1 - 3.3 V
P2 - 3.3 V
P3 - 3.3 V
P4 - GROUND
P5 - GROUND
P6 - GROUND
P7 - 5 V
P8 - 5 V
P9 - 5 V
P10 - GROUND
P11 - GROUND
P12 - GROUND
P13 - 12 V
P14 - 12 V
P15 - 12V
mm
inch
.0
±.38
±.015
mm
[Inch]
Tolerance Unless Noted
.00
±.25
±.010
.000
±.13
±.005
[ ] Dimensions for
Reference only
TS-2180-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Serial Attached SCSI (SAS) Connector
Boardmount Right Angle, Through-Hole Receptacle
SBR Series

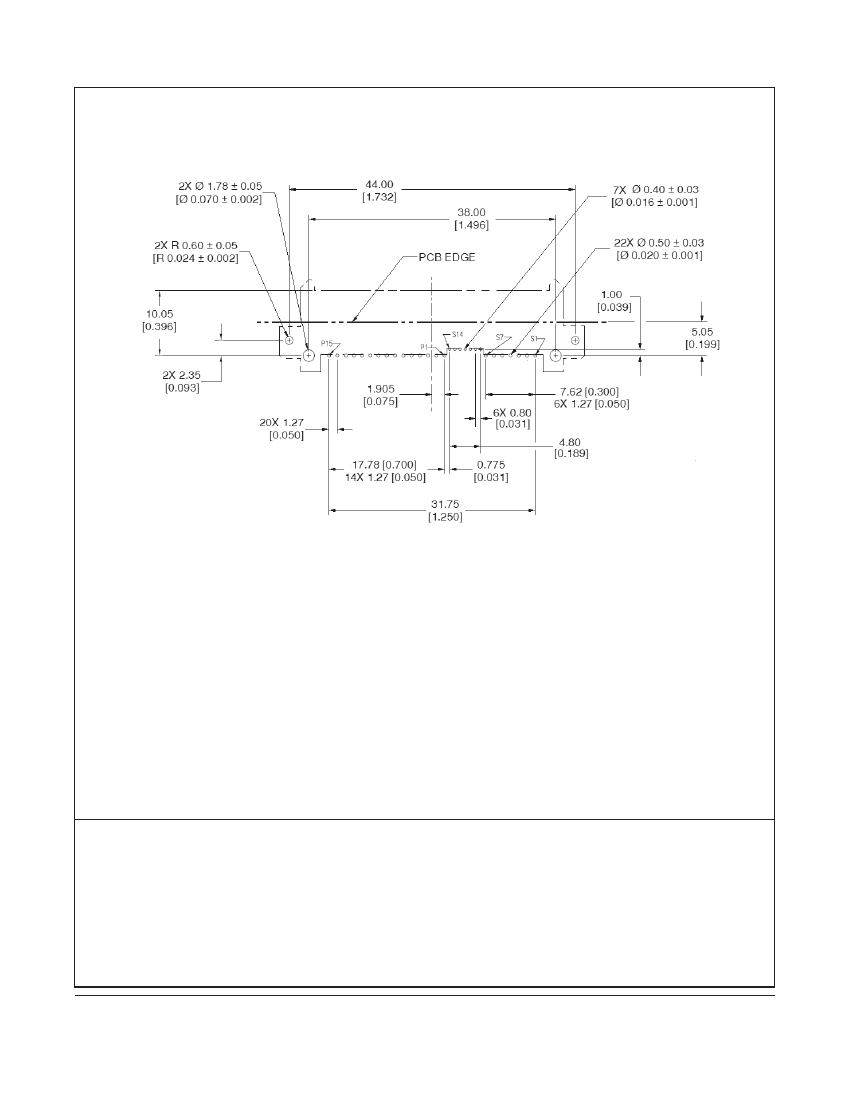

RECOMMENDED PCB THICKNESS 1.83 [0.073] Nominal
Ordering Information
SBR - RA - 29 - S - ML
(RIA E1 & C1)
TS-2180-C
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
