SPACECRAFT COMPONENTS TERMINATION BANDS

Preview

Download Datasheet

View All

SPACECRAFT COMPONENTS TERMINATION BANDS

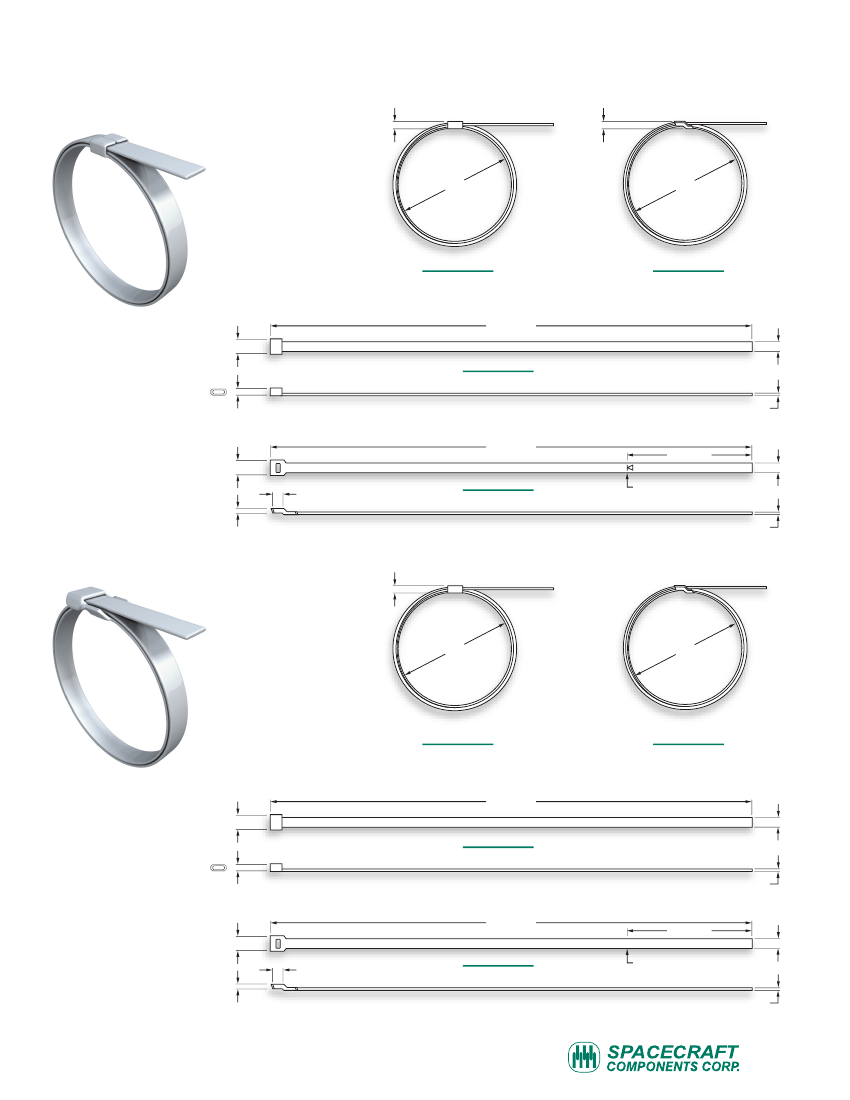

These Bands are commonly used to attach a braid or a shield to a backshell. They come in two shapes: Coiled or flat.

To provide our customers with a cost effective solution, Spacecraft Components now

manufactures Termination Bands and is qualified to the M85049/128 specification.

Shown below is a summary of the various bands and their respective tools.

ELECTRO-

ADAPTER

214LF002

214L0002

MILITARY

REFERENCE

M85049/128-1

M85049/128-2

MILITARY

REFERENCE

M85049/128-3

M85049/128-4

N/A

M85049/128-7

M85049/128-8

N/A

M81306/1-02

●

A30199

●

DBS-2200

●

600-061

●

M81306/1-01

●

A40199

●

DBS-2100

●

600-058

●

MILITARY

TOOL

M81306/2-01

▲

NON MILITARY APPLICATIONS

ELECTRO-ADAPTER TOOL

DANIELS TOOL

SHAPE

Flat

Coiled

SIZE

.245 x 14.0

SCP P/N

SCPSE-02F

SCPSE-02C

EAK214-25

▲

DBS-1101

▲

BAND-IT

A10089

A10088

A11089

A31189*

A31188*

A31089*

SHAPE

Flat

Coiled

Flat

Coiled

Flat

SIZE

.242 x 14.25

.242 x 18.00

.120 x 8.125

.120 x 14.30

SCP P/N

SCPBE-02F

SCPBE-02C

N/A

SCPBE-04F

SCPBE-04C

SCPBE-03F

MILITARY

TOOLS

NON MILITARY APPLICATIONS

BAND-IT TOOLS

DANIELS TOOLS

GLENAIR TOOLS

* Mini Band

MILITARY

REFERENCE

M85049/128-3

M85049/128-4

N/A

M85049/128-7

M85049/128-8

N/A

M81306/1-02

●

600-061

●

A30199

●

DBS-2200

●

MILITARY

TOOLS

M81306/1-01

●

M81306/1-01

●

NON MILITARY APPLICATIONS

GLENAIR TOOLS

BAND-IT TOOLS

DANIELS TOOLS

GLENAIR

600-052

600-052-1

600-090

600-090-1

600-057*

600-057-1*

600-083*

600-083-1*

SHAPE

Flat

Coiled

Flat

Coiled

Flat

Coiled

Flat

Coiled

SIZE

.242 x 14.25

.245 x 18.0

.120 x 8.125

.120 x 14.30

SCP P/N

SCPBE-02F

SCPBE-02C

N/A

SCPBE-04F

SCPBE-04C

SCPBE-03F

SCPBE-03C

600-058

●

600-058

●

A40199

●

A40199

●

DBS-2100

●

DBS-2100

●

* Mini Band

Band-It and Glenair bands work in the DBS or STS Tools, but two operations are required (terminate and fold-over) rather

than the one operation (terminate/trim). DBS or STS-1101, and 1201 tools include both the termination tool and the sec-

ondary roll-over tool.

MILITARY

REFERENCE

M85049/128-1

M85049/128-2

M85049/128-5

M85049/128-6

N/A

MILITARY

TOOLS

M81306/2-01

▲

M81306/2-02

▲

M81306/2-02

▲

NON MILITARY APPLICATIONS

SUNBANK TOOLS

DANIELS TOOLS

SUNBANK

S 3175-2

S 3175-2C

S 3175-3*

S 3175-3C*

S 3175-4*

S 3175-4C*

SHAPE

Flat

Coiled

Flat

Coiled

Flat

Coiled

SIZE

.245 x 14.00

.118 x 9.50

.118 x 14.25

SCP P/N

SCPSE-02F

SCPSE-02C

SCPSE-04F

SCPSE-04C

SCPSE-03F

SCPSE-03C

STS-1101

▲

STS-1201

▲

STS-1201

▲

DBS-1101

▲

DBS-1201

▲

DBS-1201

▲

* Mini Band

DBS or STS-1101 and 1201 tools include both the termination tool and the secondary roll-over tool.

MILITARY REFERENCE

MILITARY

M85049/128-1

M85049/128-2

M85049/128-3

M85049/128-4

M85049/128-5*

M85049/128-6*

M85049/128-7*

M85049/128-8*

SHAPE

Flat

Coiled

Flat

Coiled

Flat

Coiled

Flat

Coiled

SIZE

.245 x 14.00

.242 x 14.25

.118 x 9.50

.120 x 8.125

SCP P/N

SCPSE-02F

SCPSE-02C

SCPBE-02F

SCPBE-02C

SCPSE-04F

SCPSE-04C

SCPBE-04F

SCPBE-04C

MILITARY

TOOLS

M81306/2-01

▲

M81306/1-01

●

M81306/2-02

▲

M81306/1-02

●

NON MILITARY APPLICATIONS

Band-It

–

A40199

●

–

A30199

●

Daniels

DBS-1101

▲

DBS-2100

●

DBS-1201

▲

DBS-2200

●

Glenair

–

600-058

●

–

600-061

●

Sunbank

STS-1101

▲

–

STS-1201

▲

–

* M85049/128-5, -6, -7, -8 are proposed.

●

One Step Tool

▲

Two Step Tool

3040 Clayton Street

North Las Vegas, NV 89032

Phone: 702.851.7600

Fax: 702.851.7620

Email: salesinfo@spacecraft.com

Web: www.spacecraft.com
