ATMEGA169P-16MU-SL383 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATMEGA169P-16MU-SL383

Preview

ATMEGA169P-16MU-SL383: DescriptionRISC Microcontroller, 8-Bit, FLASH, 16MHz, CMOS, MLF-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，393 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

ATMEGA169P-16MU-SL383 Overview

RISC Microcontroller, 8-Bit, FLASH, 16MHz, CMOS, MLF-64

ATMEGA169P-16MU-SL383 Parametric

Parameter Name	Attribute value
Maker	Atmel (Microchip)
package instruction	HVQCCN,
Reach Compliance Code	compliant
Has ADC	YES
Other features	ALSO OPERATES AT 2.7V SUPPLY AT 8 MHZ
Address bus width
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-XQCC-N64
length	9 mm
Number of I/O lines	54
Number of terminals	64
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
RAM (bytes)	1024
rom(word)	16384
ROM programmability	FLASH
Maximum seat height	1 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	9 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Features

•

High Performance, Low Power AVR

8-Bit Microcontroller

•

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-Chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 16K Bytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1K Bytes Internal SRAM

– Write/Erase cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– 4 x 25 Segment LCD Driver

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Universal Serial Interface with Start Condition Detector

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 54 Programmable I/O Lines

– 64-lead TQFP, 64-pad QFN/MLF and 64-pad DRQFN

Speed Grade:

– ATmega169PV: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 8 MHz @ 2.7 - 5.5V

– ATmega169P: 0 - 8 MHz @ 2.7 - 5.5V, 0 - 16 MHz @ 4.5 - 5.5V

Temperature range:

– -40°C to 85°C Industrial

Ultra-Low Power Consumption

– Active Mode:

1 MHz, 1.8V: 330 µA

32 kHz, 1.8V: 10 µA (including Oscillator)

32 kHz, 1.8V: 25 µA (including Oscillator and LCD)

– Power-down Mode:

0.1 µA at 1.8V

– Power-save Mode:

0.6 µA at 1.8V(Including 32 kHz RTC)

•

8-bit

Microcontroller

with 16K Bytes

In-System

Programmable

Flash

ATmega169P

ATmega169PV

Preliminary

•

Rev. 8018L–AVR–08/08

ATmega169P

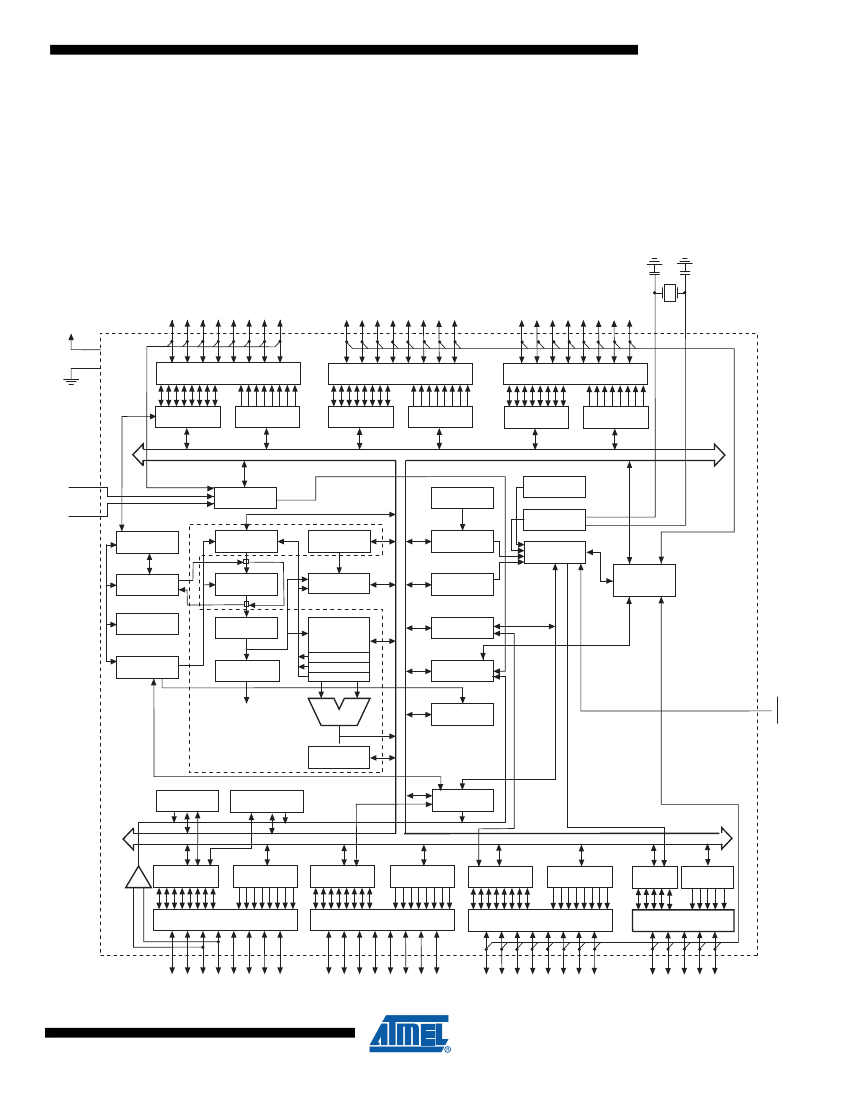

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent

registers to be accessed in one single instruction executed in one clock cycle. The resulting

architecture is more code efficient while achieving throughputs up to ten times faster than con-

ventional CISC microcontrollers.

The ATmega169P provides the following features: 16K bytes of In-System Programmable Flash

with Read-While-Write capabilities, 512 bytes EEPROM, 1K byte SRAM, 53 general purpose I/O

lines, 32 general purpose working registers, a JTAG interface for Boundary-scan, On-chip

Debugging support and programming, a complete On-chip LCD controller with internal step-up

voltage, three flexible Timer/Counters with compare modes, internal and external interrupts, a

serial programmable USART, Universal Serial Interface with Start Condition Detector, an 8-

channel, 10-bit ADC, a programmable Watchdog Timer with internal Oscillator, an SPI serial

port, and five software selectable power saving modes. The Idle mode stops the CPU while

allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The

Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip

functions until the next interrupt or hardware reset. In Power-save mode, the asynchronous

timer and the LCD controller continues to run, allowing the user to maintain a timer base and

operate the LCD display while the rest of the device is sleeping. The ADC Noise Reduction

mode stops the CPU and all I/O modules except asynchronous timer, LCD controller and ADC,

to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator

Oscillator is running while the rest of the device is sleeping. This allows very fast start-up com-

bined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

On-chip ISP Flash allows the program memory to be reprogrammed In-System through an SPI

serial interface, by a conventional non-volatile memory programmer, or by an On-chip Boot pro-

gram running on the AVR core. The Boot program can use any interface to download the

application program in the Application Flash memory. Software in the Boot Flash section will

continue to run while the Application Flash section is updated, providing true Read-While-Write

operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a

monolithic chip, the Atmel ATmega169P is a powerful microcontroller that provides a highly flex-

ible and cost effective solution to many embedded control applications.

The ATmega169P AVR is supported with a full suite of program and system development tools

including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators,

and Evaluation kits.

8018L–AVR–08/08

ATMEGA169P-16MU-SL383 Related Products

	ATMEGA169P-16MU-SL383	ATMEGA169P-16AU-SL383
Description	RISC Microcontroller, 8-Bit, FLASH, 16MHz, CMOS, MLF-64	RISC Microcontroller, 8-Bit, FLASH, 16MHz, CMOS, PQFP64, TQFP-64
Maker	Atmel (Microchip)	Atmel (Microchip)
package instruction	HVQCCN,	TQFP,
Reach Compliance Code	compliant	compliant
Has ADC	YES	YES
Other features	ALSO OPERATES AT 2.7V SUPPLY AT 8 MHZ	ALSO OPERATES AT 2.7V SUPPLY AT 8 MHZ
bit size	8	8
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	S-XQCC-N64	S-PQFP-G64
length	9 mm	14 mm
Number of I/O lines	54	54
Number of terminals	64	64
On-chip program ROM width	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	YES	YES
Package body material	UNSPECIFIED	PLASTIC/EPOXY
encapsulated code	HVQCCN	TQFP
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	FLATPACK, THIN PROFILE
RAM (bytes)	1024	1024
rom(word)	16384	16384
ROM programmability	FLASH	FLASH
Maximum seat height	1 mm	1.2 mm
speed	16 MHz	16 MHz
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	GULL WING
Terminal pitch	0.5 mm	0.8 mm
Terminal location	QUAD	QUAD
width	9 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC	MICROCONTROLLER, RISC
