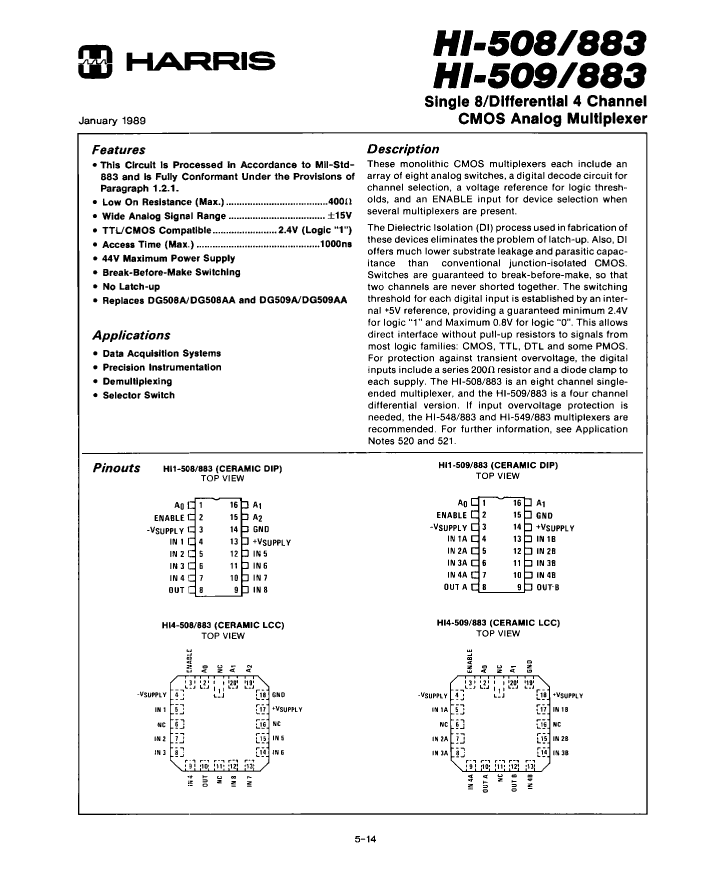

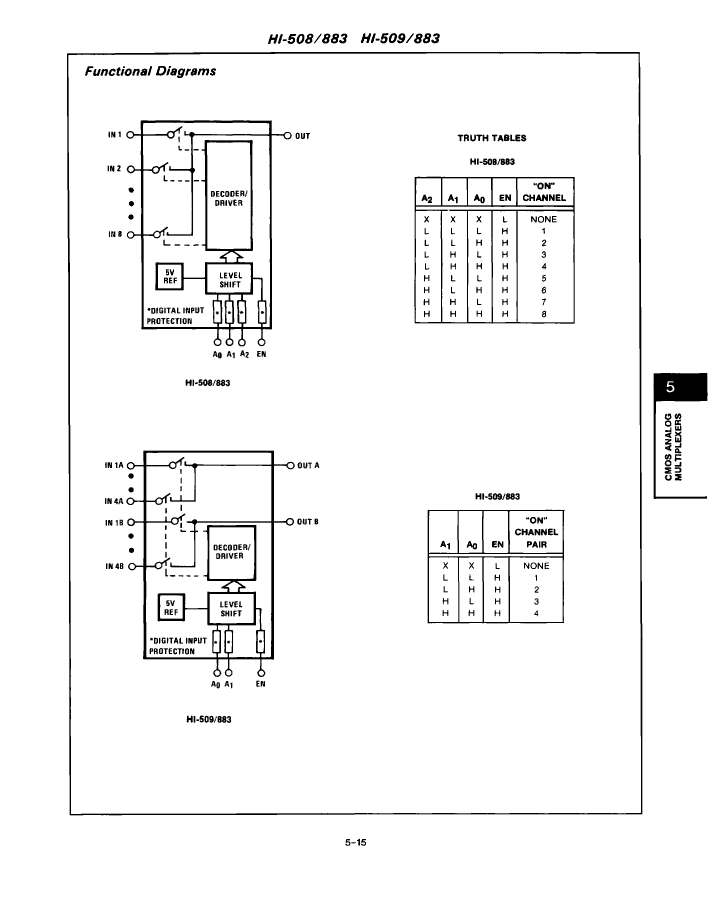

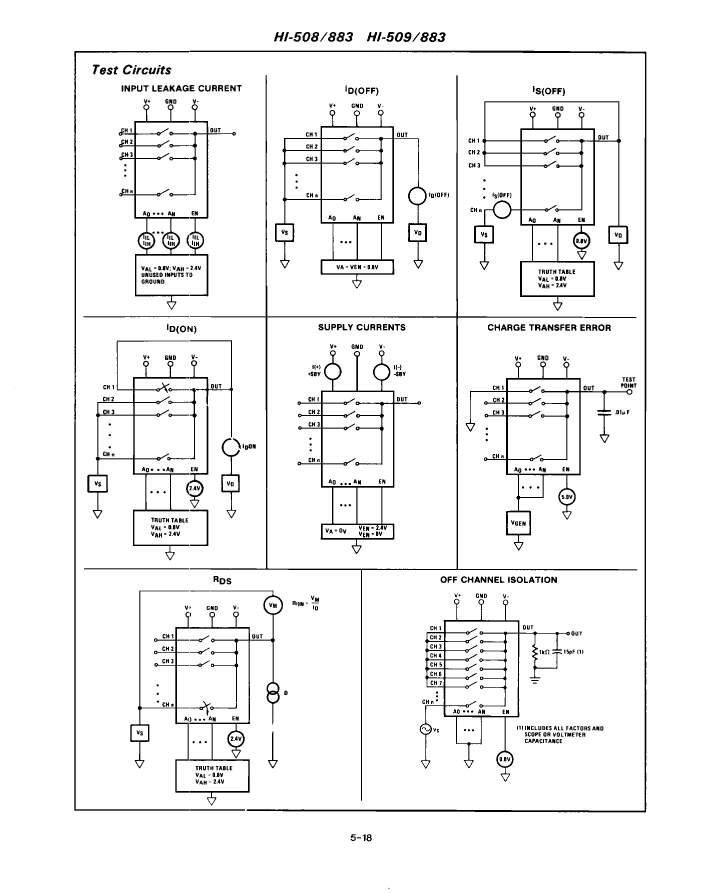

Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, CERAMIC, DIP-16

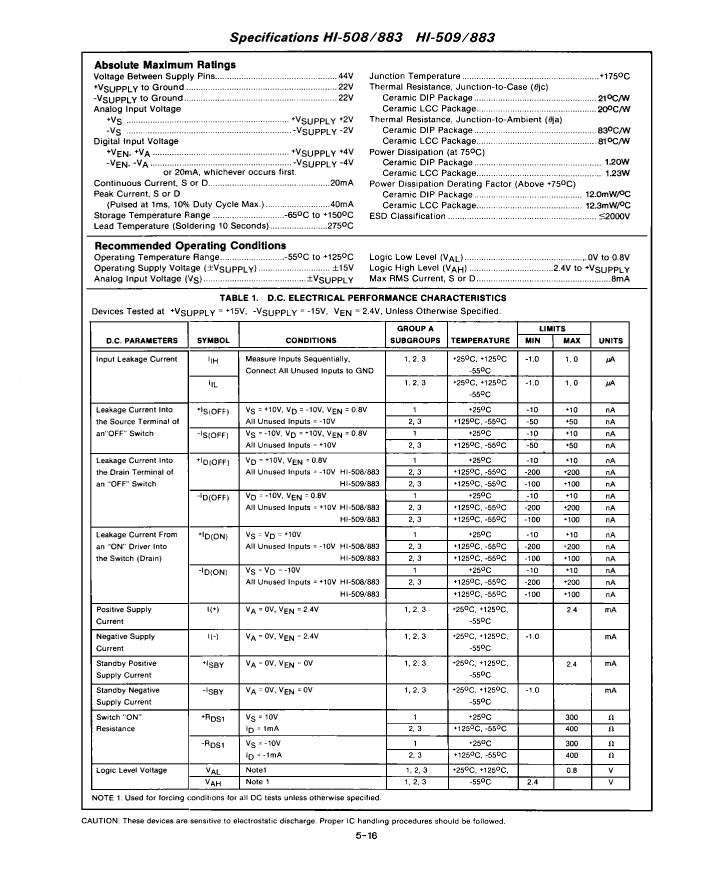

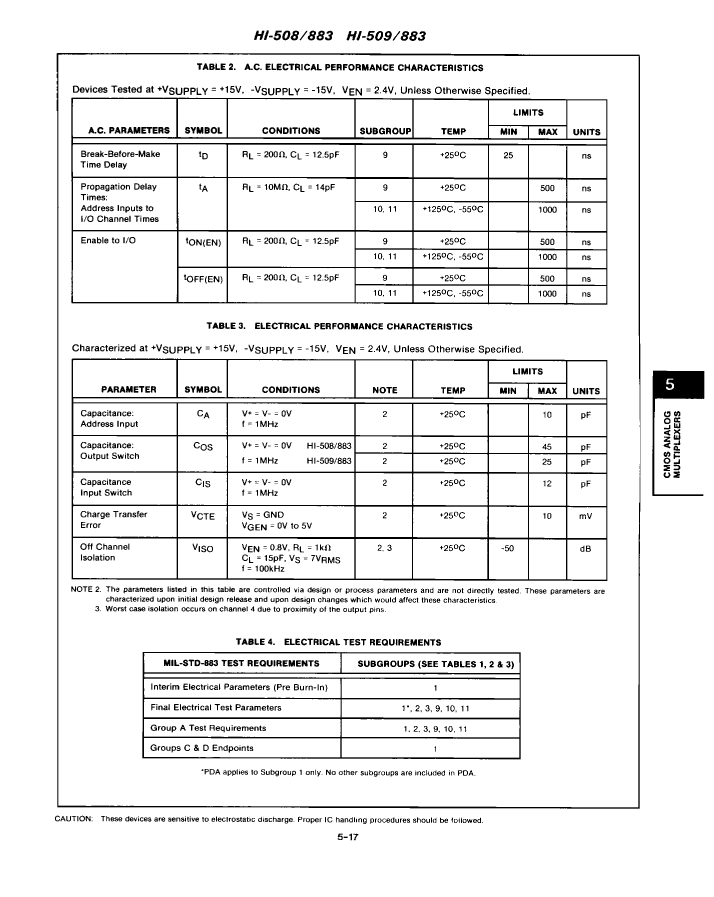

| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | DIP, |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | DIFFERENTIAL MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum on-state resistance (Ron) | 300 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Maximum disconnect time | 500 ns |
| Maximum connection time | 500 ns |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| 5962-8513109EA | 5962-8513109EX | 77052012X | 77052012A | JM38510/19008BEA | JM38510/19007BEA | |
|---|---|---|---|---|---|---|
| Description | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, CERAMIC, DIP-16 | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, CERAMIC, DIP-16 | Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CQCC20, CERAMIC, LCC-20 | Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CQCC20 | Single-Ended Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16 | Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | DIFFERENTIAL MULTIPLEXER | DIFFERENTIAL MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 | R-GDIP-T16 | S-CQCC-N20 | S-CQCC-N20 | R-GDIP-T16 | R-GDIP-T16 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of channels | 4 | 4 | 8 | 8 | 4 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 20 | 20 | 16 | 16 |
| Maximum on-state resistance (Ron) | 300 Ω | 300 Ω | 450 Ω | 300 Ω | 300 Ω | 300 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | YES | YES | NO | NO |
| Maximum disconnect time | 500 ns | 500 ns | 300 ns | 500 ns | 500 ns | 500 ns |
| Maximum connection time | 500 ns | 500 ns | 300 ns | 500 ns | 500 ns | 500 ns |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL |
| Maker | Harris | Harris | - | Harris | Harris | Harris |
| Base Number Matches | - | 1 | 1 | 1 | 1 | - |
