KTC3199-Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> KTC3199-Y

KTC3199-Y: DescriptionSmall Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size325KB，4 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric Compare View All

KTC3199-Y Overview

Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN

KTC3199-Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Micro Commercial Components (MCC)
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.15 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	120
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	80 MHz

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

KTC3199

KTC3199-O

KTC3199-Y

KTC3199-GR

KTC3199-BL

NPN General

Purpose Application

Features

•

High DC Current Gain: h

=70~700

Excellent h

Linearity: h

(0.1mA)/h

(2.0mA)=0.95(Typ)

Low Noise: NF=1.0dB(Typ.), 10dB(Max.)

Complementary to KTA1267

Case Material: Molded Plastic.

Classification Rating 94V-0

Marking: C3199

UL Flammability

TO-92S

Rating

5.0

150

400

-55 to +150

Unit

Maximum Ratings

Symbol

CEO

CBO

EBO

STG

Rating

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current

Emitter Current

Collector power dissipation

Junction Temperature

Storage Temperature

Electrical Characteristics @ 25

C Unless Otherwise Specified

Symbol

Parameter

Collector-Base Cutoff Current

=50Vdc,I

=0)

Emitter-Base Cutoff Current

=5.0Vdc, I

=0)

Min

---

Typ

---

Max

0.1

Units

uAdc

OFF CHARACTERISTICS

CBO

EBO

ON CHARACTERISTICS

DC Current gain

(1)

---

700

=2.0mAdc, V

=6.0Vdc)

CE(sat)

Collector-Emitter Saturation Voltage

---

0.1

0.25

=100mAdc, I

=10mAdc)

Transistor Frequency

---

=10Vdc, I

=1.0mAdc)

Collector Output Capacitance

---

2.0

3.5

=10Vdc, I

=0, f=1.0MHz)

Noise Figure

=6.0Vdc, I

=0.1mAdc, f=1.0kHz,

---

1.0

Rg=10KOHM)

(1) h

Classification O: 70~140, Y: 120~240, GR: 200~400, BL: 300~700

---

Vdc

MHz

DIM

DIMENSIONS

INCHES

MIN

MAX

.16

.12

.59

---

.02

.08

.20

MIN

4.00

3.00

15.00

0.45

2.00

5.00

---

MAX

NOTE

www.mccsemi.com

Revision: 4

1 of 4

2007/03/02

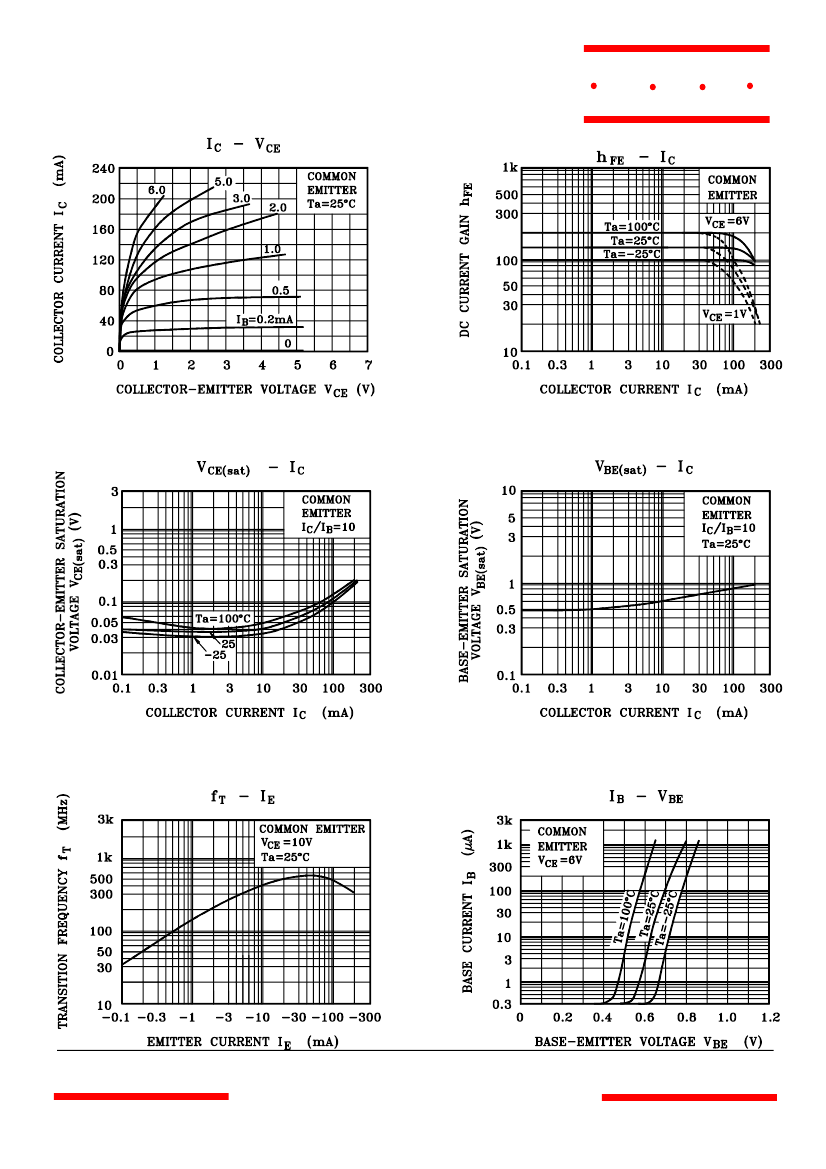

KTC3199-Y Related Products

	KTC3199-Y	KTC3199-BL	KTC3199-BL-A	KTC3199-BP	KTC3199-BL-B	KTC3199-Y-A	KTC3199-GR	KTC3199-O	KTC3199-Y-B
Description	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN	Transistor	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN	Transistor	Transistor	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN	Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, PLASTIC, TO-92S, 3 PIN	Transistor
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	,	CYLINDRICAL, O-PBCY-T3	,	,	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	,
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown	unknown	compliant	compliant	unknown
JESD-609 code	e0	e0	e0	e3	e0	e0	e0	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	-	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)	Micro Commercial Components (MCC)
Parts packaging code	TO-92	TO-92	-	TO-92	-	-	TO-92	TO-92	-
Contacts	3	3	-	3	-	-	3	3	-
ECCN code	EAR99	EAR99	-	EAR99	-	-	EAR99	EAR99	-
Other features	LOW NOISE	LOW NOISE	-	LOW NOISE	-	-	LOW NOISE	LOW NOISE	-
Maximum collector current (IC)	0.15 A	0.15 A	-	0.15 A	-	-	0.15 A	0.15 A	-
Collector-emitter maximum voltage	50 V	50 V	-	50 V	-	-	50 V	50 V	-
Configuration	SINGLE	SINGLE	-	SINGLE	-	-	SINGLE	SINGLE	-
Minimum DC current gain (hFE)	120	300	-	70	-	-	200	70	-
JEDEC-95 code	TO-92	TO-92	-	TO-92	-	-	TO-92	TO-92	-
JESD-30 code	O-PBCY-T3	O-PBCY-T3	-	O-PBCY-T3	-	-	O-PBCY-T3	O-PBCY-T3	-
Number of components	1	1	-	1	-	-	1	1	-
Number of terminals	3	3	-	3	-	-	3	3	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	ROUND	ROUND	-	ROUND	-	-	ROUND	ROUND	-
Package form	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL	-	-	CYLINDRICAL	CYLINDRICAL	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	-
Polarity/channel type	NPN	NPN	-	NPN	-	-	NPN	NPN	-
Certification status	Not Qualified	Not Qualified	-	Not Qualified	-	-	Not Qualified	Not Qualified	-
surface mount	NO	NO	-	NO	-	-	NO	NO	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	BOTTOM	BOTTOM	-	BOTTOM	-	-	BOTTOM	BOTTOM	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	-
Transistor component materials	SILICON	SILICON	-	SILICON	-	-	SILICON	SILICON	-
Nominal transition frequency (fT)	80 MHz	80 MHz	-	80 MHz	-	-	80 MHz	80 MHz	-
Base Number Matches	-	1	1	1	1	1	-	-	-
