53265-0829 datasheet, PDF - EEWORLD Datasheet

53265-0829: DescriptionBoard Connector, 8 Contact(s), Male, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size84KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53265-0829 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53265-0829	-	-	View	Buy Now

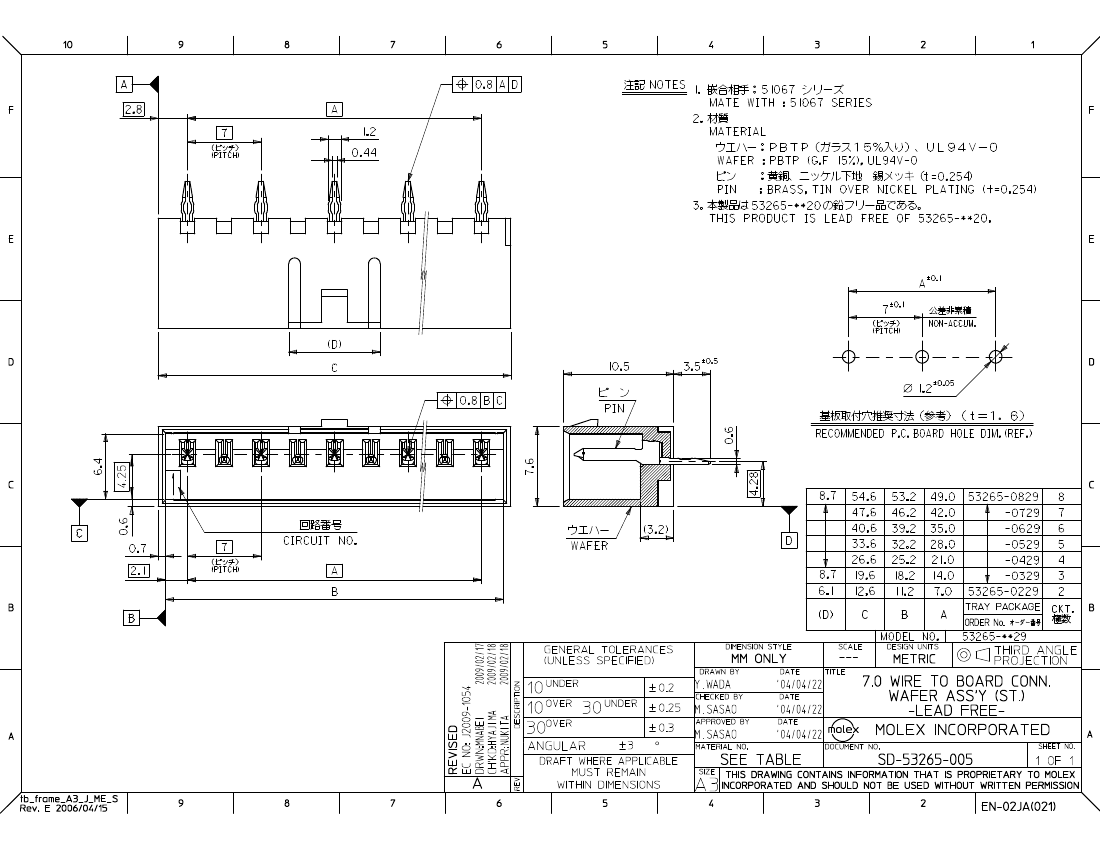

Board Connector, 8 Contact(s), Male, Press Fit Terminal, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
body width	0.299 inch
subject depth	0.413 inch
body length	2.15 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P8
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	40u inch
Guideline	CSA,TUV,UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Termination type	PRESS FIT
Total number of contacts	8

	53265-0829	53265-0729
Description	Board Connector, 8 Contact(s), Male, Press Fit Terminal, Receptacle,	Board Connector, 7 Contact(s), Male, Press Fit Terminal, Receptacle,
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compliant	compliant
body width	0.299 inch	0.299 inch
subject depth	0.413 inch	0.413 inch
body length	2.15 inch	1.874 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P8	S0P7
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V
Durability	30 Cycles	30 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω
JESD-609 code	e3	e3
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
Plating thickness	40u inch	40u inch
Guideline	CSA,TUV,UL	CSA,TUV,UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	8	7
