MSM5116100A-80TS-K datasheet, PDF

Datasheet> All Categories > storage> storage> MSM5116100A-80TS-K

MSM5116100A-80TS-K: DescriptionFast Page DRAM, 16MX1, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP-26/24; Categorystorage storage; File Size1MB，15 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM5116100A-80TS-K Overview

Fast Page DRAM, 16MX1, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP-26/24

MSM5116100A-80TS-K Parametric

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	TSOP
package instruction	TSOP2,
Contacts	26/24
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G24
length	17.14 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	24
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX1
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm

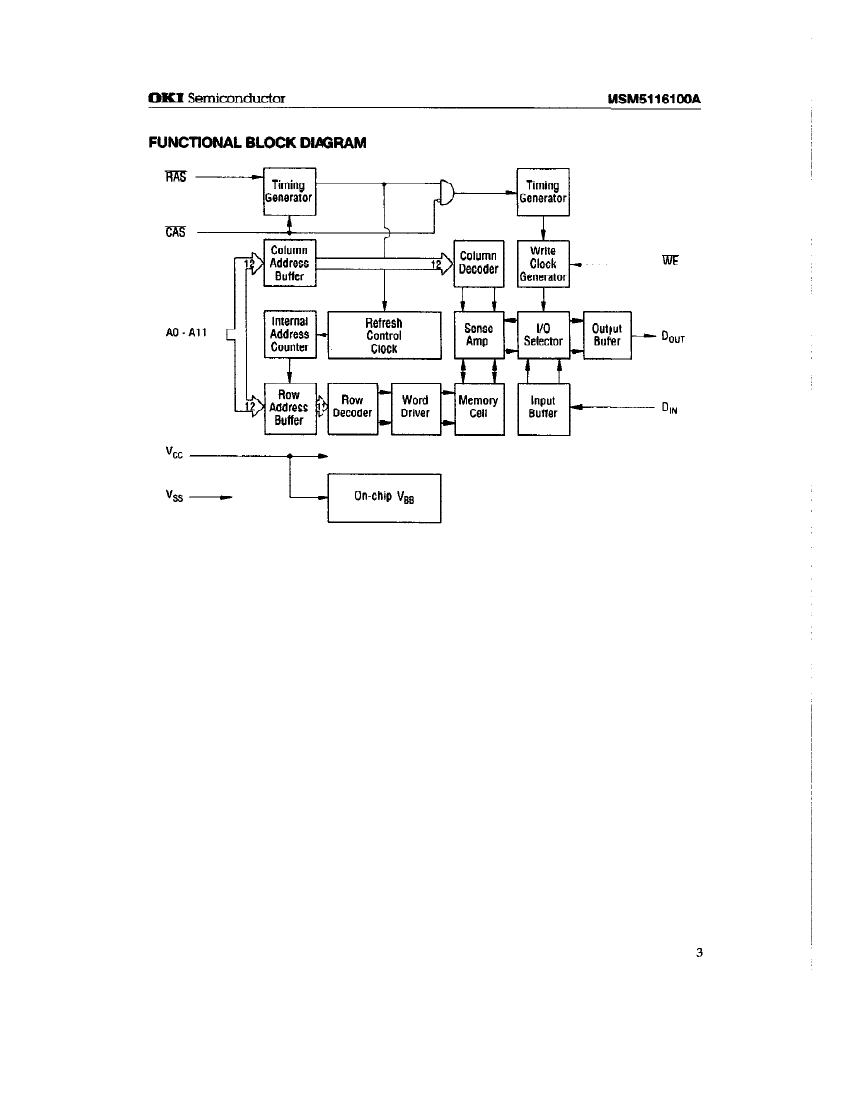

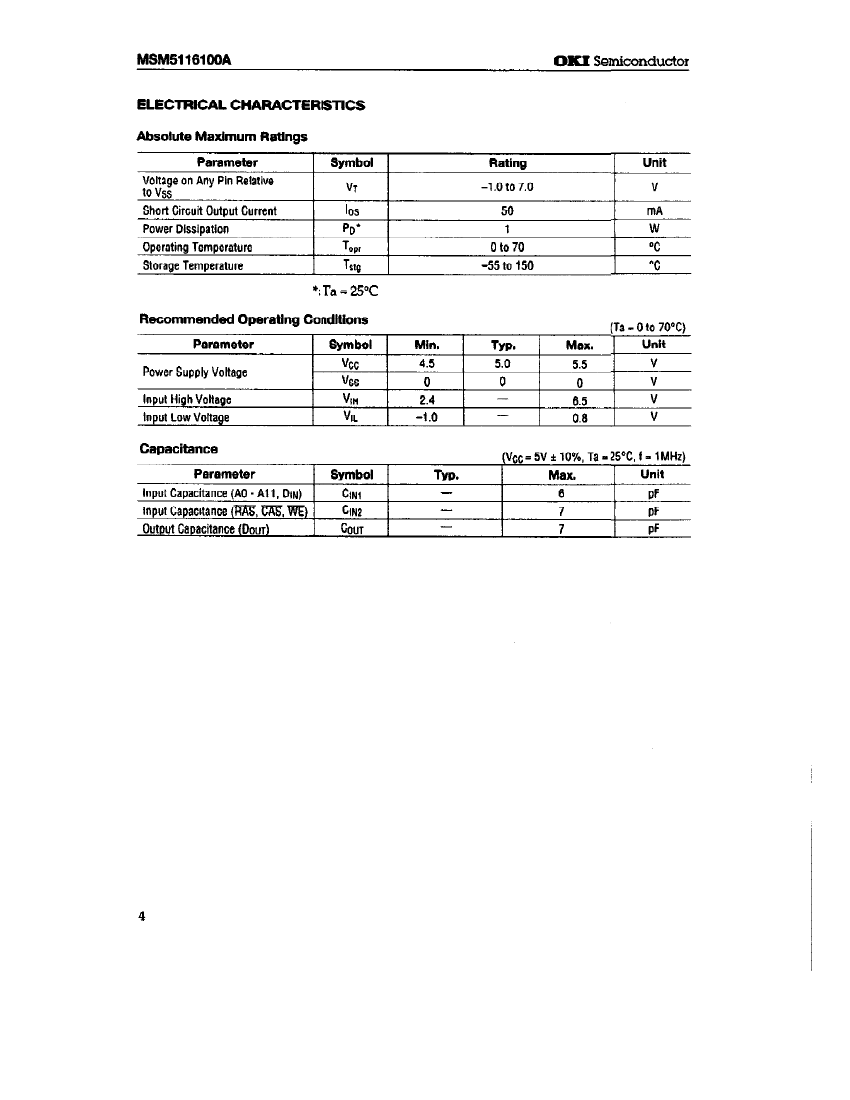

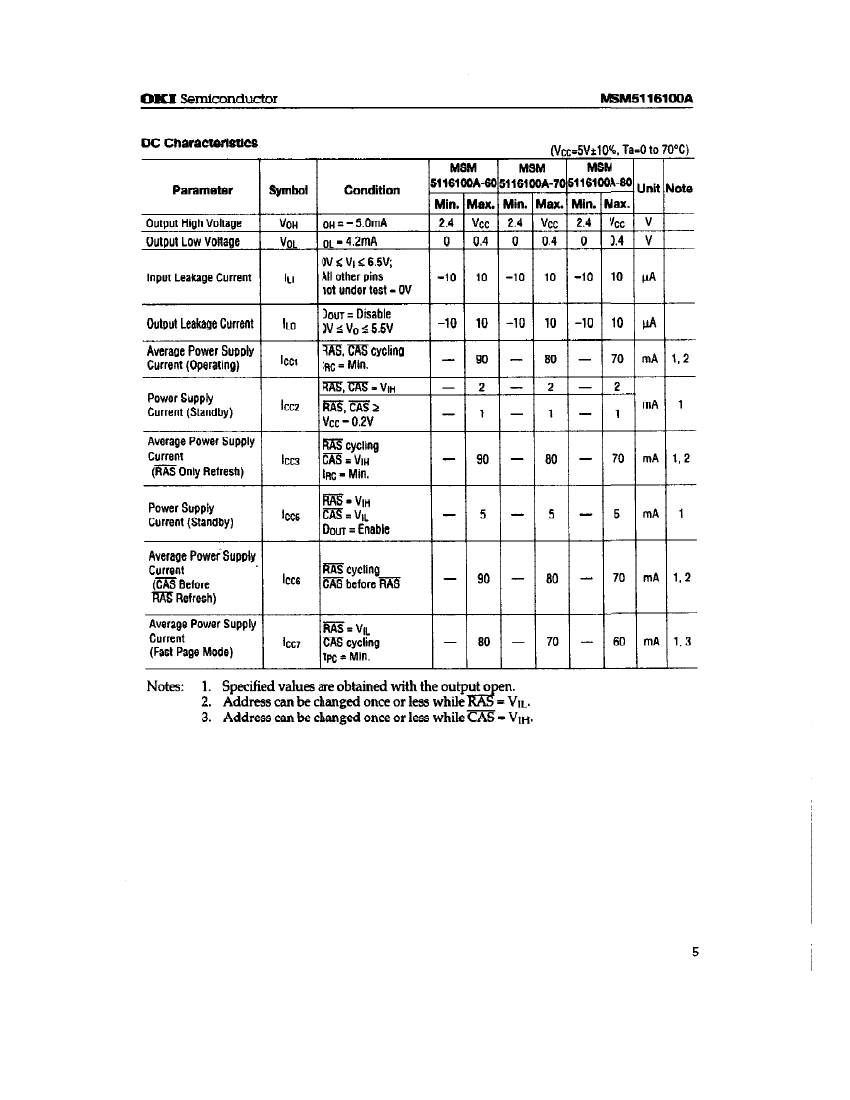

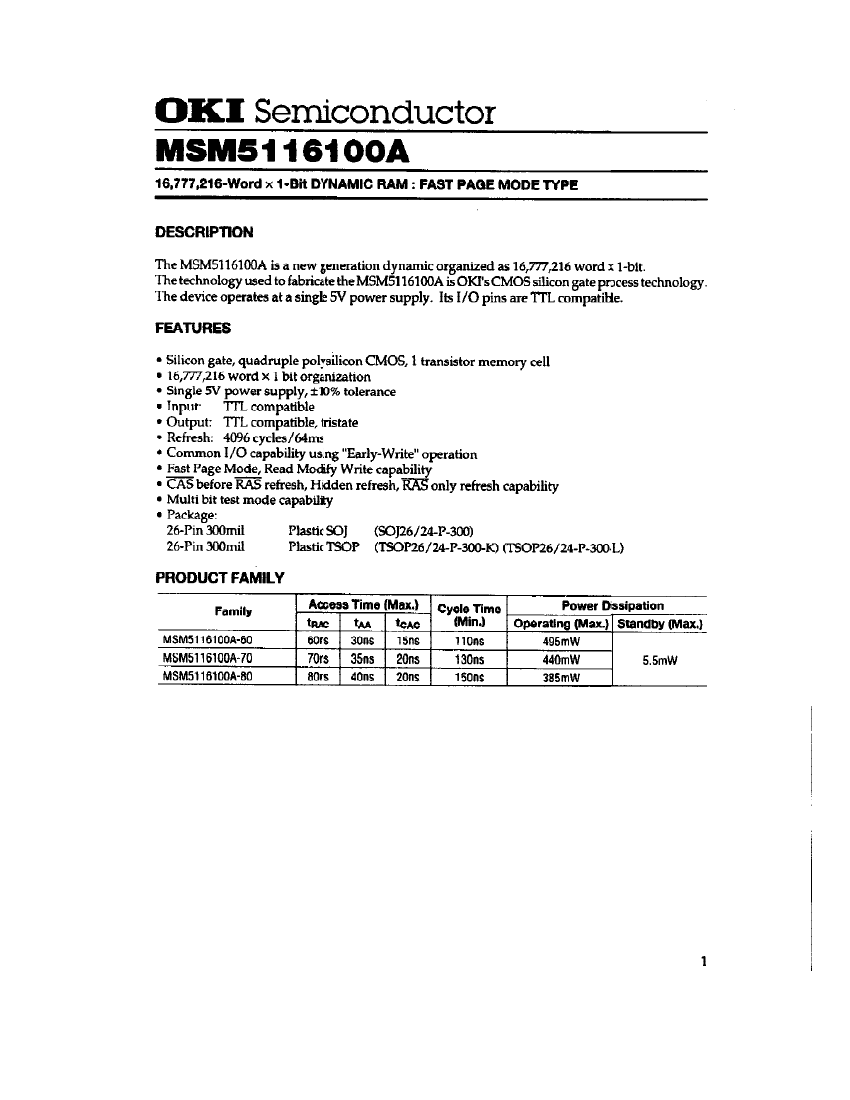

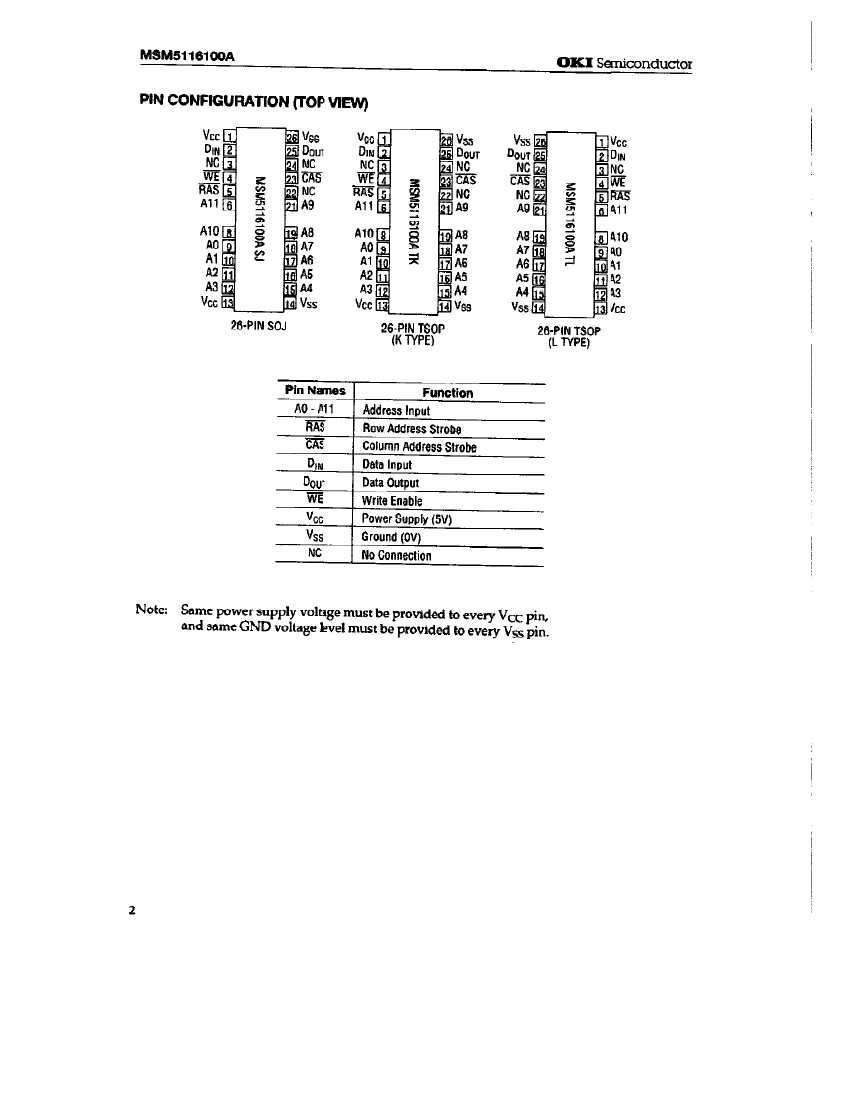

Preview

Download Datasheet

View All

MSM5116100A-80TS-K Related Products

	MSM5116100A-80TS-K	MSM5116100A-60JS	MSM5116100A-70TS-L	MSM5116100A-60TS-L	MSM5116100A-70TS-K	MSM5116100A-60TS-K	MSM5116100A-70JS	MSM5116100A-80TS-L	MSM5116100A-80JS
Description	Fast Page DRAM, 16MX1, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP-26/24	Fast Page DRAM, 16MX1, 60ns, CMOS, PDSO24, PLASTIC, SOJ-26/24	Fast Page DRAM, 16MX1, 70ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, REVERSE, TSOP-26/24	Fast Page DRAM, 16MX1, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, REVERSE, TSOP-26/24	Fast Page DRAM, 16MX1, 70ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP-26/24	Fast Page DRAM, 16MX1, 60ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, TSOP-26/24	Fast Page DRAM, 16MX1, 70ns, CMOS, PDSO24, PLASTIC, SOJ-26/24	Fast Page DRAM, 16MX1, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, REVERSE, TSOP-26/24	Fast Page DRAM, 16MX1, 80ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-26/24
Parts packaging code	TSOP	SOJ	TSOP	TSOP	TSOP	TSOP	SOJ	TSOP	SOJ
package instruction	TSOP2,	SOJ,	TSOP2-R,	TSOP2-R,	TSOP2,	TSOP2,	SOJ,	TSOP2-R,	0.300 INCH, PLASTIC, SOJ-26/24
Contacts	26/24	24	26/24	26/24	26/24	26/24	24	26/24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	60 ns	70 ns	60 ns	70 ns	60 ns	70 ns	80 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G24	R-PDSO-J24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-J24	R-PDSO-G24	R-PDSO-J24
length	17.14 mm	17.15 mm	17.14 mm	17.14 mm	17.14 mm	17.14 mm	17.15 mm	17.14 mm	17.15 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
word count	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words	16777216 words
character code	16000000	16000000	16000000	16000000	16000000	16000000	16000000	16000000	16000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1	16MX1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	SOJ	TSOP2-R	TSOP2-R	TSOP2	TSOP2	SOJ	TSOP2-R	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3.55 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	3.55 mm	1.2 mm	3.55 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	J BEND	GULL WING	GULL WING	GULL WING	GULL WING	J BEND	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	OKI	OKI	-	OKI	OKI	OKI	OKI	OKI	OKI
