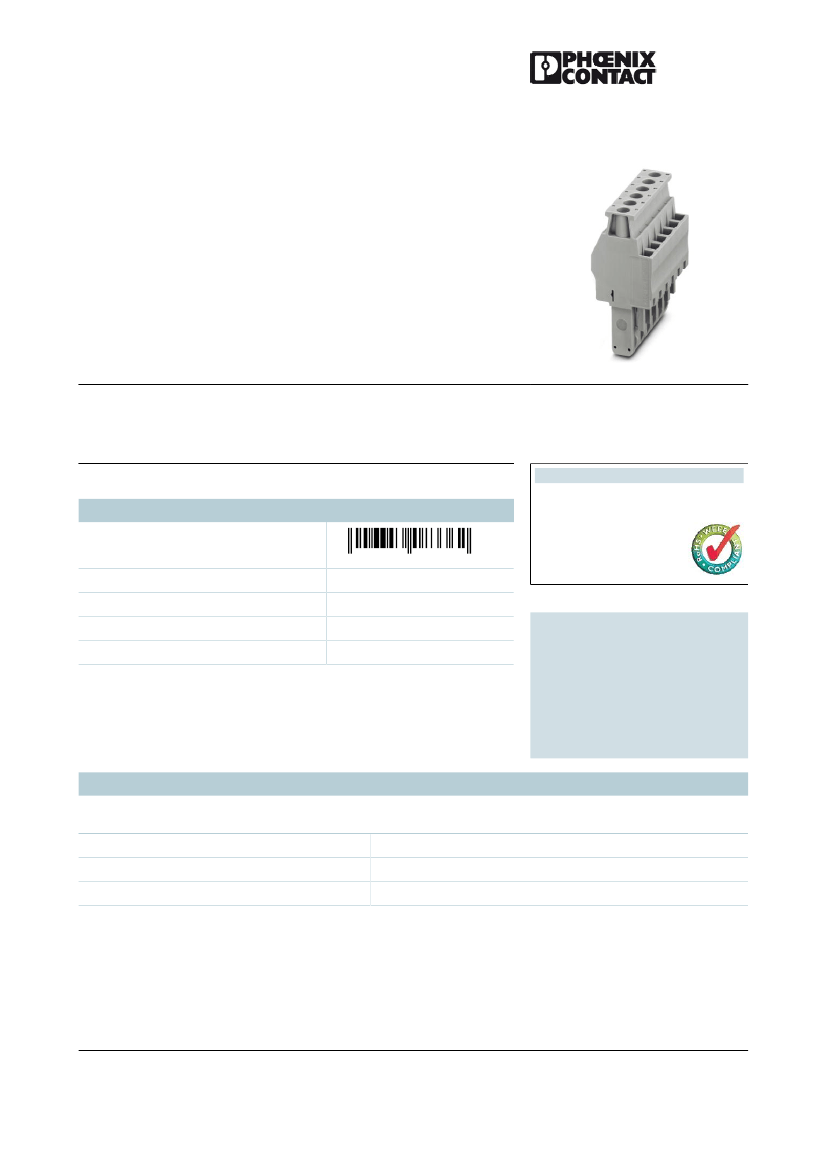

Extract from the online
catalog
UPBV 4/ 6
Order No.: 3045855
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045855
Connectors, Type of connection: Screw connection, Screw
connection, Number of positions: 6, Cross section: 0.14 mm² - 6 mm²,
AWG 26 - 10, Width: 37.2 mm, Height: 47 mm, Color: gray
Product notes
Commercial data
GTIN (EAN)
4
046356
083362
WEEE/RoHS-compliant since:
01/01/2006
sales group
Pack
Customs tariff
Catalog page information
A871
25 pcs.
85366990
Page 29 (NTK-2010)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Width
Length
Height
37.2 mm
21 mm
47 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 25, 2011
UPBV 4/ 6
Order No.: 3045855
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045855
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Number of positions
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
0.14 mm²
6 mm²
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.5 mm²
1 mm²
0.14 mm²
1.5 mm²
32 A (with 6 mm conductor cross section)
8 kV
3
III
I
IEC 61984
32 A
800 V
6
2
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 25, 2011
UPBV 4/ 6
Order No.: 3045855
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045855
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
Screw connection
9 mm
A4
M3
0.6 Nm
0.8 Nm
Certification
CUL, UL
Accessories
Item
Assembly
3040591
3040601
3045567
3045570
3045554
Bridges
3030336
3030242
3030255
3030349
3030271
Covers
3060432
DF-UPBV 2,5/ 4
Cover flange, Length: 45.7 mm, Width: 4.5 mm, Height: 32 mm,
Color: gray
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
PSH 3- 6
PSH 5-10
UPR/ 2
UPRZ
UPZ/ 2
Test plugs, Color: black
Test plugs, Color: black
Latching, Number of positions: 2, Color: orange
Latching, Number of positions: 2, Color: orange
Strain relief, Number of positions: 2, Color: black
Designation
Description
Plug/Adapter
0201689
MPS-IH BU
Insulating sleeve, Color: blue
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 25, 2011
UPBV 4/ 6
Order No.: 3045855
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045855
0201676
0201663
0201744
3030925
3030996
Tools
1205053
MPS-IH RD
MPS-IH WH
MPS-MT
PAI-4
PS-6
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip

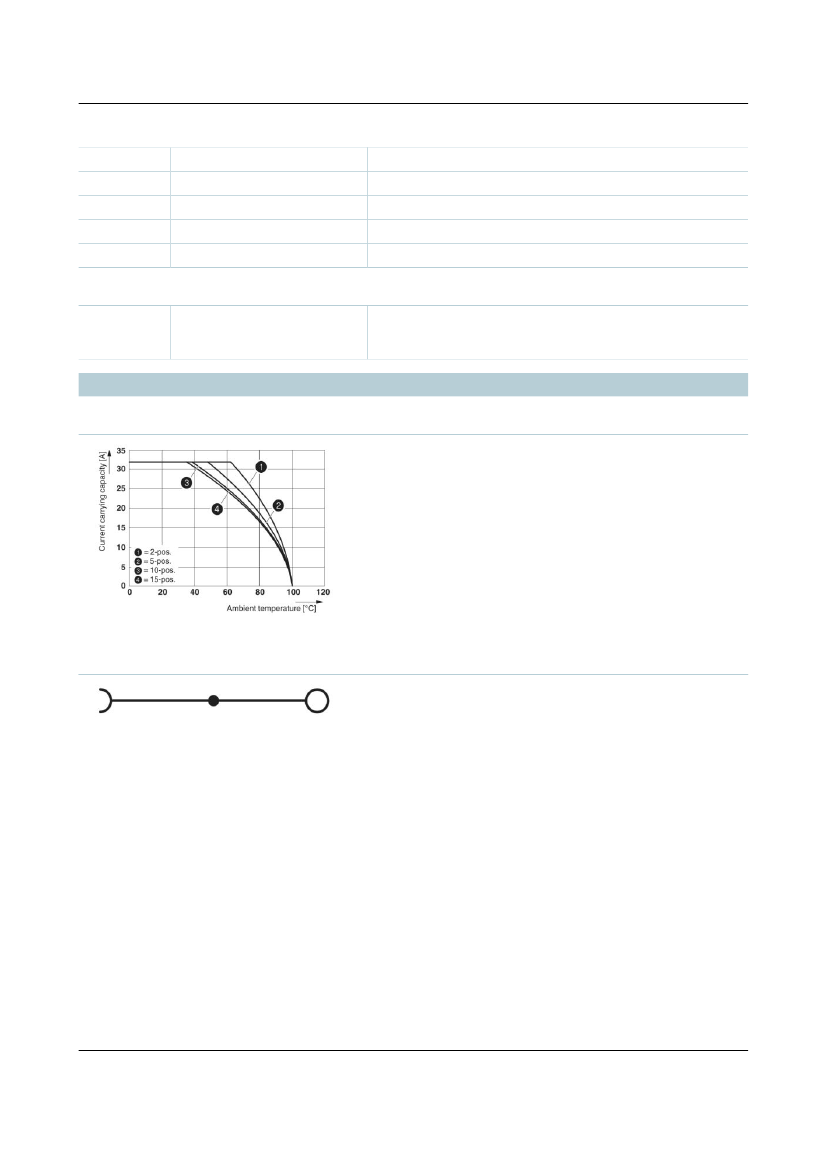

Diagrams/Drawings
Diagram
The figure shows the derating curve of the UT 4/1P... terminal
block in connection with the UPVB 4 connector
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 25, 2011
UPBV 4/ 6
Order No.: 3045855
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3045855
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 25, 2011
