SAS28D2A

Description
Trigger Output SSR, 1-Channel, 4000V Isolation
CategoryLED optoelectronic/LED    photoelectric
File Size207KB,2 Pages
ManufacturerTeledyne Technologies Incorporated
Websitehttp://www.teledyne.com/
Download Datasheet Parametric Compare View All

SAS28D2A Online Shopping

Suppliers Part Number Price MOQ In stock
SAS28D2A - - View Buy Now

SAS28D2A Overview

Trigger Output SSR, 1-Channel, 4000V Isolation

SAS28D2A Parametric

Parameter NameAttribute value
MakerTeledyne Technologies Incorporated
Reach Compliance Codecompliant
ConfigurationSINGLE WITH BUILT-IN SNUBBER
Maximum forward current0.027 A
Maximum insulation voltage4000 V
Number of components1
Maximum on-state current2 A
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
Optoelectronic device typesTRIGGER OUTPUT SSR

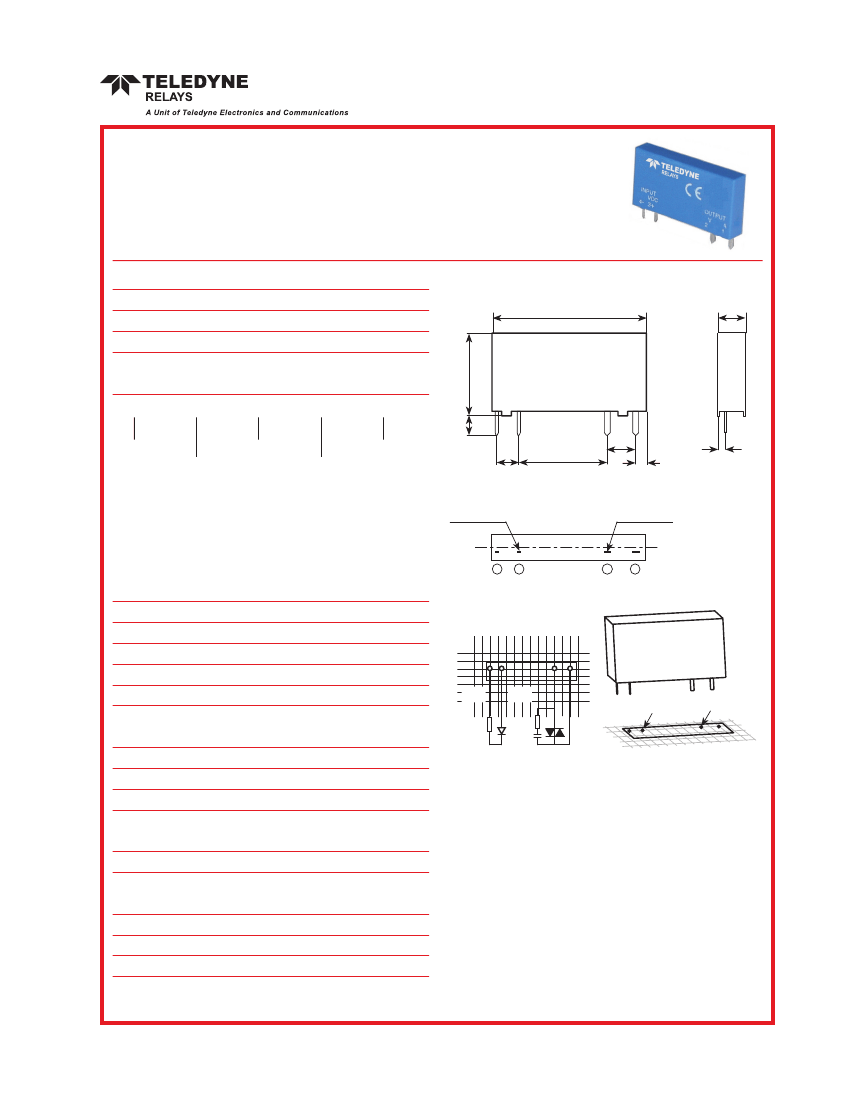

NEW Series SAS
Output to 2A, 12–280 Vac
Slim AC Solid-State Relay
FEATURES/BENEFITS
• Slim compact design
• Range for printed circuit board
• Integrated snubber
• High surge handling capability
• Pending UL recognition
Part Number
SAS28D2A
SAS28D2C
SAS28D2K
Description
2A, 12–280 Vac
2A, 12–280 Vac
2A, 12–280 Vac
0.59 (15)
MECHANICAL SPECIFICATION
1.10 (28)
0.20
(5)
Part Number Explanation
SAS
Series
28
D
2
A
0.14
(3.5)
Switch Type
2
Control Range
3
Line Voltage
1
Output Current – Amps
0.20
(5.1)
0.15
(3.8)
.65 (16.5)
0.08
(2)
0.04 x 0.015
(1 x 0.4)
Bottom view
0.06
(1.4)
NOTES
1) Line Voltage (nominal): 28 = 280 Vac
2) Switch Type: D = Zero-cross turn-on
3) Control Range: A = 3–10 Vdc; C = 7–20 Vdc; K = 18–32 Vdc
0.02 x 0.015
(0.5 x 0.4)
ELECTRICAL SPECIFICATIONS
(+20°C ambient temperature unless otherwise specified)
INPUT (CONTROL) SPECIFICATIONS
Min
Control Range
SAS28D2A
SAS28D2C
SAS28D2K
Input Current Range
SAS28D2A
SAS28D2C
SAS28D2K
Must Turn-Off Voltage
All relays
Input Resistance (Typical)
SAS28D2A
SAS28D2C
SAS28D2K
320
1100
3000
Ohms
Ohms
Ohms
1
Vdc
5.7
5.4
5.6
27
18
10.2
mA
mA
mA
3
7
18
10
20
32
Vdc
Vdc
Vdc
Max
Units
(–) 4
3 (+)
(+) 2
1 (–)
INPUT
Grid 0.1" (2.54)
Top view
OUTPUT
A2 –
A1 +
2 - Ø 0.03 (0.8)
2 - Ø 0.04 (1.1)
Weight: 0.28 oz. (8g)
Dimensions in inches (mm)
0.15
0.65
0.20
PCB Layout
Figure 1
© 2003 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
SAS Page 1
SAS\062003\Q1

SAS28D2A Related Products

SAS28D2A SAS28D2C SAS28D2K
Description Trigger Output SSR, 1-Channel, 4000V Isolation Trigger Output SSR, 1-Channel, 4000V Isolation Trigger Output SSR, 1-Channel, 4000V Isolation
Reach Compliance Code compliant compliant compliant
Configuration SINGLE WITH BUILT-IN SNUBBER SINGLE WITH BUILT-IN SNUBBER SINGLE WITH BUILT-IN SNUBBER
Maximum forward current 0.027 A 0.018 A 0.0102 A
Maximum insulation voltage 4000 V 4000 V 4000 V
Number of components 1 1 1
Maximum on-state current 2 A 2 A 2 A
Maximum operating temperature 80 °C 80 °C 80 °C
Minimum operating temperature -20 °C -20 °C -20 °C
Optoelectronic device types TRIGGER OUTPUT SSR TRIGGER OUTPUT SSR TRIGGER OUTPUT SSR
Maker Teledyne Technologies Incorporated - Teledyne Technologies Incorporated
