CNY17S-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CNY17S-2

CNY17S-2: DescriptionTransistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size304KB，11 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

CNY17S-2 Overview

Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6

CNY17S-2 Parametric

Parameter Name	Attribute value
Maker	TEMIC
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknown
Other features	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE
Coll-Emtr Bkdn Voltage-Min	32 V
Configuration	SINGLE
Nominal current transfer ratio	63%
Maximum dark power	100 nA
Maximum forward current	0.06 A
Maximum insulation voltage	3750 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

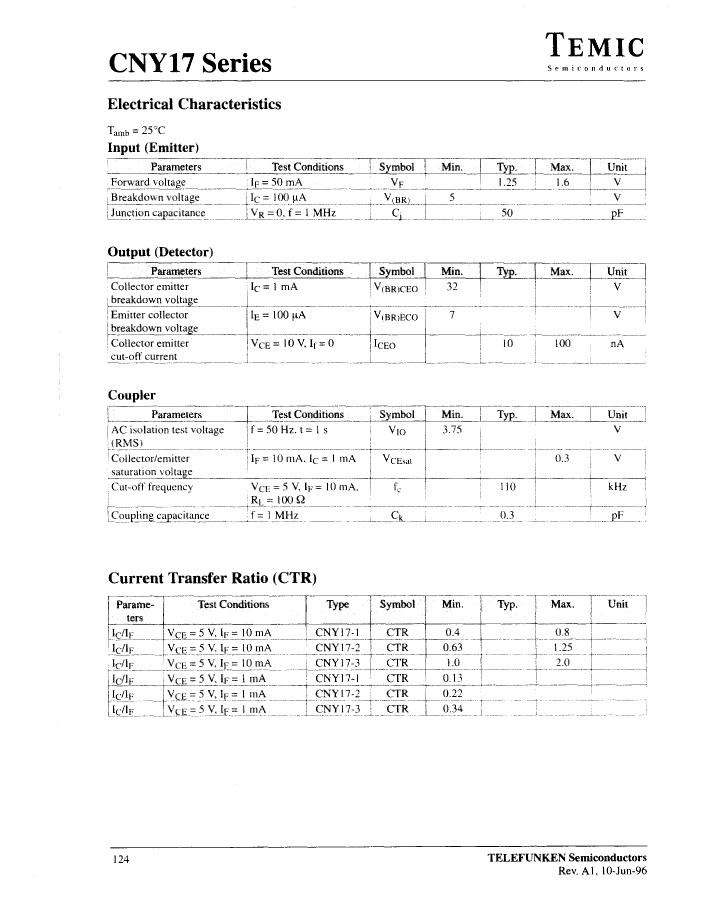

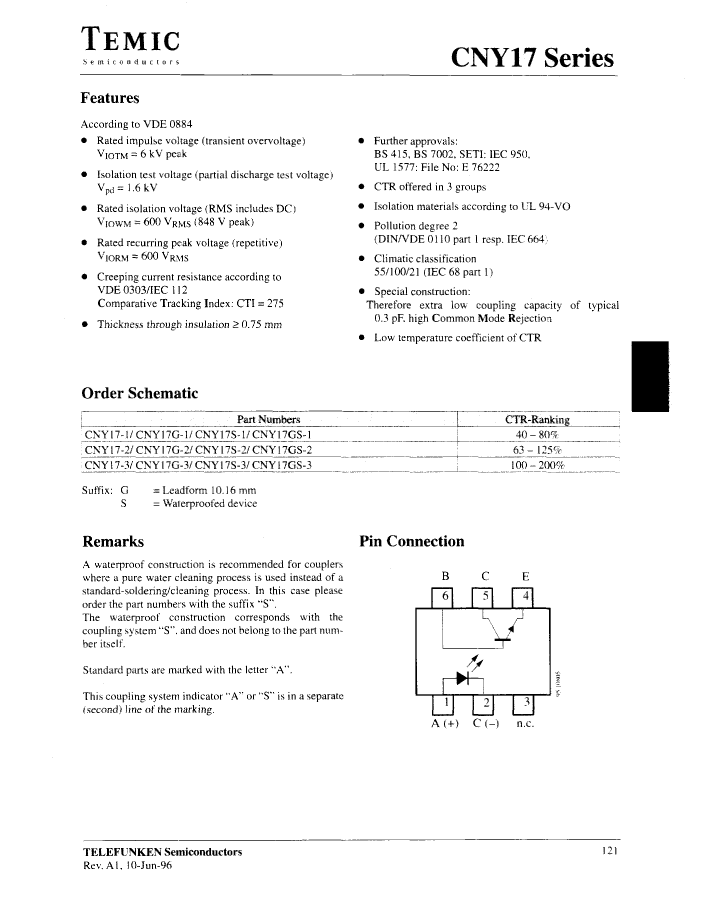

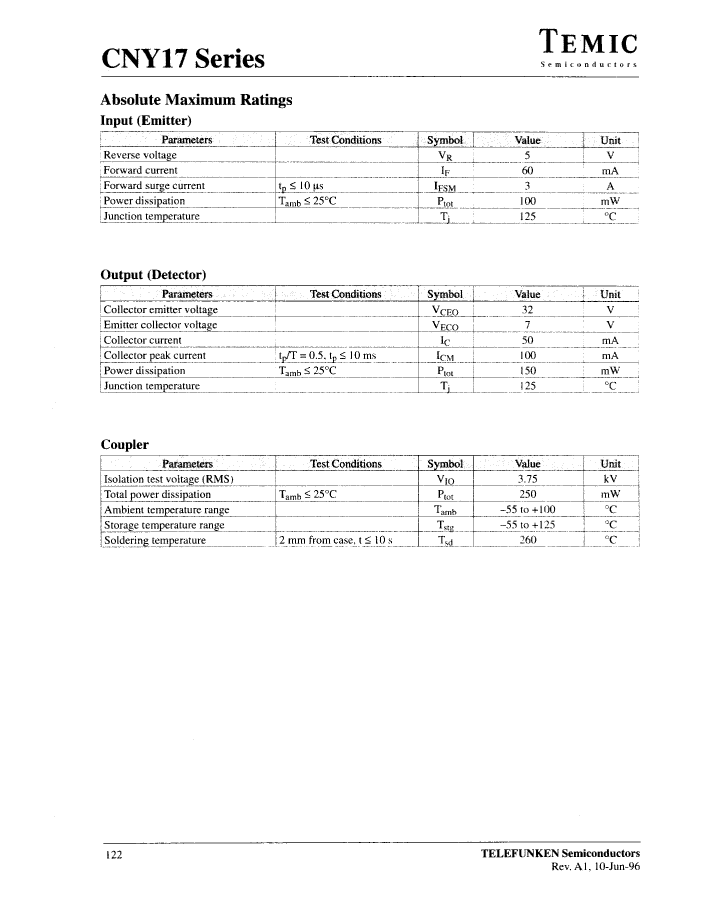

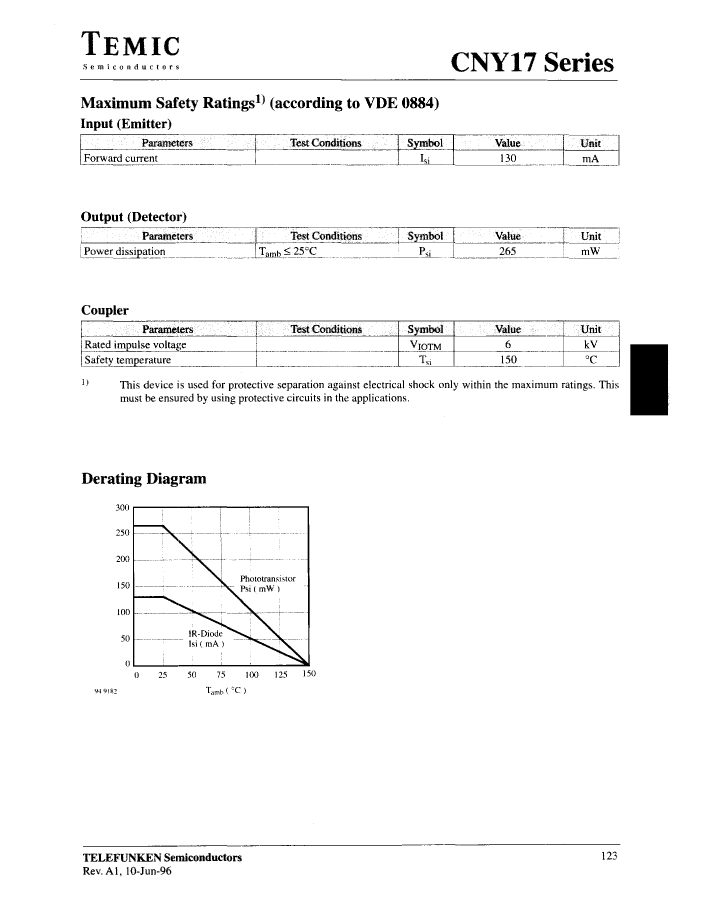

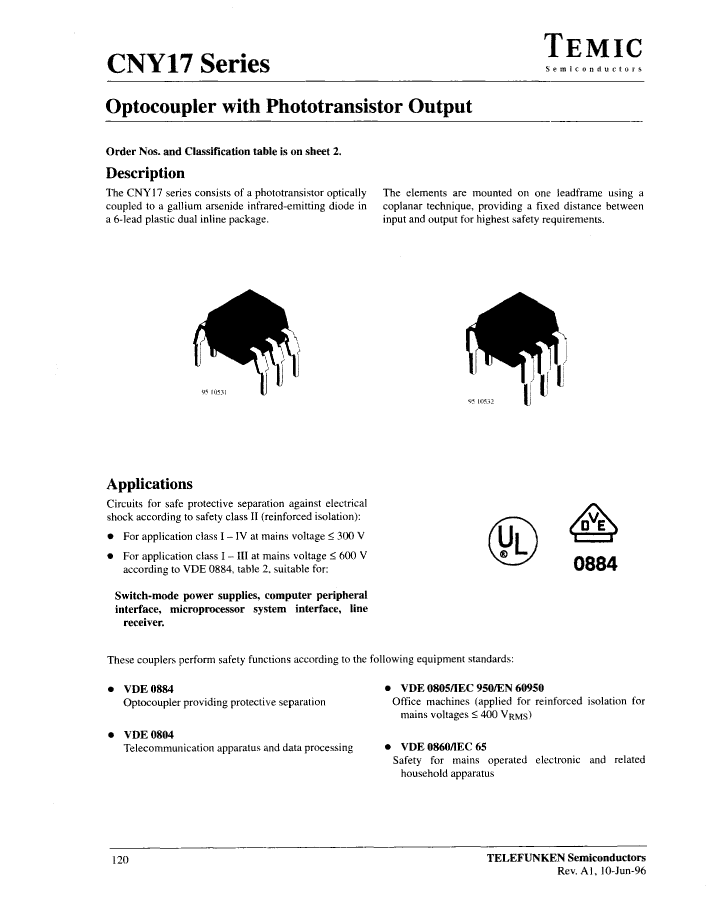

Preview

Download Datasheet

View All

CNY17S-2 Related Products

	CNY17S-2	CNY17GS-2	CNY17S-3	CNY17S-1	CNY17GS-3	CNY17GS-1
Description	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 3750V Isolation, PLASTIC, DIP-6
package instruction	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Other features	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE	VDE APPROVED, UL RECOGNIZED, MICROPROCESSOR SYSTEM INTERFACE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	63%	63%	100%	40%	100%	40%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	3750 V	3750 V	3750 V	3750 V	3750 V	3750 V
Number of components	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Maker	TEMIC	TEMIC	-	TEMIC	TEMIC	TEMIC
Coll-Emtr Bkdn Voltage-Min	32 V	32 V	32 V	32 V	32 V	-
