285-691 datasheet, PDF - EEWORLD Datasheet

285-691: DescriptionModular Terminal Block, 120A, 35mm2, 2 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size196KB，2 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric Compare View All

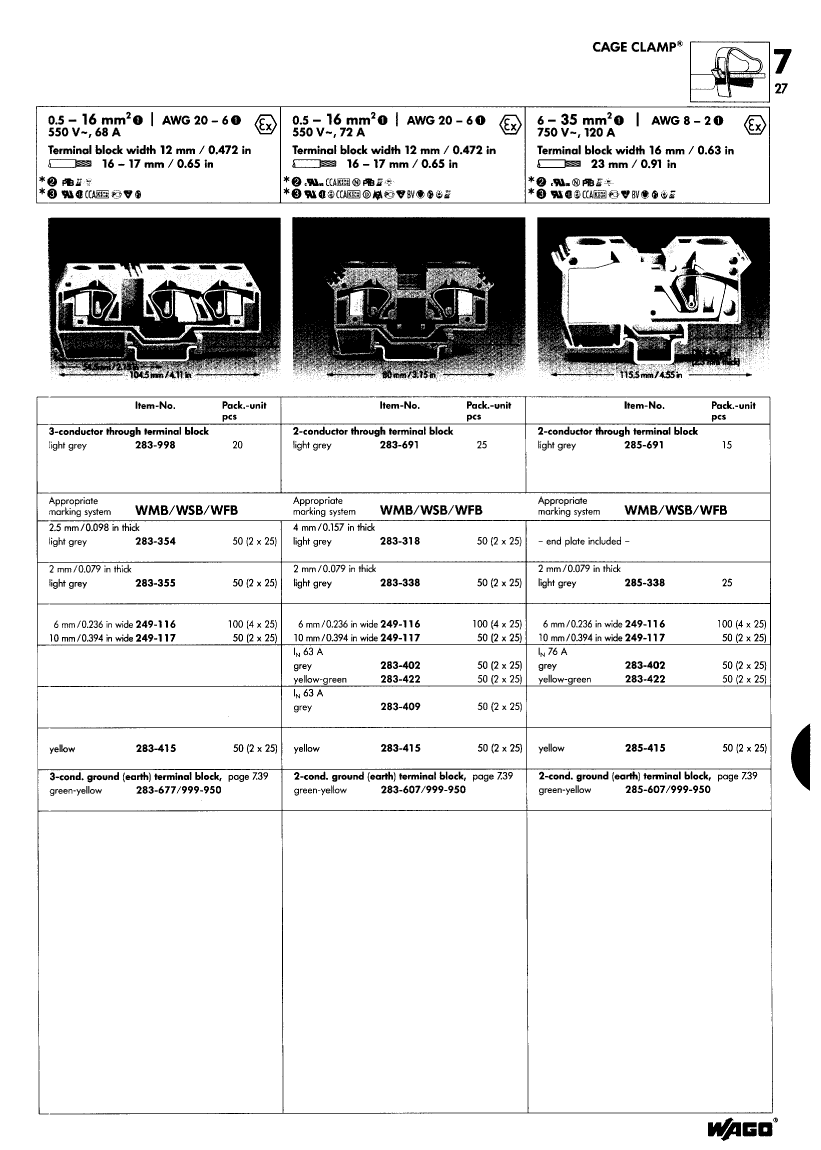

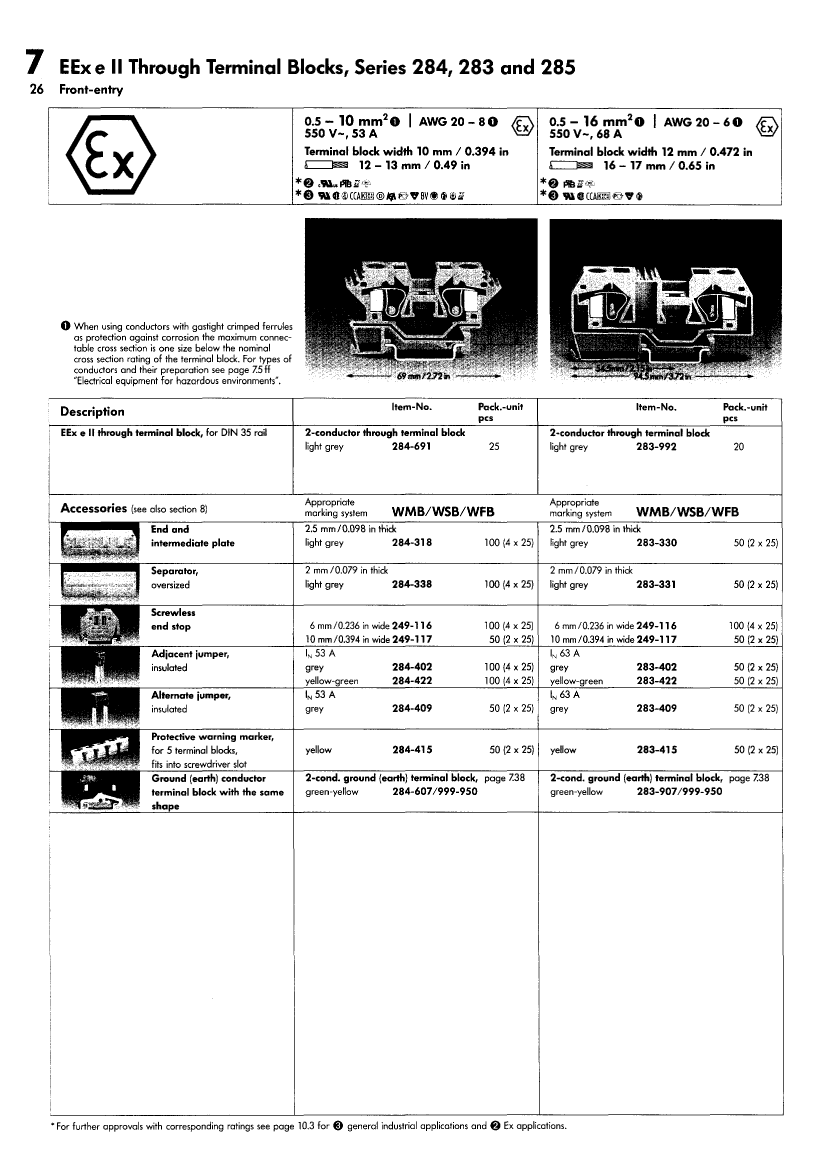

285-691 Overview

Modular Terminal Block, 120A, 35mm2, 2 Row(s), 1 Deck(s)

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	CAGE CLAMP
Fastening method	SPRING LOADED
Installation type	DIN RAIL
Number of layers	1
Rows	2
Number of channels	2
Rated current	120 A
Rated voltage	750 V
safety certificate	UL; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	35 mm2
Wire gauge	2 AWG
Base Number Matches	1

	285-691	284-691	283-691	283-998	283-992
Description	Modular Terminal Block, 120A, 35mm2, 2 Row(s), 1 Deck(s)	Modular Terminal Block, 53A, 10mm2, 2 Row(s), 1 Deck(s)	Modular Terminal Block, 72A, 16mm2, 2 Row(s), 1 Deck(s)	Modular Terminal Block, 68A, 16mm2, 3 Row(s), 1 Deck(s)	Modular Terminal Block, 68A, 16mm2, 2 Row(s), 1 Deck(s)
Reach Compliance Code	unknow	compli	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	CAGE CLAMP	CAGE CLAMP	CAGE CLAMP	CAGE CLAMP	CAGE CLAMP
Fastening method	SPRING LOADED	SPRING LOADED	SPRING LOADED	SPRING LOADED	SPRING LOADED
Installation type	DIN RAIL	DIN RAIL	DIN RAIL	DIN RAIL	DIN RAIL
Number of layers	1	1	1	1	1
Rows	2	2	2	3	2
Number of channels	2	2	2	3	2
Rated current	120 A	53 A	72 A	68 A	68 A
Rated voltage	750 V	550 V	550 V	550 V	550 V
safety certificate	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Conductor cross section	35 mm2	10 mm2	16 mm2	16 mm2	16 mm2
Wire gauge	2 AWG	8 AWG	6 AWG	6 AWG	6 AWG
Base Number Matches	1	1	1	1	1
