609-9P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 609-9P

609-9P: DescriptionD Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

609-9P Overview

D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle

609-9P Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.493 inch
subject depth	0.795 inch
body length	1.216 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	HOLE .125
Installation type	CABLE AND PANEL
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Housing size	1/E
Termination type	IDC
Total number of contacts	9
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

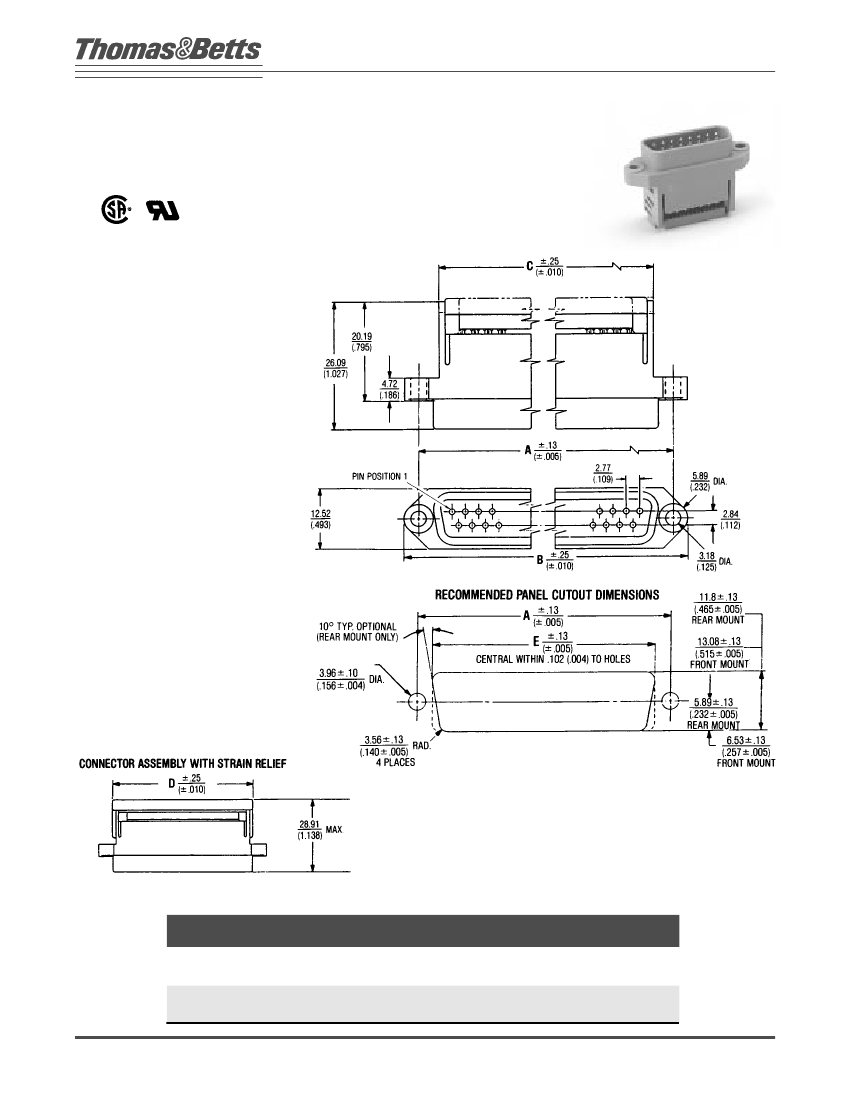

609-9P Preview

IDC Systems

D-Subminiature

PLASTIC SHELL “D”

CONNECTORS

9-37 POSITION PINS

LR92984

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass filled thermoplastic

rated UL 94V-0

OLOR

Blue

ONTACT

ATERIAL

Beryllium copper; 30µ inches

min. gold over 50µ inches min. nickel in contact

zone; tin/lead over nickel in termination area.

LECTRICAL

ROPERTIES

URRENT

ATING

1 Amp

NSULATION

ESISTANCE

>1000 Megohms

IELECTRIC

TRENGTH

>1000 VRMS at sea level

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55˚C TO 125°C

PPLICATION

OOLING

AND

OOL

use Die

ENCH

RESS

(

MANUAL

)

use Platen

use Base Plate

ENCH

RESS

(

PNEUMATIC

)

use Platen

use Base Plate

779-2166(9–37)

779-2167(50)

779-3200

779-3139(9–37)

779-3130(50)

779-3500XT

779-3166(9–37)

779-3160(50)

CCESSORIES

See page 80, 83-84

ABLE

See pages 108-120

Ordering Information

CATALOG

NUMBERS

609-9P

609-15P

609-25P

609-37P

NO.

OF POS.

24.99 (.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500)

DIMENSIONS IN MM (INCHES)

16.23 (.639)

24.54 (.966)

38.38 (1.511)

54.99 (2.165)

18.95 (.746)

27.25 (1.073)

41.02 (1.615)

57.61 (2.268)

19.46 (.766)

27.76 (1.093)

41.61 (1.638)

58.09 (2.287)

30.89 (1.216)

39.22 (1.544)

52.93 (2.084)

69.39 (2.732)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

609-9P Related Products

	609-9P	609-15P	609-25P	609-37P
Description	D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle	D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .125-.137, Receptacle
Maker	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.493 inch	0.493 inch	0.493 inch	0.493 inch
subject depth	0.795 inch	0.795 inch	0.795 inch	0.795 inch
body length	1.216 inch	1.544 inch	2.084 inch	2.732 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO	NO
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	HOLE .125	HOLE .125	HOLE .125	HOLE .125
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Number of connectors	ONE	ONE	ONE	ONE
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Housing size	1/E	2/A	3/B	4/C
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	9	15	25	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	-
JESD-609 code	e0	e0	e0	-
Installation option 2	-	NON-THREADED	NON-THREADED	NON-THREADED
